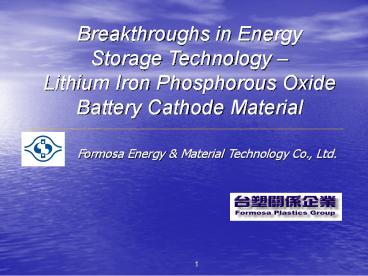

Breakthroughs in Energy Storage Technology
Lithium Iron Phosphorous OxideBattery Cathode
Material
Formosa Energy Material Technology Co., Ltd.
2

Overview of Formosa Plastics Group

• Operating Revenue (US) US 67.1 Billion
  (2008)
• Employees 94,268
• Worldwide Affiliates gt 50 ( Taiwan, China, USA
  etc. )

Major Business Petrochemicals
(Gasoline, Oil etc. ) Plastic Raw
Materials (PVC,PE, ABS etc. ) Fibers
Textiles ( Polyester, Nylon, Rayon etc.)
Electronic Materials (Battery
Material,LED,CCL,
PCB, DRAM, and Silicon wafer)

• Social Contributions Education Medical
• Three Universities
• Seven Hospitals

3
The Organization Chart of Formosa Plastics Group
Formosa Plastics Group
Executive Board
Nan-Ya Plastics Corporation
Formosa Chemical Fiber Corp.
Formosa Petrochemical Corporation
Formosa Plastics Corporation
Changs Ascending Enterprise Co., Ltd.
Formosa Biomedical Technology Corp.
Formosa Energy Material Technology Co., Ltd.
4
Overview of Formosa Energy Material
Technology Co., Ltd.

• Location
• -Head Office 5F 201 Tunghwa N. Rd, Taipei
• -Plant 359 Sec 3 Chungsun Rd, ChangHua
• Product Battery Cathode Material
• Patent US Patent 7494744
• Production Capacity 4,800 MT/yr in 2009
• Employees 121 people

5
The Vision And The Mission

• The Vision
• The clean and green energy source provider
• The Mission
• A world leader in supplying Li-iron based
  materials possessing high quality with high
  volume for high power and bulk energy storage
  applications

6
Technology Evolutions Milestones
Mass production of affordable bulk energy storage
system for family and industrial applications.
Heavy duty power system successfully developed in
2007. Example for fork lift and vehicle starter
2009
Success in the development of SFCM material in
2005
Success in the mass production of SFCM, in 2006
Success in the mass production of lithium
manganese series, lithium nickel cobalt series,
and mixed oxide cathode materials in 2003.
Major supplier of cobalt based cathode material
to EONE-MoLi in 2004 (18650 batteries)
Success in the development of new generation
polymer battery without the use of conventional
separator in 2001, patent rights worldwide applied
Novel anode material developed successfully in
2002
Advanced nickel based electrode material patent
awarded by USPTO in 2000
Material development Started from 1994
Over 20 journal publications and 10 patents were
published in the area of advanced materials and
batteries
7
Why Lithium Iron System?
Characteristics of lithium iron batteries 1.
High weight energy density 100Wh/kg, much
better than lead acid 40Wh/kg 2. High rate
capability Up to 30C for surge, 35C for
continuous use 3. Cyclability Minimum 2000
cycles with 70 capacity remaining Potential
to 5000 cycles 4. Safety consideration The
best in lithium iron batteries, compatible with
lead acids 5. Environmental consideration No
toxic component and is RoHS compatible Waste
reduction eventually owing to prolonged cycle
life 6. Price consideration Expected to be
comparable with lead acids 7. Availability
Materials required are the most abundant elements
in the world
8
Performance of Supreme Ferrous Cathode Material
(SFCM ) Capacity

• Test conditions
• Three electrode test cell
• C/10 charge/discharge
• Lithium reference
• 1416mg/cm2

9
Features of SFCM

• High in materials consistency 1303 mAh/g
• Excellent in high rate capability continuous
  gt10C durable
• 3. High in solid content 55wt or more
• 4. High in active material (gt95wt)
• - No additional carbon black needed,
• - Binder less than 5 wt
• 5. High in rolling density Normally gt 2.2g/cm3
• 6. Excellent slurry characteristics Free flowing

• at high solid content (55 wt)
• 7. Production efficient
• - Allows fast coater speed owing to less solvent
  content
• - Excellent adherence to the substrate
• (No further treatment for substrates required
  )
• - Water based binder/solvent system allowed
• -- As a result, high yield, high performance
• batteries can be obtained at low cost !

10
(No Transcript)
11
Current Status of SFCM

• Materials patent has been applied worldwide
  including US and Japan
• Supreme Ferrous Cathode Material (SFCM)
• Current Production 480 Tons / Year
• A New plant will deliver 4800 Tons / Year in 2009
• (World 1 Manufacturer and Supplier)

12
Example I. Full Cell Test (18650 Cylindrical
Cell, 1200mAh)
18650
Conventional standard for lap tops
13
Example I. Full Cell Test (18650 Cylindrical
Cell, 1200mAh)
18650 Cell with LiFe Cathode
14
Example I. Full Cell Test (18650 Cylindrical
Cell, 1200mAh)
18650 Cell with LiFe Cathode
LiFe
15
Example II. Full Cell Test (40155 Cylindrical
Cell, 12Ah)
Conventional standard for lap tops
16
Example II. Full Cell Test (40155 Cylindrical
Cell, 12Ah)
Rate Capability Test
17
Example II. Full Cell Test (40155 Cylindrical
Cell, 12Ah)
Overcharge Test
Overcharge Test
Voltage (V), Current (A)
Temperature (oC)
Volt(V)
Current (A)
Temp (oC)
18
Example II. Full Cell Test (40155 Cylindrical
Cell, 12Ah)
Short Circuit Test
Short Circuit Test
Temperature (oC)
Voltage (V)
Volt(V)
Temp (oC)
19
Example II. Full Cell Test (40155 Cylindrical
Cell, 12Ah)
Penetration Test
Penetration Test
Temperature (oC)
Voltage (V)
Volt(V)
Temp (oC)
20
Comparisons of SFCM with Lead-Acid Batteries
Cycling Behavior (1st 10th cycles)
Weight energy density 12V60Ah/16kg 45
Wh/kg Volume energy density 12V60Ah/7.627L 94
Wh/L
21
Examples For Various Applications
Product Type Characteristics
Home Energy Storage System (Status UPC System With 30kWh Capability Ready) Deep Cycling Affordable, Easy For Maintenance, Long Service Life
Vehicle Starting Battery (Status Ready) Light Weight (4kg vs. 15kg) , Gas Saving (1520)
Fork Lift Battery and Golf Cart (Status Ready) Heavy Duty Durable, Short Time Charging, Long Service Life
Home Use Applications (e.g. Lawn Mower, Power Tools, E-bike, Cordless appliances etc.) Light Weight, Ready For OEM or ODM
Battery for Lighting Application (Status Ready) High Temp. Durability, High Efficiency, Long Service Life
HEV and EV Use Battery (Status Partnership Needed) Light Weight, Smart Control of Battery and Module, SOC, SOH, SOF Strategy Ready
UPS Battery System (Status 80kVA Ready) High Power Capability, Long Service Life (e.g. 12 years) With Partial Replacement Only
22
Other Successful Examples For Various Applications
23
Successful Examples for Various Applications
Heavy Duty Fork Lifts
Vehicle Starter Battery
24
Successful Examples for Various Applications
36 Hole Golf Cart (Club Car)
25
Successful Examples for Various Applications
Battery Type Road Slope Max Speed Voltage Current Vehicle Weight Battery Weight Load Remarks
Battery Type Road Slope km/hr (V) (A) kg Remarks
LiFe BatDC 48V60 Ah(9.6 mO) Flat 19.60 52.03 18.8 305 60 400765 Using Road Slope Simulator
LiFe BatDC 48V60 Ah(9.6 mO) 6o 8.20 50.80 61.4 305 60 400765 Using Road Slope Simulator
LiFe BatDC 48V60 Ah(9.6 mO) 14o 5.30 49.23 116.0 305 60 400765 Using Road Slope Simulator
LiFe BatDC 48V60 Ah(9.6 mO) 16.7o 4.29 48.00 130.0 305 60 400765 Real Road Test
LiFe BatDC 48V60 Ah(9.6 mO) 19.29o 3.13 47.60 142.0 305 60 400765 Real Road Test
LiFe BatDC 48V60 Ah(9.6 mO) 22.78o 2.34 47.00 163.0 305 60 400765 Real Road Test
LiFe BatDC 48V60 Ah(9.6 mO) 26.56o 2.30 45.00 218.0 305 60 400765 Real Road Test
Lead Acid BatDC 48V190 Ah(26.6 mO) Flat 14.80 49.52 23.4 305 190 400895 Using Road Slope Simulator
Lead Acid BatDC 48V190 Ah(26.6 mO) 6o 7.00 46.52 74.1 305 190 400895 Using Road Slope Simulator
Lead Acid BatDC 48V190 Ah(26.6 mO) 14o 3.50 44.93 134.4 305 190 400895 Using Road Slope Simulator
Lead Acid BatDC 48V190 Ah(26.6 mO) 16.7o 3.98 43.60 185.0 305 190 400895 Real Road Test
Lead Acid BatDC 48V190 Ah(26.6 mO) 19.29o 2.72 43.10 198.0 305 190 400895 Real Road Test
Lead Acid BatDC 48V190 Ah(26.6 mO) 22.78o 1.63 42.50 223.0 305 190 400895 Fail during Test
Lead Acid BatDC 48V190 Ah(26.6 mO) 26.56o 305 190 400895 Not Tested
Lead Acid BatDC 48V190 Ah(26.6 mO) 14o 4.7 45.61 117.1 305 190 270 765 130kg Reduced in Load
Lead Acid BatDC 48V190 Ah(26.6 mO) 22.78o 2.11 42.5 190 305 190 270 765 Failure during test130kg Reduced in Load
26
Final Product Demonstration(Family Use
Appliances)
27
Conclusions

• SFCM based batteries will replace lead-acid,
  nickel cadmium,
• nickel metal hydride batteries, and become
  the main stream of
• high power, large scale power batteries
• Formosa has the production capability of 480
  tons/year
• (currently the world 1 materials provider). The
  new plant
• will extend the production to 4800 tons/year in
  2009
• Formosa has been successful in the development
  of heavy duty or
• high power systems for applications such as UPC,

• vehicle starting, fork lift, E-motorcycle. All
  applications shown
• have been either commercialized or in the
  process of field tests
• with potential customers
• The concept of localized and miniaturized
  energy saving system
• should be promoted and advocated in the future
  for resolving the
• energy and environment problems simultaneously

28
