Overview of TETRA and its Services and Facilities

1

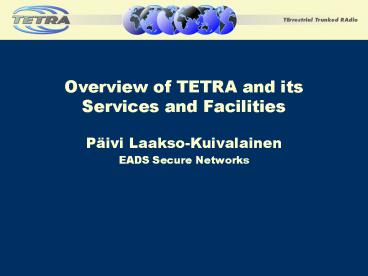

Overview of TETRA and its Services and Facilities

• Päivi Laakso-Kuivalainen
• EADS Secure Networks

2
Agenda

• TETRA and its objectives
• Standards, system architecture
• Interoperability
• TDMA technology
• Voice communication services
• Data communication services
• Security services
• Future

3
Objectives behind TETRA Standard

• Define a digital Professional Mobile Radio (PMR)
  standard to satisfy the current and future needs
  of especially Public Safety and other PMR users
  across Europe
• Unite fragmented PMR markets into one common
  market harmonized use of spectrum
• Fulfill European authority co-operation
  requirements (Schengen Treaty) to enable European
  Integration cross-border operation using common
  frequency spectrum

4

• Users
• desired features
• choice
• competition

• Radio regulators
• spectral efficiency
• harmonization

• Manufacturers
• open market volumes
• to ensure open standards, the ETSI IPR policy
  stipulates patented solutions to be made
  available at fair and reasonable terms

• Operators
• desired features
• data services
• competition
• cost effectiveness

Goals during TETRA standard creation
5
TETRA market today

• Number of TETRA contracts in July 2004
• 505 contracts (325 contracts by September 2003)
• Europe 357
• APAC 53
• Africa 18
• Latin America 24
• Middle East 26
• Very positive user experiences from networks that
  are in operation
• TETRA has improved the security and safety of
  field units
• Shared multi-agency operations have been
  effective during incidents
• Open standard has affected product pricing,
  resulting in very competitive prices compared to
  single vendor solutions
• Advanced wireless data applications have entered
  professionals daily work

6
TETRA System Building Blocks
TETRA Switching
TETRA radio access
TETRA IP Core
Network Management
Integrated Command and Control
Complete Dispatching Solutions
Services
PSTN PABX ISDN
TETRA Terminals
Intranet, Internet
LAN WAN
Applications
7
Examples of TETRA networks

• VIRVE, Country-wide public safety network in
  Finland
• 15 switches, over 1200 base stations
• Users police, fire, rescue, customs, frontier
  guards, social and health services
• Aeroports de Paris
• 1 switch, 15 base stations
• Users maintenance and security personnel of
  airports

Paris
Helsinki
8
Core TETRA Standards and standard interfaces

• Air Interface (AI)
• Inter-system Interface (ISI)
• Peripheral Equipment Interface (PEI)

• Voice plus data (VD)
• Direct Mode Operation (DMO)
• Conformance testing
• TETRA Speech Codec

DMO
PEI
ISI
AI
Network A
Network B
9
TETRA Service classification

• TETRA is not only a radio access standard, it is
  also a standard defining the services and
  functionality

• Nearly 30 supplementary services
• priorities, late entry, DGNA,
• - fleet services
• - telephony supplementary services

Bearer services data transport - packet,
circuit, single/multi-slot
Teleservices voice calls - one-to-one, group,
broadcast
10
Nature of TETRA Standard

• The TETRA standard by ETSI
• Provides
• Rich variety of tools and mechanisms to meet user
  requirements
• Multiple possibilities to implement end-user
  services
• ? Need to agree a common implementation to
  achieve interoperability
• TETRA interoperability certification ensures open
  multivendor market.

11
What does interoperability mean?

• Radio terminals and network infrastructures from
  different manufacturers work together

Interoperability between products and features
User and regulatory requirements
User requirements
User requirements
Products and features
Standard
Interoper- ability tests
ETSI standardisation process
Manu- fracturers Implemen- tations
Interoperability profiles under TETRA MoU
Technology development
12
Interoperability (IOP) - Advantages

• For user
• Manufacturer independent supply and 2nd source
  guarantee
• Benefits of competition
• Wider selection of products (gateway, special
  terminals etc.)
• Lower prices
• Constant improvements
• Increased speed of innovation

• For manufacturer
• Larger (global) market
• Critical mass for special products
• Potential to focus to own strengths
• Increased investment opportunity
• Faster time to market
• One common and independent specification
• No vendor bias

13
What makes TETRA unique

• Fast call set-up time
• Excellent voice quality, elimination background
  noise
• Direct Mode (DMO)
• Queuing
• Spectrum Efficiency via TDMA (Time Division
  Multiple Access, 4 channels on 25 kHz)
• Pre-emptive priorities
• Versatile dispatching and fleet management
  possibilities

14
What makes TETRA unique

• Uncompromising security
• Preventing eavesdropping of communication
• authentication of radios (and networks)
• air interface encryption
• end-to-end encryption support
• disabling of stolen radios
• Access to data from the field with TETRA data
  services
• TETRA radio interface is designed and optimized
  for circuit voice and packet data

15
Voice communication services

• Excellent voice quality
• Fast call set-up, (less than 0.3 seconds)
• Individual (one-to-one) calls
• Express calls (push and talk)
• Group communication
• group calls
• broadcast talk groups
• scanning of talk groups
• dynamic regrouping
• talk group area definition
• Emergency calls
• Direct mode

16
Dispatcher functions

• Group monitoring communication
• Joining groups
• Preemptive speech item
• Group member list
• Dynamic regrouping
• Broadcast group

17
Data Communication services

• Status service
• efficient, real time
• group and individual addresses
• Short Data Service, SDS
• text messaging
• GPS position data
• group and individual addresses
• IP packet data
• file and image transfers
• database access
• reporting
• WAP
• Circuit switched data

18
End-to-end applications for end-user needs
19
Security Services

• Secured access to communication
• Authentication
• Air interface encryption
• End-to-end encryption
• Separated technical and operational management

20
TETRA Network development Trends
Total Security solution
Interoperability and situational awareness
Nationwide, shared infrastructure
Always connected and reachable
Integrated emergency response centres and field
command
Optimal Total Cost of Ownership
Seamless network-wide service
Preventing information overflow
21
TETRA radio terminal development trends
Voice feedbackgiver users extra usability
Support for location solutionslike integrated GPS
Small and lightweight yet robust, and manageable
even when wearing protective gloves
User interface must be intuitiveand easy to use
WAP servicesopen possibilities of entirely new
ways of working
Colour displaycan convey more information and
enables image transfer to terminals
Benefits from mainstream improvements and new
functionalities, like battery lifetime, image
communication
Messaging and packet dataenhance group
communication
22
Future with TETRA

• TETRA standard is being developed to support
  higher data rates
• TETRA Release 2 will support TEDS (TETRA Enhanced
  Data Service)
• User Requirements Specification for TEDS
  developed based on query among ETSI members, main
  input from Public Safety Users
• Release 2/TEDS standard expected to be completed
  2005
• User data rates up to 100 kbit/s databases,
  graphics, images, ...
• Radio channels 25, 50, 100 kHz, multi-carrier
  modulation
• Backward compatibility with TETRA Release 1
  control channel for easier upgrades of networks

TETRA Release 2 will maintain the competitiveness
of TETRA for the years to come
23
Conclusions

• TETRA is the global open standard for digital
  professional radio communications
• mission critical voice and group dispatch
• mobile telephony
• advanced data transfer and applications
• Real and open multi-vendor supply
• TETRA brings Internet/Intranet access to mobile
  workforce
• TETRA is secure

TETRA is ready, TETRA is future-proof, TETRA is
global
