Title: CIS303 Advanced Forensic Computing

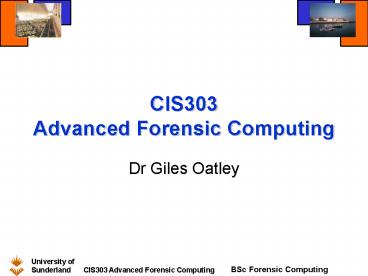

1
CIS303Advanced Forensic Computing
  • Dr Giles Oatley

2
Image Analysis
  • Introduction
  • Greyscale images
  • Colour images (RGB, HSV, indexed)
  • Image representation in MatLab

3
Useful texts
  • Digital Image Processing
  • Rafael Gonzalez Richard Woods, Prentice Hall,
    (2e) 2002.
  • ISBN 0-13-094650-8
  • Covers the material in some depth, with
    significant mathematical content.
  • There is also a Matlab-specific version Digital
    Image Processing Using Matlab
  • Digital Image Processing, a practical
    introduction using Java
  • Nick Efford, Addison Wesley, 2000. ISBN
    0-201-59623-7
  • A very readable introduction which covers most of
    the material in a non-mathematical way.

4
Image Basics The pixel
  • The basic unit of a digital image is the the
    pixel.
  • The pixel shape in computer images is normally
    square or rectangular but, in principle, any
    cross section or size is possible. For example
    newspaper images are base on a variable sized
    pixel.
  • The variable size is to compensate for having
    only two colours !

5
Digital image representation
  • An image can be defined as a 2D finction f(x, y),
    where x and y are spatial coordinates, and the
    amplitude of f at any pair of coordinates (x, y)
    is called the intensity of the image at that
    point.
  • An image is said to be of size (M x N), where
    (0,0) is the top left hand corner, (0,1) the next
    pixel in the top row etc.
  • In Matlabs IPT, however, we denote (x, y) by (r,
    c) and coordinates start at (1,1) (r ranges from
    1 to M, c from 1 to N)

6
Greyscale images
  • The standard greyscale image uses 256 shades of
    grey from 0 (black) to 255 (white).

7
Images as matrices
  • The coordinate system given on a previous slide
    lead to the following representation of a digital
    image in Matlab
  • The following data classes are used in Matlab to
    represent images

8
Colour images
  • With colour images the situation is more complex.
    For a given number of pixels, considerably more
    data is required to represent the image and more
    than one colour model is used.
  • We will consider only three of the more common
    colour models
  • RGB (Red Green Blue)
  • HSV (Hue Saturation Value)
  • Indexed
  • The other type of image we will frequently use is
    the binary image. This consists of two colours
    only black (0) and white (1).

9
Red Green Blue (RGB) model
  • This can be thought of as a simple extension of
    the grey scale model where each pixel is composed
    of three colours red, green and blue each
    represented by a digital range of 0 to 255
    leading to 16,777,216 (16 million) colours.
  • All available colours can be represented on the
    colour cube
  • Instead of a single array of numbers we can now
    think of three array planes or for an m x n image
    an m x n x 3 array

10
Hue Saturation Value (HSV) model
  • Whilst the RGB model is very simple it does not
    correspond very well with our intuitive
    understanding of colour. It is more natural to
    think in terms of
  • Hue The colour starting with Red (0 degrees)
  • Saturation The purity of the colour. A
    saturation of 1 is the pure colour and 0 is
    white.
  • Value Is a measure of intensity with 0 as black
    and 1 as white.
  • The combination of saturation value are often
    referred to as the tint of the colour.
  • A simple transform will convert colour
    specification from RGB to HSV and vice versa
    (rgb2hsv, hsv2rgb)

11
Indexed colour maps
  • Both RGB and HSV colour specifications are very
    memory intensive. For example a 768 x 1024 RGB
    image requires 2.36 Mbytes. Often double
    precision numbers are used in place of single
    byte values in which case the above image
    requires 9.44 Mbytes.
  • An alternative is to use a small fixed range of
    colours (e.g. 256) and make the entries in the
    image array simply single byte pointers to the
    colour table.

Abstract from the image array
Abstract from the colour table
12
Machine vision
  • Machine vision - giving robots sight
  • Potentially the most powerful sensor is
    artificial vision
  • Also called computer vision and machine vision.
  • Machine vision is already used for both robotic
    non-robotic applications.
  • Machine vision is a complex subject encompassing
    a number of different fields including optical
    engineering, analogue video processing, digital
    image processing, pattern recognition and
    artificial intelligence and computer graphics.
  • The basic process is modelled on the mammalian
    eye/brain interaction.

13
Image processing stages
  • Once an image has been captured we need to make
    some sense of it. Image processing involves three
    main actions
  • image enhancement,
  • image analysis
  • image understanding.
  • Image processing can be a complex and difficult
    operation and is still very much a research
    field.

14
Description of stages
  • Image enhancement To remove unwanted artefacts
    such as noise, distortion, and non-uniform
    illumination from the image.
  • Image analysis Converts the input image data
    into a description of the scene.
  • Image understanding Classify each object and
    attempt to generate a logical decision based on
    the content of the image (e.g. the red object is
    at location x,y,z, or reject the component, or
    this is not a sheep, or there is an
    intruder").
  • Examples of successful machine vision in
    industrial robotics
  • Parts location
  • Pick and place
  • Parts recognition
  • Parts inspection
  • We will be more concerned in this module with
    image processing as applied to AI robotics
    (localisation and navigation).

15
Applications of machine vision
16
MatLab image formats 1
  • MatLab uses the following main data
    representations for its image classes
  • uint8 Unsigned 8-bit integers in the range 0
    to 255.
  • uint16 Unsigned 16-bit integers in the range 0
    to 65,535.
  • double Double precision numbers, by convention
    in the range 0 to 1 for images. Requires 4 bytes
    per pixel.
  • logical values are 0 or 1, used in binary
    images.
  • Only a very limited amount of data processing can
    be done with the UINT image classes. In fact with
    UINT16 you are virtually limited to displaying
    the image. Their function is to store images more
    efficiently on disk files. Almost all your work
    will be done with double precision images.

17
MatLab image formats 2
  • Working with images almost always requires using
    double precision arithmetic. The following MatLab
    IPT functions convert between image classes and
    types
  • im2uint8, im2uint16 convert input to uint8,
    uint16
  • mat2gray converts any class double to double in
    range 0,1
  • im2double converts data to double in range 0,1
  • im2bw converts input to logical.
  • Example
  • h uint8(25 50 128 200)
  • Performing the conversion g im2double(h)
    yields the result
  • g
  • 0.0980 0.1961
  • 0.4706 0.7843

18
Loading displaying an images
  • We can load an image with the imread function and
    display an image with the imshow function.
  • imread
  • A imread(filename, fmt)
  • X,map imread(filename, fmt)
  • In the first form the image is read into the
    array A and the format of the image fmt is
    optional.
  • In the second form the image is read into the
    array X and the associated indexed map into map
    scaled 0 to 1 as double.
  • imshow
  • imshow(A)
  • imshow(X,map)
  • imshow has many other formats

19
Displaying the individual colours
function colourdisplay To demonstrate the
splitting of an image into its primary colours A
imread('monar.jpg') subplot(2,2,1)
imshow(A) title('RGB image') Redimage
A(,,1) subplot(2,2,2) imshow(Redimage) title(
'Red image') Greenimage A(,,2) subplot(2,2,3
) imshow(Greenimage) title('Green
image') Blueimage A(,,3) subplot(2,2,4)
imshow(Blueimage) title('Blue image')
20
Splitting an RGB image
21
Images types supported by MatLab
  • The image processing toolbox supports four basic
    image types
  • Indexed images
  • Intensity images (MatLabs name for greyscale
    images)
  • Binary images
  • RGB full colour images
  • MatLab allows easy conversion between image types
    using
  • rgb2hsv to convert to a HSV image
  • rgb2gray to convert to a grey scale image (note
    American spelling).
  • rgb2ind to convert to an indexed image
  • You should check the details in the MatLab help
    files.
  • With the addition of the following line (and a
    variable name change) the previous example can be
    used to display the HSV components.
  • B rgb2hsv(A)

22
HSV image components
23
Inspecting and recording image colours
  • improfile which will reveal the colour intensity
    profile along a line defined on the image.
  • Simply placing improfile on a line will allow you
    to interactively explore the colour profile
    alternatively using
  • c improfile(I,xi,yi,n)
  • will record in the array c the RGB values from
    image I with line segment end points defined by
    xi yi using n equally spaced points
  •  pixval which will interactively record the
    location and colour components of each pixel as
    you move a cursor across the image.
  •  impixel returns the RGB values for a specified
    pixel.

24
Example of using pixval
25
Example of using improfile
26
Tutorial
  • Familiarise yourself with the machines log on,
    run Matlab, have a look at the Matlab Help
    information for the Image Processing Toolbox
    (IPT) and the Matlab demos.
  • Re-create the M-files and Matlab code shown as
    part of this lecture.
  • Load the image flower.jpg. Note what happens when
    you try and display it. Now re-size it by an
    appropriate amount and display it again. Save it
    to disk (flower2.jpg) and compare the size of the
    saved file with the original.
  • Load the image bean.jpg. Look at the various
    colour channels and consider which channel would
    be most appropriate if you were about to create
    an image processing pipeline which could separate
    the beans from the background. Write an M-file to
    display the RGB image and each of its (R-, G-,
    B-) components, and the HSV image and each of its
    (H-, S-, V-) components. Repeat with flower.jpg.
  • (From a previous assignment, in which students
    were asked to write a program to automatically
    count the numbers of large and small beans).
