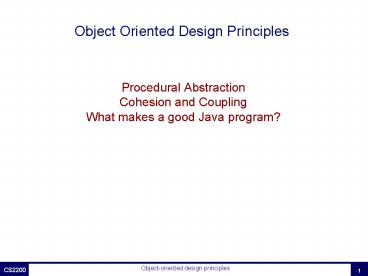

Object Oriented Design Principles

1
Object Oriented Design Principles

• Procedural Abstraction
• Cohesion and Coupling
• What makes a good Java program?

2
Elements of Software Design

• The Time class illustrated
• procedural abstraction
• encapsulation
• data abstraction
• cohesion
• coupling
• We will examine each one in turn

3
Procedural Abstraction

• procedural abstraction the organisation of a
  program's computation into methods
• factorisation identify recurring segments of
  code and capture them once in a single method
• top-down decomposition design a complex method
  by breaking it up into smaller chunks
• bottom-up composition write some simple methods
  and then use them to design more complex ones

4
Encapsulation

• encapsulation hiding implementation details
  behind a public interface
• e.g. a microwave oven you don't need to see
  (and don't get to see) the internal workings
  all you get is the buttons and dials on the front
• a class is the interface plus the implementation
• interface the signatures of public methods (and
  declarations of public data)
• implementation the method bodies, private data
  (and private methods

5
Data Abstraction

• data abstraction separate the details of how a
  compound object is used from the primitive data
  objects that represent it
• programs should be designed to use abstract data
• they should not assume anything about the details
  of the data that is not required to perform the
  task
• concrete implementations of the data can then be
  provided separately, and can be changed without
  affecting the rest of the program

6
Cohesion and Coupling

• cohesion the degree to which the computation in
  a method is directed towards a single purpose
• high cohesion is desirable
• write separate methods for separate purposes
• convoluted method names are a sign of low
  cohesion
• coupling the degree to which methods rely on
  each other
• low coupling is desirable
• don't pass unnecessary parameters
• don't communicate by shared variables
  unnecessarily

7
Procedural abstraction the benefits

• Greater readability
• detail is hidden behind well-named methods
• the whole program may be shorter, individual
  methods may be shorter, the contribution of a
  method should be obvious from its signature
• Greater maintainability
• easier to read makes it easier to maintain
• reduced repetition means fewer inconsistent
  changes

8
... and more benefits

• Greater testability
• the program is made up of smaller independently
  testable and de-buggable pieces
• less repetition means less code to be tested
• Greater re-usability
• each smaller method does some single well-defined
  task that may be needed in other parts of the
  program

9
... and possibly one more?

• better performance?
• although we now have the overhead of extra method
  invocations, the overhead is small
• it may be easier to find bottlenecks if the code
  is modularised
• improving the code in a bottleneck will improve
  overall performance if that code is re-used many
  times

10
Understanding how Java works

• in order to produce high-quality software, you
  must understand how Java works internally
• how objects are created from class definitions
• how variables are represented as blocks of memory
• how objects are represented as blocks of memory
• how references are used to identify objects
• how references are passed between methods
• how static variables are represented
• how static methods are called
• duration, scope and visibility of data and
  methods

11
Good use of variables

• use each variable that you declare
• initialise each variable properly
• use each variable for one purpose only
• minimise scope of identifiers
• minimise duration of identifiers
• minimise visibility of identifiers
• give sensible names for identifiers
• used named constants (using final)

12
Java Garbage Collection

• basic variables have a predefined duration
  objects do not
• there is no facility to destroy objects in Java
• Java collects garbage" objects that are no
  longer needed
• it automatically detects objects that no longer
  have any references to them
• un-used objects are not deleted immediately
• when java decides that the amount of free memory
  is too low
• when the program terminates
• when you invoke System.gc()
• Java's use of garbage collection can make Java
  unsuitable for time-critical applications

13
How do you get good software?

• use a good development process
• you must design and test as well as implement
• produce a good design
• procedural abstraction and data abstraction
• high cohesion, low coupling
• use consistent coding conventions
• produce readable code
• continually review the quality

14
Readability

• readability is essentially about consistency and
  convention
• a scheme for identifier names
• a scheme for alignment, indentation and spaces
• a scheme for organising the class definition
• self-documenting code
• good variable names
• good method names
• good comments

15
Portability

• Java was originally design for use on the
  Internet, so portability was paramount
• "write once, run anywhere"
• The Java approach
• the Java language specification,
• which is unusually comprehensive (specifies the
  internal representation for int, etc.),
• is protected by law
• Java uses bytecode ...

16
Compilers and Interpreters

• a compiler translates a program written in some
  language into some other format usually
  executable code
• an interpreter takes each statement of a program
  in turn, translates it, and executes the
  resulting machine instruction
• just-in-time compilers translate methods one at a
  time just before they are called.
• java compiles into bytecode this is the same
  regardless of what machine you are compiling on

17
Java Bytecode

• Bytecode is the "machine code" of the Java
  Virtual Machine (JVM)
• The JVM is abstract it doesn't necessarily
  exist
• There are different ways of getting a machine to
  act like the virtual machine (i.e. to understand
  the bytecode)
• interpret it
• just-in-time compile it
• physically implement it on a chip
• The bytecode is machine independent your
  ".class" files compiled on Linux will run on a PC
  or a Mac, as long as an appropriate JVM simulator
  is installed (e.g. on a PC, java.exe in the Java
  SDK)

18
Next lecture ...

• Testing
