Design of 4bit ALU

1

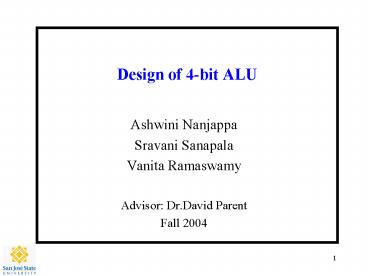

Design of 4-bit ALU

• Ashwini Nanjappa
• Sravani Sanapala
• Vanita Ramaswamy
• Advisor Dr.David Parent
• Fall 2004

2
Agenda

• Abstract
• Introduction
• Why
• Simple Theory
• Project Details
• Block Diagram
• Schematics
• Layout
• Verification DRC, Extract, LVS
• Simulation Results
• Cost Analysis
• Conclusion

3
Abstract

• Aim of the project is to design a 4-bit ALU to
  perform seven arithmetic operations and four
  logic operations.
• The circuit is designed so as to meet the
  following specifications
• Frequency 200MHz
• Power 23W/cm2
• Area 400x400µm2
• The results are verified with AMI06 technology,
  Spectre spice simulation tools.

4
Introduction

• ALU is a fundamental unit of several
  combinational circuits. Learning ALU design aids
  in designing complex circuits.
• All the arithmetic operations are performed by
  the Carry look ahead adder using a B-input
  logic.The B-input logic is based on the equation
  YBiS0BiS1
• The logic operations are performed using basic
  gates.
• Two select lines are used to perform the
  operations on two 4 bit inputs in both the units.
• The third select line is used to select either
  one of the units.

5
Introduction Contd.
Function Table for ALU
6
Project Details

• The B-input logic with CLA reduces the complexity
  of the circuit.The CLA consists of
  propagate/generate block, carry generator and sum
  block.
• The critical path for the circuit is from the
  input B2 to the output out3 for the subtraction
  operation.
• 4to1 Mux selects the logic operations based on
  the select lines in the logic unit.
• Finally a 2to1 Mux selects between arithmetic and
  logic unit.
• Mux based D-flipflops are used in the circuit
  with .7ns setup and hold time.
• The sizing and layout of the gates are cell
  based.

7
Project Details Contd

• Longest path has 17 logic levels including the
  input and output flipflops.
• A load of 20fF is assumed as the load for long
  path calculation from DFF.
• Long Path Calculation(Arithmetic Unit)
• tPHL5ns/(134)0.29ns for each logic level

8
4-Bit ALU Block Diagram
9
Logic Verified in NC-Verilog
B-Input Logic
Propagate/Generate
Carry Generator
10
4-bit Arithmetic Unit Schematic
11
1-Bit Logic Unit Schematic
12
ALU Test Bench Schematic
The inputs (A,B,CIN) and select lines
(M,S0,S1)are set for worst case.
13
Layout of 4-Bit ALU
14
Verification
DRC
Extracted
LVS Report
15
Simulation Result Subtraction
16
Simulation Result XOR
17
Simulation Result Power For 4-bit ALU
18
Cost Analysis

• Time is money !
• Time spent on each phase is
• Design and Implementation Phase
• Logic design and NC Verilog check 1
  Week.
• Transitor level design and simulation 2
  Week.
• Timing check, Stick Diagram and Layout- 1 week.
• Verification and Testing Phase
• Post extraction, Power simulation Time check -
  1day

19
Conclusion

• Designed and tested a 4 bit ALU that performs
  seven arithmetic and four logic operations at
• 200 Mhz clock
• Power 11.6W/cm2
• Area 333x412 µm2
• The project meets all the given specifications
• This design concept can be a building block for
  higher bit ALU ex. 16-bit, 32-bit

20
Acknowledgement

• Thanks to Professor David Parent for his guidance
  throughout the project.
• Thanks to Cadence Design Systems for the VLSI
  lab.
• Thanks to TA for helping us in the lab.
• Thanks to our classmates.
