Title: OmniSTAR BV


1

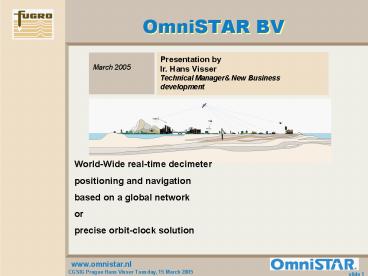

OmniSTAR BV
March 2005
Presentation by Ir. Hans Visser Technical
Manager New Business development
World-Wide real-time decimeter positioning and
navigation based on a global network or
precise orbit-clock solution
2
Overview of Presentation
  • Fugro
  • OmniSTAR
  • How does OmniSTAR work
  • Products
  • VBS DGPS Virtual Base Station
  • HP High Performance
  • Recent improvements
  • XP eXtended Performance (Orbits and Clocks)
  • Conclusions
  • Future

3
FUGRO GROUP
4
Fugro Overview
  • FUndation and GROund FUGRO
  • Headquarter Netherlands
  • 8000 employees World-Wide
  • 200 offices in over 50 countries
  • Merge with Thales-Geosolutions Nov 2003
  • Integrate the Landstar network
  • Include the XP solution
  • Turnover 1,022 Billion Euro over 2004
  • Profit 65 Million Euro over 2004

5
STRUCTURE OF THE FUGRO GROUP
FUGRO GROUP
GEOSCIENCE DIVISION
GEOTECHNICAL DIVISION
SURVEY DIVISION
Quantify and qualify resources for oil, gas,
minerals and optimise production
Investigation advice on the physical
properties of soil and materials for constructions
Positioning, mapping and charting, geological
advice and support services for
developments OmniSTAR BV
6
OMNISTAR GROUP
7
OMNISTAR WORLDWIDE
Leidschendam
Houston
Dubai
OmniSTAR B.V.
OmniSTAR B.V.
Singapore
Perth
Johannesburg
OmniSTAR Inc.
OmniSTAR Pty. South Africa
OmniSTAR Pty.
8
STRUCTURE OF THE OMNISTAR GROUP
OMNISTAR GROUP
OmniSTAR Pty.
OmniSTAR Inc.
OmniSTAR B.V.
  • North- South America
  • Caribbean
  • Europe
  • Russia
  • Ukraine
  • Kazachstan
  • North Africa
  • Middle East
  • India
  • Pakistan
  • Australia
  • Asia
  • South Africa

9
OMNISTAR BV
10
OMNISTAR BV SALES
INTRODUCTION
VBS
HP
APPLICATIONS
AM
CONTACT US
11
OMNISTAR MARKET SEGMENTS
12
OMNISTAR MARKET DIVISION (by country)
13
OmniSTAR Infrastructure
  • 90 GPS Reference stations
  • L1/L2
  • 10 Glonass Reference stations
  • 6 High Power Geostationary Satellite beams
  • EA-SAT Europe/Asia Satellite
  • AF-SAT Africa
  • AMSC North America(East/Middle/West)
  • AMSAT North and South America
  • APSAT Asia Pacific Satellite
  • OPTUS Australia Spot beam
  • 2 Independent Network Control Centers
  • Houston USA
  • Perth Australia

14
OMNISTAR Infrastructure
Source www.surveyplanner.com
15
OmniSTAR HP Network of Ground Stations
Source www.surveyplanner.com
16
OmniSTAR HP Send data to Uplink centre
Satellite Uplink
Source www.surveyplanner.com
17
Omnistar HP Send data to Geo-Satellite
Satellite Uplink
Geostationaire Satellite
Source www.surveyplanner.com
18
Omnistar HP All calculation in Mobile
Satellite Uplink
Geostationaire Satellite
Source www.surveyplanner.com
19
Omnistar HP Networked solution
Networked L1/L2-Iono SV orbit SV Clock
Source www.surveyplanner.com
20
HP SCATTERPLOT Netherlands
21
HP Convergence
22
OmniSTAR HP INITIALIZATION TIME
  • Convergence 20 minutes average for 30 cm CEP
  • Improvement and implementation
  • Use known point as start value Within 2 minutes
  • DGPS as start value (50 cm direct, 10 Min for
    30cm
  • Static Convergence 15 Min
  • Re-initialization after
  • loss of signal lt5 minute Direct HP

23
OmniSTAR 8300 HP Initialisation test
24
HP Convergence over 80 hourly sample
Estimated Standard deviation
Real Standard deviation
25
Convergence is dependant on Geometry
26
HP Re-initialization
How to go get back to HP accuracy in a tunnel or
going under trees
27
Challenging environments
28
Re-Initialization
  • Static receiver
  • September 2003, Lafayette, USA
  • 69 gaps of 20 s (average)

29
Re-Initialization, results
Success rate 98.5, average error 0.05 m
30
Static re-initialization tests
31
Omnistar HP dynamic re-init test
32
Dynamic re-init accuracy
33
HP Extend time without Correction
34
Trees at high elevation
35
HP Age of correction 4 minutes
36
No Network correction for 4 Minutes
37
Error distribution after 4 Minutes
38
Numerical statistics Age4 Minutes
39
OmniSTAR XP
40
OmniSTAR XP (eXtended Performance)
  • Absolute positioning
  • Precise Point Positioning (PPP)
  • External corrections
  • Satellite orbits and clocks from JPL
  • Dual-frequency observations
  • Ionosphere-free code and carrier

41
NASA - JPL reference network
42
OmniSTAR XP Principle
43
OmniSTAR XP No Reference stations
44
OmniSTAR XP Broadcast Orbits
45
OmniSTAR XP Precise Rapid Orbits
46
OmniSTAR XP Clock offset
47
PPP additional error sources
  • Earth tides
  • Up to 30 cm
  • Ocean loading
  • Up to 5 cm
  • Polar motion
  • Up to 2.5 cm

48
Earth tides, Netherlands, February 2005
49
Earth tides movement
50
XP - Lafayette, USA
Easting, standard deviation 0.05 m
Northing, standard deviation 0.04 m
Height, standard deviation 0.09 m
51
OmniSTAR XP 22 Feb 2005 Netherlands
52
OmniSTAR XP 23 Feb 2005 Netherlands
53
OmniSTAR XP 24 Feb 2005 Netherlands
54
OmniSTAR XP 25 Feb 2005 Netherlands
55
OmniSTAR XP 26 Feb 2005 Netherlands
56
OmniSTAR XP 27 Feb 2005 Netherlands
57
OmniSTAR XP 28 Feb 2005 Netherlands
58
OMNISTAR-HP COMPATIBLE RECEIVERS
INTRODUCTION
VBS
HP
APPLICATIONS
CONTACT US
Topcon 8400HP
Trimble Ag252
59
AGRICULTURE
  • Auto-guidance/ auto-steering
  • Seed drilling
  • Automatic planting
  • Spraying

INTRODUCTION
VBS
HP
Source BEELINE Technologies, Inc.
APPLICATIONS
CONTACT US
60
Conclusions
  • OmniSTAR
  • OmniSTAR VBS sub meter
  • OmniSTAR HP Network lt10 cm 4-5 cm Standard Dev
  • Fixing gap possible
  • Convergence 20 Minutes average
  • 50 Minutes max
  • Static direct working with Reference Position
  • OmniSTAR XP
  • 5 cm Standard deviation
  • Very smooth solution
  • World Wide

61
OmniSTAR Future developments
  • Datum shift broadcast over Satellite
  • Include Glonass in HP/XP algorithms
  • Broadcast over the Internet (NTRIP)
  • Move to 2-3 cm standard deviation
  • Reduce Convergence to 5-10 Minutes
  • Include L2C
  • Add Galileo

62
info_at_omnistar.nl Tel 31 70 317 0900
