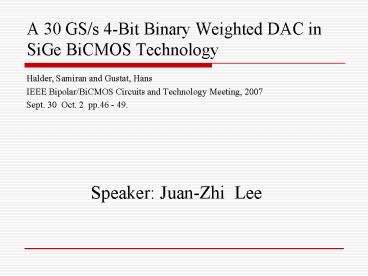

A 30 GSs 4Bit Binary Weighted DAC in SiGe BiCMOS Technology

1
A 30 GS/s 4-Bit Binary Weighted DAC in SiGe
BiCMOS Technology

• Halder, Samiran and Gustat, Hans
• IEEE Bipolar/BiCMOS Circuits and Technology
  Meeting, 2007
• Sept. 30 Oct. 2 pp.46 - 49.
• Speaker Juan-Zhi Lee


2
OUTLINE

• 1.INTRODUCTION
• 2.DAC ARCHITECTURE
• 3.CIRCUIT IMPLEMENTION
• 4.RESULTS AND DISCUSSIONS
• 5.CONCLUSION

3
INTRODUCTION

• In this paper an attempt has been made to serve
  the applications by developing a low-power
  low-resolution binary weighted DAC with 30GS/s
  sampling rate.
• This DAC can also be used as a sub-DAC for
  implementing the part of a segmented 8-bit
  current steering DAC with 20GS/s or more sampling
  rate.

4
DAC ARCHITECTURE

• In the present application a binary weighted
  architecture is chosen as the resolution is only
  4 bit.
• The block diagram of the presented DAC is shown
  in Fig.1.
• Unlike the common binary weighted DAC, all of the
  current sources in this work have same current.
• This is a strong advantage in terms of sampling
  rate, because it allows to operate the LSB cells
  with full current and speed.
• Compensation resistors are used to create an
  equal resistive load at the output of the each
  current switch.

5
(No Transcript)
6
CIRCUIT IMPLEMENTION

• The DAC is implemented in a 0.25µm SiGe BiCMOS
  technology.
• The minimum emitter size of the HBT is
  0.21x0.84µm2 and the fT ,fMAX are both 190GHz.
• This technology also provides poly resistors and
  MIM capacitors in a five-layer metallization
  system.
• In the time critical signal paths, minimum size
  HBTs have been used for high speed and minimum
  parasitic capacitance load.

7

• Schematic diagrams of the novel current switch
  concept used in this work are presented in
  Fig.2a.
• A simple differential pair is used as the current
  switch. The current source is implemented by a
  cascode stage.
• An isolated nMOS transistor is used as the main
  current source and the cascode device is an HBT
  transistor.
• To reduce this effect a capacitor (Cs) is used
  across the drain and source of the M1, which has
  a low-pass effect and substantially reduces the
  spike energy.

8
(No Transcript)
9

• Fig.2b shows the schematic of one branch of the
  output load for the DAC.
• Additional resistors are used to equalize the
  resistive load
• at the input of each current switch.
• Unlike the conventional binary weighted DAC, this
  new approach allows to operate all of the current
  sources with the same current and load impedance.

10
(No Transcript)
11

• The proper timing alignment of the current
  switches has
• great impact to the dynamic performance of
  the DAC.
• Unequal delay among the current switches would
  result in
• higher current glitches at the output and
  the SFDR of the
• DAC would be reduced.
• Special attention has been paid to make the
  signal paths from the retiming DFFs to the
  current switches as short as possible and equal
  in length, reducing the timing skew for the
  current switches.

12

• The retiming DFF is implemented with a commonly
  used ECL DFF. A differential amplifier at the
  output of the DFF is used to ensure the steep
  rising and falling edges.
• In Fig. 3 the layout of the retiming DFF and the
  current switch is presented. Thus the layout has
  been designed
• with focus on low wiring capacitance and
  high symmetry

13
RESULTS AND DISCUSSIONS

• In Fig. 4. the measured INL and DNL of the 4-bit
  DAC
• is plotted. It achieved INL and DNL of
  0.49LSB and
• 0.57LSB respectively.

14
(No Transcript)
15

• Fig 5a shows the one of the differential output
  of the DAC for an input pattern corresponding to
  a sinusoidal function.
• The constructed sinusoidal has a frequency of 560
  MHz. The DAC clock is 30GHz.
• A full-swing step response of the DAC is
  presented in Fig. 5b with the input data rate of
  500MHz and clock rate of 15GHz.

16
(No Transcript)
17

• For the rise time measurement a reconstructed
  saw-tooth signal is used. In Fig. 6a such a
  reconstructed saw-tooth signal for the clock rate
  of 22GHz and 500MHz of input data rate is shown.
• The zoomed portion of the full-scale transition
  is presented in Fig. 6b. From the rise time
  measurement (Fig. 6b) the output bandwidth of the
  DAC is calculated to be 3.85 GHz.

18
(No Transcript)
19
(No Transcript)
20
CONCLUSION

• In this paper a binary weighted current steering
  DAC is presented which can be used as a
  standalone DAC as well
• as a sub-DAC for a higher resolution
  segmented DAC.
• Unlike conventional binary weighted DACs, the
  weighting function is implemented in the load
  resistor instead of the current sources.

21

• END
• Thank You for Your Attention
