Synthesis of Heterogeneous Pipelined Multiprocessor Systems Using ILP : JPEG Case Study

1

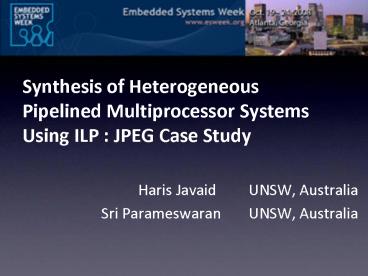

Synthesis of Heterogeneous Pipelined
Multiprocessor Systems Using ILP JPEG Case Study

• Haris Javaid UNSW, Australia
• Sri Parameswaran UNSW, Australia

2
Overview

• Introduction
• Motivation
• Aims
• Case Study
• Experimental Setup
• Results
• Conclusion Future Work

3
Introduction

• Transition in embedded devices single processor
  system to heterogeneous multiprocessor system
• Achieve high performance gains
• Minimize area and power consumption

Single Processor
Homogeneous multiprocessor
Heterogeneous multiprocessor
4
Introduction - ASIPs

• Application Specific Instruction Set Processors
• Instruction set and underlying architecture
  configured for a specific application
• Extensible processors consists of base processor
  and optional instructions

32 KB

• Base Instructions
• 1KB instruction cache size
• 1KB data cache size
• No additional instructions

• Base Instructions
• 2KB instruction cache size
• 4KB data cache size
• 10 additional instructions

• Base Instructions
• 16KB instruction cache size
• 32KB data cache size
• 25 additional instructions

8 KB
4 KB
8 KB
Heterogeneous Multiprocessor System using ASIPs
5
Motivation

• Single processors can not attain high performance
• By using higher clock speeds
• Instruction level parallelism
• Billions of transistors available
• Task level parallelism can be exploited
• Multiprocessor System on Chip (MPSoC) with ASIPs
  as building blocks
• Task level parallelism (coarse-grained)
• Instruction level parallelism (fine-grained)

6
Related Work

• S.L. Shee et al. Design Methodology for
  Pipelined Heterogeneous Multiprocessor System in
  DAC 2007
• Pipelined Multiprocessor System using ASIPs
• Heuristic to rapidly search the design space
• Minimized runtime x area of the system
• F. Sun et al. Synthesis of application-specific
  heterogeneous multiprocessor architectures using
  extensible processors in VLSID 2005
• Heuristic to simultaneously explore application
  partitioning and custom instructions for ASIPs
• Minimize runtime within an area budget

7
Why Pipelined Multiprocessor Systems?

• S. L. Shee et al. Heterogeneous Multiprocessor
  Implementations for JPEG A Case Study in
  CODESISSS 2006
• Pipelined Configuration is better for streaming
  applications

8
Aims

• To implement an application as a heterogeneous
  pipelined multiprocessor system
• Application JPEG Compression Algorithm
• Six processor pipelined system
• Minimize system area while runtime constraint is
  satisfied
• Explore design space consisting of different
  configurations for each processor in the system
• Additional instructions
• Differing Instruction and Data cache sizes
• Speed up the exploration process to target large
  design spaces

9
Case Study JPEG Encoder

• Tasks 1-8
• JPEG encoder kernel
• Processes macro blocks one by one
• Tasks 9-11
• Initialise Quantization Tables
• Finalization functions

10
Case Study JPEG Encoder
Six Processor pipeline Implementation of JPEG
encoder
11
Runtime Calculation
Latency (cycles)
1000
2000
1300
900
1000
1
1
1
1
1
2
2
3
4
3
2
2
3
4
5
6
5
4
3
2
7
6
5
4
3
Macro Block
Raw Image 256x128
Macro Block 1
Macro Block 2
Macro Block 3
512 Macro blocks
12
Runtime Calculation
First Macro block processing time
Average Latency of critical processor
13
Processor Configurations
Configuration1
Extended Instructions
Program Executable
Configuration2
Extended Instructions
Tensilicas XPRES technology
Overhead Granularity
Configuration3
Extended Instructions
Configuration4
Extended Instructions
Configuration5
Base Processor
Extended Instructions
14
Pipelined Multiprocessor System
Runtime Constraint Satisfied
Minimum Area
15
Design Space Exploration

• Formulated the problem of mapping processes of an
  application on to processor configurations as a
  0-1 ILP problem
• Objective
• Minimize area of overall system
• Constraints
• Only one configuration for each processor can be
  selected
• Amongst the selected configurations, one
  processor configuration is considered critical in
  the runtime calculation
• System Runtime lt Runtime constraint by designer

16
Design Space Pruning

• Runtime constraint imposed by the designer
• Some configurations of a processor cannot be part
  of the optimal design
• Only removes the inferior processor
  configurations
• Three different times are defined

17
Design Space Pruning
Processor 0 selected
Pruned Design Space
Max(min latencies)
Critical Processor
Min. Latency

• Min. Processing
• Time

Min. Critical Processing Time
18
Experimental Setup

• Tensilica C/C Compilation tools
• ISS and XTMP
• Instruction Set Simulator
• Multiprocessor environment
• Queues are used to connect processors
• XPRES and TIE Compiler used to create tailored
  processors
• Lp_solve is used as the 0-1 ILP Solver

19
Results JPEG Encoder

• Configurations include additional instructions
  and differing instruction and data cache sizes
• Design Space 4.2 x 1013 design points

20
Results JPEG Encoder

• Time Comparison of ILP Solver

21
Results JPEG Encoder

• Pseudo Pareto optimal points of the design space

22
Conclusion

• Formulated mapping of an application onto ASIP
  configurations in a pipelined multiprocessor
  system as a 0-1 ILP problem
• Presented a novel design space pruning algorithm
  to reduce the complexity of ILP problem
• Targeted a design space of 4.2 x 1013 points,
  obtaining each of the pseudo Pareto optimal
  designs in less than 100 seconds.
• Future Work Design heuristics to search design
  space faster, comparing with ILP solutions

23
THANK YOU

• QUESTIONS ??
