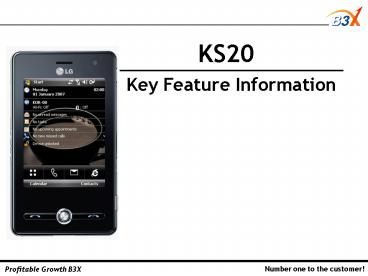

KS20

1
KS20
Key Feature Information
Profitable Growth B3X
Number one to the customer!
2
KS20
Contents
1
Key Features
10
Power Point Mobile
2
Specifications
11
Windows Media Player
3
Connections
12
Manage Screen Settings
4
E-Mail
13
Customizing Todays screen
5
Windows Live
Editing of shortcut keys
14
6
Wi-Fi
15
Entering Information
7
Internet Sharing
16
PS Note
8
Recording a note
17
Word Mobile
9
18
Excel Mobile
Searching Information
Profitable Growth B3X
Number one to the customer!
3
1. Key Features
KS20
Slim Smart Phone (Dimension 99.5 x 58 x 12.8 mm
) Weight 95 g
2MP ,FM ,BT, Full Flat touch screen,2.8 LCD
Screen
Microsoft Windows Mobile 6.0 PPC PE

• Push e-mail
• Outlook. HTML support (Download of large
  attachments)
• Personal e-mail access (g mail, hotmail etc.)

Window live! Fluent, direct interaction for
Mobile internet
Wi-Fi Connect to the Internet when within range
of a wireless network
HSDPA 3.6 Fast Internet Access
Touch UI Direct interaction/ Finger usable
Handwriting Recognition Emotional Interface /
Easy text input
Number one to the customer!
Profitable Growth B3X
4
1. Product
Key Features
Design
HSDPA
Usability
High Speed Mobile Internet

• HSDPA (3.6 mbps) Wi-Fi (802.11b/g)
• EDGE,3G
• Internet Browsing

Fast Music Download

• takes 8 sec. to download a music(4MB)
• (vs. 88 sec. with 3G network)
• Windows Media DRM playback support
• (Over 1 million songs from 14 online partners)

5
1. Product
Key Features
Design
HSDPA
Usability
Seamless Video Streaming
Push e-mail

• Outlook. HTML support (Download of large
  attachments)
• Personal e-mail access (g mail, hotmail etc.)

Window live!
6
1. Product
Key Features
Design
HSDPA
Usability
Fluent, direct interaction for Mobile internet
Touch UI (User Interface)

• Direct interaction
• Finger usable, one-hand usable

Handwriting Recognition

• Emotional Interface
• Easy text input

7
1. Product
Key Features
Design
HSDPA
Usability
Fluent, direct interaction for Mobile internet
Mobile Internet experience

• Large Display
• Landscape Mode (one touch conversion)
• Free webpage scrolling (Joystick)

Phone like UI (User Interface)
Phone like UI
8
1. Product
Key Features
Design
HSDPA
Usability
12.8mm
9
KS20
2. Specifications

• Network WCDMA / HSDPA (3.6 Mbps) / EDGE /
  GPRS
• GSM 900 / 1800 / 1900
• Dimension Weight 99.8 x 58 x 12.8 mm (92.5
  g)
• Display 2.8 240x320 QVGA LCD,
• Full Flat Touch-screen
• Handwriting Recognition
• Memory 150MB embedded Micro SD (2GB)
• Camera 2MP AF CMOS Camera with VGA sub camera
  for VT
• Microsoft Windows Mobile 6.0
• Windows Live! Support
• Phone like GUI
• Windows Media DRM Playback
• - over 1 million songs from 14 online
  partners
• MMS / Push E-Mail / Java / WAP 2.0
• WiFi 802.11 b/g
• Bluetooth v2.0 / VT
• FM Radio

12.8 mm
Profitable Growth B3X
Number one to the customer!
10
KS20
3. Connections
This device is equipped with powerful networking
functions that enable to connect to the Internet
through a HSDPA (High Speed Downlink Packet
Access ) , EDGE (Enhanced Data rates for Global
Evolution) , GPRS ( General Packet Radio Service)
network or a Bluetooth modem or WLAN network. We
can set up connections to the Internet or to a
corporate network to browse the Internet and
exchange e-mail or instant messages .
Configure Connections 3.1. Tasks 3.1.1 Add
a new modem connection 3.1.2 Add a new VPN
server connection 3.1.3 Set up my proxy
server 3.1.4 Manage existing connections 3.1.4
.1 General 3.1.4.2 Modem 3.1.4.3 VPN 3.2.
Advanced 3.2.1 Select Networks
Profitable Growth B3X
Number one to the customer!
11
KS20
3. Connections
3.1. Connections ? Tasks Tap Start ? Settings ?
Connections ? Connections
3.1.1. Connections ? Tasks ? Add a new modem
connection

• Obtain the following information from ISP
• - ISP server phone number
• - User name
• - Password,
• - Access point name (required for GPRS
  connection)
• Tap Start ? Settings ? Connections ?Connections
• Tap Add a new modem connection.
• Enter a name for the connection
• Select a modem from the list. For example , if
  you want to use the packet service
• network, select Cellular Line
  (GPRS,3G,HSDPA).
• Tap Next
• Complete the connection wizard by entering the
  required information and tap Finish
• Tab Advanced tab ? Select Networks.
• In the Programs that automatically connect to a
  private network should connect
• using list, select the My ISP and tab OK

Profitable Growth B3X
Number one to the customer!
12
KS20
3. Connections
3.1.1. Connections ? Tasks ? Add a new modem
connection (contd)
Just entered Connection Name
Enter Connection Name
Enter dialed number
Cellular Line Cellular Line (GPRS, 3G,
HSDPA) Hayes Compatible on COM1
Advanced TCP/IP
Advanced Servers
Enter User name and Password
Profitable Growth B3X
Number one to the customer!
13
KS20
3. Connections
3.1.2. Connections ? Tasks ? Add a new VPN server
connection
Enter Pre-shared key
Enter Connection Name
Selecting Authentication
User name and Password for VPN
Profitable Growth B3X
Number one to the customer!
14
KS20
3. Connections
3.1.3. Connections ? Tasks ? Set up my proxy
server
Profitable Growth B3X
Number one to the customer!
15
KS20
3. Connections
3.1.4.1. Connections ? Tasks ? Manage existing
connections ? General
Profitable Growth B3X
Number one to the customer!
16
KS20
3. Connections
3.1.4.2. Connections ? Tasks ? Manage existing
connections ? Modem
Name of the setting
Enter Connection Name
Enter Access point Name
Edit User name and Password

• Description
• User can Add or edit settings

Refer 2.1.1 Connections Tasks Add a new modem
connection
Profitable Growth B3X
Number one to the customer!
17
KS20
3. Connections
3.1.4.3. Connections ? Tasks ? Manage existing
connections ? VPN
Name of the setting
Edit VPN Name / IP
Enter Authentication
Enter User name and Password

• Description
• User can Add or edit settings

Refer 2.1.2 Connections Tasks Add a VPN server
connection
Profitable Growth B3X
Number one to the customer!
18
KS20
3. Connections
3.2.1. Connections ? Advanced ? Select Network
List of current settings (for example)PAYT
MMS Contract MMS PAYT WAP Contract WAP
List of current settings (for example)PAYT
MMS Contract MMS PAYT WAP Contract WAP
Refer 2.1.4.2 Connections Tasks Manage
existing connections Modem
Profitable Growth B3X
Number one to the customer!
19
KS20
4. E-mail

• Setting E-mail Account
• Step 1 Select Start ? Programs ? Auto Profile ?
  Select network ? ok ( For first time
• only)
• Step 2 Select Start ? Settings ? Connections ?
  Connections ? Advanced ? Select
• Networks ? Select appropriate network
  settings (Vodafone Vodafone Mobile
• Connect , Airtel Mobile Office etc.. ) ?
  Ok ( For first time only )
• Step 3 Select Start ? Messaging ? New E-mail
  Account ? Input E-mail address ?
• Check Try to get e-mail settings
  automatically from the Internet ? Next ?
• Input Your name ? Account display name ?
  Next ? Input User Name ?
• Input Password ? Next ? Select Automatic
  Send /Receive ( depends on user,
• default is 2hrs) ? Finish

Enter e-mail address
Auto configuration attempts to download necessary
e-mail server settings so that you do not need to
enter them manually.
Profitable Growth B3X
Number one to the customer!
20
KS20
4. E-mail

• Setting E-mail using POP3/SMTP Server
• Step 1 Select Start ? Programs ? Auto Profile ?
  Select appropriate network ? ok (
• For first time only)
• Step 2 Select Start ? Settings ? Connections ?
  Connections ? Advanced ? Select
• Networks ? Select appropriate network settings
  (Vodafone Vodafone Mobile
• Connect , Airtel Mobile Office etc.. ) ? Ok (
  For first time only)
• Step 3 Select Start ? Messaging ? New E-mail
  Account ? Input E-mail address ?
• Uncheck Try to get e-mail settings
  automatically from the Internet ? Next ?
• Select Your e-mail provider (
  Internet e-mail / Exchange server)
• ? Next ? Input Your name ? Account display
  name ? Next ? Input
• Incoming mail server Account
  type (POP3/IMAP4) ? Next ? Input User Name ?
  Input
• Password ? Next ? Input
  Outgoing (SMTP) mail server ? Next
• ? Select Automatic Send
  /Receive (5m4h ,depends on user , default is
  2hrs) ?
• Finish

Profitable Growth B3X
Number one to the customer!
21
KS20
5. Window live

• Windows Live Messenger Set-up
• Step 1 Select Start ? Programs ? Auto Profile ?
  Select
• appropriate network ? ok
• Step 2 Select Start ? Settings ? Connections ?
  Connections
• ? Advanced ? Select Networks ? Select

• appropriate network settings (Vodafone
  Vodafone Mobile Connect , Airtel Mobile
  Office etc.. ) ? Ok
• Step 3 Select Start ? Messaging ? New E-mail
  Account (Tap to setup a
• new account) ? Input E-mail
  address ? Next ? Next ? Accept
• the Window live agreement ? Tap
  Password - Next -Show
• Window Live on the Today screen
  (check as per your
• requirement) ? Next ? Next ?
  display shows synchronizing
• E-mail than Synchronizing mail (
  It will take some time as per your mail size)
• Step 4 Select Start ? Programs ?Messenger

Profitable Growth B3X
Number one to the customer!
22
KS20
6. Wi-Fi
Wi-Fi (Wireless Fidelity) is the popular term
for a high frequency wireless local area network
(WLAN) technology that uses IEEE 802.11 standards

• How to configure Wi-Fi
• Step 1 Select Start ? Programs ? Auto Profile ?
  Select appropriate network ? ok
• Step 2 Select Start ? Settings ? Connections ?
  Wi-Fi ? Tap Add New ? Input
• Network Name ? Select Connects to
  (select Work) ? Next ? Select
• Authentication as Open ? Select
  Data Encryption as WEP ? Input Network key
• ? Next ? Finish
• Step 3 Select Configured setting ? Connect
  (LSK)

Profitable Growth B3X
Number one to the customer!
23
KS20
6. Wi-Fi

• To reset or modify the network card settings on
  your device
• Tap Start ? Settings ? Connections ? Wi-Fi ?
  Network Adapters
• In the My network card connects to list select
  the appropriate item .
• Select Internet if want to connect to the
  Internet using ISP or WLAN to browse web page
• with Internet Explorer.
• Select Work if want to connect to a private
  network browse the shared folder on the
• network with File Explorer.
• In the Tap an adapter to modify settings field
  select the appropriate adapter.
• After select a network card and enter the
  setting screen , configure the required settings.
  On
• the IP Address tab , select Use specific IP
  address and enter the requested information .
• On the Name Servers tab , configure the DNS
  WINS settings.

Profitable Growth B3X
Number one to the customer!
24
KS20
7. Internet Sharing
How to Share Internet connection with PC
Connect your device to the PC using Bluetooth
or a USB cable. (Active Sync Software Version
4.5 or higher is Required)
- Select the PC connection type. - Select the
network connection that the device should use to
connect to the Internet.
Connected

• Note
• Operation system on PC is required Windows XPSP2
  or
• later .
• If your device and PC are Bluetooth-enabled and
  you select Bluetooth as the PC connection, you
  must go to the PC to initiate and complete the
  Bluetooth Personal Area Network (PAN) partnership
  before Internet Sharing will work. For more
  information, consult Windows Help and Support.

Profitable Growth B3X
Number one to the customer!
25
KS20
8. Word Mobile

• Word Mobile is a streamlined version of Microsoft
  Word. Word documents created on
• PC can be opened and edited on device. We can
  create edit documents and templates in Word
  Mobile and save them as .doc, .rtf , .txt and
  .dot files .
• For creating a file , Tap New in Word Mobile .

• Unsupported features
• Can not open Password protected files .
• Backgrounds, Shapes text boxes. Artistic page
  borders , small tags .
• Bi-directional text Able to open file with
  bi-directional text but indentations
• and alignment may be displayed and saved
  incorrectly.
• Picture bullets/ Revision marks ( Partially
  supported
• Table /Underline styles ( Partially supported)
• Footnotes,endnoted,headers footers / Page
  breaks /Lists/Fonts font sizes

Profitable Growth B3X
Number one to the customer!
26
KS20
9. Excel Mobile
Excel documents created on PC can be opened and
edited on device. We can create edit Excel
documents.

• Unsupported features
• It does not fully support some features such as
  formulas cell comments. Some data and
• formatting may be lost after saving the
  workbook .
• Alignment Horizontal , vertical wrap-text
  attributes remain the same but Vertical text

• appears horizontal
• Borders Appear as a single line.
• Cell patterns Patterns applied to cells are
  removed

Profitable Growth B3X
Number one to the customer!
27
KS20
10. PowerPoint Mobile
Using PowerPoint Mobile, you can open and view
slide show presentations created on PC in .ppt
and .pps format with Powerpoint97 and later.

• Unsupported features
• Notes written for slides will not be visible
• Rearranging or editing slides - PowerPoint
  Mobile is a viewer only .
• File Formats Files created in .ppt format
  earlier than PowerPoint97 and HTML
• files in .htm and .mht formats are not
  supported .

Profitable Growth B3X
Number one to the customer!
28
KS20
11. Windows Media Player

• Windows Media Player is for playing digital audio
  and video files that are stored on device or on a
  network such as on a Website.
• Following file formats are supported by Windows
  Media WAV,WMA,WMV,MP3,MIDI,SP-MIDI,SMAF,AAC,AMR
  ,3GP,MP4
• Windows Media Player has three primary screens
• Playback screen Default screen that displays the
  playback controls (such as Play , pause, Next,
  Previous etc..), the album art window and the
  video window.
• Now Playing screen Displays the Now Playing play
  list . This special play list indicates the
  currently playing file and any files that are
  queued up to play next.
• Library screen The screens that lets you
  quickly find your audio files, video files and
  playlists. It contains categories such as My
  Music, My Video, My TV and My Playlists.

Profitable Growth B3X
Number one to the customer!
29
KS20
12. Manage Screen Settings
You can set the display orientation as per your
convenience i.e. Portrait (Default), Landscape
(right-handed) or Landscape (left-handed)
Procedure Start ? Settings ? System ? Screen
? General ? Select desired orientations ? ok
Tap the screen orientation you want
Portrait
Landscape (right-handed)
Landscape (left-handed)
Profitable Growth B3X
Number one to the customer!
30
KS20
13. Customizing Today Screen
Select a theme
Select items
Guaba Bubbles theme
Profitable Growth B3X
Number one to the customer!
31
KS20
14. Editing of Shortcut Keys

• Change the functioning of shortcut keys 6 7
  (see picture) (default setting for 6 is
  Internet Explorer 7 is Camera) Changing
  the speed of Up/Down control by key 2 (see
  picture)
• Procedure to change the functioning of Short Cut
  Keys (6 7)
• Tap Start ? Settings ? Personal
• Tap Buttons ? Program Buttons
• Select a button Select shortcut key you want to
  change .
• Assign a program Select a program you want to
  keep as
• shortcut .
• Tap ok.
• Procedure to change the speed of Up/Down Control
  (2)
• Tap Start ? Settings ? Personal
• Tap Buttons ? Up/Down Control
• Select Delay before first repeat Repeat rates
• Tap ok.

Profitable Growth B3X
Number one to the customer!
32
KS20
15. Entering Information
There are four input methods on the screen
Keyboard, Block Recognizer, Letter Recognizer,
Transcriber. Input panel icon appears on the menu
bar to indicate which input method is currently
Selected . The input Selector arrow (shown at the
right side of the input Panel icon) opens a list
of available input methods .
Select input method
Change options as appropriate.
Profitable Growth B3X
Number one to the customer!
33
KS20
15. Entering Information
15.1 Using Block Recognizer
Entering new task screen

• Block Recognizer is available when text entry is
  possible
• Preferred word list will be disappeared if there
  is no user
• reaction for 6 seconds
• Enter letters by writing in the abc (left) area
  of the box
• Enter numbers by writing in the 123 (right) area
  of the box
• Enter symbols and punctuation by tapping in
  either area of
• the box and then writing the desired
  character.

Profitable Growth B3X
Number one to the customer!
34
KS20
15. Entering Information
15.2 Using On Screen Keypad
Entering new task screen

• You can enter text by tapping keys on the
• keyboard that are displayed on the screen
• To make the keys larger , tap the Input
• Selector arrow ? Options ? Input
• Method list , select Keyboard and then tap
• Large Keys.
• General rule for entering text is same as MS
• based PC.

Profitable Growth B3X
Number one to the customer!
35
KS20
15. Entering Information
15.3 Using Letter Recognizer
Entering new task screen

• Letter Recognizer is available when text entry
  is possible
• Preferred word list will be disappeared if there
  is no user reaction
• for 6 seconds.

Profitable Growth B3X
Number one to the customer!
36
KS20
15. Entering Information
15.4 Using Transcriber
Transcriber is a handwriting recognition program
that allows you to write in cursive, print, or a
combination of both. Transcriber works
transparently in the background of programs,
recognizing words with its integrated dictionary.
When Transcriber is turned on, it interprets
stylus movement anywhere on the screen as
handwriting input.
The Transcriber introductory screen appears.

• In a program , position the cursor where text to
  appear.
• Use the stylus to write anywhere on the screen .
  The handwriting will be converted to text
• shortly after lifting the stylus from the
  screen .
• To enter punctuation and symbols tap on the
  Transcriber toolbar , the keyboard
• remains visible until you tap the button
  again.

Profitable Growth B3X
Number one to the customer!
37
KS20
16. PS Note
Start ? Programs ? PS Note
PS Note is a multimedia input editor with
handwriting recognition for Pocket PC .You can
enter handwritten text (in various styles that is
immediately converted into digital text),
drawing, images, video or sound and send it via
e-mail, SMS or MMS.
Profitable Growth B3X
Number one to the customer!
38
KS20
17. Recording a Note

• We can create a stand-alone recording (voice
  note) or can add a recording to a note
• Procedure
• Tap Start ? Programs ? Notes
• To create a stand-alone recording recording ,
  record from the note list.
• To add a recording to a note, create or open a
  note.
• For viewing Recording toolbar , tap Menu - View
  Recording Toolbar
• Hold your devices microphone near your mouth or
  other source of sound.
• If you adding a recording to a note. Tap Ok to
  return to the note list when finished.
• If recording in an open note, an icon will
  appear in the note.
• If creating a stand-alone recording , the
  recording will appear in the note list .

Begin recording
Profitable Growth B3X
Number one to the customer!
39
KS20
18. Searching Information
Search for files and other items stored on your
device in the My Documents folder or on a storage
card.
task
Enter text
Programs screen
Search result screen
Profitable Growth B3X
Number one to the customer!
