Title: Theoretical Computer Science A

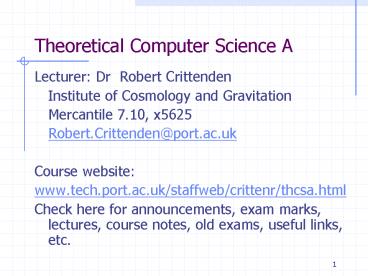

Theoretical Computer Science A
  • Lecturer Dr Robert Crittenden
  • Institute of Cosmology and Gravitation
  • Mercantile 7.10, x5625
  • Course website
  • Check here for announcements, exam marks,
    lectures, course notes, old exams, useful links,

Recommended books and references
  • Lecture notes and tutorials online J. Britt
    and B. Bassett
  • Theory of Computation An Introduction J.L.
    Hein, (1996).
  • Introduction to the Theory of Computation M.
    Sipser, (1997).
  • Feynman lectures on Computation R. Feyman
    (2000) focus on Chapter 3.
  • Godel, Escher, Bach An Eternal Golden
    Braid D.R. Hofstadter, (2000).
  • A New Kind of Science S. Wolfram (2002).

What the course is about
  • A Models of computation Automata, Turing
    machines, etc. How does a computer
    work? What is a computer language? How is
    English different from C?
  • B What are the limits of computing?
    What can we compute in principle?
    What can we compute in practice?
  • This course is about learning to think abstractly
  • Difficult stuff, so it is essential to keep up
    with lectures and tutorials!

The Challenge
  • This is a tough course - usually with a high
    failure rate. You need to work and attend
  • It leads on to THCSB which is even more abstract
    and has had a very high failure rate work now
    and you will benefit for two years!
  • The unseen benefits from this course will stay
    with you for many years so it is not all bad!

Course overview
  • The course discusses two very closely related
    concepts models of computing and languages
  • The computing models are simplified as much as
    possible, so as to boil them down to their most
    important elements. Some of the models will be
    more powerful than others.
  • Languages are effectively sets of strings which
    are built by particular rules, called a grammar.
    The more complex the grammar, the more
    complicated the language can be.

Models of computing
  • Finite state machines (automata) Pattern
    recognition Simple circuits (e.g. elevators,
    sliding doors)
  • Automata with stack memory (pushdown
    autom.) Parsing computer languages
  • Automata with limited tape memory
  • Automata with infinite tape memory Called
    Turing machines Most powerful model
    possible Capable of solving anything that is

Chomsky hierarchy of grammars
  • Regular grammars
  • Context free grammars
  • Context sensitive grammars
  • Unrestricted grammars
  • Well define what these mean later, but the
    important point is that the grammars become more
    complex as we go down the list, and contain those
    above it.

Computers recognise languages!
  • Computers can be made to recognize, or accept,
    the strings of a language.
  • There is a correspondence between the power of
    the computing model and the complexity of
    languages that it can recognize!
  • Finite automata only accept regular grammars.
  • Push down automata can also accept context free
  • Turing machines can accept all grammars.
  • This is why we study both in this course!

The course structure
  • Intro to languages
  • Regular languages
  • Finite Automata (finite state machines)
  • Regular grammars
  • Context free languages and pushdown automata
  • Turing Machines
  • Cellular Automata and the Game of Life

Introduction to Languages
  • A set is a collection of things called its
    elements. If x is an element of set S, we can
    write this
  • x ? S
  • A set can be represented by naming all its
    elements, for example
  • S x, y, z
  • There is no particular order or arrangement of
    the elements, and it doesnt matter if some
    appear more than once. These are all the same
  • x, y, zy, x, zy, y, x, z, z

Combining Sets
  • A set with no elements is called the empty set,
    or a null set. It is denoted by ? .
  • If every element of set A is also an element of
    set B, then A is called a subset of B
  • A ? B
  • The union of two sets is the set with all
    elements which appear in either set
  • C A ? B
  • The intersection of two sets is the set with all
    the elements which appear in both sets
  • C A ? B

Alphabets and strings
  • A string a sequence of symbols that are placed
    next to each other in juxtaposition
  • The set of symbols which make up a string are
    taken from a finite set called an alphabet
  • E.g. a, b, c is the alphabet for the string
  • A string with no elements is called an empty
    string and is denoted ?.
  • If A is an alphabet, the infinite set of all
    strings made up from A is denoted A.
  • For example, if Aa, then A?, a, aa, aaa,

  • A language is a set of strings.
  • If A is an alphabet, then a language over A is a
    collection of strings whose components come from
  • So A is the biggest possible language over A,
    and every other language over A is a subset of

Examples of languages
  • Four simple examples of languages over an
    alphabet A are the sets ?, ?, A, and A.
  • For example, if Aa then these four simple
    languages over A are
  •  ?, ?, a, and ?, a, aa, aaa, .
  • Recall ? is the empty string while ? is the
    empty set. A is an infinite set.

Example English
  • The alphabet is A a,b,c,d,ex,y,z
  • The English language is made of strings formed
    from A e.g. fun, excitement.
  • We could define the English Language as the set
    of strings over A which appear in the Oxford
    English dictionary (but it is clearly not a
    unique definition).

  • The natural operation of concatenation of strings
    places two strings in juxtaposition.
  • For example, if then the concatenation of the two
    strings aab and ba is the string aabba.
  • Use the name "cat " to denote this operation.
    cat(aab, ba) aabba.

Combining Languages
  • Languages are sets of strings, so they can be
    combined by the usual set operations of union,
    intersection, difference, and complement.
  • Also we can combine two languages L and M by
    forming the set of all concatenations of strings
    in L with strings in M.

Products of languages
  • This new language is called the product of L and
    M and is denoted by L ? M.
  • A formal definition can be given as follows
  •  L ? M cat(s, t) s ? L and t ? M.
  • For example, if L ab, ac and M a, bc,
    abc, then the product LM is the language
  • L ? M aba, abbc, ababc, aca, acbc, acabc.

Properties of products
  • The following simple properties hold for any
    language L
  •   L? ? ?? L L.
  •   L ? ? ? ?.L ?.
  •  The product is not commutative. In other words,
    we can find two languages L and M such that L ? M
    ? M? L.
  • The product is associative. In other words, if
    L, M, and N are languages, then
  • L ? (M ? N) (L ? M) ? N

Powers of languages
  • If L is a language, then the product L ? L is
    denoted by L2.
  • The language product Ln for every n ? 0, 1, 2,
    is as follows
  • L0 ?
  • Ln L ? Ln-1 if n gt 0

  • For example, if L a, bb then the first few
    powers of L are
  • L0 ?
  • L1 L a, bb
  • L2 L ? L aa, abb, bba, bbbb
  • L3 L ? L2 aaa, aabb, abba, abbbb,
    bbaa, bbabb, bbbba, bbbbbb

Closure of a language
  • If L is a language over A (i.e. L ? A) then the
    closure of L is the language denoted by L and is
    defined as follows
  •  L L0 ? L1 ? L2 ?.
  • The positive closure of L is the language denoted
    by L and defined as follows
  • L L1 ? L2 ? L3 ?.

L vs. L
  • It follows that L L ? ?.
  • But its not necessarily true that
  • L L - ?.
  • For example, if we let our alphabet be A a
    and our language be L ?, a, then
  • L L.
  • Can you find a condition on a language L such
    that L L - ??

Closure of an alphabet
  • The closure of A coincides with our definition of
    A as the set of all strings over A. In other
    words, we have a nice representation of A as
  • A A0 ? A1 ? A2 ?.

Properties of Closure
  • Let L and M be languages over the alphabet A.
  • a)      ? ? ?
  • b)      L L ? L (L)
  • c)      ?? L if and only if L L
  • d)      (L ? M) (L ? M) (L ? M)
  • e)      L ? (M ? L) (L ? M) ? L
