Title: Development of ISOBUS the ISO11783 standard


1

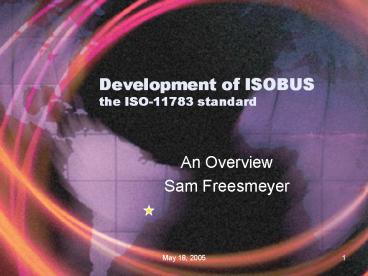

Development of ISOBUS the ISO-11783 standard
  • An Overview
  • Sam Freesmeyer

2
What is ISOBUS?
  • An industry term for
  • An electronic communications network used on
    Agricultural and Forestry equipment
  • That meets ISO11783 standard.

3
What is ISOBUS?
ISO
BUS

4
Interconnectivity between different manufacturers
So that you can go from this . . .
To This
To This
To This
To This
Without swapping out harnesses and monitors
5
What makes up an ISOBUS System?
Implement Bus
Virtual Terminal
Tractor ECU
Tractor Bus
Implement Controllers
Breakaway Connector
6
History of ISO-11783
  • 1980s The need is recognized
  • LBS Standard developed in Germany
  • ASAE Investigating CAN Standards in the USA
  • 1990s Standardization begins
  • ISO TC23 / SC19 Ag Electronics formed
  • LAV in Germany presented DIN 9684 (LBS)
  • Con Ag Multiplexing Task Force in US, promoted
    J1939
  • February 1991, WG1 was formed and began to work
    on the new communications protocol ISO-11783

7
History of ISO-11783
  • 2000s Promotion of the Standard
  • 2000 - German Engineering society forms
    Implementation Group ISOBUS (IGI)
  • ISOBUS adopted as an industry name for
    ISO-11783
  • 2001 - Presentation at Agritechnica in Germany
  • Cooperation between member companies accelerates
    adoption of the standard in Europe
  • Early implementation allowsimprovements of the
    standard

8
History of ISO-11783
  • 2000s Promotion of the Standard
  • 2002 - Promotion in North America launched at AMC
  • Engineers from several companies form North
    American ISOBUS Implementation Task Force
    (NAIITF)
  • NAIITF and IGI formalize cooperation

9
History of ISO-11783
  • 2003-2005 Interoperability
  • Plugfests pave the way for interoperability
  • Manufacturers begin to introduce ISOBUS

10
Agricultural Machinery Conference
Your Logo Here
May 6, 7, 8, 2003 Cedar Rapids, Iowa
11
How NAIITF and IGI Fit
North America
Europe
AEM
VDMA
Administers Standards Process
NAIITF
IGI
Implements and Promotes Standards
ANSI
ANSI
ANSI
ANSI
TC23 SC19 WG1
Creates Standards
12
Common Task for IGI and NAIITF
  • Specify the
  • ISOBUS Compliance
  • Test Protocol
  • Approve world wide
  • Test Labs
  • DLG in Europe
  • WYLE Lab in
  • North America

13
Implementation Group ISOBUS(IGI)
  • North American ISOBUS Implementation Task Force
    (NAIITF)

14
Name and Organization
  • Name Implementation Group ISOBUS (IGI)
  • Focused on Western European Market, but open to
    all
  • Organization Type Working Group under VDMA
  • German VDMA provides administrative resources,
    website, and organizational oversight
  • VDMA is the German Engineering Federation and
    official secretariat for ISO/TC23/SC19
  • Name North American ISOBUS Implementation Task
    Force (NAIITF)
  • Focused on North American applications, but open
    to all
  • Organization Type a Task Force under AEM
  • AEM provides administrative resources, website,
    and organizational oversight
  • AEM is an International Association of Equipment
    Manufacturers

15
Role and Responsibility (IGI in Western Europe,
and NAIITF in North America)
  • Interoperability activities
  • Coordinate ISOBUS implementation for multi-brand
    markets
  • Plugfest planning
  • Tools for development support
  • Promoting Awareness
  • Tradeshows
  • Promotion and Advertising
  • Certification and Voluntary Compliance
  • Test Lab and protocol development
  • Certification and recognition

16
Activities in past 5 years
  • IGI - 5 Years of Work
  • 20 Meetings
  • 9 PlugFests
  • 2 Agritechnica and 1 SIMA promotions
  • Multiple Presentations at Engineering and
    Marketing Conferences
  • Over 40 actively participating companies
  • NAIITF 3 Years of Work
  • 11 Meetings
  • 3 PlugFests
  • 6 Trade Shows
  • Over 20 Active Members

17
(No Transcript)
18
(No Transcript)
19
ISOBUS in Brazil
  • May 2, 2005 - NAIITF Meeting
  • NAIITF was advised of interest in ISOBUS in
    Brazil
  • Members unanimously supported South American
    Efforts
  • NAIITF Invites participation, and offers support
  • May 4, 2005 IGI Communication
  • IGI advised of interest in ISOBUS in Brazil
  • Members unanimously supported South American
    Efforts
  • IGI Invites participation, and offers support
  • AGCO, CNH Global, John Deere
  • Confirm support for ISOBUS in South America

20
Força Tarefa ISOBUS Brasil
  • Divulgar a ISOBUS e seus benefícios
  • promover a sinergia e orientar os grupos
    interessados na sua adoção.
  • compartilhar as experiências na implementação dos
    protocolos nos diversos níveis
  • Promover e certificar a compatibilidade
  • Criar norma ABNT-ISO

21
Ações da Força tarefa ISOBUS Brasil
  • Apresentação e lançamento Agrishow, Ribeirão
    Preto, 18.05.05
  • 100 participantes (indústria, academia,
    usuários)
  • J.P. Molin (ESALQ-USP)
  • R.Y. Inamasu (Embrapa)
  • C.E. Cugnasca (Poli-USP)
  • A.M. Saraiva (Poli-USP)
  • Sam Friesmeyer (NAIITF - EUA)
  • ABNT
  • ABIMAQ

22
Ações da Força tarefa ISOBUS Brasil
  • Reunião CONBEA, Canoas, RS, em julho/05.
  • Criação da Comissão de Estudos na ABNT CB-04.
  • CE-04015.05
  • Objetivo criar norma ABNT-ISO
  • 1ª. Reunião 15/08/05 - Abimaq-(SP)
  • 2ª. Reunião 12/09/05 - Abimaq-(SP)
  • 3ª. Reunião 29/09/05 - Londrina

23
Força Tarefa ISOBUS Brasil
  • Ações futuras
  • Normalização dentro da ABNT
  • Eventos para divulgação
  • Plug fests
  • Laboratórios de teste

24
Força Tarefa ISOBUS Brasil
  • Necessidades
  • Recursos para cobrir os custos
  • tradução da norma,
  • realização dos eventos e reuniões.
  • Recursos humanos para trabalhar na norma

25
Força Tarefa ISOBUS Brasil
  • Vantagens
  • Domínio dos conceitos e fundamentos da norma
  • Acesso direto e antecipado à norma em projeto de
    criação no Brasil, a partir da norma
    internacional.
  • Possibilidade de discutir com especialistas e
    colegas os aspectos da norma.
  • Antecipação e competitividade
  • Recebimento sem custo de uma cópia legal da
    norma, quando publicada.
