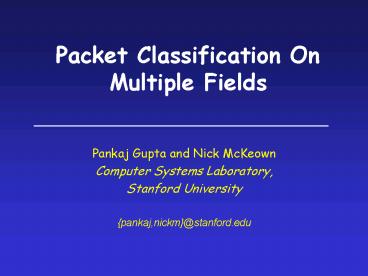

Packet Classification On Multiple Fields

1
Packet Classification On Multiple Fields

• Pankaj Gupta and Nick McKeown
• Computer Systems Laboratory,
• Stanford University
• pankaj,nickm_at_stanford.edu

2
Why classify packets ?

• To determine which flow they belong to
• gt to decide what service they should receive

Router needs to identify the flow of every
incoming packet and then perform appropriate
special processing
3
Special Processing Requires Identification of
Flows

• All packets of a flow obey a pre-defined rule and
  are processed similarly by the router
• Classification is based on an arbitrary number of
  fields in the packet header
• E.g. a flow (src-IP-address, dst-IP-address),
  or a flow (dst-IP-prefix, protocol) etc.

4
Network services

• Routing
• Access-control in firewalls
• Policy-based routing
• Provision of differentiated qualities of service
• Traffic billing

5
What to determine?

• Forward or filter a packet?
• Where to forward it to?
• What class of service to receive?
• How much to charge for transpoting it?

6
Packet Classifier
HEADER
Forwarding Engine
Action
Packet Classification
Classifier (policy database)
rules
Action
----
----
----
----
Incoming Packet
----
----
7
Need for Differentiated Services
E1
Y
E2
Z
ISP3
NAP
ISP2
X
ISP1
8
Table 2
Class
Relevant Packet Fields
Source Link-layer Address,Source Transport port
number
Email and from ISP2
Source Link-layer Address
From ISP2
From ISP3 and going to E2
Source Link-layer Address Destination
Network-Layer Address
All other packets
---------
9
Packet Classification Problem Definition

• Given a classifier C with N rules, Rj, 1 ? j ? N,
  where Rj consists of three entities
• A regular expression Rji, 1 ? i ? d, on each of
  the d header fields,
• A number, pri(Rj), indicating the priority of the
  rule in the classifier, and
• An action, referred to as action(Rj).

For an incoming packet P with the header
considered as a d-tuple of points (P1, P2, ,
Pd), the d-dimensional packet classification
problem is to find the rule Rm with the highest
priority among all the rules Rj matching the
d-tuple i.e., pri(Rm) gt pri(Rj), ? j ? m, 1 ? j
? N, such that Pi matches Rji, 1 ? i ? d. We
call rule Rm the best matching rule for packet P.
10
Classification is a Generalization of Lookup

• Classifier routing table
• One-dimension (destination address)
• Rule routing table entry
• Regular expression prefix
• Action (next-hop-address, port)
• Priority prefix-length

11
Example 4D classifier
152.163.198.4/255.255.255.255
152.163.36.0/255.255.255.255
tcp
R6
Gt 1023
Permit
12
Example Classification Results
13
General characteristics of Classifiers

• Number of rules
• not a large number
• 0.7 more than 1000 mean of 50 rules
• Number of fields
• max of 8 fields src/dst network
  layeraddress
• src/dst
  transport layer port numbers
•
  type-of-service fieldTOS
• protocol
  field
•
  transport-layer protocol flags
• 17 of rules 1 field , 23 3 fields ,
  60 4 fields

14
General characteristics of Classifiers (contd.)

• Transport-layer protocol field
• TCP,UDP,ICMP,IGMP,(E)IGRP,GRE,IPINIP or
• Transport-layer field specification
• 10.2 have range specification
• Rules with non-contiguous mask
• 14 of classifiers have 10.2 of all rules
• Many different rules in the same classifier share
  a number of field specification
• Redundant rules
• 8 of rules in classifiers
• 4.4 of rules are
  backward redundant
• 3.6 of rules are
  forward redundant

15
Goals

• The algorithm should
• Be fast enough to operate at OC48c linerates
• and preferably at OC192c linerates
• Allow matching on arbitrary fields
• Support general classification rules
• prefixes,operators,wildcards
• Be suitable for implementation in both software
  and hardware
• Not have expensive memory requirements
• Scale in terms of both memory and speed with the
  size of the classifier

16
Previous work

• simplest classification algorithm
• evaluating rules
  sequentially
• simple and efficient in its use of memory
• poor scaling properties
• time grows linearly with the number of
  rules

17
Classification with Ternary-CAMs
TCAM
Memory array
0
0
1
1
2
0
3
0
Packet Header
Priority
The first matching rule
encoder
M
1
Too expensive,too small,and consume too much
power for large classifiers
18
Structure of the Classifiers
4 regions
R3
R2
R1
A classification algorithm must keep a record of
each region and be able to determine the region
to which each newly arriving packet belongs
19
Structure of the Classifiers
7 regions
R3
R2
R1
The more region the classifier contains,the more
storage is required and the longer it takes to
classify a packet
20
Algorithm

• Packet Classification problem
• S bits in the packet header gt T bits of classID
• T log N N is number of classifier rules

• A simple and fast way of doing this mapping
• pre-compute the value of classID for each of
  the
• 2S different packet headers
• Yield the answer in one step in one memory
  access
• Require too much memory

21
Recursive Flow Classificationperform the same
mapping but over several stages
One-step
2S 2128
2T 212
22
Recursive Flow Classification

• Consists of P phases
• each with a set of parallel memory lookups
• Each lookup is a reduction
• the value returned by the memory lookup is
• shorter than the index of the memory
  access

23
Chunking of a Packet
Used to index into multiple memories in parallel
Chunk 0
Source L3 Address
Destination L3 Address
L4 protocol and flags
Source L4 port
Destination L4 port
Type of Service
Chunk 7
Packet Header
24
Packet Flow
eqID
index
action
Header
Phase 0
Phase 1
Phase 2
Phase 3
25
Example 4D classifier
152.163.198.4/255.255.255.255
152.163.36.0/255.255.255.255
tcp
R6
Gt 1023
Permit
26

• In phase 0
• chunk6
• 1.www80 2.20,21 3.gt1023
  4.remaining numbers
• can be encoded by 00b to 11b eqIDs
  reduction 16 to 2 bits
• chunk4
• 1.tcp 2.udp 3.remaining numbers
• can be encoded by 2 bits reduction
  8 to 2 bits
• In phase 1
• CESs .(80,udp)
  2.(20-21,udp) 3.(80,tcp)
  4.(gt 1023,tcp) 5.all
  remaining crossproducts
• concatenating reduction 4
  to 3 bits
• can be encoded by 3 bits total
  reduction 24 to 3 bits

27
RFC preprocessing for chunk j of phase 0

• For each rule rl in the classifier
• project ith component of rl onto the number
  line (from 0 to 2b-1) making the
• start and end points of each of its
  constituent intervals
• End for
• Bmp 0
• For n in 02b-1
• If(any rule starts or ends at n)
• update bmp
• if(bmp not seen earlier)
• eq new_Equivalence_Class( )
• eq -gt cbm bmp
• end if
• End if
• Else eq the equovalence class whose cbm is bmp

• table_0_jn eq-gtID
• End for

28
RFC preprocessing for chunk i of phase j(jgt0)

• Index 0
• listEqs nil
• For each CES,c1eq,of chunk c1
• For each CES,c2eq,of chunk c2
• For each CES,cmeq,of chunk cm
• intersectedBmp c1eq-gtcbm c2eq-gtcbm
  cmeq-gtcbm
• neweq searchList(listEqs,intersectedBmp)

• if(not found in listEqs)
• neweq new_Equivalence_Class( )
• neweq-gtcbm bmp
• add neweq to listEqs
• end if
• table_j_iindex neweq-gtID
• index
• End for

29
Performance of RFC

• 1.number of phases P
• we combine those chunks together which have
• the most correlation
• 2.the reduction tree used
• we combine as many chunks as we can without
• causing unreasonable memory consumpsion

30
Choice of Reduction Tree
Tree_B
Tree-A
0
0
1
1
2
2
ClassID
ClassID
3
3
4
4
5
5
Number of phases P 3 10 memory accesses
31
Choice of reduction tree
Tree_A
Tree_B
0
0
1
1
2
2
ClassID
ClassID
3
3
4
4
5
5
Number of phases P 4 11 memory accesses
32
RFC lookup in Hardware
Phase 1
Phase 0
Chks0 and 1 replicated
SRAM1
chk0 chk1 chk0 chk1
Chks0-2
SDRAM1
Chk0
Chk0 (replicated)
Chks3-5
SRAM2
SDRAM2
Phase 2
Clk 125MHZ gt 31.25
million packets per second
33
RFC lookup in software

• 30 lines of code in C
• compiled on a 333Mhz PentiumII PC running
  windows NT
• worst case path for the code took
  (140clks9tm) for three phases and (146clks11tm)
  for four phases
• tm memory access time 60
  ns
• gt 0.98us for 3 phase 1.1us for 4 phases
• close to one million packets per second
• the average lookup time is 50 faster than the
  worst case

34
RFc lookup operation

• For(each chunk,chknum of phase 0)
• eqNums0chkNum contents of appropriate
  rfctable at memory address pktFieldschkNum
• For(phaseNum1numphases-1)
• For(each chunk,chkNum,in Phase phaseNum)
• chd parent descriptor of
  (phaseNum,chknum)
• Index eqNumsphaseNum of
  chkParents0chkNum ofchkParents0
• For(I1chd-gtnumChkParents-1)
• index index (total equivIDs of
  chd-gtchkParentsI)
• eqNumsphaseNum of chd-gtchkParentsI

•
  chkNum of chd-gtchkParentsI
• End for
• eqNumsphaseNumchkNum contents of
  appropriate rfctable at address index
• End for
• Return eqNums0numphases-1

35
Table 6

Src L3 31..16
Src L3 15..0
Dst L3 15..0
Dstn L4 16 bits
Dst L3 31..16
L4 protocol 8 bits
Action

0.77/1
0.0/0.0
0
0.83/1..
4.6/1
udp

permit
0.0/0.0
4.6/1
1.0/255.0
1
0.83/1..
udp
20-30
permit

21
0.0/1
2
0.83/1..
0.0/0.0
0.77/1
permit
3
0.0/0.0
0.0/0.0
0.0/1

21
deny
0.0/0.0
4
0.0/0.0
0.0/0.0
0.0/1
0.0/0.0


permit
36
Variations and improvements of RFC

• 1.RFC can be extended to process a larger number
  of fields in each packet header
• 2.speed up RFC by taking advantage of available
  fast lookup algorithms
• 3.employ adjacency groups technique
• to reduce the memory requirements when
• processing large
  classifiers

37
Adjacency Groups

• Size of the RFC table number of CES s
• R S are adjacent in dimension I if
• 1.they have the same action
• 2.all but the ith field have the exact same

• specification in the two
  rules
• 3.all rules appearing between them have
  either
• the same action or are disjoint from
  R
• two rules are simple adjacent if they are
  adjacent in
•
  some dimension
• SO we will merge adjacent rules

38
Example of adjacency groups
R(a1,b1,c1,d1) S(a1,b1,c2,d1) T(a2,b1,c2,d1) U(a2,
b1,c1,d1) V(a1,b1,c4,d2) W(a1,b1,c3,d2) X(a2,b1,c3
,d2) Y(a2,b1,c4,d2)
RS(a1,b1,c1c2,d1) TU(a2,b1,c1c2,d1) VW(a1,b1,c3
c4,d2) XY(a2,b1,c3c4,d2)
Merge along Dimension 3
Merge along Dimension 1
RSTU(a1a2,b1,c1c2,d1) VWXY(a1a2,b1,c3c4,d2)
Carry out an RFC phase Assume chunks 1 2 are
combined And also chunks 3 4 are combined
RSTU(m1,n1) VWXY(m1,n2))
RSTUVWXY(m1,n1n2)
Merge
Continue with RFC
39
RFC Pros and Cons

• Advantages
• Suitable for multiple fields
• Supports non-contiguous masks
• Fast accesses

• Disadvantages
• Large pre-processing time
• Incremental updates slow
• Large worst-case storage requirements
