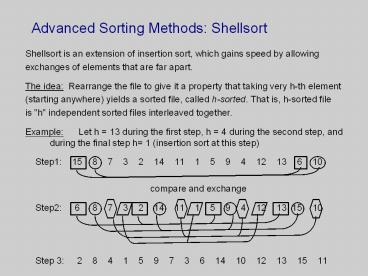

Advanced Sorting Methods: Shellsort

1
Advanced Sorting Methods Shellsort

• Shellsort is an extension of insertion sort,
  which gains speed by allowing
• exchanges of elements that are far apart.
• The idea Rearrange the file to give it a
  property that taking very h-th element
• (starting anywhere) yields a sorted file, called
  h-sorted. That is, h-sorted file
• is "h" independent sorted files interleaved
  together.
• Example Let h 13 during the first step, h
  4 during the second step, and during the final
  step h 1 (insertion sort at this step)
• Step1 15 8 7 3 2 14 11
  1 5 9 4 12 13 6 10
•
  compare and exchange
• Step2 6 8 7 3 2 14 11
  1 5 9 4 12 13 15 10
• Step 3 2 8 4 1 5 9 7
  3 6 14 10 12 13 15 11

2

• To implement Shell sort we need a helper method,
  SegmentedInsertionSort.
• Input A, input array
• N, number of elements
• H, distance between elements in the
  same segment.
• Output Array, A, H-sorted.
• Algorithm SegmentedInsertionSort (A, N, H)
• for l H 1 to N do
• j l H / j counts down through the
  current segment /
• while j gt 0 do
• if precedes (Aj H, Aj) then
• swap (Aj H, Aj)
• j j H
• else
• j 0
• endif

3

• The Shell sort method now becomes
• Input A, input array
• N number of elements
• Output Array, A, sorted.
• Algorithm ShellSort (A, N)
• H N / 2
• while H gt 0 do
• SegmentedInsertionSort (A, N, H)
• H H / 2
• endwhile
• Notes 1. H H / 2 is a "bad" incremental
  sequence, because it repeatedly compares the same
  values, and at the same time some values will not
  be compared to each other until H 1.
• 2. Any incremental sequence of
  values of H can be used, as long as the last
  value is 1. Here are examples of "good"
  incremental sequences
• H 3 H 1 gives the following incremental
  sequence
• 1093, 364, 121, 40, 13, 4, 1.

4
Efficiency of Shell sort

• Let the incremental sequence be H H / 2, foe
  example , 64, 32, 16, 8, 4, 2, 1.
• Then
• The number of repetitions of SegmentedInsertionSor
  t is O(Log N).
• The outer loop is each SegmentedInsertionSort is
  O(N).
• The inner loop of each SegmentedInsertionSort
  depends on the current order of the data within
  that segment.
• Therefore, the total number of comparisons in
  this case is O(A N Log N),
• where A is unknown.
• Empirical results for a better incremental
  sequence, H 3 H 1, show the
• average efficiency of Shell sort in terms of
  number of comparisons to be
• O(N (log N)2), which is almost O(N1.5).

5
Advanced sorting Merge sort

• The idea Given two files in ascending order, put
  them into a third file
• also arranged in ascending order.
• Example
• file A file B
  file C
• 3 1
  1
• 7 5
  3
• 9 8
  5
• 12 10
  7
  The efficiency of this
• 13 17
  8
  process is O(N)
• 14 19
  9
•
  10
•
  12
•
  13
•
  14
•
  17
•
  19
• The algorithm (let us call this procedure merge)
• 1 Compare two numbers
• 2 Transfer the smaller number

6

• Algorithm merge (source, destination, lower, mid,
  upper)
• Input source array, and a copy of it,
  destination
• lower, mid and upper are integers
  defining sublists to be merged.
• Output destination file sorted.
• int s1 lower int s2 mid 1 int d
  lower
• while (s1 lt mid or s2 ltupper)
• if (precedes (sources1, sources2)
• destinationd sources1 s1
  s1 1
• else
• destinationd sources2 s2
  s2 1
• d d 1 // end if
• // end while
• if (s1 gt mid)
• while (s2 lt upper)
• destinationd sources2 s2 s2
  1 d d 1
• else
• while (s1 lt mid)
• destinationd sources1 s1 s1
  1 d d 1

7

• Note that merge takes two already sorted files.
  Therefore, we need another
• procedure, mergeSort, to actually sort these
  files. mergeSort is a recursive
• procedure, which at each step takes a file to be
  sorted, and produces two sorted
• halves of this file. Because mergeSort
  continuously calls merge, and merge works
• on two identical arrays, we must create a copy of
  original array, source, which we
• will call destination.
• Algorithm mergeSort (source, destination, lower,
  upper)
• Input source array
• a copy of source, destination
• lower and upper are integers
  defining the current sublist to be sorted.
• Output destination array sorted.
• if (lower ltgt upper)
• mid (lower upper) / 2
• mergeSort (destination, source, lower,
  mid)
• mergeSort (destination, source, mid1,
  upper)
• merge (source, destination, lower, mid,
  upper)

8
Quick sort

• The idea (assume the list of items to be sorted
  is represented as an array)
• Select a data item, called the pivot, which will
  be placed in its proper place at the end of the
  current step. Remove it from the array.
• Scan the array from right to left, comparing the
  data items with the pivot until an item with a
  smaller value is found. Put this item in the
  pivots place.
• Scan the array from left to right, comparing data
  items with the pivot, and find the first item
  which is greater than the pivot. Place it in the
  position freed by the item moved at the previous
  step.
• Continue alternating steps 2-3 until no more
  exchanges are possible. Place the pivot in the
  empty space, which is the proper place for that
  item.
• Consider the sub-file to the left of the pivot,
  and repeat the same process.
• Consider the sub-file to the right of the pivot,
  and repeat the same process.

9
Example

• Consider the following list of items, and let the
  pivot be the leftmost item
• Step 1
• 15 8 7 3 2 14
  11 1 5 9 4 12 13
  6 10
• 10 8 7 3 2 14
  11 1 5 9 4 12 13
  6 15
• Step 2
• 10 8 7 3 2 14
  11 1 5 9 4 12 13
  6 15
• 6 8 7 3 2 14
  11 1 5 9 4 12
  13 ( ) 15
• 6 8 7 3 2 (
  ) 11 1 5 9 4 12
  13 14 15
• 6 8 7 3 2 4
  11 1 5 9 ( ) 12
  13 14 15
• 6 8 7 3 2 4
  ( ) 1 5 9 11 12
  13 14 15

10
Example (contd.)

• Step 3
• 6 8 7 3 2 4
  9 1 5 10 11 12
  13 14 15
• 5 8 7 3 2 4
  9 1 ( ) 10 11 12
  13 14 15
• 5 ( ) 7 3 2 (
  ) 9 1 8 10 11 12
  13 14 15
• 5 1 7 3 2 4
  9 ( ) 8 10 11 12
  13 14 15
• 5 1 ( ) 3 2 4
  9 7 8 10 11 12
  13 14 15
• 5 1 4 3 2 6
  9 7 8 10 11 12
  13 14 15
• Step 4
• 5 1 4 3 2 6
  9 7 8 10 11 12
  13 14 15
• 2 1 4 3 ( )
  6 8 7 9 10 11 12
  13 14 15

11
Example (contd.)

• Step 5
• 2 1 4 3 5 6
  8 ( ) 9 10 11 12
  13 14 15
• 1 ( ) 4 3 5
  6 7 8 9 10 11 12
  13 14 15
• 1 2 4 3 5 6
  7 8 9 10 11 12
  13 14 15
• Step 6
• 1 2 4 3 5 6
  7 8 9 10 11 12
  13 14 15
• 1 2 3 ( ) 5 6
  7 8 9 10 11 12
  13 14 15
• 1 2 3 4 5 6
  7 8 9 10 11 12
  13 14 15

12
The partition method

• Algorithm partition (A, lo, hi)
• Input Array, A, of items to be sorted
• lo and hi, integers defining
  the scope of the array to be sorted.
• Output Assuming Alo to be a pivotal
  value, array A is returned in a
• partitioned form, where
  pivotPoint is an index of the final destination
  of the
• pivot
• int pivot Alo
• while (lo lt hi)
• while (precedes (pivot, Ahi) (lo lt hi))
• hi hi 1
• if (hi ltgt lo)
• Alo Ahi lo lo 1
• while (precedes (Alo, pivot) (lo lt hi))
• lo lo 1
• if (hi ltgt lo)
• Ahi Alo hi hi 1
• // end while
• Ahi pivot pivotPoint hi

13
The quickSort and sort procedures

• Algorithm quickSort (A, lo, hi)
• Input Array, A, of items to be sorted
• lo and hi, integers defining
  the scope of the array to be sorted.
• Output Array, A, sorted.
• int pivotPoint partition (A, lo, hi)
• if (lo lt pivotPoint)
• quickSort (A, lo, pivotPoint-1)
• if (hi gt pivotPoint)
• quickSort (A, pivotPoint1, hi)
• Algorithm Sort (A, N)
• Input Array, A, of items to be sorted
• integer N defining the number of
  items to be sorted.
• Output Array, A, sorted.
• quickSort (A, 1, N)

14
Example modified

• Consider the same list as in the previous
  example, but let the pivot be the
• rightmost item
• Step 1
• 15 8 7 3 2 14
  11 1 5 9 4 12 13
  6 10
• 6 8 7 3 2 14
  11 1 5 9 4 12
  13 15 10
• 6 8 7 3 2 4
  11 1 5 9 14 12
  13 15 10
• 6 8 7 3 2 4
  9 1 5 11 14 12
  13 15 10
• 6 8 7 3 2 4
  9 1 5 10 14 12
  13 15 11

15
Example modified (contd.)

• Steps 2 - end
• 6 8 7 3 2 4
  9 1 5 10 14 12 13
  15 11
• 1 8 7 3 2 4
  9 6 5
• 1 4 7 3 2 8
  9 6 5
• 1 4 2 3 7 8
  9 6 5
• 1 4 2 3 5 8
  9 6 7 10 11 12 13
  15 14
• 1 2 4 3 5 6
  9 8 7 10 11 12 13
  14 15
• 1 2 3 4 5 6
  7 8 9 10 11 12 13
  14 15

16
Static representation of the partitioning process

• Example (original)

17
Static representation of the partitioning process

• Example (modified)

10
11
5
3
7
2
1
18
Efficiency results

• Result 1 The best case efficiency of quick sort
  is N log N (the pivot always divides the file in
  two equal halves).
• Result 2 The worst case efficiency of quick sort
  is N2 (file already sorted).
• Result 3 The average case efficiency of quick
  sort is 1.38 N log N. This result makes Quick
  sort good "general-purpose" sort. Its inner loop
  is very short, thus making Quick sort better
  compared to other N log N sorting methods.
• Also Quick Sort is an "in-place" method, which
  uses only a small auxiliary
• stack for recursion.
