BAYESIAN NETWORK

1

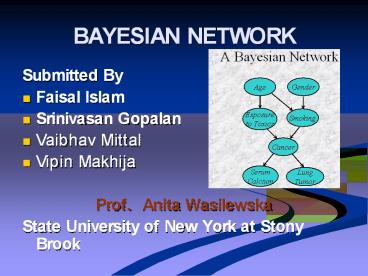

BAYESIAN NETWORK

• Submitted By
• Faisal Islam
• Srinivasan Gopalan
• Vaibhav Mittal
• Vipin Makhija
• Prof. Anita Wasilewska
• State University of New York at Stony Brook

2
References

• 1Jiawei HanData Mining Concepts and
  Techniques,ISBN 1-53860-489-8
• Morgan Kaufman Publisher.
• 2 Stuart Russell,Peter Norvig Artificial
  Intelligence A modern Approach ,Pearson
  education.
• 3 Kandasamy,Thilagavati,Gunavati , Probability,
  Statistics and Queueing Theory , Sultan Chand
  Publishers.
• 4 D. Heckerman A Tutorial on Learning with
  Bayesian Networks, In Learning in Graphical
  Models, ed. M.I. Jordan, The MIT Press, 1998.
• 5 http//en.wikipedia.org/wiki/Bayesian_probabil
  ity
• 6 http//www.construction.ualberta.ca/civ606/myF
  iles/Intro20to20Belief20Network.pdf
• 7 http//www.murrayc.com/learning/AI/bbn.shtml
• 8 http//www.cs.ubc.ca/murphyk/Bayes/bnintro.ht
  ml
• 9 http//en.wikipedia.org/wiki/Bayesian_belief_n
  etwork

3
CONTENTS

• HISTORY
• CONDITIONAL PROBABILITY
• BAYES THEOREM
• NAÏVE BAYES CLASSIFIER
• BELIEF NETWORK
• APPLICATION OF BAYESIAN NETWORK
• PAPER ON CYBER CRIME DETECTION

4
HISTORY

• Bayesian Probability was named after
  Reverend Thomas Bayes (1702-1761).
• He proved a special case of what is currently
  known as the Bayes Theorem.
• The term Bayesian came into use around the
  1950s.
• Pierre-Simon, Marquis de Laplace (1749-1827)
  independently proved a generalized version of
  Bayes Theorem.
• http//en.wikipedia.org/wiki/Bayesian_probability

5
HISTORY (Cont.)

• 1950s New knowledge in Artificial Intelligence
• 1958 Genetic Algorithms by Friedberg (Holland and
  Goldberg 1985)
• 1965 Fuzzy Logic by Zadeh at UC Berkeley
• 1970 Bayesian Belief Network at Stanford
  University (Judea Pearl 1988)
• The ideas proposed above was not fully
  developed until later. BBN became popular in
  the 1990s.
• http//www.construction.ualberta.ca/civ606/myFiles
  /Intro20to20Belief20Network.pdf

6
HISTORY (Cont.)

• Current uses of Bayesian Networks
• Microsofts printer troubleshooter.
• Diagnose diseases (Mycin).
• Used to predict oil and stock prices
• Control the space shuttle
• Risk Analysis Schedule and Cost Overruns.

7
CONDITIONAL PROBABILITY

• Probability How likely is it that an event will
  happen?
• Sample Space S
• Element of S elementary event
• An event A is a subset of S
• P(A)
• P(S) 1
• Events A and B
• P(AB)- Probability that event A occurs given
  that event B has already occurred.
• Example
• There are 2 baskets. B1 has 2 red ball and 5 blue
  ball. B2 has 4 red ball and 3 blue ball. Find
  probability of picking a red ball from
  basket 1?

8
CONDITIONAL PROBABILITY

• The question above wants P(red ball
  basket 1).
• The answer intuitively wants the probability of
  red ball from only the sample space of basket
  1.
• So the answer is 2/7
• The equation to solve it is
• P(AB) P(AnB)/P(B) Product Rule
• P(A,B) P(A)P(B) If A and B are independent

• How do you solve P(basket2 red ball) ???

9
BAYESIAN THEOREM

• A special case of Bayesian Theorem
• P(AnB) P(B) x P(AB)
• P(BnA) P(A) x P(BA)
• Since P(AnB) P(BnA),
• P(B) x P(AB) P(A) x P(BA)
• gt P(AB) P(A) x P(BA) / P(B)

A
B
10
BAYESIAN THEOREM

• Solution to P(basket2 red ball) ?
• P(basket 2 red ball) P(b2) x P(r b2) /
  P(r)
• (1/2) x (4/7) / (6/14)
• 0.66

11
BAYESIAN THEOREM

• Example 2 A medical cancer diagnosis
  problem
• There are 2 possible outcomes of a diagnosis
  ve, -ve. We know .8 of world population has
  cancer. Test gives correct ve result 98 of the
  time and gives correct ve result 97 of the
  time.
• If a patients test returns ve, should we
  diagnose the patient as having cancer?

12
BAYESIAN THEOREM

• P(cancer) .008 P(-cancer) .992
• P(vecancer) .98 P(-vecancer) .02
• P(ve-cancer) .03 P(-ve-cancer) .97
• Using Bayes Formula
• P(cancerve) P(vecancer)xP(cancer) / P(ve)
• 0.98 x 0.008 .0078 / P(ve)
• P(-cancerve) P(ve-cancer)xP(-cancer) /
  P(ve)
• 0.03 x 0.992 0.0298 / P(ve)
• So, the patient most likely does not have cancer.

13
BAYESIAN THEOREM

• General Bayesian Theorem
• Given E1, E2,,En are mutually disjoint events
  and P(Ei) ? 0, (i 1, 2,, n)
• P(Ei/A) P(Ei) x P(AEi) / S P(Ei) x P(AEi)
• i 1, 2,, n

14
BAYESIAN THEOREM

• Example
• There are 3 boxes. B1 has 2 white, 3 black
  and 4 red balls. B2 has 3 white, 2 black and 2
  red balls. B3 has 4 white, 1 black and 3 red
  balls. A box is chosen at random and 2 balls are
  drawn. 1 is white and other is red. What is the
  probability that they came from the first box??

15
BAYESIAN THEOREM

• Let E1, E2, E3 denote events of choosing B1, B2,
  B3 respectively. Let A be the event that 2 balls
  selected are white and red.
• P(E1) P(E2) P(E3) 1/3
• P(AE1) 2c1 x 4c1 / 9c2 2/9
• P(AE2) 3c1 x 2c1 / 7c2 2/7
• P(AE3) 4c1 x 3c1 / 8c2 3/7

16
BAYESIAN THEOREM

• P(E1A) P(E1) x P(AE1) / S P(Ei) x P(AEi)
• 0.23727
• P(E2A) 0.30509
• P(E3A) 1 (0.23727 0.30509) 0.45764

17
BAYESIAN CLASSIFICATION

• Why use Bayesian Classification
• Probabilistic learning Calculate explicit
  probabilities for hypothesis, among the most
  practical approaches to certain types of
  learning problems
• Incremental Each training example can
  incrmentally increase/decrease the probability
  that a hypothesis is correct. Prior knowledge
  can be combined with observed data.

18
BAYESIAN CLASSIFICATION

• Probabilistic prediction Predict multiple
  hypotheses, weighted by their probabilities
• Standard Even when Bayesian methods are
  computationally intractable, they can provide a
  standard of optimal decision making against
  which other methods can be measured

19
NAÏVE BAYES CLASSIFIER

• A simplified assumption attributes are
  conditionally independent
• Greatly reduces the computation cost, only
  count the class distribution.

20
NAÏVE BAYES CLASSIFIER

• The probabilistic model of NBC is to find the
  probability of a certain class given multiple
  dijoint (assumed) events.
• The naïve Bayes classifier applies to learning
  tasks where each instance x is described by a
  conjunction of attribute values and where the
  target function f(x) can take on any value from
  some finite set V. A set of training examples of
  the target function is provided, and a new
  instance is presented, described by the tuple
  of attribute values lta1,a2,,angt. The learner is
  asked to predict the target value, or
  classification, for this new instance.

21
NAÏVE BAYES CLASSIFIER

• Abstractly, probability model for a classifier is
  a conditional model
• P(CF1,F2,,Fn)
• Over a dependent class variable C with a small
  nuumber of outcome or classes conditional over
  several feature variables F1,,Fn.
• Naïve Bayes Formula
• P(CF1,F2,,Fn) argmaxc P(C) x P(F1C) x
  P(F2C) xx P(FnC) / P(F1,F2,,Fn)
• Since P(F1,F2,,Fn) is common to all
  probabilities, we donot need to evaluate the
  denomitator for comparisons.

22
NAÏVE BAYES CLASSIFIER

• Tennis-Example

23
NAÏVE BAYES CLASSIFIER

• Problem
• Use training data from above to classify the
  following instances
• ltOutlooksunny, Temperaturecool,
  Humidityhigh, Windstronggt
• ltOutlookovercast, Temperaturecool,
  Humidityhigh, Windstronggt

24
NAÏVE BAYES CLASSIFIER

• Answer to (a)
• P(PlayTennisyes) 9/14 0.64
• P(PlayTennisn) 5/14 0.36
• P(OutlooksunnyPlayTennisyes) 2/9 0.22
• P(OutlooksunnyPlayTennisno) 3/5 0.60
• P(TemperaturecoolPlayTennisyes) 3/9 0.33
• P(TemperaturecoolPlayTennisno) 1/5 .20
• P(HumidityhighPlayTennisyes) 3/9 0.33
• P(HumidityhighPlayTennisno) 4/5 0.80
• P(WindstrongPlayTennisyes) 3/9 0.33
• P(WindstrongPlayTennisno) 3/5 0.60

25
NAÏVE BAYES CLASSIFIER

• P(yes)xP(sunnyyes)xP(coolyes)xP(highyes)xP(stro
  ngyes) 0.0053
• P(no)xP(sunnyno)xP(coolno)xP(highno)x
  P(strongno) 0.0206
• So the class for this instance is no. We can
  normalize the probility by
• 0.0206/0.02060.0053 0.795

26
NAÏVE BAYES CLASSIFIER

• Answer to (b)
• P(PlayTennisyes) 9/14 0.64
• P(PlayTennisno) 5/14 0.36
• P(OutlookovercastPlayTennisyes) 4/9 0.44
• P(OutlookovercastPlayTennisno) 0/5 0
• P(TemperaturecoolPlayTennisyes) 3/9 0.33
• P(TemperaturecoolPlayTennisno) 1/5 .20
• P(HumidityhighPlayTennisyes) 3/9 0.33
• P(HumidityhighPlayTennisno) 4/5 0.80
• P(WindstrongPlayTennisyes) 3/9 0.33
• P(WindstrongPlayTennisno) 3/5 0.60

27
NAÏVE BAYES CLASSIFIER

• Estimating Probabilities
• In the previous example, P(overcastno) 0 which
  causes the formula-
• P(no)xP(overcastno)xP(coolno)xP(highno)xP(stron
  gnno) 0.0
• This causes problems in comparing because the
  other probabilities are not considered. We can
  avoid this difficulty by using m- estimate.

28
NAÏVE BAYES CLASSIFIER

• M-Estimate Formula
• c k / n m where c/n is the original
  probability used before, k1 and m
  equivalent sample size.
• Using this method our new values of
  probility is given below-

29
NAÏVE BAYES CLASSIFIER

• New answer to (b)
• P(PlayTennisyes) 10/16 0.63
• P(PlayTennisno) 6/16 0.37
• P(OutlookovercastPlayTennisyes) 5/12 0.42
• P(OutlookovercastPlayTennisno) 1/8 .13
• P(TemperaturecoolPlayTennisyes) 4/12 0.33
• P(TemperaturecoolPlayTennisno) 2/8 .25
• P(HumidityhighPlayTennisyes) 4/11 0.36
• P(HumidityhighPlayTennisno) 5/7 0.71
• P(WindstrongPlayTennisyes) 4/11 0.36
• P(WindstrongPlayTennisno) 4/7 0.57

30
NAÏVE BAYES CLASSIFIER

• P(yes)xP(overcastyes)xP(coolyes)xP(highyes)xP(s
  trongyes) 0.011
• P(no)xP(overcastno)xP(coolno)xP(highno)xP(stron
  gnno) 0.00486
• So the class of this instance is yes

31
NAÏVE BAYES CLASSIFIER

• The conditional probability values of all the
• attributes with respect to the class are
• pre-computed and stored on disk.
• This prevents the classifier from computing the
  conditional probabilities every time it runs.
• This stored data can be reused to reduce the
• latency of the classifier.

32
BAYESIAN BELIEF NETWORK

• In Naïve Bayes Classifier we make the assumption
  of class conditional independence, that is given
  the class label of a sample, the value of the
  attributes are conditionally independent of one
  another.
• However, there can be dependences between
  value of attributes. To avoid this we use
  Bayesian Belief Network which provide joint
  conditional probability distribution.
• A Bayesian network is a form of probabilistic
  graphical model. Specifically, a Bayesian
  network is a directed acyclic graph of nodes
  representing variables and arcs representing
  dependence relations among the
  variables.

33
(No Transcript)
34
BAYESIAN BELIEF NETWORK

• A Bayesian network is a representation of the
  joint distribution over all the variables
  represented by nodes in the graph. Let the
  variables be X(1), ..., X(n).
• Let parents(A) be the parents of the node A. Then
  the joint distribution for X(1) through X(n) is
  represented as the product of the probability
  distributions P(XiParents(Xi)) for i 1
  to n. If X has no parents, its probability
  distribution is said to be unconditional,
  otherwise it is conditional.

35
BAYESIAN BELIEF NETWORK
36
BAYESIAN BELIEF NETWORK

• By the chaining rule of probability, the joint
  probability of all the nodes in the graph
  above is
• P(C, S, R, W) P(C) P(SC) P(RC)
  P(WS,R)
• WWet Grass, CCloudy, RRain,
  SSprinkler
• Example P(Wn-RnSnC)
• P(WS,-R)P(-RC)P(SC)P(C)
• 0.90.20.10.5 0.009

37
BAYESIAN BELIEF NETWORK

• What is the probability of wet grass on a given
  day - P(W)?
• P(W) P(WSR) P(S) P(R)
• P(WS-R) P(S) P(-R)
• P(W-SR) P(-S) P(R)
• P(W-S-R) P(-S) P(-R)
• Here P(S) P(SC) P(C) P(S-C) P(-C)
• P(R) P(RC) P(C) P(R-C) P(-C)
• P(W) 0.5985

38
Advantages of Bayesian Approach

• Bayesian networks can readily handle
• incomplete data sets.
• Bayesian networks allow one to learn
• about causal relationships
• Bayesian networks readily facilitate use of
  prior knowledge.

39
APPLICATIONS OF Bayesian-Network
40
Sources/References

• Naive Bayes Spam Filtering Using
  Word-Position-Based Attributes-
  http//www.ceas.cc/papers-2005/144.pdf
• by- Johan Hovold, Department of Computer
  Science,Lund University Box 118, 221 00
  Lund, Sweden.E-mail johan.hovold.363_at_student.lu.s
  e
• Presented at CEAS 2005 Second Conference on
  Email and Anti-SpamJuly 21 22, at Stanford
  University
• Tom Mitchell , Machine Learning , Tata Mcgraw
  Hill
• A Bayesian Approach to Filtering Junk EMail,
• Mehran Sahami Susan Dumaisy David Heckermany
  Eric Horvitzy Gates Building
• Computer Science Department Microsoft
  Research, Stanford University Redmond W
• Stanford CA fsdumais heckerma
  horvitzgmicrosoftcom
• Presented at AAAI Workshop on Learning for
  Text Categorization, July 1998, Madison,
  Wisconsin

41
Problem???

• real world Bayesian network application
• Learning to classify text.
• Instances are text documents
• we might wish to learn the target concept
  electronic news articles that I find
  interesting, or pages on the World Wide Web
  that discuss data mining topics.
• In both cases, if a computer could learn the
  target concept accurately, it could automatically
  filter the large volume of
• online text documents to present only the
  most relevant
• documents to the user.

42
TECHNIQUE

• learning how to classify text, based on the
• naive Bayes classifier
• its a probabilistic approach and is among the
  most effective algorithms currently known for
  learning to classify text documents,
• Instance space X consists of all possible text
  documents
• given training examples of some unknown target
  function f(x), which can take on any value from
  some finite set V
• we will consider the target function classifying
  documents as interesting or uninteresting to a
  particular person, using the target values like
  and dislike to indicate these two classes.

43
Design issues

• how to represent an arbitrary text document in
  terms of attribute values
• decide how to estimate the probabilities required
  by the naive Bayes classifier

44
Approach

• Our approach to representing arbitrary text
  documents is disturbingly simple Given a text
  document, such as this paragraph, we define an
  attribute for each word position in the document
  and define the value of that attribute to be the
  English word found in that position. Thus, the
  current paragraph would be described by 111
  attribute values, corresponding to the 111 word
  positions. The value of the first attribute is
  the word our, the value of the second attribute
  is the word approach, and so on. Notice that
  long text documents will require a larger number
  of attributes than short documents. As we shall
  see, this will not cause us any trouble.

45
ASSUMPTIONS

• assume we are given a set of 700 training
  documents that a friend has classified as dislike
  and another 300 she has classified as like
• We are now given a new document and asked to
  classify it
• let us assume the new text document is the
  preceding paragraph

46

• We know (P(like) .3 and P (dislike) .7 in the
  current example
• P(ai , wkvj) (here we introduce wk to indicate
  the kth word in the English vocabulary)
• estimating the class conditional probabilities
  (e.g., P(ai ourIdislike)) is more problematic
  because we must estimate one such probability
  term for each combination of text position,
  English word, and target value.
• there are approximately 50,000 distinct words in
  the English vocabulary, 2 possible target values,
  and 111 text positions in the current example, so
  we must estimate 2111 50, 000 10 million such
  terms from the training data.
• we make assumption that reduces the number of
  probabilities that must be estimated

47

• we shall assume the probability of encountering a
  specific word wk (e.g., chocolate) is
  independent of the specific word position being
  considered (e.g., a23 versus a95) .
• we estimate the entire set of probabilities P(a1
  wkvj), P(a2 wkvj)... by the single
  position-independent probability P(wklvj)
• net effect is that we now require only 2 50, 000
  distinct terms of the form P(wklvj)
• We adopt the rn-estimate, with uniform priors and
  with m equal to the size of the word vocabulary
• n ? total number of word positions in all
  training examples whose target value is v, nk is
  the number of times word Wk is found among these
  n word positions, and Vocabulary is the total
  number of distinct words (and other tokens) found
  within the training data.

48
Final Algorithm

• Examples is a set of text documents along with
  their target values. V is the set of all possible
  target values. This function learns the
  probability terms P( wk vj), describing the
  probability that a randomly drawn word from a
  document in class vj will be the English word Wk.
  It also learns the class prior probabilities
  P(vi). 1. collect all words, punctuation, and
  other tokens that occur in Examples Vocabulary
  ? set of all distinct words tokens occurring in
  any text document from Examples 2. calculate the
  required P(vi) and P( wk vj) probability terms
  For each target value vj in V do docsj ?
  the subset of documents from Examples for which
  the target value is vj P(v1) ? IdocsjI /
  \Examplesl Textj a single document created by
  concatenating all members of docsj n ? total
  number of distinct word positions in Textj for
  each word Wk in Vocabulary nk ? number of
  times word wk occurs in Textj P(wkIvj) ?
  nk1/nVocabulary
• CLASSIFY_NAIVE_BAYES_TEXT( Doc) Return the
  estimated target value for the document Doc. ai
  denotes the word found in the ith position within
  Doc. positions ? all word positions in Doc
  that contain tokens found in Vocabulary Return
  VNB, where

49

• During learning, the procedure LEARN_NAIVE_BAYES_T
  EXT examines all training documents to extract
  the vocabulary of all words and tokens that
  appear in the text, then counts their frequencies
  among the different target classes to obtain the
  necessary probability estimates. Later, given a
  new document to be classified, the procedure
  CLASSIFY_NAIVE_BAYESTEXT uses these probability
  estimates to calculate VNB according to Equation
  Note that any words appearing in the new document
  that were not observed in the training set are
  simply ignored by CLASSIFY_NAIVE_BAYESTEXT

50
Effectiveness of the Algorithm

• Problem ? classifying usenet news articles
• target classification for an article ?name of the
  usenet newsgroup in which the article appeared
• In the experiment described by Joachims (1996),
  20 electronic newsgroups were considered
• 1,000 articles were collected from each
  newsgroup, forming a data set of 20,000
  documents. The naive Bayes algorithm was then
  applied using two-thirds of these 20,000
  documents as training examples, and performance
  was measured over the remaining third.
• 100 most frequent words were removed (these
  include words such as the and of), and any
  word occurring fewer than three times was also
  removed. The resulting vocabulary contained
  approximately 38,500 words.
• The accuracy achieved by the program was 89.

comp.graphics misc.forsale soc.religion.christian alt.atheism
comp.os.ms-winclows.misc rec.autos talk.politics.guns sci.space
cornp.sys.ibm.pc.hardware rec.sport.baseball talk.politics.mideast sci.crypt
comp.windows.x rec.motorcycles talk.politics.misc sci.electronics
comp.sys.mac.hardware rec.sport.hockey talk.creligion.misc sci .med
51
APPLICATIONS

• A newsgroup posting service that learns to assign
  documents to the appropriate newsgroup.
• NEWSWEEDER systema program for reading netnews
  that allows the user to rate articles as he or
  she reads them. NEWSWEEDER then uses these rated
  articles (i.e its learned profile of user
  interests to suggest the most highly rated new
  articles each day
• Naive Bayes Spam Filtering Using Word-
  Position-Based Attributes

52
Thank you !
53

• Bayesian Learning Networks
• Approach to
• Cybercrime Detection

54
Bayesian Learning Networks Approach to
Cybercrime DetectionN S ABOUZAKHAR, A GANI
and G MANSONThe Centre for Mobile Communications
Research(C4MCR),University of Sheffield,
SheffieldRegent Court, 211 Portobello
Street,Sheffield S1 4DP, UKN.Abouzakhar_at_dcs.shef
.ac.ukA.Gani_at_dcs.shef.ac.ukG.Manson_at_dcs.shef.ac.
ukM ABUITBEL and D KINGThe Manchester School
of Engineering,University of ManchesterIT
Building, Room IT 109,Oxford Road,Manchester
M13 9PL, UKmostafa.abuitbel_at_stud.man.ac.ukDavid.
king_at_man.ac.uk
55

• REFERENCES
• David J. Marchette, Computer Intrusion Detection
  and Network Monitoring,
• A statistical Viewpoint, 2001,Springer-Verlag,
  New York, Inc, USA.
• 2. Heckerman, D. (1995), A Tutorial on Learning
  with Bayesian Networks, Technical
• Report MSR-TR-95-06, Microsoft Corporation.
• 3. Michael Berthold and David J. Hand,
  Intelligent Data Analysis, An Introduction, 1999,
  Springer, Italy.
• 4. http//www.ll.mit.edu/IST/ideval/data/data_inde
  x.html, accessed on 01/12/2002
• 5. http//kdd.ics.uci.edu/ , accessed on
  01/12/2002.
• 6. Ian H. Witten and Eibe Frank, Data Mining,
  Practical Machine Learning Tools and
• Techniques with Java Implementations, 2000,
  Morgan Kaufmann, USA.
• 7. http//www.bayesia.com , accessed on 20/12/2002

56
Motivation behind the paper..

• Growing dependence of modern society
• on telecommunication and information
• networks.
• Increase in the number of interconnected
• networks to the Internet has led to an
• increase in security threats and cyber crimes.

57
Structure of the paper

• In order to detect distributed network
• attacks as early as possible, an under
• research and development probabilistic
• approach, based on Bayesian networks
• has been proposed.

58
Where can this model be utilized

• Learning Agents which deploy Bayesian network
  approach are considered to be a promising and
  useful tool in determining suspicious early
  events of Internet
• threats.

59
Before we look at the details given in the paper
lets understand what Bayesian Networks are and
how they are constructed.
60
Bayesian Networks

• A simple, graphical notation for conditional
  independence assertions and hence for compact
  specification of full
• joint distributions.
• Syntax
• a set of nodes, one per variable
• a directed, acyclic graph (link "directly
  influences")
• a conditional distribution for each node given
  its
• parents
• P (Xi Parents (Xi))
• In the simplest case, conditional distribution
  represented as a conditional probability table
  (CPT) giving the
• distribution over Xi for each combination of
  parent values

61
Some conventions.

• Variables depicted as nodes
• Arcs represent probabilistic dependence between
• variables.
• Conditional probabilities
• encode the strength of
• dependencies.
• Missing arcs implies
• conditional independence.

62
Semantics

• The full joint distribution is defined as the
  product of the
• local conditional distributions
• P (X1, ,Xn) pi 1 P (Xi Parents(Xi))
• e.g., P(j ? m ? a ? ?b ? ?e)
• P (j a) P (m a) P (a ?b, ?e) P (?b) P
  (?e)

63
Example of Construction of a BN
64
Back to the discussion of the paper.
65
Description

• This paper shows how probabilistically Bayesian
  network detects communication network attacks,
  allowing for generalization of Network Intrusion
  Detection Systems
• (NIDSs).

66
Goal

• How well does our model detect or classify
• attacks and respond to them later on.
• The system requires the estimation of two
• quantities
• The probability of detection (PD)
• Probability of false alarm (PFA).
• It is not possible to simultaneously achieve a PD
  of 1 and PFA of 0.

67
Input DataSet

• The 2000 DARPA Intrusion Detection Evaluation
  Program which was prepared and managed by MIT
  Lincoln Labs has provided the necessary dataset.
• Sample dataset

68
Construction of the network

• The following figure shows the Bayesian
• network that has been automatically
• constructed by the learning algorithms of
• BayesiaLab.
• The target variable, activity_type, is directly
• connected to the variables that heavily
• contribute to its knowledge such as service
• and protocol_type.

69
(No Transcript)
70
Data Gathering

• MIT Lincoln Labs set up an environment to
• acquire several weeks of raw TCP dump
• data for a local-area network (LAN)
• simulating a typical U.S. Air Force LAN. The
• generated raw dataset contains about few
• million connection records.

71
Mapping the simple Bayesian Network that we saw
to the one used in the paper
72
Observation 1

• As shown in the next figure, the most probable
  activity corresponds to a smurf attack (52.90),
  an ecr_i (ECHO_REPLY) service (52.96) and an
  icmp protocol (53.21).

73
(No Transcript)
74
Observation 2

• What would happen if the probability of receiving
  ICMP protocol packets is increased? Would the
  probability of having a smurf attack increase?
• Setting the protocol to its ICMP value increases
  the probability of having a smurf attack from
  52.90 to 99.37.

75
(No Transcript)
76
Observation 3

• Lets look at the problem from the opposite
  direction. If we set the probability of portsweep
  attack to 100,then the value of some associated
  variables would inevitably vary.
• We note from Figure 4 that the probabilities of
  the TCP protocol and private service have been
  increased from 38.10 to 97.49 and from 24.71
  to 71.45 respectively. Also, we can notice an
  increase in the REJ and RSTR flags.

77
(No Transcript)
78
How do the previous examples work??PROPOGATION
Data
Data
79
Benefits of the Bayesian Model

• The benefit of using Bayesian IDSs is the ability
  to adjust our IDSs sensitivity.
• This would allow us to trade off between
• accuracy and sensitivity.
• Furthermore, the automatic detection network
  anomalies by learning allows distinguishing the
  normal activities from the abnormal ones.
• Allow network security analysts to see the
• amount of information being contributed by
  each variable in the detection model to the
  knowledge of the target node

80
Performance evaluation
81
Thank you !
QUESTIONS OR QUERIES
