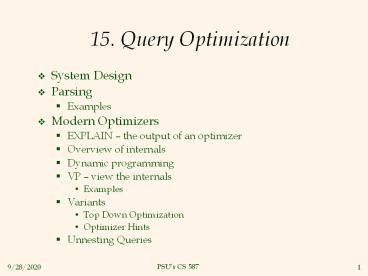

15. Query Optimization

• System Design
• Parsing
• Examples
• Modern Optimizers
• EXPLAIN the output of an optimizer
• Overview of internals
• Dynamic programming
• VP view the internals
• Examples
• Variants
• Top Down Optimization
• Optimizer Hints
• Unnesting Queries

2
Learning Objectives

• Explain EXPLAIN
• Explain VPs output
• Explain each variant
• Flatten a nested query.

3
Overview of Query Processing
SQL
Parser
Security
Catalog
Relational Algebra(RA)
Optimizer
Executable Plan (RAAlgorithms)
Plan Executor
Concurrency
Files, Indexes Access Methods
Crash Recovery
Database, Indexes
4
Now we focus on the top of this diagram
Relation Algebra Query
SQL Query
Parser
Query Optimizer
Relational Operator Algs.
Files and Access Methods
Buffer Management
Disk Space Management
DB
5
Detail of the top
Query Parser
SQL Query(SELECT )
Relational Algebra Expression (Query Tree)
Query Optimizer
Plan Generator
Plan Cost Estimator
Catalog Manager
Query Tree Algorithms (Plan)
Plan Evaluator
6
Parsing and Optimization

• The Parser
• Verifies that the SQL query is syntactically
  correct, that the tables and attributes exist,
  and that the user has the appropriate
  permissions.
• Translates the SQL query into a simple query tree
  (operators relational algebra plus a few other
  ones)
• The Optimizer
• Generates other, equivalent query trees
  (Actually builds these trees bottom up)
• For each query tree generated
• Selects algorithms for each operator (producing
  a query plan)
• estimates the cost of the plan
• Chooses the plan with lowest cost (of the plans
  considered, which is not necessarily all possible
  plans)

7
Schema for Examples

• Download Postgres source from
• postgresql.org/download
• Logical and physical schema is at
• src/test/bench/create.source
• Simplified version is at
• www.cs.pdx.edu/587/create.bench
• Log into the database at
• https//www.cat.pdx.edu/pgCS587/
• Click on PostgreSQL
• User CS587, Password 587dbms, see notes view
• Browse the tables, especially tenk1 and its
  attributes unique1, unique2, stringu1

8
Heres what the parser does
Relational Algebra Tree
SQL Query
SELECT tenk1.unique1 FROM tenk1 JOIN
tenk2 USING unique2 WHERE
tenk1.stringu1'xxx'
?tenk1.unique1
? tenk1.stringu1'xxx'
?
Unique2unique2
tenk2
tenk1
9
Practice Parse a Query

• Describe the parser's output when the input is
• SELECT stringu2
• FROM tenk1 JOIN tenk2
• USING unique1
• WHERE tenk1.stringu1'abc'

10
How Can We View the Optimizer?

• Postgres calls its optimizer the Planner
• Postgres' planner algorithm 668 is the same as
  all modern DBMSs' optimizer algorithms
• Except SQL Server
• We have good news and good news.
• We can see both the planner's output AND its
  internal processing.
• Its output is available to anyone its internal
  processing is avaliable only to us and a few
  others.
• The output is displayed by the EXPLAIN statement
• Every DBMS has a version of EXPLAIN (e.g., SHOW
  PLAN)

11
Postgres EXPLAIN

• Output for
• EXPLAIN SELECT FROM tenk1
• Seq Scan on tenk1 (cost0.00.. 445.00 rows10000
  width244)
• These values are estimates from sampling.
• Very useful when a query runs longer than
  expected.
• All our examples are from
• www.postgresql.org/docs/8.3/interactive/using-exp
  lain.html
• Actually this includes CPU costs but we will
  call it I/O costs to simplify

Sequential Scan
I/Os to get first row
I/Os to get last row
Rows retrieved
Average Row Width
12
More EXPLAIN examples

• EXPLAIN SELECT FROM tenk1 WHERE unique1 lt 7000
• Seq Scan on tenk1 (cost0.00..470.00 rows7124
  width244)
• Filter (unique1 lt 7000)
• Cost is higher because of CPU cost for filtering
• rows is off because of estimation using
  histogram
• EXPLAIN SELECT FROM tenk1 WHERE unique1 lt 1
• Index Scan using tenk1_unique1 on tenk1
  (cost0.00..8.27 rows1 width244)
• Index Cond (unique1 lt 1)
• Why is the cost so much less?
• EXPLAIN SELECT FROM tenk1 WHERE unique1 lt 10
• Bitmap Heap Scan on tenk1 (cost4.34..42.58
  rows11 width244)
• Recheck Cond (unique1 lt 10)
• -gt Bitmap Index Scan on tenk1_unique1
  (cost0.00..4.33 rows11 width0)
• Index Cond (unique1 lt 10)
• Shopping list optimization!

13
The planner's internal processing

• So far we've seen the planner's output its
  opinion as to what is the fastest plan. How does
  it reach that conclusion?
• Fortunately, our TA, Tom Raney, has just added a
  patch to PostgreSQL (PG) that allows anyone to
  look inside the planner.
• This was part of a Google Summer of Code project
• One of the lead PG developers says its like
  finding Sasquatch.
• No other DBMS has this capability.
• Well use Toms patch to view the planner's
  internals.

14
Overview of DBMS Optimizers

• Recall that "optimizing a query" consists of
  these 4 tasks
• Generate all trees equivalent to the
  parser-generated tree
• Assign algorithms to each node of each tree
• A tree with algorithms is called a plan.
• Calculate the cost of each generated plan
• Using the join cost formulas we learned in
  previous slides
• Choose the cheapest plan
• A nice independent study project would be to
  write a visualizer for the parser
• Use Raney's Visual Planner here to look at a
  plan
• Statistics for calculating these costs are
  kept in the system catalog.

15
Dynamic Programming

• A no-brainer approach to these 4 tasks could take
  forever. For medium-large queries there are
  millions of plans and it can take a millisecond
  to compute each plan cost, resulting in hours to
  optimize a query.
• This problem was solved in 1979 668 by Patsy
  Selinger's IBM team using Dynamic Programming.
• The trick is to solve the problem bottom-up
• First optimize all one-table subqueries
• Then use those optimal plans to optimize all
  two-table subqueries
• Use those results to optimize all three-table
  subqueries, etc.

16
Consider A Query and its Parsed Form

• SELECT tenk1.unique1
• FROM tenk1 JOIN tenk2 USING (unique2)
• WHERE tenk1.unique1lt 100

?tenk1.unique1
? tenk1.unique1lt100
?
unique2unique2
tenk2
tenk1
17
What Will a Selinger-type Optimizer Do?

• Optimize one table subqueries
• tenk1 WHERE unique1lt100
• This is called "pushing selects"
• Then optimize tenk2
• Use the results of the previous steps to Optimize
  two-table queries
• The entire query
• Let's use Raney's patch, the Visual Planner, to
  see what PG's Planner does.

18
How to Set Up Your Visual Planner

• Download, then unzip, in Windows or NIX
• cs.pdx.edu/len/587/VP1.7.zip
• Read README.TXT, don't worry about details
• Be sure your machine has a Java VM
• http//www.java.com/en/download/index.jsp
• Click on Visual_Planner.jar
• If that does not work, use this at the command
  line
• java -jar Visual_Planner.jar
• In the resulting window
• File/Open
• Navigate to the directory where you put VP1.7
• Navigating to C may take a while
• Choose plan1.pln

19
Windows in the Visual Planner

• The SQL window holds the (canned) query
• The Plan Tree window holds the optimal plan for
  the query (in this VP view).
• The Statistics window holds statistics about the
  highlighted node of the Plan Tree's plan
• Click a Plan Tree node to see its statistics
• Why is a nested loop the optimal plan?

20
Why Not?

• To see other plans, click on tenk1/tenk2 in the
  ROI window.
• Then shift-click the plan you want to see
• Plans are in alphabetical order, then by total
  cost
• Why isn't a merge join cheaper?
• Why isn't a hash join cheaper?

21
Visualize Dynamic Programming

• Recall the first steps of Dynamic Programming
• Optimize tenk1 where unique1lt100
• Optimize tenk2.
• VP calls these the ROI steps and they are
  displayed in the ROI window of VP.
• In the ROI window, click on the symbol next to
  tenk2 to see how the PG Planner optimized tenk2.
• Note that blue plans are saved for later steps,
  red plans are discarded.
• Postgres uses an internal data structure called
  RelOptInfo to hold the relations currently being
  optimized

22
Optimizing tenk2 Interesting Orders

• The cheapest access path(plan) is a sequential
  scan.
• However, an index scan is also saved. Why?
  Because the index scan has an order associated
  with it, and the order is an interesting order.
• The order is unique2, and unique2 is the joining
  attribute for the later join.
• It may be worth sacrificing some cost here to
  save the cost of a sort later!
• plan access path since tenk2 is a single table

23
Optimizing tenk1

• Explain each of the planner's decisions in its
  optimization of tenk1.

24
Variants on what we've discussed

• SQLServer Top down
• Graefe, McKenna, The Cascades Framework for
  query optimization, DEBulletin, 1995.
• Hints
• Rewrite optimization rules unnesting

25
Top Down Optimization

• Begin with original query
• Consider subqueries, optimize them.
• Depth first search
• Example A ? B ? C
• First optimize, say, (A ? B) ?C.
• If its cost is less than B ? C, need not
  calculate the cost of A ? (B ?C).
• Memo structure used to keep track of optimized
  subqueries.

26
Optimizer Hints

• A hint tells the optimizer to ignore its
  algorithm in part, for example
• Order the joins in a certain way
• Use a particular index
• Use a type of join for a pair of tables.
• Oracle has over 120 possible hints
• www.dba-oracle.com/art_otn_cbo_p7.htm
• SQL Server
• www.sql-server-performance.com/tips/hints_general_
  p1.aspx

27
15.5 Nested Queries

• No-brainer method for executing nested queries
• Tuple iteration semantics
• For each outer tuple, evaluate inner block
• Equivalent to simple nested loop join
• Optimizer optimizes inner block, then outer block
• Is there a better way?

SELECT S.sid FROM Sailors S WHERE EXISTS
(SELECT FROM Reserves R WHERE
R.bid103 AND R.sidS.sid)
Nested block to optimize SELECT FROM
Reserves R WHERE R.bid103 AND R.sid
outer value
28
Unnesting queries
Equivalent non-nested query SELECT DISTINCT
S.sid FROM Sailors S, Reserves R WHERE
S.sidR.sid AND R.bid103

• Optimizer (proprietary systems mostly) or you
  (open source systems mostly) unnest nested
  queries.
• If the query is unnested, the optimizer can use
  bulk join algorithms (merge, hash join) and
  performance can be much better.

29
Unnesting with COUNT
SELECT S.sname FROM Sailors S WHERE S.rank gt
(SELECT COUNT(R.) FROM Reserves R
WHERE R.sidS.sid)

• Beware if there is a COUNT in the subquery
• The query may appear to unnest into a join with a
  GROUP BY.
• But consider a sailor with a high rank and no
  reservations

SELECT S.sname FROM Sailors S, Reserves R WHERE
S.sidR.sid GROUP BY S.sid HAVING S.rank gt
COUNT(R.)
30
Unnesting The Count Bug 298

• The query may not unnest into a join, but rather
  an outer join.
• Many queries are much harder or impossible to
  unnest!

SELECT S.sname FROM Sailors S WHERE S.rank gt
(SELECT FROM Reserves R WHERE
R.sidS.sid)
SELECT S.sname FROM Sailors S NATURAL RIGHT
OUTER JOIN Reserves R GROUP BY S.sid HAVING
S.rank gt COUNT(R.)
