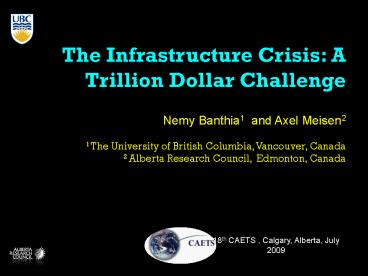

The Infrastructure Crisis: A Trillion Dollar Challenge

1
The Infrastructure Crisis A Trillion Dollar
Challenge
Nemy Banthia1 and Axel Meisen2 1 The
University of British Columbia, Vancouver,
Canada 2 Alberta Research Council, Edmonton,
Canada

18th CAETS , Calgary, Alberta, July 2009
2
Civil Infrastructure

• Aviation
• Bridges
• Dams
• Drinking Water
• Hazardous Wastes
• Roads
• Energy
• Schools
• Navigation Waterways
• Public Parks and Recreation
• Security
• Solid Waste
• Transit
• Waste Water

3
Infrastructure Deficit

• Infrastructure Deficit Hypothesis A decline in
  the public capital formation (i.e.
  infrastructure) lowers private sector
  productivity and, therefore, lowers a nations
  real income and weaken its competitiveness.

4
Consider Our Vicinity

• The United States
• Canada

5
Infrastructure in the US

• The U.S. Federal Reserve Board has concluded that
  the failure of civil infrastructure systems to
  perform at their expected level has reduced the
  US GDP by 1.
• It stated The state of infrastructure is indeed
  alarming in the US, and the financial burden is
  huge.

6
Infrastructure in the US The ASCE Report

• The American Society of Civil Engineers (ASCE),
  assigned an overall grade of D (Poor) to the USA
  in its recent Infrastructure Report Card
• It estimates that 1.6 trillion are needed in the
  next five years to alleviate potential problems
  with the civil infrastructure

7
ASCE Report
Bridges C
Dams D
Energy D
Roads D
Wastewater D-
C Mediocre D Poor
8
ASCE Report Bridges

• 27 of USs 590,750 bridges are rated
  structurally deficient or functionally obsolete.

It will cost 9.4 billion a year for 20 years to
eliminate all bridge deficiencies.
9
Minnesota Bridge Collapse(August 1, 2007)
10
ASCE Report Dams

• Since 1998, the number of unsafe dams has risen
  by 33 to more than 3,500.
• The number of dams identified as unsafe is
  increasing at a faster rate than those being
  repaired.
• 10.1 billion is needed over the next 12 years to
  repair dams which pose a direct risk to human
  life.

11
Hydro Power

• There is a newborn interest in hydro-power as a
  renewable source of energy.
• Hydro-power accounts for 7 of total energy
  produced in the US, 20 in China, 27 in India
  and more than 60 in Canada!
• Unsafe dams are a serious concern from power
  generation point of view.

1970 Failure of the Buffalo Creek Dam
2003 Failure of the Silver Lake Dam
12
ASCE Report Roads

• Poor road conditions cost U.S. motorists 54
  billion per year in repairs and operating costs
  275 per motorist.
• Americans spend 3.5 billion hours a year stuck in
  traffic, at a cost of 63.2 billion a year to the
  economy.
• Total spending of 59.4 billion annually is well
  below the 94 billion needed annually to improve
  transportation infrastructure conditions
  nationally.

13
Infrastructure in Canada

• 59 of Canadas infrastructure is more than 40
  years old
• As per Statistics Canada, 37 years is the
  expected average life of a structure in Canada.

14
Infrastructure in Canada

• There are approximately 10,000 deficient bridges
  with a total repair /strengthening cost of 44
  billion.
• There are 4000 parking garages needing immediate
  attention.

15
Quebec Overpass Collapse (Sept. 30, 2006)
16
Infrastructure in Canada

• Canadas current infrastructure deficit is 125
  billion (and growing annually by 2 billion),
  which is 6-10 times the level of all annual
  government infrastructure budget combined.

Prediction 2002
Actual 2009
Prediction in 2002 which has already proven to be
an underestimation
17
Influence of Global Warming on Concrete Structures

• Increase in atmospheric CO2 levels from 370 ppm
  to 1000 ppm
• Increased Corrosion Rates
• Increased Carbonation
• Increase in temperature by over 50C
• Increased Shrinkage
• Porous Microstructure and High Permeability
• Increased Corrosion Rates
• Increased Water Levels
• Increased Saturation
• Greater Scour

18
Scour
19
Why are we in such dire straits?

• Deterioration and aging of structural systems due
  to weather, fatigue, pollution, structural
  settlement and now global warming
• Construction mistakes
• Code changes (structural dynamics, seismic
  design, etc.)
• Loading changes and
• Functional Obsolesce.

20
Infrastructure Concerns
21
The Pantheon, 118 to 126 AD
22
Canadian Research in Sustainable Infrastructure
Canadian Network of Centers of Excellence
Intelligent Sensing for Innovative Structures
(ISIS)
Canada Research Chairs
23
Develop Zero Carbon Footprint Concrete
Canada Research Chairs

• Fact Cement industry accounts for 8 of total
  green house gases. Every ton of cement production
  releases 1 ton of CO2 and consumes 4GJ of
  energy.
• Bio-Inspired, Green Concretes with Zero Carbon
  Footprint
• Dream Concrete with up to 50 cement replaced
  by industrial by-products such as fly-ash, silica
  fume and blast furnace slag and virgin aggregate
  replaced by recycled aggregate, recycled
  automobile tires, and other post-consumer wastes.

• Reinforced against cracking by recycled
  cellulose, polymeric and natural fibers.

24
Canadian Network of Centers of Excellence
Intelligent Sensing for Innovative Structures
(ISIS)

• Network of 18 Universities with over 100 million
  in funding
• Objective To make structures last 100 years
  instead of 50 years

• How is this accomplished?
• Replace steel with Non-Corrosive Fiber Reinforced
  Polymers (FRPs) for both New Construction and
  Strengthening of Old Structures
• Structural Health Monitoring using Advanced
  Sensors (e.g. Fiber Optic Sensors and
  Piezoelectric/ Piezoresistive Sensors with
  Nano-Tubes) and Continuous Interrogation over the
  Internet.

25
Replace Steel Rebar with Fiber Reinforced
Polymers for New Construction and Repair
26
Sensors for Structures
27
Beddington Trail Bridge, Calgary, Alberta (Carbon
Fiber Reinforced Polymer Tendons -- instead of
steel)
28
Beddington Trail Bridge, Calgary, Alberta (Carbon
Fiber Reinforced Polymer Tendons -- instead of
steel)
FRP Tendons
Bragg Grating Sensors
Dynamic Sensor Response to 3-Axle Truck Load
29
Bridge Decks
Wotton Bridge, Que
30
Provencher Bridge, Winnipeg, Manitoba
31
Bridge Sensors

• Abutments and Bearings
• Four High Precision Inclinometers
• Pylon
• 2 High Precision Inclinometers
• 30 Electric Strain Gauges
• 18 Fibre Optic Sensors
• 6 Tri-Axial Accelerometers
• Wide Angle Web Camera
• Bridge Deck
• 13 Unidirectional Accelerometers
• 2 Tri-Axial Accelerometers
• 24 Thermocouples
• Wind Monitor
• Center Plaza
• Tri-Axial Accelerometer
• Cable Stays
• 6 Unidirectional Accelerometers

32
Sensor Installation
33
Data Acquisition / Control Room
34
Strengthening and Rehabilitation of Structures
Gentilly-1 Upgrade Ring-beam of nuclear
containment structure with externally bonded FRP
Externally Bonded FRP
35
Seismic Strengthening of Structures
Externally Bonded FRP
36
Imperatives for a Sustainable Infrastructure

• Green Concrete with a Minimal Carbon Footprint.
• Replacing Traditional Materials with Advanced,
  High Performance, High Durability Materials
• Development of Intelligent Infrastructure with
  Integrated Sensors and Continuous Health
  Monitoring
• Cost Effective Repair/Strengthening Strategies
  for Existing Structures
• Life Cycle Engineering
• Education and Codes

37
But Most of All We Need Interdisciplinary Team
Work
Thank You!
