Title: Chess Problem Solver


1

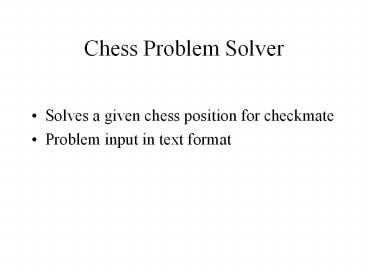

Chess Problem Solver
  • Solves a given chess position for checkmate
  • Problem input in text format

2
Problem Characteristics
  • Search tree solving method
  • Very large computation
  • Low communication requirement

3
Parallel Architecture
  • Message passing using PVM
  • Master/Slave processes
  • Distributed task queues
  • Coarse grain tasks
  • Designed for future flexibility

4
Implementation Strategy
  • Basic data unit
  • Basic software function
  • Tree search routine

5
Basic Data Unit Problem
  • Contains all necessary information about the
    state of a position
  • Status of pieces on board
  • Whose turn to move
  • What player to solve the problem for
  • Maximum levels to search
  • The move that was made to get there

6
Basic Software Function
  • Breaks down a given problem using all possible
    moves.
  • Generates a new list of problems.
  • Is used to create the branches in the search tree.

7
Search Routine
  • Examines a problem and determines the necessary
    action.
  • There are two possibilities
  • the problem represents an end node
  • the node represents a possible solution
  • the node does not represent a possible solution
  • the problem is incomplete and the search levels
    have been exhausted
  • further investigation is necessary
  • break down the problem

8
(No Transcript)
9
Master Process Requirements
  • Input initial problem and break down into list of
    tasks
  • Determine the necessary number of slaves
  • Spawn the slave processes
  • Send tasks to slaves
  • Compile results obtained from slaves
  • Terminate the slaves when complete

10
Slave Process Requirements
  • Wait for command from master (solve problem,
    transfer work, or terminate)
  • On solve problem command, solve the problem and
    return results to the master
  • On transfer work message, send work to another
    slave process
  • Terminate message kills the slave process.

11
(No Transcript)
12
Possible Enhancements
  • Assign processors to a number of groups
  • Each group will have its own master (determined
    by lowest TID for example)
  • Assign a task to each group
  • Will cut down on communication to/from the master
    which cuts down stalled tasks
  • Only necessary for a large number of processors
    when using coarse grain strategy

13
(No Transcript)
14
(No Transcript)
