Securing File Resources

1

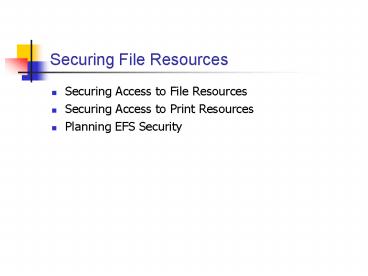

Securing File Resources

• Securing Access to File Resources
• Securing Access to Print Resources
• Planning EFS Security

2
Securing Access to File Resources

• Designing share security
• Planning NT file system (NTFS) security
• Combining share and NTFS security

3
Designing Share Security
4
Configuring Share Permissions

• To enable shared folders, edit the Sharing tab of
  the folder properties.
• The maximum number of allowed sessions can be
  limited.
• To configure precise permission settings, click
  Permissions.

5
Standard Share Permissions

• Full Control
• Change
• Read

6
Changes to Shares in Microsoft Windows 2000

• With down-level clients, if a logical drive
  letter is assigned to a file share, a fake root
  directory is established at the shared folder.
• In Windows 2000, the default behavior allows the
  root directory to be established at the shared
  folder.
• This provides additional security because the
  user cannot navigate to any folders above or at
  the same level in the folder hierarchy.
• Down-level clients still require separate shares
  to be established for each user home directory.

7
Making the Decision Designing Secure Share
Permissions

• Remove Full Control permission from the Everyone
  group.
• Assign share permissions to domain local groups,
  not to user accounts.
• Assign the maximum permission that a security
  principal will require for the folder hierarchy
  below the shared folder.

8
Applying the Decision Designing Secure Share
Permissions for Wide World Importers

• Washington share \\Washington\Applications
• Users Read
• Administrators Full Control
• Dallas share \\Dallas\Applications
• Graphics Users Change
• Graphics Admins Change
• Administrators Full Control

9
Planning NTFS Security
10
Changes in Windows 2000 NTFS File System

• Encryption
• Quotas
• Permission inheritance

11
Assessing NTFS Permissions

• Define most permissions by using the predefined
  permissions.
• Predefined NTFS permissions are compilations of
  several special permissions.
• Security groups are included in each Access
  Control Entry (ACE) in the discretionary access
  control list (DACL).
• The DACL contains one ACE for each level of
  access defined for an object.

12
Predefined NTFS Permissions

• Folder
• Full Control
• Modify
• Read Execute
• List Folder Contents
• Read
• Write

• File
• Full Control
• Modify
• Read Execute
• Read
• Write

13
NTFS Special Permissions

• Traverse Folder/Execute File
• List Folder/Read Data
• Read Attributes
• Read Extended Attributes
• Create Files/Write Data
• Create Folders/Append Data
• Write Attributes

• Write Extended Attributes
• Delete Subfolders And Files
• Delete
• Read Permissions
• Change Permissions
• Take Ownership
• Synchronize

14
Making the Decision Designing NTFS Permissions

• Assign only the necessary permissions.
• Create a custom domain local group for each type
  of access.
• ACEs defined directly to an object are evaluated
  before any inherited ACEs
• Within a group of explicit ACEs, access-denied
  ACEs are placed before access-allowed ACEs.
• If there are multiple inherited ACEs, the ACEs
  are evaluated in the following order from those
  closest to the object (first) to those farthest
  from the object (last).
• Use security templates and Group Policy to
  standardize NTFS permissions.

15
Applying the Decision Washington Office NTFS
Permission Design
16
Applying the Decision Dallas Office NTFS
Permission Design
17
Combining Share and NTFS Security
18
Evaluating Effective Permissions
19
Default Share Permissions

• Full Control is assigned to the Everyone group by
  default.
• Default share permissions should be modified if
  NTFS permissions are not monitored.
• Full Control permission includes three additional
  abilities over the Modify permission.
• Full Control permissions are restricted to
  network administrators.
• An effective set of default permissions for a
  shared folder is
• Administrators Full Control
• Users Change
• Change permissions allow users to create, read,
  delete, and modify any files in the share.

20
Making the Decision Combining Share and NTFS
Permissions

• Set share permissions at the highest level of
  permissions required for the tree below.
• Use NTFS permissions to define precise access
  control.
• Always use the NTFS file system for data.
• Evaluate whether Full Control permission is
  appropriate.

21
Applying the Decision Combining Share and NTFS
Permissions for Wide World Importers

• Initial share and NTFS permissions
• The Washington and Dallas shares and NTFS
  permissions do not assign excess permissions.
• Share permissions could remain set at the
  default.
• Default share permissions could result in excess
  permissions if any of the NTFS permissions are
  applied incorrectly.

22
Applying the Decision Combining Share and NTFS
Permissions for Wide World Importers (Cont.)

• Documenting initial permission assignments
• All folders where permissions are assigned
• Details on group membership
• Rationale for each permission assignment

23
Securing Access to Print Resources

• Assessing printer security
• Printer permissions
• Physical security
• Transmission security

24
Designing Secure Access to Print Resources

• Determine who is allowed to print to a particular
  printer.
• Determine the security of data as it is
  transmitted to the printer.
• Protect traffic to restricted printers, such as
  check printers.
• Prevent users from printing sensitive or
  confidential material to public printers.

25
Assessing Printer Security

• Printer Permissions
• Print
• Manage Documents
• Manage Printers
• Physical Security
• When printer output security is important
• Put print devices in a secure location
• Use security cards or biometric input to access
  the device

26
Protecting Print Resources
27
Making the Decision Ensuring Printer Security

• Restrict access to the printer to a specific
  group of users.
• Delegate administration of a printer.
• Prevent inspection of print jobs.

28
Applying the Decision Printer Security for Wide
World Importers

• Change the default share permissions to limit
  usage to the Graphics department.
• Data transmissions to the film printer do not
  need to be protected.

29
Planning EFS Security

• Overview of the Encrypting File System (EFS)
  process
• Designating an EFS recovery agent
• Recovering encrypted files

30
Planning EFS Security Overview

• EFS secures files that are stored locally.
• EFS protects only the data stored on an NTFS
  partition.
• EFS does not provide network transport security.
• EFS planning should include a plan to restore
  data in the event that recovery keys are lost.
• Poor EFS planning can result in the permanent
  loss of data.

31
EFS Encryption Process

• Knowing how the EFS process encrypts data helps
  to determine
• Which user has encrypted a file by using EFS
• Who can recover an EFS encrypted file
• Users can enable the Encrypt Contents To Secure
  Data attribute for a file or folder.
• Administrators can encrypt all contents of
  specific folders to ensure the security of
  confidential data.

32
Encrypting EFS Data
33
Decrypting EFS Data
34
Designating an EFS Recovery Agent

• If an EFS recovery agent is not defined, the EFS
  recovery attempts might fail.
• Select the account that will be the EFS recovery
  agent.
• Define the public/private key pair that will be
  used by the EFS process.

35
The Initial EFS Recovery Agent

• When the computer is not a domain member
• The initial Administrator account is configured
  as the EFS recovery agent by default
• The EFS Recovery certificate is a self-issued
  certificate created by the OS

36
The Initial EFS Recovery Agent (Cont.)

• When the computer is a domain member
• The Default Domain policy configures the domain
  Administrator account as the EFS recovery agent
• The public key for EFS encryption is the public
  key associated with the Administrator account of
  the first domain controller (DC) that was
  installed into the domain
• This DC's former Security Account Management
  (SAM) database is used to initially populate the
  domain
• The Administrator's EFS Recovery certificate is
  reconfigured as the EFS recovery agent in the
  Default Domain Policy

37
Configuring a Custom EFS Recovery Agent

• Define a new account as the EFS recovery agent.
• The new EFS recovery agent account requires an
  EFS Recovery certificate but does not have to be
  a member of the domain Administrators group.
• The certificate template is available from a
  Microsoft Windows 2000 Enterprise Certification
  Authority (CA).
• Import the EFS Recovery certificate into the
  Default Domain Policy as the domain's Encrypted
  Data recovery agent.
• The imported public key is used to encrypt the
  File Encryption Key stored in the Data Recovery
  Field (DRF).
• Multiple EFS Recovery certificates can be
  imported into Group Policy to create multiple EFS
  recovery agents.

38
Configuring an Empty Encrypted Data Recovery
Agent

• Prevent network EFS encryption by deleting all
  current EFS recovery agent certificates in the
  Encrypted Data Recovery Agent policy.
• EFS encryption is not possible without defining
  Encrypted Data recovery agents.
• An empty policy exists when no recovery agents
  are included in the Encrypted Data Recovery Agent
  policy.
• The empty policy exists and is applied, but no
  values are assigned from it.
• The creation of an empty policy ensures that
  local policy does not take precedence.

39
Making the Decision Planning EFS Recovery Agents

• Ensure that all EFS encrypted files in a domain
  can be recovered.
• Prevent EFS encryption from being used.
• Prevent specific computers from using EFS
  encryption.
• Restrict EFS encryption to specific users.

40
Applying the Decision Planning EFS Recovery
Agents for Wide World Importers

• Delete the default EFS recovery agent from the
  Default Domain Policy.
• Remove all entries from the Default Domain
  Policy, but do not delete the policy.
• Because no EFS recovery agent is defined, EFS
  encryption is disabled on the domain member
  computers.

41
Deploying an EFS Recovery Solution

• Create a new account that will perform the
  request for the EFS Recovery certificate.
• Configure the permissions on the EFS Recovery
  certificate template to allow the new account to
  have Enroll permissions in Active Directory Sites
  And Services.
• Request an EFS Recovery certificate when logged
  on as the new account.

42
Deploying an EFS Recovery Solution (Cont.)

• Export the key and the corresponding private key
  to a PKCS12 file and store the file on removable
  media.
• Store the PKCS12 file in a secure location, such
  as a safe.
• Import the public key into the Default Domain
  Policy in the Encrypted Data Recovery Agent
  Policy.
• Delete the new account.

43
Performing an EFS Recovery

• Determine the private key that can perform the
  EFS recovery.
• Import the private key into the certificate store
  of any user account.
• The user account now holds the corresponding
  private key to the public key that was used to
  encrypt the File Encryption Key.

44
Determining the Required Private Keys

• Use the Efsinfo utility from the Microsoft
  Windows 2000 Server Resource Kit to determine
  which private key is required to decrypt an EFS
  encrypted file.
• Efsinfo parameters
• Efsinfo /U /R /C /I Y /Sdir
  pathname

45
Making the Decision Planning Recovery of
Encrypted Files

• Restrict the ability to recover encrypted files.
• Restrict recovery to a specific workstation.
• Allow more than one private key to perform EFS
  recovery.
• Determine which users can decrypt a file.
• Determine which recovery agents can decrypt a
  file.

46
Applying the Decision Recovering Encrypted Files
for Wide World Importers

• Files encrypted before the computers were rebuilt
  might still be recoverable.
• Because Wide World Importers has not configured
  the EFS recovery agent, the default EFS recovery
  agent probably was previously configured.
• If a roaming profile has not been implemented for
  the Administrator account, the private key for
  EFS recovery of this account might be able to
  decrypt the DRF and decrypt the encrypted data
  files.

47
Chapter Summary

• Designing share security
• Planning NTFS security
• Combining share and NTFS security
• Assessing printer security
• Overview of the EFS process
• Designating an EFS recovery agent
• Recovering encrypted files
