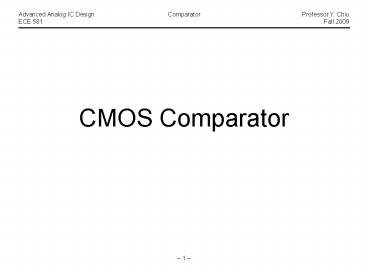

CMOS Comparator
2
Comparator
Transfer characteristic (ideal)
Circuit symbol
Detects the polarity of the analog input signal
and produces a digital output (1 or 0)
accordingly threshold-crossing detector
3
Applications

• Voltage/current level comparison (A/D conversion)
• Digital communication receivers (slicer or
  decision circuit)
• Sense amplifier in memory readout circuits
• Power electronics with digital control (dc-dc
  converter)

4
Design Considerations

• Accuracy (offset, noise, resolution)
• Settling time (tracking BW, regeneration speed)
• Sensitivity (gain)
• Metastability (any decision is better than no
  decision!)
• Overdrive recovery (memory)
• CMRR
• Power consumption

5
Comparator
?
?
Amplification
Clipping

• Precise gain and linearity are often unnecessary
  ? simple, low-gain, open-loop, wideband
  amplifiers latch (positive feedback)
• More gain can be derived by cascading multiple
  gain stages
• Built-in sampling function with latched
  comparators

6
Multi-Stage Preamp
N stages
7
Step Response
8
Optimum N

• Given A0 Vo/Vi, Nopt can be determined with the
  above equation
• For A0 lt 100, typical N value ranges between 2
  and 4

9
Comparison

• A higher A0 ( Vo/Vi) requires a larger N
• In comparison, latches regenerate faster than
  preamps

10
Multi-Stage PA Offset
Individual stage
?
Total input-referred
11
Input Offset Cancellation

• AC coupling at input with input-referred offset
  stored in C
• Two-phase operation, one phase (F2) is used to
  store offset

12
Offset Storage F2
?
Closed-loop stability (amplifier in unity-gain
feedback)
Ref J. L. McCreary and P. R. Gray, All-MOS
charge redistribution analog-to-digital
conversion techniques. I, JSSC, vol. 10, pp.
371-379, issue 6, 1975.
13
Amplifying Phase F1
?

• Offset cancellation is incomplete if A is finite
• Input AC coupling attenuates signal gain

14
CF and CI of Switches

• Whats the optimum phase relationship between F2
  and F2'?
• Bottom-plate sampling ? F2' switches off slightly
  before F2 (note the operation in this phase is
  signal independent anyway)

15
Output Offset Cancellation

• AC coupling at output with offset stored in C
• A must be small and well controlled (independent
  of Vo)
• Does not work for high-gain op-amps

16
Offset Storage F2
?

• Closed-loop stability is not required
• CF and CI of F2' gets divided by A when referred
  to input

Ref R. Poujois and J. Borel, A low drift fully
integrated MOSFET operational amplifier, JSSC,
vol. 13, pp. 499-503, issue 4, 1978.
17
Amplifying Phase F1
?

• Cancellation is complete if A is constant
  (independent of Vo)
• AC coupling at output attenuates signal gain

18
Offset Cancellation w/ Auxiliary Input

• Gm1 and Gm2 are the preamp and latch,
  respectively
• A form of output offset cancellation technique

Ref B. Razavi and B. A. Wooley, Design
techniques for high-speed, high-resolution
comparators, JSSC, vol. 27, pp. 1916-1926, issue
12, 1992.
19
Offset Sampling

• S3-S6 closed
• S1-S2 open

• Gm1 and Gm2 are grounded and the PFB of Gm2 is
  disabled
• Vos1 and Vos2 are amplified by Gm1 and Gm2 to
  appear at Vo
• When S5 S6 open (slightly before S3 S4),
  offset voltage is sampled and stored in C1 and C2
• CF/CI of S5 S6 gets divided by (Gm1/Gm2) when
  referred to input

20
Comparison

• S3-S6 open
• S1-S2 closed

• Differential input is amplified by Gm1 to
  establish an imbalance at the output and AC
  coupled to the input of Gm2
• Gm2 starts regeneration with this imbalance

21
Potential Problems

• Very complicated ? slow conversion speed
• C1 and C2 and their parasitics add loading to the
  output
• Finite on-resistance of S5 S6 cannot completely
  break PFB
• CF/CI imbalance of S5 S6 can trigger
  regeneration

22
Razavis Comparator
Even more complicated!
23
Overdrive Recovery
24
Overdrive Recovery Test
0
1
Case I
Case II
A small input (0.5 LSB) is applied to the
comparator input in a cycle right after a
full-scale input is applied the comparator
should be able to resolve to the right output in
either case ? memoryless
25
Passive Clamp

• Limit the output swing with diode clamps ?
  signal-dependent Ro
• Clamps add parasitics to the PA output

26
Active Reset

• Kill PA gain with a crowbar switch ?
  time-dependent Ro
• Switch adds parasitics to the PA output

27
PA Autozeroing

• Two-phase operation, F2 phase is used for offset
  storage
• Autozeroing switch F2' also resets and removes
  the PA memory

28
CMOS Preamplifier
29
Pull-Up

• NMOS pull-up suffers from body effect, affecting
  gain accuracy
• PMOS pull-up is free from body effect, but
  subject to P/N mismatch
• Gain accuracy is the worst for resistive pull-up
  as resistors (poly, diffusion, well, etc.) dont
  track transistors but it is fast!

30
To Obtain More Gain

• Ip diverts current away from PMOS diodes (M3
  M4), reducing (W/L)3
• Higher gain w/o CMFB
• Needs biasing for Ip
• M3 M4 may cut off for large Vin, resulting in a
  slow recovery

31
Bults Preamp

• NMOS diff. pair loaded with PMOS diodes and PMOS
  latch (PFB)
• High DM gain, low CM gain, good CMRR
• Simple, no CMFB
• (W/L)34 gt (W/L)56 needs to be ensured for
  stability

Ref K. Bult and A. Buchwald, An embedded
240-mW 10-b 50-MS/s CMOS ADC in 1-mm2, JSSC,
vol. 32, pp. 1887-1895, issue 12, 1997.
32
DM
?
33
CM
?
34
Songs Preamp

• NMOS diff. pair loaded with PMOS diodes and
  resistors
• High DM gain, low CM gain, good CMRR
• Simple, no CMFB
• Gain not well-defined

Ref B.-S. Song et al., A 1 V 6 b 50 MHz
current-interpolating CMOS ADC, in Symp. VLSI
Circuits, 1999, pp. 79-80.
35
Songs Preamp
DM
CM
36
CMOS Latch
37
Static Latch

• Active pull-up and pull-down ? full CMOS logic
  levels
• Very fast!
• Q and Q- are not well defined in reset mode (F
  1)
• Large short-circuit current in reset mode
• Zero DC current after full regeneration
• Very noisy

38
Semi-Dynamic Latch

• Diode divider disabled in reset mode ? less
  short-circuit current
• Pull-up not as fast
• Q and Q- are still not well defined in reset
  mode (F 1)
• Zero DC current after full regeneration
• Still very noisy

39
Current-Steering Latch

• Constant current ? very quite
• Higher gain in tracking mode
• Cannot produce full logic levels
• Fast
• Trip point of the inverters

40
Dynamic Latch

• Zero DC current in reset mode
• Q and Q- are both reset to 0
• Full logic level after regeneration
• Slow

Ref A. Yukawa, A CMOS 8-Bit High-Speed A/D
Converter IC, JSSC, vol. 20, pp. 775-779, issue
3, 1985.
41
Modified Dynamic Latch

• Zero DC current in reset mode
• Q and Q- are both reset to 0
• Full logic level after regeneration
• Slow

Ref T. B. Cho and P. R. Gray, A 10 b, 20
Msample/s, 35 mW pipeline A/D converter, JSSC,
vol. 30, pp. 166-172, issue 3, 1995.
42
Chos Comparator
?
M1R and M2R added to set the comparator threshold
