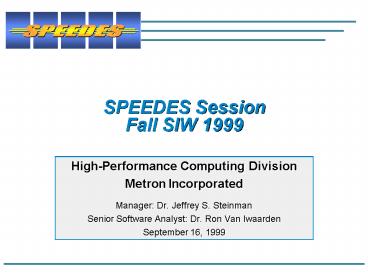

SPEEDES Session Fall SIW 1999

1
SPEEDES SessionFall SIW 1999

• High-Performance Computing Division
• Metron Incorporated
• Manager Dr. Jeffrey S. Steinman
• Senior Software Analyst Dr. Ron Van Iwaarden
• September 16, 1999

2
Topics

• Introduction to SPEEDES
• SPEEDES Communications Library
• Persistence and Checkpoint/Restart
• Data Distribution Management
• HPC-RTI

3

• 1. Introduction to SPEEDES

4
Historical Perspective
1. Late 1980s
2. Early 1990s
3. Late 1990s
4. 2000...
Other RTIs
SIMNET
ALSP
TWOS
WG2K JSIMS EADTB
5
SPEEDES Project Time Line
6
SPEEDES Project

• Background
• Developed by NASA under DoD contracts by the Jet
  Propulsion Laboratory in 1990
• Strategic, Air, and Ballistic Missile Defense
  Organizations
• Government-owned and patented software licensed
  by NASA, maintained and distributed by Metron
• PDES Users Group - Configuration Management
  Board
• Joint Simulation System (JSIMS)
• Wargame 2000 through the Joint National Test
  Facility (JNTF)
• Space and Naval Warfare Systems Command (SPAWAR)
• New Member Extended Air Defense Test Bed (EADTB)
• New Member Joint Modeling and Simulation System
  (JMASS)

7
The SPEEDES Ten Commandments
The SPEEDES Ten Commandments 1. Thou shalt
execute on all platforms and operating systems 2.
Thou shalt be optimizable for all communication
architectures 3. Thou shalt compile without
warnings on all C compilers 4. Thou shalt
completely scale with low overheads 5. Thou shalt
provide logically correct time management 6. Thou
shalt support unconstrained object
interactions 7. Thou shalt allow interactions
with external systems 8. Thou shalt provide fault
tolerance 9. Thou shalt have powerful, yet easy
to use, modeling constructs 10. Thou shalt permit
interoperability within SPEEDES and HLA
8
SPEEDES Architecture

NSS, JSIMS, EADTB, WG2K
HLA Run-Time Infrastructure Distributed
Simulation Management Services
SPEEDES Modeling Framework (Events, Processes,
Event Handlers, Components, Object Proxies, DDM,
Clusters, Persistence, Utilities)
SPEEDES Event-Processing Engine (Event List
Management, State-Saving, Rollbacks, Message
Handling)
9
Network Connectivity(an Example)

10
SPEEDES Interoperability

High Performance Computer
11
Distribution of SPEEDES Software
SPEEDES
SPEEDES
Version 0.8
Synchronous Parallel Environment for
Emulation and Discrete-Event Simulation
High Performance Computing Division Metron
Incorporated SPEEDES Software Development Team
Jeff Steinman Jim Brutocao Jacob Burckhardt Ron
Van Iwaarden Gary Blank
Kurt Stadsklev Scott Shupe Tuan Tran Mitch
Peckham Guy Berliner
Software downloadable from the SPEEDES
website www.ca.metsci.com/speedes/
Software Licensing by NASA (818)
354-7770 Distribution by Metron Incorporated
[phone] SPEEDES Version 0.8, September 10,
1999 PDES Users Group JNTF, SPAWAR,
JSIMS Government Sponsors HPCMO/CHSSI, BMDO,
NRL, EADTB, DMSO
12

• 2. SPEEDES Communications Library

13
The SpeedesComm Library

• Services
• Heterogeneous data representation
• Performance results

14
Services Provided by the SpeedesComm Lib.

• General operations
• Starting up the communications
• int SpComm_StartUp(int nLoc, int nTot, int group,
  char miscData)
• If nTot is 0, nTot is set equal to nLoc. Group
  is an additional integer that can separate
  SpeedesComm executables using the same
  SpeedesComm interface at the same time
• miscData can be used to pass any additional
  required startup information
• Obtaining node information
• int SpComm_GetNumNodes()
• int SpComm_GetNodeId()

15
Services Provided by the SpeedesComm Lib.

• Global operations
• Synchronizations
• void SpComm_BarrierSync()
• void SpComm_EnterFuzzyBarrier()
• int SpComm_ExitFuzzyBarrier()
• Global Sums
• int SpComm_GlobalSum(int value)
• double SpComm_GlobalSum(double value)

16
Services Provided by the SpeedesComm Lib.

• Global operations Continued
• Global Minimums
• int SpComm_GlobalMin(int value)
• double SpComm_GlobalMin(double value)
• SIMTIME SpComm_GlobalMin(SIMTIME Time)
• Global Maximums
• int SpComm_GlobalMax(int value)
• double SpComm_GlobalMax(double value)
• SIMTIME SpComm_GlobalMax(SIMTIME Time)

17
Services Provided by the SpeedesComm Lib.

• Asynchronous message passing
• Message types (values can range from 0-255)
• define N_MESSAGE_TYPES 256
• Destination types
• Unicast (i.e., a node number)
• Multicast (subset of all nodes)
• Broadcast (no destination provided)

18
Services Provided by the SpeedesComm Lib.

• Asynchronous message passing continued
• Sending messages uses overloaded functions
• void SpComm_Send(int Destination, int Type, int
  Nbytes, void Buff)
• void SpComm_Send(DESTINATION Destination, int
  Type, int Nbytes, void Buff)
• void SpComm_Send(int Type, int Nbytes, void
  Buff)
• Receiving messages (Array of message queues holds
  unread messages)
• void SpComm_Receive()
• void SpComm_Receive(int Type, int Nbytes)
• void SpComm_GetPendingMessage(int Type, int
  Nbytes)

19
Services Provided by the SpeedesComm Lib.

• SIMTIME is a generalization of time to support
  parallel discrete event simulations
• Includes a double representation of time as well
  as four tie breaking fields
• DESTINATION is another class to support
  multi-cast messages
• Flat class (no pointers)
• Supports at least three methods
• int GetFirstNode() //Returns -1 on failure
• int GetNextNode() //Returns -1 on failure
• void SetNode (int n)

20
Services Provided by the SpeedesComm Lib.

• Coordinated message passing
• Step 1 Nodes pass all outgoing messages to
  blocking send routines
• Step 2 Nodes receive messages until NULL value
  returned
• NULL value only returned when node has received
  all of its messages
• Guarantees no coordinated messages from other
  nodes are in transit

21
Services Provided by the SpeedesComm Lib.

• Coordinated message passing API
• Sending messages (node-to-node, destination-based
  multicast, broadcast)
• void SpComm_BlockingSend(int Destination, int
  Nbytes, void Buff)
• void SpComm_BlockingSend(DESTINATION
  Destination, int Nbytes, void Buff)
• void SpComm_BlockingSend(int Nbytes, void Buff)
• Receiving messages (Single message queue holds
  unread messages)
• void SpComm_CoordinatedReceive(int Nbytes)

22
Heterogeneous Data Representations

• NET_INT and NET_FLOAT as C objects
• Eliminates the need for packing and unpacking
  data in messages
• Operator overloading used to hide conversions
• Operate as integers and floats in normal use
• Assignments work in normal representation
• Accessors convert on first access if necessary
• Will guarantee 8-byte alignment
• Access is slower than normal integers and doubles
• Modern multi-pipelined, branch predicting CPUs
  will optimize this quite well
• Users can also attempt to minimize number of
  accesses of NET types in messages

23
Communications Performance

• Several systems were used for benchmarking
• System of 8 dual Pentium Pro 200 Linux machines
  connected with 10base-t ethernet
• 20 processor SGI Power Challenge (195mhz R8000
  chips)
• 64 processor SGI Origin 2000 (250mhz R12000
  chips)

24
Communications Performance

• TCP/IP performance with the Linux network

25
Communications Performance

• Shared memory performance using the Origin 2000

26
Communications Performance

• Reduction time 62 nodes of the Origin 2000

27
Conclusions

• SpeedesComm is a reusable parallel communications
  library that is suitable for most parallel
  applications
• The shared memory implementation provides high
  performance
• TCP/IP links high performance computers,
  workstations, and PCs in a network
• Runs under System V UNIX and Windows NT

28

• 3. Persistence and Checkpoint/Restart

29
Overview

• What is persistence memory management
• Basic implementation
• How to make a SPEEDES simulation checkpoint
  restartable
• Performance results, techniques, and areas for
  future research

30
What is Persistence Memory Management

• Objects are then recreated and pointers are
  updated

• Objects exist with pointers to other objects

Object A
Object D
Object B
Object B
Object C
Object A
Object C
Object D
31
Basic Implementation

• Macro rather than template based for portability
• Database records memory ranges rather than
  actually storing copies of the objects
• Pointers are attached indicating that they need
  to be restored on update
• Virtual function table pointers are restored for
  C objects
• At any time, the entire database can be stored as
  a buffer, compressed, and then written to disk
  for later reconstruction of the objects

32
Basic Implementation
Object A
Object D
Object B
Object C
33
Basic Implementation for Checkpoint/Restart

• Only entity state data and event messages are
  stored
• Persistence is automatically integrated with
  rollbackable datatypes in SPEEDES
• Dynamic memory creation/deletion
• Smart pointers
• Container classes
• Object proxies
• Event messages can also have persistent pointers

34
Main Rules for Checkpoint/Restart

• Register classes that are dynamically created
  during initialization
• Always use RB_NEW and RB_DELETE
• Always use rollbackable pointers
• All classes that have virtual functions must
  inherit from SpPersistenceBaseClass
• Never use reference data members
• Static data members must be reinitialized in
  constructors
• Provide 0 argument constructors for dynamically
  created objects

35
Performance Results for Initial Release

• Two demos with low event granularities have been
  tested
• A queuing network demo saw a 60 reduction in
  processing speed
• A regression test that exercises many of the data
  structures and object proxies saw a 66 reduction
  in speed
• Primary overheads
• Adding/removing messages from database
• Free lists could greatly improve performance
• Users should avoid many adds/deletes and use free
  lists whenever possible

36
Conclusions

• Simple interface for enabling persistence memory
  management
• Portable C implementation
• Standalone GOTS product that can be reused in any
  C program

37

• 4. Data Distribution Management

38
Need for DDM

• DDM is needed to limit distribution of object
  proxies
• Scalability required for memory, messages,
  computations
• Number of entities, sensors, nodes
• WG2K, JSIMS, EADTB experienced scalability
  problems without DDM
• Limit without DDM is about 1,000 entities
• Can currently support 1,000,000 entities with DDM
• HLA Routing Spaces
• Used as foundation for SPEEDES DDM
• Extended to support enumerations and categories
• Range-based Filtering
• The most common dynamically changing filter
  requirement
• Routing space extensions for geographical
  theaters
• Range solver determines exactly when targets
  enter and exit field of view

39
Distributed Routing Spaces

• Routing spaces are distributed to provide
  scalability
• Reduces bottlenecks for grid overlap computations
• Can control which dimensions are used for
  distributing regions
• Dont care dimensions should not be distributed
• Routing spaces support multiple resolutions
• Hierarchical grids are used to support arbitrary
  sets of resolutions for each dimension

40
Overall Coordination of DDM in SPEEDES

Distributed Hierarchical Grids
41
Object Proxies and HLA Services

• Object Management
• Discover/Remove Objects
• Update/Reflect Attributes
• Dynamic Attributes
• Ownership Management
• Two-Way Proxies
• Declaration Management
• Class-based Subscription
• Data Distribution Management
• Range-based filtering
• Routing Spaces

42
Decomposition of Space into HiGrids
43
Conceptual Diagram of Routing Spaces
Universe
Space Dimension
44
Geographical Filtering Based on Range
45
Problem Decomposing Latitude/Longitude
North Pole
Equator
46
Latitude Bands for Equal Area Grids
North Pole
North Pole
df0
Ri
df1
fi
df2
df3
Equator
Equator
df4
df5
df6
df7
Figure (a)
Figure (b)
47
Longitude Cells for Equal Area Grids
48
Angular Cones Used for Grid Lookups
49
Example of a Three Dimensional HiGrid
50
The X-SubTree
51
The Y-SubTree
52
The Z-SubTree
53
SPEEDES Components Implement DDM
S_SpSimObj
54
Test Scenario

• 1,000,000 entities randomly moving about the
  globe
• Great Circle trajectories between way-points
• Each entity has one radar sensor with 100 km
  range
• Routing space
• One THEATER dimension covers entire globe
• Lat/Lon regions distributed, (not Altitude),
  Multiple Resolutions
• Regions automatically coordinated using (Position
  and Max Velocity)
• One ENUM dimension with five enumerations
• Distributed
• Publishers and Subscribers randomly select one
  value
• One DIMENSION standard HLA dimension
• Not distributed, several resolutions
• Experiment
• Establish filter to average one detection per
  entity

55
Proxy Distribution Statistics
56
Wall Clock Vs. Number of Nodes
57
Memory Usage Vs. Number of Nodes
58
Maximum Speedup Vs. Number of Nodes
59
Number of Events Processed by Type
60
Total Processing Time by Event Type
61
Average Processing Time by Event Type
62
Next Steps for DDM

• Reduction in Overheads
• Several events appear to have excessive overhead
  and should be optimized
• Support destination-based multicasting for
  scheduling events
• Refactor event queue to more efficiently support
  direct retraction
• Several Rollback Reduction Optimizations
• Query-Reply optimization will prohibit an object
  from processing events beyond the time tag of
  events it is expecting to receive from other
  objects
• Automated lazy cancellation reprocess events when
  possible
• Event Reparation will allow events to fix
  themselves to minimize the effects of straggler
  messages
• Further Testing
• Attribute updates
• Scalability test for Magnet drawing objects
  together
• Apply DDM for Interactions

63
Conclusions

• SPEEDES DDM has achieved its initial goals
• Scalability
• Parallel performance
• Memory
• Messages
• Support for multiple resolution filtering
• Automated range-based filtering
• Time Management guarantees repeatable results
• DDM is compatible with HLA
• DDM in SPEEDES applications will work
  transparently with HLA
• SPEEDES DDM provides HLA DDM in the HPC-RTI
• 1,000,000 entities!

64

• 5. HPC-RTI

65
SPEEDES HLA

• SPEEDES will support three HLA Interoperability
  strategies
• I. HLA Gateway
• Connects SPEEDES to another federation using any
  RTI
• II. External HLA RTI interfaces
• Connects HLA federates to SPEEDES using standard
  interfaces
• III. Direct HLA RTI interfaces
• Provides an RTI for HLA federates on
  high-performance computers
• Features
• Portable across all computing platforms
• Rigorous time management for all services
• Programmable translations between SOMs and FOMs

66
I. HLA Gateway

• SPEEDES as a federate in an HLA Federation

SOM/FOM File-Driven Translator
SOM/FOM Programmable Translator
SPEEDES
67
II. External HLA Interfaces

• HLA Interfaces provided to external modules

Federate
Simulation
External HLA I/F
FedStateMgr
SOM/FOM Programmable Translator
Host Router
SPEEDES
68
III. Internal HLA Interfaces

• Federate as a SPEEDES Node

Federate
FedStateMgr
Simulation
Node
Direct HLA I/F
SOM/FOM Programmable Translator
SPEEDES
69
HLA Objects
Federate
70
Current Status of RTI Development

• Federation Management
• Create federation, join federation
• Declaration Management
• Subscribe object class (publication not needed)
• Subscribe interaction (publication not needed)
• Object Management
• Register object, update attributes (put on hold
  for now)
• Discover object, reflect attributes (testing
  using SPEEDES simulation)
• Send/Receive Interaction
• Time Management
• Next event request, time advance grant (other
  services are easier)
• All activities between federate and RTI are
  coordinated in time
• All internal activities inside RTI are
  coordinated in time

71
RTI Ambassador Progress
72
RTI Ambassador Progress
73
Fed Ambassador Progress
74
Schedule

• Phase 1
• Will be released in SPEEDES Version 0.9 (March,
  2000)
• External federate capability will be available
  prior to 0.9 in minor release
• Flexible federate translations between SOM FOM
• Everything but OM DDM
• Phase 2
• Will be released in SPEEDES Version 1.0
  (November, 2000)
• Will provide updates in minor releases
• Complete HLA interface specification

75
Conclusions

• SPEEDES-based HPC-RTI focus
• Performance using high performance computing
  resources
• Executes on all HPC architectures
• Current measurements predict high performance
• Automatic logical time management across all HLA
  services
• Integrates seamlessly with real-time
• Interoperability
• Between SPEEDES applications (clusters)
• HLA Federates (HPC-RTI)
• Federations (gateway)
• FOM/SOM agility through programmable and
  file-driven translation
