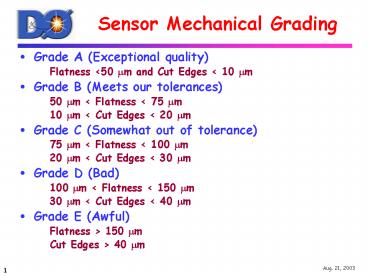

Sensor Mechanical Grading

1
Sensor Mechanical Grading

• Grade A (Exceptional quality)
• Flatness lt50 mm and Cut Edges lt 10 mm
• Grade B (Meets our tolerances)
• 50 mm lt Flatness lt 75 mm
• 10 mm lt Cut Edges lt 20 mm
• Grade C (Somewhat out of tolerance)
• 75 mm lt Flatness lt 100 mm
• 20 mm lt Cut Edges lt 30 mm
• Grade D (Bad)
• 100 mm lt Flatness lt 150 mm
• 30 mm lt Cut Edges lt 40 mm
• Grade E (Awful)
• Flatness gt 150 mm
• Cut Edges gt 40 mm
