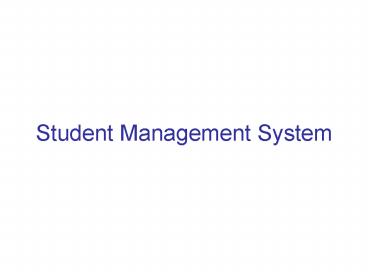

Title: Student Management System


1
Student Management System

2
GOAL OF THE PROJECTComputerize The
Manually Operated System
3
EXISTING SYSTEMDISADVANTAGES1)Physic
al Strain 2)Less Interactive 3)Time Consuming
4
PRESENT SYSTEM
  • ADVANTAGES
  • Highly Interactive
  • Instant Response
  • Time Saving

5
SOFTWARE VISUAL STUDIO.NETORACLE
8iWINDOWS 2000 SERVER
6
DATABASE ARCHITECTURE
USER INTERFACE
DATABASE ENGINE
DATA STORE
7
BRIEF DESCRIPTION
8
STUDENT ADMINISTRATIONSTAFF
ADMINISTRATIONOFFICE ADMINISTRATION
9
STUDENT ADMINISTRATION
  • Student Registration
  • Class Administration
  • Class Registration
  • Attendance
  • Performance List
  • Monthly Payments
  • Exam Fee Structure

10
STAFF ADMINISTRATION
  • Staff Recruit Application
  • Recruit Confirmation
  • Salary Payments

11
OFFICE ADMINISTRATION
  • Stock Administration
  • Library Management

12
DATA FLOW DIAGRAMS
13
FIRST LEVEL DATAFLOW DIAGRAM
Student Registration
Class Administration
Attendance
Student Administration
Student
Student Performance
Students Exam Fee Payments
Students Installment Fee Payments
14
  • SECOND LEVEL DATAFLOW DIAGRAM

Recruitments
Recruit_confirmation
Salary Payments
Staff Administration
STAFF
Staff scheduling
15
  • THIRD LEVEL DATAFLOW DIAGRAM

Stock Maintenance
Library Management
INWARD ITEMS TO STORES
OFFICE ADMINISTRATION
Library
Other Activities
16
E-R DIAGRAMS
17
studid
Student name
DOB
Registration Fee
Fathername
Student Registration
Remarks
occupation
Classid
extracharges
sno
classname
noofworkingdays
Class Administration
endingdate
studid
Starting date
studname
admissionFee
Classregister
classid
classname
Admissionfee
Installmentpay
18
Month
Sno
StudId
Attendance
ClassId
Remarks
NoOfWorking Days
NoOfDays Attended
ClassRegister
ClassId
ExamId
Feestructure
TypeOfExam
ClassName
ExamFee
19
Remarks
Sno
StudId
Percentage
ClassId
Totmarks
PerformanceList
StudName
Average
Other
Maths
Social
English
Telugu
Hindi
StudentRegistration
StudId
InstallmentAmount
ExamId
Sno
ExamFeePayments
InstallmentPayDate
MonthlyInstallments
ClassId
TypeOfExam
ClassId
ExamFee
Sno
StudId
20
Postappliedfor
Address
Appno
Recruit_Applications
Qualification
Appl_Namee
AppliedDate
SalaryExpected
TeacherCode
Designation
Recruit_Confirm
Appno
Salary
Doj
Address
TeacherId
Appl_Name
TeachersMaster
Description
TeacherId
