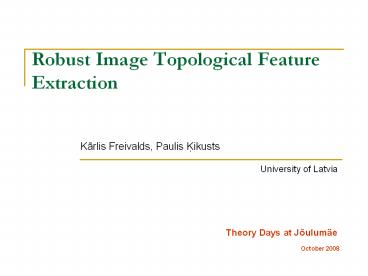

Robust Image Topological Feature Extraction

1
Robust Image Topological Feature Extraction

• Karlis Freivalds, Paulis Kikusts

University of Latvia
Theory Days at Jõulumäe
October 2008
2
Image Analysis

• Image analysis steps
• Pixels ? features
• Features ? objects
• Objects ? knowledge
• Knowledge ? decision
• Features
• Edge
• Ridge
• Valley (ravine)
• Corner

3
Topological Features

• Image is treated as 3D surface
• Ridge
• Valley
• Junction
• Peak
• Pit
• Saddle
• (Edge)

4
Ridges in Images
5
Ridge Image Examples
Text
Line drawings
Natural objects
Industrial applications
6
Mathematics

• Image smooth function f(x, y)
• Derivatives
• Directional derivative in direction p (px, py)
• Second derivative in two directions (unit
  vectors) p and q

7
Principal Orthogonal Directions

• Two directions play the key role
• Gradient direction
• Tangent direction h (hx, xy) (gy, gx).
• fh 0
• Decision is based on fgg, fhh and fhg

8
Ridge Definition

• Point (x, y) is called a ridge point if and only
  if

9
Analytical example

• f(x, y) y2 x2

K3 xy 0 gives x 0 and y 0 K1 K2 always
true Ridge x 0
10
Another example

• f(x, y) y2 10x2

K3 xy 0 gives x 0 and y 0 K1 always
true K2 Ridge x 0 Theorem Ridge of a
quadratic surface is always a line.
11
Naive implementation

• fx (f(k 1, l) f(k 1, l)) / 2,
• fy (f(k, l 1) f(k, l 1)) / 2,
• g
• gx fx / g,
• gy fy / g,
• hx gy,
• hy gx,
• fxx f(k 1, l) 2f(k, l) f(k 1, l),
• fyy f(k, l 1) 2f(k, l 1) f(k, l 1),
• fxy (f(k 1, l 1) f(k 1, l 1) f(k
  1, l 1) f(k 1, l 1)) / 4,
• fgg fxxgxgx 2fxygxgy fyygygy,
• fhh fxxhxhx 2fxyhxhy fyyhyhy,
• fgh fxxgxhx fxy(gxhy gyhx) fyygyhy.
• Ridge conditions

12
Naive implementation
13
Equivalent Formulation

• Hessian matrix
• Eigenvalues of H
• Eigenvectors of H
• Ridge

R. Haralick, Ridges and Valleys on Digital
Images, Computer Vision, Graphics, and Image
Processing, vol. 22, no. 10, pp. 2838,Apr. 1983.
14
Algorithm

• Calculate eigenvalues and eigenvectors
• See if
• See if there is a sign change of
• in the direction of
• Problems
• Unreliable
• Requires interpolation
• Relatively Slow

15
Lee and Kim Algorithm

• 4 directions of discrete grid are analyzed
• Orthogonal directions of greatest curvature are
  selected
• Point is classified as ridge, valley, peak or pit
  based on sign changes of gradients in these
  directions.
• Problems
• Unreliable
• No clear distinction between ridges and peaks

Lee, S. and Kim, Y. J. 1995. Direct Extraction of
Topographic Features for Gray Scale Character
Recognition. IEEE Trans. Pattern Anal. Mach.
Intell. 17, 7 (Jul. 1995), 724-729.
16
New Discrete Algorithm

• Consider 4 directions of discrete grid
• Find direction of minimum second derivative (that
  will be direction perpendicular to ridge), let
  fhh be that second derivative.
• Test if the current point is a local maximum in
  that direction
• Let fgg be the second derivative in the
  perpendicular direction.
• Test if abs(fhh) gt abs(fgg)
• If all tests are true return abs(fhh) as ridge
  strength
• Else return that this is not a ridge point

17
Implementation

• // Calculation of ridge pixel strength at the
  given point, 0 if the point is not a ridge point
• // assumes that int image holds the image values
  in row by row.
• int RidgePixelStrengthOptimized(int x, int y)
• int p image (x ywidth)
• int f p
• int fpp4 int fhh,fhhI, fhh_tmp, fhhI_tmp
• fpp0 2(f - p1 - p-1) // calculate
  magnitudes of directional second derivatives
• fpp1 - pwidth1 - p-width-1
• fpp2 2(f - pwidth - p-width)
• fpp3 - pwidth-1 - p-width1
• if (fpp1gtfpp0)fhh fpp1fhhI 1 else
  fhh fpp0fhhI 0 // find the maximum one
• if (fpp2gtfpp3)fhh_tmp fpp2fhhI_tmp
  2 else fhh_tmp fpp3fhhI_tmp 3
• if(fhh_tmp gt fhh)fhh fhh_tmpfhhI
  fhhI_tmp
• fhh 2f // diagonal
• if(fhhltlowerThreshold) return 0 //
  optimization early exit

18
Results
19
Sensitivity to Noise
20
Sensitivity to Noise (1)
21
Sensitivity to Noise (2)
22
Sensitivity to Noise (3)
Note All images were processed with the same
parameters
23
Results

• Connected lines
• Thin lines
• No artifacts
• Low noise sensitivity
• High performance 45MPix/s 108 video frames(720
  576) per second (AMD Athlon 2.6GHz)

24
Compared to Lee and Kim Algorithm

• Simpler
• Faster
• No spurious ridges

Original image Lee Kim Freivalds
Kikusts
25
Scale Selection

• Gaussian blurring (Geusebroek et.al. 2002)
• Scale space and automatic scale selection
  (Lindeberg 1996)
• Adaptive blurring (Elder, Zucker 1998)

Geusebroek, J., Smeulders, A. W., and Weijer, J.
v. 2002. Fast Anisotropic Gauss Filtering. In
Proceedings of the 7th European Conference on
Computer Vision-Part I. LNCS, vol. 2350. pp.
99-112. T. Lindeberg "Edge detection and ridge
detection with automatic scale selection",
International Journal of Computer Vision, vol 30,
number 2, pp. 117--154, 1998. Earlier version
presented at IEEE Conference on Pattern
Recognition and Computer Vision, CVPR'96, San
Francisco, California, pages 465--470, june
1996 Elder, J. and Zucker, S. 1998. Local scale
control for edge detection and blur estimation.
IEEE Pattern Anal. Machine Intell., 20(7) 699716
26
Topological Edge Detection

• Edge conditions
• fgg 0
• fggg lt 0
• Algorithm
• Find the discrete direction of maximum gradient
• See if the second derivative has sign change from
  positive to negative in that direction

27
Comparison to Canny Detector

• Similar quality
• Simpler
• Faster
• Original Canny Proposed

28
Results Shooting Target
29
Conclusion

• New robust ridge, edge detection algorithms
• High quality
• High performance suitable for real-time
  applications
• Simple implementation
• Straightforward hardware implementation
