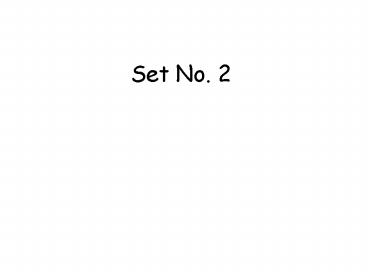

Set No. 2

1
Set No. 2
2
Compression Programs

• File Compression Gzip, Bzip
• Archivers Arc, Pkzip, Winrar,
• File Systems NTFS

3
Multimedia

• HDTV (Mpeg 4)
• Sound (Mp3)
• Images (Jpeg)

4
Compression Outline

• Introduction Lossy vs. Lossless
• Information Theory Entropy, etc.
• Probability Coding Huffman Arithmetic Coding

5
Encoding/Decoding

• Will use message in generic sense to mean the
  data to be compressed

Encoder
Decoder
Output Message
Input Message
Compressed Message
CODEC
The encoder and decoder need to understand common
compressed format.
6
Lossless vs. Lossy

• Lossless Input message Output message
• Lossy Input message ? Output message
• Lossy does not necessarily mean loss of quality.
  In fact the output could be better than the
  input.
• Drop random noise in images (dust on lens)
• Drop background in music
• Fix spelling errors in text. Put into better
  form.
• Writing is the art of lossy text compression.

7
Lossless Compression Techniques

• LZW (Lempel-Ziv-Welch) compression
• Build dictionary
• Replace patterns with index of dict.
• Burrows-Wheeler transform
• Block sort data to improve compression
• Run length encoding
• Find compress repetitive sequences
• Huffman code
• Use variable length codes based on frequency

8
How much can we compress?

• For lossless compression, assuming all input
  messages are valid, if even one string is
  compressed, some other must expand.

9
Model vs. Coder

• To compress we need a bias on the probability of
  messages. The model determines this bias
• Example models
• Simple Character counts, repeated strings
• Complex Models of a human face

Encoder
Model
Coder
Probs.
Bits
Messages
10
Quality of Compression

• Runtime vs. Compression vs. Generality
• Several standard corpuses to compare algorithms
• Calgary Corpus
• 2 books, 5 papers, 1 bibliography, 1 collection
  of news articles, 3 programs, 1 terminal
  session, 2 object files, 1 geophysical data, 1
  bitmap bw image
• The Archive Comparison Test maintains a
  comparison of just about all algorithms publicly
  available

11
Comparison of Algorithms

12
Entropy

• Entropy is the measurement of the average
  uncertainty of information
• H entropy
• P probability
• X random variable with a discrete set of
  possible outcomes
• (X0, X1, X2, Xn-1) where n is the total number
  of possibilities

13
Entropy

• Entropy is greatest when the probabilities of the
  outcomes are equal
• Lets consider our fair coin experiment again
• The entropy H ½ lg 2 ½ lg 2 1
• Since each outcome has self-information of 1, the
  average of 2 outcomes is (11)/2 1
• Consider a biased coin, P(H) 0.98, P(T) 0.02
• H 0.98 lg 1/0.98 0.02 lg 1/0.02
• 0.98 0.029 0.02 5.643 0.0285 0.1129
  0.1414

14
Entropy

• The estimate depends on our assumptions about
  about the structure (read pattern) of the source
  of information
• Consider the following sequence
• 1 2 3 2 3 4 5 4 5 6 7 8 9 8 9 10
• Obtaining the probability from the sequence
• 16 digits, 1, 6, 7, 10 all appear once, the rest
  appear twice
• The entropy H 3.25 bits
• Since there are 16 symbols, we theoretically
  would need 16 3.25 bits to transmit the
  information

15
A Brief Introduction to Information Theory

• Consider the following sequence
• 1 2 1 2 4 4 1 2 4 4 4 4 4 4 1 2 4 4 4 4 4 4
• Obtaining the probability from the sequence
• 1, 2 four times (4/22), (4/22)
• 4 fourteen times (14/22)
• The entropy H 0.447 0.447 0.415 1.309
  bits
• Since there are 22 symbols, we theoretically
  would need 22 1.309 28.798 (29) bits to
  transmit the information
• However, check the symbols 12, 44
• 12 appears 4/11 and 44 appears 7/11
• H 0.530 0.415 0.945 bits
• 11 0.945 10.395 (11) bits to tx the info (38
  less!)
• We might possibly be able to find patterns with
  less entropy

16
Revisiting the Entropy

• Entropy
• A measure of information content
• Entropy of the English Language
• How much information does each character in
  typical English text contain?

17
Entropy of the English Language

• How can we measure the information per character?
• ASCII code 7
• Entropy 4.5 (based on character probabilities)
• Huffman codes (average) 4.7
• Unix Compress 3.5
• Gzip 2.5
• BOA 1.9 (current close to best text compressor)
• Must be less than 1.9.

18
Shannons experiment

• Asked humans to predict the next character given
  the whole previous text. He used these as
  conditional probabilities to estimate the entropy
  of the English Language.
• The number of guesses required for right answer
• From the experiment we can predict the entropy
  of English.

19
Data compression model
Input data
Reduce Data Redundancy
Reduction of Entropy
Entropy Encoding
Compressed Data
20
Coding

• How do we use the probabilities to code messages?
• Prefix codes and relationship to Entropy
• Huffman codes
• Arithmetic codes
• Implicit probability codes

21
Assumptions

• Communication (or file) broken up into pieces
  called messages.
• Adjacent messages might be of a different types
  and come from a different probability
  distributions
• We will consider two types of coding
• Discrete each message is a fixed set of bits
• Huffman coding, Shannon-Fano coding
• Blended bits can be shared among messages
• Arithmetic coding

22
Uniquely Decodable Codes

• A variable length code assigns a bit string
  (codeword) of variable length to every message
  value
• e.g. a 1, b 01, c 101, d 011
• What if you get the sequence of bits1011 ?
• Is it aba, ca, or, ad?
• A uniquely decodable code is a variable length
  code in which bit strings can always be uniquely
  decomposed into its codewords.

23
Prefix Codes

• A prefix code is a variable length code in which
  no codeword is a prefix of another word
• e.g a 0, b 110, c 111, d 10
• Can be viewed as a binary tree with message
  values at the leaves and 0 or 1s on the edges.

0
1
0
1
a
0
1
d
b
c
24
Huffman Coding

• Binary trees for compression

25
Huffman Code

• Approach
• Variable length encoding of symbols
• Exploit statistical frequency of symbols
• Efficient when symbol probabilities vary widely
• Principle
• Use fewer bits to represent frequent symbols
• Use more bits to represent infrequent symbols

A
A
B
A
A
A
A
B
26
Huffman Codes

• Invented by Huffman as a class assignment in
  1950.
• Used in many, if not most compression algorithms
• gzip, bzip, jpeg (as option), fax compression,
• Properties
• Generates optimal prefix codes
• Cheap to generate codes
• Cheap to encode and decode
• laH if probabilities are powers of 2

27
Huffman Code Example

• Expected size
• Original ? 1/8?2 1/4?2 1/2?2 1/8?2 2
  bits / symbol
• Huffman ? 1/8?3 1/4?2 1/2?1 1/8?3 1.75
  bits / symbol

28
Huffman Codes

• Huffman Algorithm
• Start with a forest of trees each consisting of a
  single vertex corresponding to a message s and
  with weight p(s)
• Repeat
• Select two trees with minimum weight roots p1 and
  p2
• Join into single tree by adding root with weight
  p1 p2

29
Example

• p(a) .1, p(b) .2, p(c ) .2, p(d) .5

a(.1)
b(.2)
d(.5)
c(.2)
(.3)
(.5)
(1.0)
1
0
(.5)
d(.5)
a(.1)
b(.2)
(.3)
c(.2)
1
0
Step 1
(.3)
c(.2)
a(.1)
b(.2)
0
1
a(.1)
b(.2)
Step 2
Step 3
a000, b001, c01, d1
30
Encoding and Decoding

• Encoding Start at leaf of Huffman tree and
  follow path to the root. Reverse order of bits
  and send.
• Decoding Start at root of Huffman tree and take
  branch for each bit received. When at leaf can
  output message and return to root.

(1.0)
1
0
(.5)
d(.5)
1
0
(.3)
c(.2)
0
1
a(.1)
b(.2)
31
Adaptive Huffman Codes

• Huffman codes can be made to be adaptive without
  completely recalculating the tree on each step.
• Can account for changing probabilities
• Small changes in probability, typically make
  small changes to the Huffman tree
• Used frequently in practice

32
Huffman Coding Disadvantages

• Integral number of bits in each code.
• If the entropy of a given character is 2.2
  bits,the Huffman code for that character must be
  either 2 or 3 bits , not 2.2.

33
Arithmetic Coding

• Huffman codes have to be an integral number of
  bits long, while the entropy value of a symbol is
  almost always a faction number, theoretical
  possible compressed message cannot be achieved.
• For example, if a statistical method assign 90
  probability to a given character, the optimal
  code size would be 0.15 bits.

34
Arithmetic Coding

• Arithmetic coding bypasses the idea of replacing
  an input symbol with a specific code. It replaces
  a stream of input symbols with a single
  floating-point output number.
• Arithmetic coding is especially useful when
  dealing with sources with small alphabets, such
  as binary sources, and alphabets with highly
  skewed probabilities.

35
Arithmetic Coding Example (1)
Character probability Range (space)
1/10 A 1/10
B 1/10 E 1/10 G
1/10 I 1/10 L
2/10 S 1/10 T
1/10
Suppose that we want to encode the message BILL
GATES
36
Arithmetic Coding Example (1)
0.2572
0.2
0.0
0.25
0.256


0.1
0.25724
A
0.2
B
0.3
E
0.4
G
0.5
0.25
I
I
0.6
0.26
0.2572
0.256
L
L
L
0.258
0.8
0.2576
S
0.9
T
0.26
0.258
1.0
0.3
0.2576
37
Arithmetic Coding Example (1)

• New character Low value high
  value
• B 0.2 0.3
• I 0.25 0.26
• L 0.256 0.258
• L 0.2572 0.2576
• (space) 0.25720 0.25724
• G 0.257216 0.257220
• A 0.2572164 0.2572168
• T 0.25721676 0.2572168
• E 0.257216772 0.257216776
• S 0.2572167752
  0.2572167756

38
Arithmetic Coding Example (1)

• The final value, named a tag, 0.2572167752 will
  uniquely encode the message BILL GATES.
• Any value between 0.2572167752 and 0.2572167756
  can be a tag for the encoded message, and can be
  uniquely decoded.

39
Arithmetic Coding

• Encoding algorithm for arithmetic coding.
• Low 0.0 high 1.0
• while not EOF do
• range high - low read(c)
• high low range?high_range(c)
• low low range?low_range(c)
• enddo
• output(low)

40
Arithmetic Coding

• Decoding is the inverse process.
• Since 0.2572167752 falls between 0.2 and 0.3, the
  first character must be B.
• Removing the effect of B from 0.2572167752 by
  first subtracting the low value of B, 0.2, giving
  0.0572167752.
• Then divided by the width of the range of B,
  0.1. This gives a value of 0.572167752.

41
Arithmetic Coding

• Then calculate where that lands, which is in the
  range of the next letter, I.
• The process repeats until 0 or the known length
  of the message is reached.

42
r c Low High range 0.2572167752
B 0.2 0.3 0.1 0.572167752
I 0.5 0.6 0.1 0.72167752
L 0.6 0.8 0.2 0.6083876 L
0.6 0.8 0.2 0.041938 (space)
0.0 0.1 0.1 0.41938 G 0.4
0.5 0.1 0.1938 A 0.2 0.3
0.1 0.938 T 0.9 1.0 0.1
0.38 E 0.3 0.4 0.1 0.8
S 0.8 0.9 0.1 0.0
43
Arithmetic Coding

• Decoding algorithm
• r input_code
• repeat
• search c such that r falls in its range
• output(c)
• r r - low_range(c)
• r r/(high_range(c) - low_range(c))
• until r equal 0

44
Arithmetic Coding Example (2)
Suppose that we want to encode the message 1 3 2 1
45
Arithmetic Coding Example (2)
0.00
0.00
0.7712
0.656
0.7712
1
1
0.7712
0.773504
0.80
2
2
0.82
0.656
0.77408
3
3
1.00
0.773504
0.77408
0.80
0.80
46
Arithmetic Coding Example (2)
Encoding
New character Low value High
value 0.0
1.0 1 0.0
0.8 3 0.656 0.800 2
0.7712 0.77408 1 0.7712
0.773504
47
Arithmetic Coding Example (2)
Decoding
48
Arithmetic Coding

• In summary, the encoding process is simply one of
  narrowing the range of possible numbers with
  every new symbol.
• The new range is proportional to the predefined
  probability attached to that symbol.
• Decoding is the inverse procedure, in which the
  range is expanded in proportion to the
  probability of each symbol as it is extracted.

49
Arithmetic Coding

• Coding rate approaches high-order entropy
  theoretically.
• Not so popular as Huffman coding because ?, ? are
  needed.
• Average bits/byte on 14 files (program, object,
  text, and etc.)
• Huff. LZW LZ77/LZ78 Arithmetic
• 4.99 4.71 2.95 2.48

50
Generating a Binary Code forArithmetic Coding

• Problem
• The binary representation of some of the
  generated floating point values (tags) would be
  infinitely long.
• We need increasing precision as the length of the
  sequence increases.
• Solution
• Synchronized rescaling and incremental encoding.

51
Generating a Binary Code forArithmetic Coding

• If the upper bound and the lower bound of the
  interval are both less than 0.5, then rescaling
  the interval and transmitting a 0 bit.
• If the upper bound and the lower bound of the
  interval are both greater than 0.5, then
  rescaling the interval and transmitting a 1
  bit.
• Mapping rules

52
Arithmetic Coding Example (2)
0.00
0.00
0.3568
0.312
0.3568
0.0848
0.1696
0.6784
1
0.3392
0.312
1
0.09632
0.19264
0.38528
0.77056
0.5424
0.38528
0.80
2
2
0.54112
0.82
0.656
0.54812
0.6
3
3
1.00
0.80
0.6
0.504256
53
Encoding
Any binary value between lower or upper.
54

• Decoding the bit stream start with 1100011
• The number of bits to distinct the different
  symbol is bits.

55
Revisiting Arithmetic coding

• An Example Consider sending a message of length
  1000 each with having probability .999
• Self information of each message
• -log(.999) .00144 bits
• Sum of self information 1.4 bits.
• Huffman coding will take at least 1k bits.
• Arithmetic coding 3 bits!

56
Arithmetic Coding Introduction

• Allows blending of bits in a message sequence.
• Can bound total bits required based on sum of
  self information
• Used in PPM, JPEG/MPEG (as option), DMM
• More expensive than Huffman coding, but integer
  implementation is not too bad.

57
Arithmetic Coding (message intervals)

• Assign each probability distribution to an
  interval range from 0 (inclusive) to 1
  (exclusive).
• e.g.

f(a) .0, f(b) .2, f(c) .7
The interval for a particular message will be
calledthe message interval (e.g for b the
interval is .2,.7))
58
Arithmetic Coding (sequence intervals)

• To code a message use the following
• Each message narrows the interval by a factor of
  pi.
• Final interval size
• The interval for a message sequence will be
  called the sequence interval

59
Arithmetic Coding Encoding Example

• Coding the message sequence bac
• The final interval is .27,.3)

0.7
1.0
0.3
c .3
c .3
c .3
0.7
0.55
0.27
b .5
b .5
b .5
0.2
0.3
0.21
a .2
a .2
a .2
0.0
0.2
0.2
60
Vector Quantization

• How do we compress a color image (r,g,b)?
• Find k representative points for all colors
• For every pixel, output the nearest
  representative
• If the points are clustered around the
  representatives, the residuals are small and
  hence probability coding will work well.

61
Transform coding

• Transform input into another space.
• One form of transform is to choose a set of basis
  functions.
• JPEG/MPEG both
• use this idea.

62
Other Transform codes

• Wavelets
• Fractal base compression
• Based on the idea of fixed points of functions.
