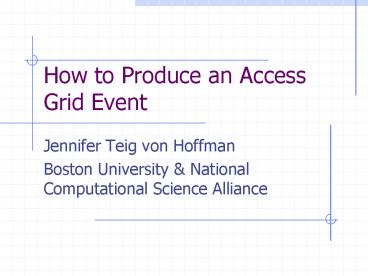

How to Produce an Access Grid Event

1
How to Produce an Access Grid Event

• Jennifer Teig von Hoffman
• Boston University National Computational
  Science Alliance

2
Objectives

• Types of AG events
• How to prepare for events
• Staffing recommendations
• Weve got a lot to cover, so please hold
  questions until the end of each section
• Ill ask for questions by show of hands

3
Primary Reference

• Access Grid-in-a-box tutorial, How to Produce an
  Access Grid Event An Elementary Guide for
  Technical Users
• . . . Which in turn refers to presentations by
  Lisa Childers of Argonne National Laboratory,
  Russ Wolf of Boston University, and myself

4
An Ongoing Process

• Todays seminar will introduce you to general
  concepts, giving you a good starting place for
  planning events
• As technology changes, best practices in planning
  change
• 1999 - the present - the future

5
Introductions

• Please wave when I say hello to your site

6
Types of Access Grid Events

• How Real Life Events Translate into Life on the
  Access Grid

7
What is an AG Event?

• Any occasion for which people get together over
  the AG
• Each AG event takes place in a Virtual Venue
• Virtual Venue virtual conference room
• Every event should have a Virtual Venue
  reservation (can be made last-minute)

8
Some Events Are More Complicated Than Others

• Not complicated
• Staff meeting
• Chatting with friends and family
• Complicated
• Multi-site collaboration using virtual
  environments
• International conference

9
Two General Categories

• AG events are often spoken of as formal or
  informal
• In this context, formal and informal describe
  types of interactions more than they do apparel,
  etiquette, or language
• These categories and related guidelines are
  general youll develop your own strategies for
  each specific event

10
What is a Formal Event?

• For these purposes, well define a formal event
  as an event which requires structured planning
• The opposite An event which requires little if
  any planning

11
Examples of Formal Events

• SC Global
• PACS Training Workshops
• Virtual Conference on Genomics and
  Bioinformatics)
• Demonstration for Governor of Illinois

12
Examples of Informal Events

• Planning meeting with Mary and Ariella
• U. Australia management meetings
• SC Global planning meetings
• First Annual Access Grid Symposium on Beerology

13
Is Your Event Formal?

• The answer may be obvious, based on the content
  of the event
• Otherwise, consider
• Tolerance for interruptions
• Visibility and potential consequences of failure
• Level of technical risk

14
Can Your Event Tolerate Interruptions?

• Ask yourself could you pause for
• Audio adjustments?
• Loading presentation files?
• Other unforeseen circumstances?
• The larger the number of participating sites, the
  higher the likelihood of interruptions
• If interruptions would be a problem, consider
  your event formal

15
How Visible is Your Event?

• Whos expected to attend? Will success or failure
  be an important matter?
• When the event is high-visibility, consider it
  formal
• Demonstrations for VIPs
• Site visits
• Events for the press

16
How Technically Risky Is Your Event?

• Many factors may create technical risk
• New node installations
• New technology
• New node operators
• Technical risk should be considered along with
  other factors
• If its risky but not high-visibility, its
  probably informal

17
Be Minimalist When You Can

• Unnecessarily rigid or excessive preparation
  plans can discourage participating sites
• It is good for the health of the AG community for
  us to reduce event preparation time as much as
  possible without sacrificing quality

18
Questions?
19
How to Prepare for Events

• Developing Appropriate Preparation Strategies,
  With a Focus on Formal Events

20
You Need a Good Foundation

• A well-functioning AG node requires (at a
  minimum)
• Stable, fully debugged multicast networking
  (which must be monitored over time)
• The latest release of Access Grid Toolkit
  software
• All hardware and software consistent with the AG
  equipment specification
• Technical staff with sufficient time available to
  keep their skills current and the node
  well-maintained

21
Make It So

• You must ensure that your technical staff have
  access to all the resources they need to make
  this happen

22
A Key Assumption

• In the slides that follow, I will assume that
  your node is well-functioning and your technical
  staff have intermediate or advanced AG skills
• If this is not the case, your event- planning
  strategy must bring it about
• Big events are often good proving grounds
• Get feedback on plans from seasoned staff

23
Time Zones are Important

• Always explicitly include time zones in all event
  announcements, agendas, etc
• When planning an event which is open to the whole
  community, consider international time zone
  issues
• You may wish to repeat a lecture or workshop to
  attract participants in additional time zones

24
If Your Event Is Informal. . .

• Just reserve a room and show up ?
• Node operators may want to arrive 5-10 minutes
  early
• Work with your node operator on technical issues
  as you go along
• Presentation files
• Audio adjustments
• Camera adjustments

25
Planning Informal Events

• Ensure that node operators are available
• You may wish to learn to operate your node
  yourself
• Ensure that AG nodes are available
• Recognize that its normal for technical
  adjustments to occur from time to time

26
Self-serve AG Events

• Sometimes your node operator might start up the
  node, get the event started, give you their cell
  phone number, and let you manage the rest of the
  event yourself

27
ExampleAG Packaging Initiative Team

• Before each meeting, Lisa Childers reserves a
  (virtual) room, and sends out an announcement of
  the time and place
• She always includes the time zone very
  important!
• Everybody just shows up

28
If Your Event Is Formal. . .

• Amount of necessary preparation varies widely
• Some is prep you need to do anyway
• Developing and finalizing agendas
• Coordinating with presenters
• For your first event, err on the side of caution

29
Preparing for a Formal Event

• Get the lay of the land
• Organize event information
• Rehearse, rehearse, rehearse
• Test cruises
• Content rehearsals
• Arrive early on event day

30
Get the Lay of the Land

• Determine how much lead time you have
• Determine approximate number of presenters,
  participants, and participating sites
• Develop a draft agenda
• Meet immediately with your technical team leader
  to discuss all of the above

31
Organize Event Information

• Develop a detailed agenda, in close collaboration
  with your technical team leader
• Order of speakers
• Physical location of speakers
• List of all participating sites
• Links to all presentation files
• All other relevant technical information

32
Rehearse, Rehearse, Rehearse

• The bigger and more formal the event, the more
  rehearsals you need
• Two types of rehearsal
• Test cruise technical staff test and
  troubleshoot all relevant technologies
• Content rehearsal presenters and/or masters of
  ceremony rehearse their presentations, or have a
  dry run

33
Test Cruises

• In close collaboration with your technical team
  leader
• Objective ensure that all sites have
  well-debugged nodes and network
• To determine how many to hold, ask yourself
• How many participating sites do you have?
• How many of those sites have brand-new nodes?
• How many new or unusual technologies will be in
  use?

34
What to Test in the Cruises

• All technologies which may be used in the actual
  event
• Standard AG audio, video, and MOO
• Distributed PowerPoint? (use actual slides, when
  possible)
• Telephone backup channel?
• Distributed VR?

35
Content Rehearsals

• To determine how many to hold, and whose
  attendance to require or request, ask yourself
• Have these presenters spoken over the AG before?
• Will they facilitate complicated interactions?

36
Arrive Early on Event Day

• Technical staff should arrive at the appropriate
  virtual venue 30-60 minutes before the event
  begins
• If participants will be arriving in the nodes
  physical space early, you and your staff may need
  to arrive even earlier
• Ideally, presenters should participate in final
  audio tests

37
Example SC Global

• A component of Supercomputing 2001 (Denver,
  11/01)
• Volunteer planning committee, representing many
  organizations

Dancing Beyond Boundaries, Presented by U. of
Florida As Viewed from University of
Manchester, United Kingdom
38
An Unprecedented Event

• Very formal, high-visibility, and
  technically-risky
• 40 participating sites, some contributing
  content, some just lurking
• 100 participants at many locations
• Four days of content, often in four or more
  concurrent tracks

39
Unprecedented Preparations

• Application process winter/spring 2001
• Test cruises twice a week, July November 2001
• Production Institute, September 2001
• Production-oriented training for staff at all
  sites contributing content
• Mega-cruise, October 8
• Dry runs of (most) all content

40
Recommended Reading Another Example

• Report on March 28 29, 2001, MPI Workshop over
  the Access Grid, Leslie Southern, Ohio
  Supercomputer Center, April 2001
• Ill list the URL at the end of these slides
• Excellent overview of preparation for and
  evaluation of the event

41
Questions?
42
Staffing Recommendations

• Roles and Responsibilities

43
Again, General Guidelines

• Well discuss one way to divide up the labor
  again, your mileage may vary
• When you design your own staffing plans, keep in
  mind
• The strengths and weaknesses of the people on
  your team
• The needs of your particular event

44
Each Site Has Its Own Staff

• Each site participating in a given event is
  responsible for developing their own staffing
  plan, and filling the roles appropriately
• You may wish to work with representatives of each
  site on their staffing plans

45
Each Venue Is Different

• The size of your physical venue plays a large
  part in determining the size of your staff

46
Staff for an Informal Event

• At the main site
• Meeting leader (ie, meeting chair)
• Node operator
• At all other sites
• Node operator

47
Staff for a Formal EventMain Site

• Producer of overall event
• Usually also acts as local Producer too
• Technical Director
• Usually also operates node in some capacity
• Floor Manager
• Additional node operators/assistants

48
Staff for a Formal EventRemote Sites

• Producer
• Technical Director
• Floor Manager
• Additional node operators/assistants

49
Producers Responsibilities Main Site

• Manage entire team
• Locally and for the overall event
• In collaboration with the Technical Director,
  develop technical web page for event discussed
  earlier in this seminar
• Also known as Production Plan or Technical Agenda
• Determine how/when it is appropriate to deviate
  from the agenda

50
Producers Responsibilities Remote Sites

• Manage and support local team
• Ensure that video and audio streams from local
  site meet main sites needs
• In many events, Producer and Technical Director
  merge into one role at remote sites

51
Technical Directors Responsibilities Main Site

• Provide technical leadership and guidance to the
  entire team
• Locally and for the whole event
• Collaborate closely with the Producer
• Test cruise and content rehearsal strategy and
  implementation
• Technical web page

52
More Technical Director Responsibilities Main
Site

• Collect and place online all required
  presentation files
• Ensuring arrangements are made for any necessary
  technical contingency plans
• Back-up public channel telephone line

53
Technical Director Responsibilities Remote Sites

• Provide technical leadership and guidance to
  local team
• In many events, Producer and Technical Director
  merge into one role at remote sites
• And as often as not, remote sites with small
  audiences can operate with a one-person team

54
Master of Ceremonies Responsibilities

• Introduce presenters and, with Floor Managers
  help, keep them on schedule
• Manage audience in case of any disruptions to
  event
• May give brief explanation of any pauses
• May use opportunity to share anecdotes
• Manages flow of questions
• Passing the Floor

55
Floor Managers Responsibilities

• Ensure all presenters arrive at the podium on
  time
• Keep track of time, and let MC know if presenters
  need to be nudged along
• May communicate with presenters using cue cards
• 5 Minutes Left, Times Up

56
Other Operators/Assistants Responsibilities

• Additional Operators/Assistants are often needed
  in large venues or high-pressure situations
• Sometimes all of these things need to be done at
  the same time

57
Manage Audio

• Ensure that local audience can hear all necessary
  audio
• Ensure quality of outgoing audio
• Audio needs special attention during interactive
  portions of events
• Question and answer sessions
• Discussion

58
Manage Main Display Wall

• Ensure that participants can see all
  participating sites
• Enlarge video windows as appropriate, such as
  video of main speaker
• Ensure that all other necessary components are
  displayed
• PPT, VNC, etc

59
Manage Outgoing Video

• Monitor using vic on display machine or
  additional computer
• SC Global used producer stations
• Make camera adjustments, usually with remote
  control
• Video also needs special attention during
  interactive portions of events

60
Manage Microphones

• Ensure all speakers have appropriate access to
  microphones
• Presenters
• Masters of Ceremony
• Participants asking questions
• Ensure that microphones are used correctly
  throughout event

61
Manage Presenter Tools

• Ensure presentation tools on the laptop podium
  run successfully
• Distributed PowerPoint master?
• VNC?
• WinTV?
• Scan converter?

62
Event Communications forAll Staff

• Use the MOO, the official Access Grid
  back-channel
• Communicate among staff at all participating
  sites
• Communicate among staff at local site
• Use optional telephone back-channel
• Use optional headset radios within the room

63
Questions?
64
A Final Example Planning This Seminar Series

• A somewhat experimental model for events of this
  size Im hoping it has been successful

65
No Test Cruises or Rehearsals

• Instead, all sites were required to arrive 60
  minutes early
• Participants were responsible for ensuring their
  node was available and well-functioning
• If I had been concerned about any participating
  nodes, I could have contacted them to arrange a
  test cruise

66
Factors I Considered

• Mary, Ariella, and I are experienced AG
  presenters and operators
• We did not plan to use any new or unusual
  technologies
• BU and ANL nodes are well-functioning, and
  frequently used
• I believed we could tolerate brief pauses if
  necessary

67
Further Reading . . .

• Access Grid-in-a-Box web-based tutorial How to
  Produce an Access Grid Eventhttp//webct.ncsa.ui
  uc.edu8900/public/AGIB/
• More thorough treatment of nearly every topic
  covered in this seminar
• Highly recommended for anybody planning AG events
  on a regular basis, or anybody planning a large,
  high-visibility event

68
Further Reading. . .

• Report on PACS Training MPI Workshop
• http//alliance.osc.edu/mpi/report.pdf
• Access Grid Documentation Projecthttp//www.acces
  sgrid.org/agdp/
• A project by and for the Access Grid Community
• As you gain expertise and confidence, please
  consider writing documents to submit to the AGDP

69
Questions?
70
We Need Your Feedback

• http//scv.bu.edu/accessgrid/seminars/eval.html
• Let us know if youre interested in leading other
  seminars too!

71
Thank You Everyone ?
