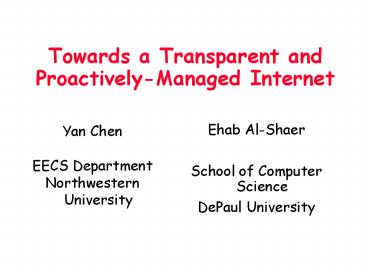

Towards a Transparent and Proactively-Managed
Internet

• Ehab Al-Shaer
• School of Computer Science
• DePaul University

Yan Chen EECS Department Northwestern University
2
Motivations

• The Internet has evolved to become a
  un-cooperative ossificated network of networks
• Network has to be treated as a blackbox
• Performance of even neighboring networks are
  opaque
• Inter-domain routing based on policies but not
  performance
• Have to resort to overlay networks which are
  suboptimal
• Diagnosis and fault location extremely hard
• Network config management reactive and expensive
• Reactive configurations tune after deployment
• Vulnerable manually handled and subject to
  conflicts
• Imperative fragmented need to access several
  specific devices in order to implement a service
  goal

3
Proposed Solution I Transparent Internet

• Every network shares its measurement and
  management information with other networks when
  necessary (glass box)
• Link-level performance delay, loss rate,
  available bandwidth, etc.
• Management info
• Configuration QoS setting, traffic policing
• Middle box settings firewalls, etc.
• The information sharing
• As part of the inter-domain protocols
  Transparent Gateway Protocols (TGP)
• Other applications leverage DHT

4
Analogy to the Airline Alliance

• When airlines compose multi-lag flights, they
  need more than just route info.
• Type of aircraft, of vacancies, probability of
  punctuation, etc.
• Such open model is mutual beneficial
• Provide the best flight composition for clients
• Similarly, open network model can provide best
  communications for applications

5
Proposed Solution II Proactive Configuration
Management

• Proactive verification configuration verified
  and translated to different vendor specific
  devices
• Proactive validation Test the configuration
  changes on the real archived network traffic
  without interrupting the main operation network
• Autonomic configuration configurations are
  auto-tuned dynamically to achieve the objectives

Dynamic Validation auto-tuning
Deploying
Optimizing
defining
Verifying
Evaluating
Validation
6
Objectives

• Provides a completely transparent view of the
  Internet to networks and applications
• Diagnosis trouble shooting becomes extremely
  easy
• No more Internet tomography needed
• Flexible inter-domain routing
• Not just based on policy or of AS/hops
• Flexible metrics based on bandwidth, latency,
  etc.
• Global traffic engineering
• Each AS performs its own local traffic
  engineering
• Provide AS path-level routing guide
• Unified framework that applications query
  (push/pull) info as needed
• Streaming media, content distribution
• Anomaly/security applications

7
Flexible Inter-domain Routing

• Multiple routing paths with TGP
• Incorporate measurement info into AS paths
• Bandwidth-intensive and latency-intensive
  applications can take different AS paths.
• Challenge inter-domain routing based on
  bandwidth without making reservation
• Solution Discretize the bandwidth for better
  stability
• Though stability is a classical problem, not
  unique to TGP

8
Global Traffic Engineering

• For the current Internet, only local optimum is
  achieved in each AS
• Allowing the network to handle all traffic
  patterns possible, within the networks
  ingress-egress capacity constraints (e.g. two
  phase routing)
• With global information, we can potentially
  achieve global optimum (or Nash equilibrium)
• Each AS is a selfish individual
• A center (or each AS) infers the Nash equilibrium

• Each AS can try the Nash equilibrium, or attempt
  to benefit itself based on the inferred Nash
  equilibrium

9
Example of Benefit of Global TE
1G traffic to AS 1
AS 4
AS 2
1G
AS 5
AS 1
1G traffic to AS 1
AS 3
10
Example of Benefit of Global TE

• Without Global TE

1G traffic to AS 1
AS 4
AS 2
1G
AS 5
AS 1
1G traffic to AS 1
AS 3
11
Example of Benefit of Global TE

• With Global TE

1G traffic to AS 1
AS 4
AS 2
1G
AS 5
AS 1
1G traffic to AS 1
AS 3
12
Unified Transparency Framework for Various
Functionality

• Sharing of anomaly/security-related measurement
• Various characteristics of traffic heavy hitter,
  heavy changes, histogram, etc.
• Self-diagnosis to survivability
• Adaptations
• Routing adaptations at router level or
  application level

13
Practical Issues and Solutions

• Incentives for information sharing
• Mandatory for next-generation Internet ?
• Alliance model for incremental growth
• Security/cheating Trust but verify
• Trust most of the info shared but periodically
  verify
• Much easier than the current Internet tomography
  unless many ASes collude
• Verification part of the protocol
• Some fields in the packet headers designed for
  that purpose

14
Backup Materials
15
Measurement Info to Share

• Basic metrics
• Delay, loss rate, capacity, available bandwidth
• Demand (or traffic volume) and application types
• Intra-AS Measurement Info
• Link-level info
• Queried only when necessary
• Aggregated Info
• OD flow level info
• Path segment b/t entry and exit points in each AS
• Inter-AS Measurement Info
• General AS relationship
• AS-level topology
• Inter-AS link metrics

16
Transparent Internet Architecture
Combined w/ routing info and export to
neighboring ASes through TGP protocol
Provide global retrievable Management Information
Base (MIB) with DHT
Network link-level monitoring
17
Methodology
Analytical evaluation
PlanetLab tests

• Network topology
• Web workload
• Network end-to-end latency measurement

18
TGP MIB Dissemination Architecture

• Leverage Distributed Hash Table - Tapestry for
• Distributed, scalable location with guaranteed
  success
• Search with locality

data plane
data source
Dynamic Replication/Update and Replica Management
Replica Location
Web server
SCAN server
Overlay Network Monitoring
network plane
19
Adaptive Overlay Streaming Media
Stanford
UC San Diego
UC Berkeley
X
HP Labs

• Implemented with Winamp client and SHOUTcast
  server
• Congestion introduced with a Packet Shaper
• Skip-free playback server buffering and
  rewinding
• Total adaptation time

20
Summary

• A tomography-based overlay network monitoring
  system
• Selectively monitor a basis set of O(n logn)
  paths to infer the loss rates of O(n2) paths
• Works in real-time, adaptive to topology changes,
  has good load balancing and tolerates topology
  errors
• Both simulation and real Internet experiments
  promising
• Built adaptive overlay streaming media system on
  top of TOM
• Bypass congestion/failures for smooth playback
  within seconds

21
Tie Back to SCAN
Provision Dynamic Replication Update
Multicast Tree Building
Replica Management (Incremental) Content
Clustering
Network DoS Resilient Replica Location Tapestry
Network End-to-End Distance Monitoring Internet
Iso-bar latency TOM loss rate
22
Contribution of My Thesis

• Replica location
• Proposed the first simulation-based network DoS
  resilience benchmark and quantify three types of
  directory services
• Dynamically place close to optimal of replicas
• Self-organize replicas into a scalable app-level
  multicast tree for disseminating updates
• Cluster objects to significantly reduce the
  management overhead with little performance
  sacrifice
• Online incremental clustering and replication to
  adapt to users access pattern changes
• Scalable overlay network monitoring

23
Existing CDNs Fail to Address these Challenges
No coherence for dynamic content
X
Unscalable network monitoring - O(M N) M of
client groups, N of server farms
Non-cooperative replication inefficient
24
Problem Formulation

• Subject to certain total replication cost (e.g.,
  of URL replicas)
• Find a scalable, adaptive replication strategy to
  reduce avg access cost

25
SCAN Scalable Content Access Network
CDN Applications (e.g. streaming media)
Provision Cooperative Clustering-based
Replication
Coherence Update Multicast Tree Construction
Network Distance/ Congestion/ Failure Estimation
User Behavior/ Workload Monitoring
Network Performance Monitoring
red my work, black out of scope
26
Comparison of Content Delivery Systems (contd)
