Lesson: ObjectOriented Programming Concepts

1

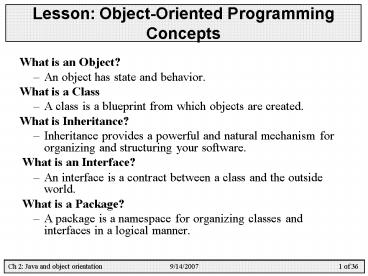

Lesson Object-Oriented Programming Concepts

• What is an Object?
• An object has state and behavior.
• What is a Class
• A class is a blueprint from which objects are
  created.
• What is Inheritance?
• Inheritance provides a powerful and natural
  mechanism for organizing and structuring your
  software.
• What is an Interface?
• An interface is a contract between a class and
  the outside world.
• What is a Package?
• A package is a namespace for organizing classes
  and interfaces in a logical manner.

2
What Is an Object? Real-World Objects

• Object Oriented Technology views software in the
  same way we view real-world objects.
• Real-world objects share two characteristics
• They all have state and behavior.
• Examples of real-world objects
• Dogs have state (name, color, breed, hungry) and
  behavior (barking, fetching, wagging tail).
• Bicycles have state (current gear, current pedal
  cadence, current speed) and behavior (changing
  gear, changing pedal cadence, applying brakes).
• Desktop radio has states (on, off, current
  volume, current station) and behavior (turn on,
  turn off, increase volume, decrease volume, seek,
  scan, and tune).
• You may also notice that some objects, in turn,
  will also contain other objects

3
What Is an Object? Software Objects

• Software objects consist of state and related
  behavior.
• An object stores its state in fields (variables).
• exposes its behavior through methods (functions).
• Methods
• operate on an objects internal state.
• serve as the primary mechanism for
  object-to-object communication.

• Data Encapsulation
• Hiding internal state and requiring all
  interaction to be performed through an objects
  methods is known as data encapsulation a
  fundamental principle of object-oriented
  programming.

4
What Is an Object? A Software Object
Representation of a Bicycle

• Software objects consist of state and related
  behavior.
• An object stores its state in fields (variables).
• Shows its behavior through methods (functions).
• Methods
• Operate on an objects internal state.
• Serve as the primary mechanism for
  object-to-object communication.

By attributing state (current speed, current
pedal cadence, and current gear) and providing
methods for changing that state, the object
remains in control of how the outside world is
allowed to use it. For example, if the bicycle
only has 6 gears, a method to change gears could
reject any value that is less than 1 or greater
than 6.
5
Benefits of Object Orientation

• Modularity
• The source code for an object can be written and
  maintained independently of the source code for
  other objects.
• Once written, the source code for an object can
  be easily passed around inside the system.
• Information-hiding
• By interacting only with an objects methods, the
  details of its internal implementation remain
  hidden from the outside world.
• Reduces complexity.
• The details of its internal implementation can be
  changed without affecting other objects that use
  it.

6
Benefits of Object Orientation

• Code re-use
• A fundamental principle of software engineering
  is basing software development of re-usable
  technology.
• Reusing already tested/debugged objects leads to
  higher quality software.
• Pluggability and debugging ease
• If a particular object turns out to be
  problematic, you can simply remove it from your
  application and plug in a different object as its
  replacement.
• EXIf a bolt breaks, you replace it, not the
  entire machine.

7
What is a Class?

• In the real world, youll often find many
  individual objects all of the same kind.
• There may be thousands of other bicycles in
  existence, all of the same make and model.
• Each bicycle was built from the same set of
  blueprints and therefore contains the same
  components.
• In object-oriented terms, we say that your
  bicycle is an instance of the class of objects
  known as bicycles.
• A class is the blueprint from which individual
  objects are created.

8
What is a Class? E.g. Bicycle Class

• class Bicycle
• int cadence 0
• int speed 0
• int gear 1
• void changeCadence(int newValue)
• cadence newValue
• void changeGear(int newValue)
• gear newValue
• void speedUp(int increment)
• speed speed increment

9
Bicycle Class Declaration

• class Bicycle
• int cadence 0
• int speed 0
• int gear 1
• void changeCadence(int newValue)
• cadence newValue
• void changeGear(int newValue)
• gear newValue
• void speedUp(int increment)
• speed speed increment

10
Bicycle Class Fields State

• class Bicycle
• int cadence 0
• int speed 0
• int gear 1
• void changeCadence(int newValue)
• cadence newValue
• void changeGear(int newValue)
• gear newValue
• void speedUp(int increment)
• speed speed increment

11
Bicycle Class Methods Behavior

• class Bicycle
• int cadence 0
• int speed 0
• int gear 1
• void changeCadence(int newValue)
• cadence newValue
• void changeGear(int newValue)
• gear newValue
• void speedUp(int increment)
• speed speed increment

12
Bicycle Demo Class

• class BicycleDemo
• public static void main(String args)
• // Create two different Bicycle objects
• Bicycle bike1 new Bicycle()
• Bicycle bike2 new Bicycle()
• // Invoke methods on those objects
• bike1.changeCadence(50)
• bike1.speedUp(10)
• bike2.changeCadence(50)

13
UML Representation of Class
Name of class
Bicycle
List of Fields
gear speed
changeGear speedUp
List of Methods
14
UML Classes and Association
BicycleDemo has a reference to Bicycle (indicated
by the arrow).
Bicycle
BicycleDemo
gear speed
main()
changeGear speedUp
Bicycle does NOT have a reference to BicycleDemo
(indicated by the lack of an arrow)
15
UML Sequence Diagram Example Objective to show
how BicycleDemo creates and sends messages to
Bicycle objects.
16
What Is Inheritance?

• Different kinds of objects often have a certain
  amount in common with each other.
• Mountain bikes, road bikes, and tandem bikes, for
  example, all share the characteristics of
  bicycles (current speed, current pedal cadence,
  current gear).
• Yet each also defines additional features that
  make them different
• tandem bicycles have two seats and two sets of
  handlebars
• road bikes have drop handlebars
• some mountain bikes have an additional chain
  ring, giving them a lower gear ratio.

17
What Is Inheritance?

• Object-oriented programming allows classes to
  inherit commonly used state and behavior from
  other classes.
• For example, Bicycle now becomes the superclass
  of MountainBike, RoadBike, and TandemBike.

18
Inheritance Syntax

• At the beginning of your class declaration, use
  the extends keyword, followed by the name of the
  class to inherit from
• class MountainBike extends Bicycle
• // new fields and methods defining a
• // mountain bike would go here, e.g.
• This gives MountainBike all the same fields and
  methods as Bicycle, yet allows its code to focus
  exclusively on the features that make
  MountainBike unique.

19
Inheritance Example

• class MountainBike extends Bicycle
• int seatHeight
• public void setHeight(int newValue)
• seatHeight newValue
• MountainBike inherits all the fields and methods
  of Bicycle and adds the field seatHeight and a
  method to set it (mountain bikes have seats that
  can be moved up and down as the terrain demands).

20
UML Representation of Inheritance
Superclass
Closed, non-filled, solid line triangle points to
the superclass
21
Inheritance Rules

• Java programming language specific rules
• each class is allowed to have a maximum of one
  direct superclass.
• each superclass has the potential for an
  unlimited number of subclasses.
• Good Object Oriented practise rules
• Ensure each subclass obeys the ISA rule
• Distinctiveness rule
• Make sure all inherited features make sense in
  each sublcass

22
Inheritance Rules ISA Rule

• Ensure each subclass obeys the ISA rule
• A chequing account is an account.
• A village is a municipality.
• A mountain bike is a bike.
• Should Province be a subclass of Country?
• No, a Province is not a Country.
• Modeling a Province as a Country violates the ISA
  rule.
• Modeling a Province as Country would artificially
  introduce complexity into the source code, making
  the source code more difficult to understand,
  maintain, and use.

23
Inheritance Rules Distinctiveness Rule

• A subclass must retain its distinctiveness
  throughout its life.
• Consider a bike with training wheels, for
  teaching kids to ride.
• You might consider creating a class called
  TrainingBicycle, and making this a subclass of
  Bicycle.
• However, a training wheel bicycle will not be a
  training bike once the training wheels are
  removed.
• Therefore, TrainingBicycle is not a subclass of
  Bicycle.
• Modeling a TrainingBicycle as a Bicycle would
  artificially introduce complexity into the source
  code, making the source code more difficult to
  understand, maintain, and use.
• Actually, TrainingBicycle should not even be a
  class.
• Its better to have a field that indicates if a
  Bicycle has training wheels.

24
Inheritance Rules MSFMS

• Make sure that each feature of a superclass makes
  sense in each subclass.
• Each subclass inherits the features of a
  superclass.
• Modeling a class as a subclass of some superclass
  with one or more features that do not make sense
  in the subclass would artificially introduce
  complexity into the source code, making the
  source code more difficult to understand,
  maintain, and use.

25
What Is an Interface?

• Objects define their interaction with the outside
  world through the methods that they expose.
• Methods form the objects interface with the
  outside world.
• For example,
• the buttons on the front of your television set
  are the interface between you and the electrical
  wiring on the other side of its plastic casing.
• You press the power button to turn the
  television on and off.

26
Motivation for Having an Interface

• One of the main reasons for having an interface
  is
• CONVENIENCE
• Suppose you have written a group of re-usable
  classes and you wanted to give other Software
  Engineers easier access to the methods your group
  of classes provide.
• If there existed a mechanism through which a
  class (or a group of classes) could somehow
  advertise or show what methods it provides, then
  this would make using the class (or group of
  classes) easier, since the users would not be
  exposed to, and, therefore, not have to be
  concerned about the internal or un-required
  features of the class.

27
What Is an Interface? Motivation

• Java provides such a mechanism, called an
  interface.
• An interface is a formal specification of the
  methods that a class (or a group of classes)
  implements.
• In Java, an interface is a group of related
  methods with empty bodies.
• A class (or group of classes) provides the
  implementation of the methods specified in the
  interface.

28
Interface Bicycle Example

• To specify (or advertise) the methods that the
  Bicycle hierarchy provides, consider creating an
  interface called Bicycle.
• interface Bicycle
• void changeCadence(int newValue)
• void changeGear(int newValue)
• void speedUp(int increment)
• void applyBrakes(int decrement)
• Note the name of your Bicycle class would have
  to change. Using the name Bicycle for the
  interface is more appropriate than using it for
  the class. You might change the name to
  ACMEBicycle, and have the subclasses called
  ACMEMoutainBike, etc.)

29
Interface Bicycle Example

• To implement this interface, use the implements
  keyword in the class declaration.
• class ACMEBicycle implements Bicycle
• void changeCadence(int newValue)
• //implementation of changing the cadence.
• void changeGear(int newValue)
• //implementation of changing the gear.
• interface Bicycle
• void changeCadence(int newValue)
• void changeGear(int newValue)

Note the Empty body for each method in the
interface.
30
UML Representation of Interface
Dashed line connects the class with the interface.
Interface
This class hierarchy implements the interface
Bicycle.
ACMEBicycle
speedUp changeGear
Closed, non-filled, dashed line triangle points
to the interface
31
Interface Rules (Java Specific)

• Each class is allowed to implement any number of
  interfaces.
• Each method specified in an interface cannot have
  any implementation.
• Each method in an interface must have an empty
  body.
• Each method specified in an interface must be
  implemented by some class in the source code.
• If a class claims to implement an interface, all
  methods defined by that interface must appear in
  the classs source code.
• Otherwise the class will not successfully compile.

32
What Is a Package?

• A package is a container in which related classes
  and interfaces are grouped together.
• Conceptually you can think of packages as being
  similar to different folders on your computer.
• You might keep HTML pages in one folder, images
  in another, and scripts or applications in yet
  another.
• For large programs which are composed of hundreds
  or thousands of individual classes, it makes
  sense to keep things organized by placing related
  classes and interfaces into packages.

33
What Is a Package?

• The Java platform provides an enormous class
  library (a set of packages) suitable for use in
  your own applications.
• This library is known as the Application
  Programming Interface (API).
• The packages within the API represent the tasks
  most commonly associated with general-purpose
  programming.

34
Examples of Java Packages in its API

• java.lang
• The String, Integer, Double and other related
  classes are contained within the java.lang
  package.
• For example, the Integer class contains state and
  behavior for common integer tasks, such as
• Converting a string to an Integer object.
• java.io
• a File object allows a programmer to easily
  create, delete, inspect, or modify a file on the
  file system. The File and other related classes
  are contained within the java.io package.

35
What Is a Package? Java Packages

• java.net
• a Socket object allows for the creation and use
  of network sockets. The Socket and other related
  classes are contained within the jave.net
  package.
• java.awt
• various GUI objects control buttons and
  checkboxes and anything else related to graphical
  user interfaces. The GUI related classes are
  contained within the java.awt package.
• There are many other packages and literally
  thousands of classes to choose from. This allows
  you, the programmer, to focus on the design of
  your particular application, rather than the
  infrastructure required to make it work.

36
Java API Documentation

• The Java Platform API Specification contains
  the complete listing for all packages,
  interfaces, classes, fields, and methods supplied
  by the Java Platform 6, Standard Edition.
• To view the API documentation online
• Refer to the What Can Java Technology Do slide
  of these notes.
• To download the API documentation and view
  offline
• Refer to the What Can Java Technology Do slide
  of these notes
