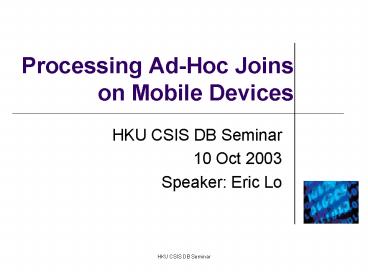

Processing Ad-Hoc Joins on Mobile Devices

• HKU CSIS DB Seminar
• 10 Oct 2003
• Speaker Eric Lo

2
Mobile Devices and Databases

• Cellular phones and Personal Data Assistants
  (PDAs) are capable to ask information from remote
  database(s) anywhere and anytime
• The connection channel is wireless
• E.g., WAP, IEEE 802.11 (also WiFi), GPRS, 3G

3
Example
HK Stock Exchange
SELECT Stock_Price FROM DB WHERE Stock_Code 8
8 - PCCW 1156am HKD 2.5
1155am What is the stock price of PCCW now?
4
There are no free lunchOption 1 Charged by
airtime
HK Stock Exchange
SELECT Stock_Price FROM DB WHERE Stock_Code 8
8 - PCCW 1156am HKD 2.5
1155am What is the stock price of PCCW now?
1
2.8
4.6
10.2
5
Option 2 Charged by amount of data transferred

• Network traffic and QoS of wireless data
  networking are strongly dependent on factors
  like
• Network workloads
• Availability of network stations
• Charged by amount of data transferred
• Minimizing the transfer cost ? dollar!

6
Query more than one data source

• Mobile users may wish to combine information from
  more than one remote databases
• E.g., A vegetarian visits Hong Kong and looks for
  some restaurants recommended by both HK tourist
  office and HK vegetarian community

7
Example relations
SELECT R1.Name, R1.Address, R2.Cost FROM R1,
R2 WHERE R1.Name R2.Name
Join Query
8
Motivations

• Evaluating join queries on mobile devices
• Considerations
• Mobile device has limited memory
• Minimizing the transfer cost (dollar )
• Databases are non-collaborative
• Query results are small in sizes compare to input
  relations (ad-hoc)

9
Download all relations?

• Download both relations (HK tourist office and HK
  vegetarian directory) onto the mobile device and
  evaluate the join on the device locally
• Wont be able to hold the large amount of data
  from the remote databases (for most mobile
  devices)
• The transfer cost is very high though the result
  size is very small

10
Outline

• Introduction and motivation
• A simple late-projection strategy
• Block-merge join
• Ship-data-as-queries join
• RAMJ Recursive and Adaptive Mobile Join
• Experiment result
• Conclusions and future work

11
A simple late-projection strategy

• Traditional distributed query processing
  techniques like semi-join involves
• Shipping of join columns and (whole) tuples
• Across the trusted distributed nodes directly
• In high selective join, most tuples fails to
  contribute to the final result
• Semi-join d/l the non-key attributes which may
  not be included in the result
• Download and join the distinct values of join
  keys only (Do not download the non-key
  attributes)
• Only tuples belong to join result entails
  downloading the rest of non-key attributes

12
A late projection strategy
SELECT R1.Name, R1.Address, R2.Cost FROM R1,
R2 WHERE R1.Name R2.Name
13
Step 1

• Download ? Name R1

SELECT R1.Name, R1.Address, R2.Cost FROM R1,
R2 WHERE R1.Name R2.Name
14
Step 2

• Download ? Name R2

SELECT R1.Name, R1.Address, R2.Cost FROM R1,
R2 WHERE R1.Name R2.Name
15
Step 3

• Evaluate T ? Name (R1) ? Name (R2) locally
•


T
SELECT R1.Name, R1.Address, R2.Cost FROM R1,
R2 WHERE R1.Name R2.Name
16
Step 4

• Evaluate ? Name,Address (?NameT (R1))

T
SELECT R1.Name, R1.Address, R2.Cost FROM R1,
R2 WHERE R1.Name R2.Name
17
Step 5

• Evaluate ? Name,Cost (?NameT (R2))

T
SELECT R1.Name, R1.Address, R2.Cost FROM R1,
R2 WHERE R1.Name R2.Name
18
Step 6

• Join the two resultsets

SELECT R1.Name, R1.Address, R2.Cost FROM R1,
R2 WHERE R1.Name R2.Name
19
Block-merge join (BMJ)

• Late-projection still insufficient if the whole
  join column cannot fit into the memory of mobile
  devices
• Applying sort-merge join, with the sorting part
  on the servers
• 1 block of ordered join keys are downloaded from
  each server and join them locally, until one
  block is exhausted
• Each block must
• Cover same data range
• Sorted in same order (e.g., both in ascending
  order)
• Small enough to be resided in memory
• Each block can be downloaded by using ROWNUM or
  LIMIT SQL statements

20
Ship-data-as-queries join (SDAQ)

• If R1
• Download the join column of R1 to the mobile
  deviceSELECT Name FROM R1
• Send the join keys to R2 in form of SQL selection
  queries (e.g., if two results returned in step
  1) SELECT Name FROM R2WHERE Name in (Beta
  Food,Ceta Food))
• The result from R2 are the joined keys

Very few results returned
21
Can we do even better?

• Block-merge join (BMJ) can handle the limited
  memory problem, BUT download all join keys
  essentially
• Ship-data-as-queries (SDAQ) can do better ONLY if
  the sizes of two relations differ much
• Pay small overhead ?
• Build histograms that capture the data
  distribution of target relations
• Join space pruning
• Bucket-base joining

22
Pruning the data space
23
Constructing Histogram

• Problem
• Mobile devices are not able to receive those
  histograms (they are some internal data
  structures in remote databases)
• Solution
• Constructing some queries that build histogram
  through SQL

24
String Histogram

• Using the SUBSTRING function
• SELECT SUBSTRING(Name,1,1) AS Bucket,COUNT(Name)
  As CountFROM R1GROUP BY SUBSTRING(Name,1,1)HAVI
  NG COUNT(Name) 0

25
Numeric Histogram

• Using ROUND function
• SELECT ROUND(Cost/(D/G)) AS Bucket,COUNT(ROUND(Co
  st/(D/G)) As CountFROM R2GROUP BY
  ROUND(Cost/(D/G)HAVING COUNT(ROUND(Cost/(D/G))
  0
• G is granularity that specifies the number of
  bucket
• D is the numeric domain

26
A Bucket-base Approach

• So far we know that
• SDAQ is good when input relations have large size
  difference
• But, BMJ is better when two input relations have
  similar size (Why?)
• Histogram helpful to prune join space
• Which method is better?
• The histogram can do more!
• The histogram already partitioned the data space
  in form of buckets
• Depends on the data distribution of each bucket,
  assign the best action to them adaptively

27
Direct Join (BMJ)
28
Ship-join-keys (SDAQ)
29
Recursive Partitioning
30
Recursive Partitioning

• Further breaks a partition into more refined ones
  and further request histogram for it
• Hoping some sub-buckets are being pruned in
  future
• Or hoping cheap ship-join-keys join can be
  applied on some future sub-buckets

31
Recursive Partitioning

• SELECT SUBSTRING(Name,1,2) AS Bucket,COUNT(Name)
  AS CountFROM R2WHERE SUBSTRING(Name,1,1)AGR
  OUP BY SUBSTRING(Name,1,2)HAVING COUNT(Name) 0

32
Which action is the best for each bucket? The
cost model!

• The largest amount of data that can be
  transferred in one packet is called MTU (Maximum
  Transfer Unit)
• The largest segment of TCP data that can be
  transmitted is called MSS(Maximum Segment Size)
• MTU MSS BH (BH is the size of headers)
• To transfer B bytes data, the actual number of
  bytes to be transferred is

33
Cost Model

• Assume CR1 and CR2 be the cost of accessing R1
  and R2, respectively
• Send a selection query Q to a server needs T(BSQL
  Bkey) bytes
• Bkey 4 bytes for numeric attributes
• Bkey 2L bytes for string attributes in length L

34
Cost Model

• Under these settings, we have to determine the
  cost of
• Direct Join C1
• Ship-join-key Join C2
• Recursive Partitioning C3
• Execute the minimal cost action for each bucket
  adaptively

35
C1 Direct Join

• ai,ßi be the i-th histogram bucket summarizing
  the same data region
• Send a selection query to R1 CR1 T(BSQL Bkey)
• Receiving CR1 T(aiBkey) bytes.
• Send a selection query to R2 CR2 T(BSQL Bkey)
• Receiving CR2 T(ßiBkey) bytes.
• C1(ai,ßi) (CR1 CR2 )T(BSQL Bkey)
  CR1 T(aiBkey) CR2 T(ßiBkey)

36
C2 Ship-join-keys

• ai
• Send a selection query to the smaller relation R2
  that holds ai CR2 T(BSQL Bkey)
• Receiving CR2 T(aiBkey) bytes from R2
• Send a selection query to larger relation R1 to
  check existence of ai keys CR1 T(BSQL
  aiBkey)
• Receiving at most ai keys from R1 CR1
  T(aiBkey)
• C2(ai,ßi) CR1 (T(BSQL Bkey) T(aiBkey))
  CR2 T(T(BSQL 2aiBkey))

37
C3 Recursive Partitioning

• Have to estimate the cost of
• Ask for finer histograms for that bucket from R1
• Ask for finer histograms for that bucket from R2
• For each pair of (future/virtual) sub-buckets,
  each of them may execute direct-join,
  ship-join-key or recursive partitioning again

38
Recursive Partitioning C3

• Ask for finer histograms from R1
• Ch(G,R1) CR1(T(G(Bkey4))T(BSQLBkey))
• Ask for finer histograms from R2
• Ch(G,R2) CR2(T(G(Bkey4))T(BSQLBkey))
• For each pair of (future) sub-buckets, each
  sub-bucket pair may recursively follow
  direct-join, ship-join-key or recursive
  partitioning again

39
Recursive Partitioning C3

• C3(ai,ßi) Ch (G,R1) Ch (G,R2) CRP (ai,ßi)

?
40
Recursive Partitioning Optimistic Estimation

• Optimistically assume that buckets in next level
  are all being pruned
• It will hold if the data distribution in the two
  datasets is very different
• Since all future (next-level) sub-buckets are
  being pruned, they would NOT have any actions
• Therefore
• C3(ai,ßi) Ch (G,R1) Ch (G,R2) CRP (ai,ßi)

41
Recursive Partitioning Linear Interpolation
Estimation

• More accurate. Higher computational cost
• Exploit the histogram in current level to
  estimate the distribution of next level

We have histograms in this level
We DONT have histograms in this level
42
Linear Interpolation Estimation

• Select adjacent buckets as interpolation points
• Preserve the current trend
• Resistance to fluctuated distribution

b3
b3
b2
b2
b4
b4
b5
b5
b1
b1
43
One problem left
Level 1
b3
b3
b2
b2
b4
b4
b5
b5
b1
b1
Level 2

• Level 1 The cost of RP on b2 is?
• Estimate Level 2 by Linear Interpolation
• b2,1, b2,2, , b2,5 are found
• b2,1, b2,2, , b2,5 are found,
  determine which action is the most
  cost-efficient (C1,C2 or C3) for each sub-bucket?
• C1, C2 of b2,1, b2,2, , b2,5
  can be determine
• C3 of b2,1, b2,2, , b2,5 ?
  Started from step 1 again

b2,1
2
3
b2,1,1, b2,1,2, b2,1,3, b2,1,4, b2,1,5
b2,1,1, b2,1,2, b2,1,3, b2,1,4, b2,1,5
b2,1,1, b2,1,2, b2,1,3, b2,1,4, b2,1,5
b2,1,1, b2,1,2, b2,1,3, b2,1,4, b2,1,5
44
If you dont understand

• Cost 3 of one level depends on next level
• Fortunately the cost of CRP (ai,ßi) is bounded by
  the following inequality

C1
ai,ßi
C2
C1
C3
C2
C1
C3
C2
C3
45
Recursive Partitioning Linear Interpolation
Estimation

• C3(ai,ßi) Ch (G,R1) Ch (G,R2) CRP (ai,ßi)
• In optimistic estimation, we omit the last item
  optimistically
• CRP (ai,ßi) is bounded by the inequality
• Summing up everything

46
RAMJ Algorithm

• Recursive and Adaptive Mobile Join

47
Real Data Experiment

• Real Data Set 1
• DBLP
• Join relations Conference (235K tuples) and
  Journal (125K tuples) in order to find the set
  of publications that have the same conference and
  journal title
• 3836 publications have same title in both
  conference and journal paper
• SELECT R1.Title
• FROM Conference R1, Journal R2
• WHERE R1.Title R2.Title

48
Real Data Experiment

• Real Data Set 2
• Restaurants Data Set
• Crawled from www.restaurantrow.com
• Join relation Steak (4573 tuples) and
  Vegetarian (2098 tuples) in order to find the
  set of restaurants that offer both steak and
  vegetarian dishes (163 joined)
• SELECT R1.Name
• FROM Steak R1, Vegetarian R2
• WHERE R1.Name R2.Name

49
Real Data Experiment Result
50
Synthetic Data Experiment

• Generate 3 relations with different
  distributions
• Gaussian
• Negative Exponential
• Zipf (skewness ? 1)
• Default
• 10,000 tuples
• Domain 100,000
• G 20

51
Synthetic Data Experiment Result
52
The impact of data skew
53
The impact of memory size
54
Conclusions and Future Work

• Identify the requirements and limitation on
  evaluating ad-hoc join on mobile devices
• A recursive and adaptive algorithm RAMJ
• Extension to multi-way joins and multi-attributes
• Extension to Top-K-Join
• Existing approaches on Top-K problem ONLY works
  on collaborative database

55
Q A

• ?

56
Approach 2 Mediator

• User queries are free-form
• i.e., User KY may issue a join query that
  involves DB x and DB y, whereas user BY may issue
  a join query that involves DB e and DB f
• Mediator cannot answer those queries without
  prior preparation like data integration, schema
  matching
• Mediator services may charge the users as well

57
Approach 2Distributed query processing?

• Existing distributed database work on trusted
  environment only
• DB1.Name DB2.CustomerName
• Semi-join
• Site DB1 Evaluate J ? Name DB1 J All Names
• Send J from DB1 to DB2
• Site DB2 Evaluate K ? CustomerName J( DB2 )
• Find all CustomerName Name
  in DB1
• Send K from DB2 to DB1

58
Approach 2Distributed query processing?

• Not work on our problem!
• DB1 and DB2 are non-collaborative
• Would not accept data structures as input
  (e.g., a join column in semi-join or a
  hash-table in bloom-join
• Accept SQL only
• Semi-join is worked by some modifications
• Send J and K through the mobile device
• ? High transfer cost

59
References

• Processing Ad-hoc joins on mobile devices,
  submitted to EDBT 04
• P.A. Bernstein and N. Goodman. Power of natural
  semijoin. SAIM Journal of Computing, 1981
• P.A. Bernstein, N. Goodman, et. al. Query
  processing in a system for distributed databases
  (sdd-1). ACM TODS, 1981
• N. Mamoulis, P. Kalnis, et. al. Optimization of
  spatial joins on mobile devices. SSTD, 2003

60
Other Join Types

• Equi-join with selection constraints
• E.g., We are interested in restaurants appear in
  both datasets and the expense is less than 20
• SELECT R1.Name, R1.Address, R2.Cost
• FROM R1, R2
• WHERE R1.Name R2.Name
• AND R2.Cost
• Add this condition in histogram construction
• SELECT SUBSTRING(Name,1,1) AS Bucket,
• COUNT(Name) As Count
• FROM R1
• WHERE R2.Cost
• GROUP BY SUBSTRING(Name,1,1)
• HAVING COUNT(Name) 0

61
Iceberg Semi-join

• Find all restaurants in R1 which are recommended
  by at least 10 users in a discussion group R2
• Properties
• Equi-join between R1 and R2
• Results are comes from R1 only
• Condition is applied on R2 only (10 users)
• SELECT SUBSTRING(Name,1,1) AS Bucket,
• COUNT(Name) As Count
• FROM R2
• GROUP BY SUBSTRING(Name,1,1)
• HAVING COUNT(Name) t
