Title: XML, Java, and the future of the Web


1

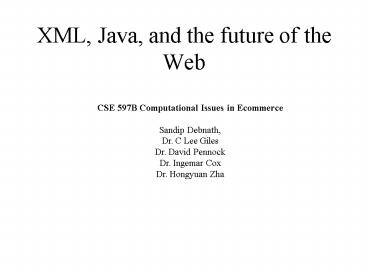

XML, Java, and the future of the Web
CSE 597B Computational Issues in Ecommerce
Sandip Debnath, Dr. C Lee Giles Dr. David
Pennock Dr. Ingemar Cox Dr. Hongyuan Zha
2
Layout of the Presentation(XML, Java, and the
future of the Web)
  • Background (HTML, SGML) etc.
  • XML Effort
  • What is XML?
  • Why XML?
  • How it can be used?
  • XML syntax, elements, attributes, validation,
    support, parsing,and displaying
  • Related concepts CSS, XSL etc.
  • Advanced concepts Namespace, CDATA, Encoding,
    Server etc.(will be discussed later)
  • XML applications and technologies
  • Java Effort
  • General Java Concept
  • Java for XML

3
Background (HTML, SGML)(XML, Java, and the
future of the Web)
  • Most documents in Web are in HTML (which is based
    on SGML ISO 8879)
  • Problems in HTML
  • Extensibility HTML does not allow users to
    specify their own tags.
  • Structure HTML does not support the
    specification of deep structures.
  • Validation HTML specification does not allow
    consuming applications to check data for
    structural validity.
  • Structural looseness HTML itself is not strict
    enough to impose structural integrity.
  • However SGML contains many optional features that
    are needed for Web applications which are tapped
    to create a new Markup Language, XML.

4
Birth of XML(XML, Java, and the future of the
Web)
  • The first phase started in June 96, culminated
    in XML1.0, issued in Feb 98
  • The second phase resulted in XML Namespaces (Jan
    99) and Style Sheet Linking (June 99)
  • In Sep 99, the third phase started to finish
    unfinished second phase and on XML query
  • XML protocol activity was launched in Sep 00
  • Working groups
  • Schema working group
  • Query working group
  • Linking working group
  • Core working group
  • Coordination group

5
What is XML anyway?(XML, Java, and the future of
the Web)
  • XML stands for eXtensible Markup Language
  • XML is a markup language much like HTML.
  • XML was designed to describe data.
  • XML tags are not predefined in XML. You must
    define your own tags.
  • XML uses a DTD (Document Type Definition) to
    describe the data.
  • XML with a DTD is designed to be self-descriptive
  • Differs from HTML in the following way
  • Information providers can define new tag and
    attribute names at will
  • Document structures can be nested to any level of
    complexity
  • Any XML doc can contain optional description of
    its grammar for the consuming application to
    understand and validate the structural integrity.

6
Why XML?(XML, Java, and the future of the Web)
  • Differences from HTML tells the initial benefit
    of XML, and reasons behind its birth.
  • XML Will
  • Enable internationalized media-independent
    electronic publishing
  • Allow industries to define platform-independent
    protocols for the exchange of data, especially
    the data of electronic commerce
  • Deliver information to user agents in a form that
    allows automatic processing after receipt
  • Make it easier to develop software to handle
    specialized information distributed over the Web
  • Make it easy for people to process data using
    inexpensive software
  • Allow people to display information the way they
    want it, under style sheet control
  • Make it easier to provide metadata -- data about
    information -- that will help people find
    information and help information producers and
    consumers find each other --- W3C activity
    statement

7
Why XML is so important?(XML, Java, and the
future of the Web)
  • Plain text XML is not a binary format, so you
    can create and edit files with anything from a
    standard text editor to a visual development
    environment. That makes it easy to debug your
    programs, and makes it useful for storing small
    amounts of data.
  • Data Identification XML tells you what kind of
    data you have, not how to display it. Because the
    markup tags identify the information and break up
    the data into parts, an email program can process
    it, a search program can look for messages sent
    to particular people, and an address book can
    extract the address information from the rest of
    the message. In short, because the different
    parts of the information have been identified,
    they can be used in different ways by different
    applications.
  • Stylability When display is important, the
    Stylesheet Standard, XSL, lets you dictate how to
    portray the data.
  • Inline reusabilityUnlike HTML, XML entities can
    be included "in line" in a document. The included
    sections look like a normal part of the document
    -- you can search the whole document at one time
    or download it in one piece. That lets you
    modularize your documents without resorting to
    links. You can single-source a section so that an
    edit to it is reflected everywhere the section is
    used, and yet a document composed from such
    pieces looks for all the world like a one-piece
    document.
  • LinkabilityThe XLink protocol is a proposed
    specification to handle links between XML
    documents. In general, the XLink specification
    targets a document or document-segment using its
    ID. The XPointer specification defines mechanisms
    for "addressing into the internal structures of
    XML documents", without requiring the author of
    the document to have defined an ID for that
    segment
  • Easily Processed XML is a vendor-neutral
    standard, you can choose among several XML
    parsers, any one of which takes the work out of
    processing XML data.
  • HierarchicalXML documents benefit from their
    hierarchical structure. Hierarchical document
    structures are, in general, faster to access
    because you can drill down to the part you need,
    like stepping through a table of contents. They
    are also easier to rearrange, because each piece
    is delimited. In a document, for example, you
    could move a heading to a new location and drag
    everything under it along with the heading,
    instead of having to page down to make a
    selection, cut, and then paste the selection into
    a new location.

8
How it can be used?(XML, Java, and the future of
the Web)
  • Acme Pharmaceuticals Co.
  • 7301 Smokey Boulevard
  • Smallville
  • Indiana
  • 94571
  • Matching start and end tags (must be followed,
    unlike HTML, it is strict here)
  • Element A piece of information marked by tags
  • Attributes (E.g. countryUS)
  • Note the presence of nesting of tags

9
How it can be used? (contd)(XML, Java, and the
future of the Web)
XML is a low-level syntax for representing
structured data. You can use this simple syntax
to support a wide variety of applications
(Following figure is taken from
http//www.W3C.org)
10
How it can be used? (contd)(XML, Java, and the
future of the Web)
  • XML can separate data from HTML
  • XML can be used to exchange data.
  • XML and B2B it is going to be the main language
    for financial data exchange
  • XML can be used to share data.
  • XML can be used to store data
  • XML can be used to create new languages (WAP, WML)

11
XML syntax(XML, Java, and the future of the Web)
  • XML documents use a self describing (also
    creators responsibility)and simple syntax
  • Tove
  • Jani
  • Reminder
  • Don't forget me this weekend!
  • XML documents must have a opening and a closing
    tag
  • XML tags are case sensitive
  • XML elements must be properly nested
  • XML elements must have a root tag
  • Values must be quoted
  • XML strips off unnecessary tabs, spaces
  • With XML CR/LF is always converted to LF

12
XML elements(XML, Java, and the future of the
Web)
  • XML documents can be extended to carry more
    information
  • XML elements have relationship (parent-child
    etc.)
  • In the last slide note is the root element (a
    document must have a root element)
  • In the last slide To, From, etc. are called
    children of the root and they are siblings to
    each other
  • Elements can have different content
  • Mixed
  • Simple
  • Attributes
  • Element naming rules
  • Names can contain letters, numbers, and other
    characters
  • Names must not start with a number or other
    punctuation characters
  • Names must not start with the letters xml (or XML
    or Xml ..)
  • Names cannot contain spaces

13
XML Attributes(XML, Java, and the future of the
Web)
  • XML elements can have optionally attributes
  • Quote styles demo.asp or demo.asp both are
    valid
  • Elements can be stored in either as elements or
    as attributes. Either the following
  • Anna
  • Smith
  • Or
  • female
  • Anna
  • Smith
  • is valid.

14
XML Validation(XML, Java, and the future of the
Web)
  • Well Formed XML XML document which follows the
    XML syntax correctly
  • Valid XML XML document which is Well Formed and
    also validated against the corresponding DTD.
  • You can define the corresponding DTD name inside
    a Well Formed XML document.
  • Tove
  • Jani
  • Reminder
  • Don't forget me this weekend!

15
XML Validation(contd.)(XML, Java, and the future
of the Web)
  • DTD (Document Type Definition) DTD defines the
    legal elements of an XML document.The purpose of
    a DTD is to define the legal building blocks of
    an XML document. It defines the document
    structure with a list of legal elements.A DTD can
    be defined inline in XML doc or as an external
    reference.
  • Tove
  • Jani
  • Reminder
  • Don't forget me this weekend

16
XML Validation-DTD(contd.)(XML, Java, and the
future of the Web)
The DTD above is interpreted like this!DOCTYPE
note (in line 2) defines that this is a document
of the type note.!ELEMENT note (in line 3)
defines the note element as having four elements
"to,from,heading,body".!ELEMENT to (in line 4)
defines the to element  to be of the type
"PCDATA".!ELEMENT from (in line 5) defines the
from element to be of the type "PCDATA"and so
on (PCDATA Parsed Character DATA)
17
XML Validation-DTD(contd.)(XML, Java, and the
future of the Web)

       (CCC  DDD)

18
XML Support(XML, Java, and the future of the Web)
  • Netscape has promised full XML support in its
    next browser.
  • IE 5.0 supports XML1.0 and the XML DOM (these are
    set by W3C). IE 5.0 has the following support.
  • Viewing of XML documents
  • Full support for W3C DTD standards
  • XML embedded in HTML as Data Islands
  • Binding XML data to HTML elements
  • Transforming and displaying XML with XSL
  • Displaying XML with CSS
  • Access to the XML DOM

19
XML Parsing(XML, Java, and the future of the Web)
  • The following are some of the well known XML
    parsers available in the market
  • GNOME XML (Unix/Linux/Windows)
  • Library Oracle XML parser for Java (java)
  • XP (Java)
  • XML Validate (Java)
  • Xerces-C (Win32 (MSVC 6.0 compiler) Linux
    (RedHat 6.0), Unix )
  • Oracle XML parser for C (Linux, Solaris 2.6 and
    NT 4 / Service Pack 3 (and above) )
  • Lark (Java)
  • XML4cobol (Cobol)
  • XML parser for PL/SQL (Oracle 8i)
  • HEX (Java)
  • TcIXML (Tcl)
  • Xjparser (Java)
  • ActiveDOM (Active X)
  • Xmlproc (Python)
  • Xparse (Javascript)
  • Java Project X (Java)
  • SAX2 XML Utilities (Java)
  • Electric XML (Windows , Unix)

20
XML Parsing(contd.)(XML, Java, and the future of
the Web)
  • XML parser for C (C)
  • DTDParser (Java (versions for windows, linux,
    unix) )
  • XMLParser (Perl)
  • Xerces-P (Perl)
  • XML4C (C )
  • TinyXML (Java)
  • XML for Java (Java)
  • AElfred (Jaba)
  • XmlTree (VB)
  • XML Validator (C, binary available for Windows
    and Linux-intel platforms. )
  • XMLBooster (C, Cobol, Delphi, and Java.)
  • SP(c)
  • JAXP (Java)
  • Larval (Java)
  • Markup (OCaml)
  • Fxp (SML)
  • SXP Silfide XML Parser
  • X-Fetch Performer (Windows)
  • Microsoft XML Parser

21
XML Parsing(contd.)(XML, Java, and the future of
the Web)
The XML Parsing details using Java needs some
basic introduction to Java. The next few slides
will talk about the new evolutionary programming
language Java.
22
Java Efforts(XML, Java, and the future of the
Web)
  • The Java Programming language has brought new
    concepts of
  • Platform independent,
  • 100 Object Oriented Methodology Supporting
  • programming language which also has other good
    features like
  • Automatic Garbage Collection,
  • Simple Pointer-less programming concepts and
    more.
  • No multiple inheritence
  • Huge number of APIs
  • Networking support
  • CGI look-alike Servlet classes and
  • Support to traditional programming as well as to
    new industry trends.

23
Java Efforts (contd.)(XML, Java, and the future
of the Web)
  • Some of the products under the Java umbrella are
  • JavaTM 2 Platform, Standard Edition (J2SETM
    )The essential Java 2 SDK, tools, runtimes, and
    APIs for developers writing, deploying, and
    running applets and applications in the Java
    programming language. Also includes earlier Java
    Development Kit versions JDKTM 1.1 and JRE 1.1
  • JavaTM 2 Platform, Enterprise Edition (J2EETM)
  • Combines a number of technologies in one
    architecture with a comprehensive Application
    Programming Model and Compatibility Test Suite
    for building enterprise-class server-side
    applications.
  • JavaTM 2 Platform, Micro Edition (J2METM)
  • A highly optimized Java runtime environment
    targeting a wide range of consumer products,
    including pagers, cellular phones, screenphones,
    digital set-top boxes and car navigation systems.
  • Consumer Embedded Technologies Products
  • The Java Consumer and Embedded technologies and
    products let you write code for small devices
    that are big on functionality but short on
    resources.

24
Java Efforts (contd.)(XML, Java, and the future
of the Web)
  • COMPLETE PRODUCT LIST (by product group)
  • Java 2 Platform, Standard Edition Product
    FamilySoftware Development Kits Runtimes
  • JavaTM 2 SDK, Standard Edition, v 1.3
  • JavaTM 2 SDK, Standard Edition, v 1.2.2
  • JavaTM 2 SDK, Standard Edition, Source Release
  • JavaTM 2 Runtime Environment, Standard Edition, v
    1.2.2
  • JavaTM Plug-in
  • JavaTM Web Start
  • Java Development Kit (JDKTM) 1.1.8 (JDK 1.1.8)
  • JavaTM Runtime Environment 1.1.8 (JRE 1.1.8)
  • JDKTM Japanese Supplement 1.1.x Related Products
  • JavaBeansTM Development Kit (BDK)
  • Java HotSpotTM Server Virtual Machine
  • Application Programming Interfaces (APIs)- Core
    to Java 2 platform
  • Collections Framework
  • JavaTM Foundation Classes (JFC)
  • Swing Components
  • Pluggable Look Feel
  • Accessibility


25
Java Efforts (contd.)(XML, Java, and the future
of the Web)
  • Java 2 Platform, Enterprise EditionTechnologies
  • Enterprise JavaBeansTM Architecture
  • JavaServer PagesTM
  • JavaTM Servlet
  • Java Naming and Directory InterfaceTM (JNDI)
  • JavaTM IDL
  • JDBCTM
  • JavaTM Message Service (JMS)
  • JavaTM Transaction (JTA)
  • JavaTM Transaction Service (JTS)
  • JavaMail
  • RMI-IIOP
  • Software Development Kit Application Model
  • Java 2 SDK, Enterprise Edition
  • Sun BluePrintsTM Design Guidelines for J2EE

26
Java Efforts (contd.)(XML, Java, and the future
of the Web)
  • Consumer Embedded Technologies
    ProductsTechnologies
  • Java 2 Platform, Micro Edition (J2METM
    technology)
  • Connected Device Configuration (CDC)
  • Connected Limited Device Configuration (CLDC)
  • C Virtual Machine (CVM)
  • K Virtual Machine (KVM)
  • PersonalJavaTM Application Environment
  • PersonalJavaTM Technology, Source Edition
  • EmbeddedJavaTM Application Environment
  • EmbeddedJavaTM Technology, Source Edition
  • Java CardTM
  • JavaPhoneTM API
  • Java TVTM API
  • JiniTM Network Technology
  • Mobile Information Device Profile (MIDP)
  • Products
  • Personal ApplicationsTM Suite
  • Java Dynamic ManagementTM Kit
  • Java Embedded ServerTM Software

27
Java Efforts (contd.)(XML, Java, and the future
of the Web)
  • Optional Packages
  • Optional Packages define APIs that extend the
    core Java platform API.
  • Forte FusionTM
  • ForteTM for JavaTM
  • HotJavaTM Product Family
  • The JAINTM APIs JAINTM TCAP JAINTM OAM
  • Java BlendTM
  • JavaCheckTM
  • JavaTM Electronic Commerce Framework
  • JavaTM Internationalization Localization
    Toolkit 2.0
  • JavaTM Message Queue
  • JavaServerTM Product Family
  • JavaTM Shared Data Toolkit
  • JavaSpacesTM
  • JavaTM Speech API
  • JavaTM Telephony API (JTAPI)
  • JiniTM Network Technology
  • JiroTM Technology
  • OSS through JavaTM Initiative

28
XML Parsing(contd.)(XML, Java, and the future of
the Web)
  • There are two main types of parsing of XML
    available in these parsers
  • SAX or Simple API for XML
  • DOM or Document Object Model
  • The Java SAX Parser API structure is as shown
    here (Taken from Suns Java site)

29
XML Parsing(contd.)(XML, Java, and the future of
the Web)
The Java DOM Parser API structure is as shown
here (Taken from Suns Java site)
30
XML Parsing(contd.)(XML, Java, and the future of
the Web)
  • When to use SAX and When to use DOM ?
  • SAX
  • If the information stored in your XML documents
    is machine readable (and generated) data then SAX
    is the right API for giving your programs access
    to this information. Machine readable and
    generated data include things like
  • Java object properties stored in XML format
  • queries that are formulated using some kind of
    text based query language (SQL, XQL, OQL)
  • result sets that are generated based on queries
    (this might include data in relational database
    tables encoded into XML).
  • So machine generated data is information that you
    normally have to create data structures and
    classes for in Java. A simple example is the
    address book which contains information about
    persons, as shown in Figure 1. This address book
    XML file is not like a word processor document,
    rather it is a document that contains pure data,
    which has been encoded into text using XML.

31
XML Parsing(contd.)(XML, Java, and the future of
the Web)
  • When to use SAX and When to use DOM ?
  • SAX
  • When your data is of this kind, you have to
    create your own data structures and classes
    (object models) anyway in order to manage,
    manipulate and persist this data. SAX allows you
    to quickly create a handler class which can
    create instances of your object models based on
    the data stored in your XML documents. An example
    is a SAX document handler that reads an XML
    document that contains my address book and
    creates an AddressBook class that can be used to
    access this information. The first SAX tutorial
    shows you how to do this. The address book XML
    document contains person elements, which contain
    name and email elements. My AddressBook object
    model contains the following classes
  • AddressBook class, which is a container for
    Person objects
  • Person class, which is a container for name and
    email String objects.
  • So my "SAX address book document handler" is
    responsible for turning person elements into
    Person objects, and then storing them all in an
    AddressBook object. This document handler turns
    the name and email elements into String objects.

32
XML Parsing(contd.)(XML, Java, and the future of
the Web)
When to use SAX and When to use DOM ? DOM If
your XML documents contain document data (e.g.,
Framemaker documents stored in XML format), then
DOM is a completely natural fit for your
solution. If you are creating some sort of
document information management system, then you
will probably have to deal with a lot of document
data. An example of this is the Datachannel RIO
product, which can index and organize information
that comes from all kinds of document sources
(like Word and Excel files). In this case, DOM is
well suited to allow programs access to
information stored in these documents. However,
if you are dealing mostly with structured data
(the equivalent of serialized Java objects in
XML) DOM is not the best choice. That is when SAX
might be a better fit.
33
XML Displaying(XML, Java, and the future of the
Web)
To display XML document you can add CSS (Cascade
Style Sheet) files for all necessary
styles. type"text/css" href"cd_catalog.css"?
Empire
Burlesque Bob Dylan
USA ColumbiaANY 10.90 1985

34
XML Displaying (contd.)(XML, Java, and the
future of the Web)
The CSS file may look like this CATALOG
background-color ffffff width 100 CD
display block margin-bottom
30pt margin-left 0 TITLE color
FF0000 font-size 20pt ARTIST color
0000FF font-size 20pt COUNTRY,PRICE,
Display block color 000000
margin-left 20pt YEAR,COMPANY Display
block color 00FF00 margin-left 20pt
35
XML Displaying (contd.)(XML, Java, and the
future of the Web)
The output will look like Empire Burlesque Bob
Dylan USA Columbia 10.90 1985
36
The Related Concepts/buzzwords(XML, Java, and
the future of the Web)
  • CSS Cascade Style Sheet
  • XSL eXtensible Style Sheet Language
  • XSLT (XPATH) Extensible Stylesheet Language for
    Transformations
  • RELAX Regular Language description for XML
  • SOX Schema for Object-oriented XML
  • TREXTree Regular Expressions for XML
  • Schematron Schema for Object-oriented XML
  • RDF Resource Description Framework
  • XTM XML Topic Maps
  • SMIL Synchronized Multimedia Integration
    Language
  • MathML Mathematical Markup Language
  • DrawMLDrawing Meta Language
  • ICEInformation and Content Exchange
  • ebXMLElectronic Business with XML
  • Cxml Commerce XML
  • CBL Common Business Library

37
The Advanced Concepts(XML, Java, and the future
of the Web)

The Namespace, CDATA, Encoding, Server etc. (will
be discussed later)
38
XML Applications/technologies(XML, Java, and the
future of the Web)
  • The following types of applications are driving
    the XML
  • Applications that require web clients to mediate
    between two or more heterogeneous databases.
  • Applications that attempt to distribute a
    significant portion of the processing load from
    Web server to the Web client.
  • Applications that require the Web client to
    present different views of the same data to
    different users.
  • Applications in which intelligent Web agents
    attempt to tailor information discovery to the
    needs of individual users.

39
A small XML application(1)(XML, Java, and the
future of the Web)

1) First we start with a simple XML
document. Take a look at our original
demonstration document, the CD catalog. version"1.0"? Empire
Burlesque Bob Dylan
USA ColumbiaY 10.90 1985
. . ... more ... . The full file is here
40
A small XML application(2)(XML, Java, and the
future of the Web)

2) Load the document into a Data Island A Data
Island can be used to access the XML file. To get
your XML document "inside" an HTML page, add an
XML Data Island to the page. src"cd_catalog.xml" id"xmldso" async"false"
With the example code above, the XML file
"cd_catalog.xml" will be loaded into an
"invisible" Data Island called "xmldso". The
async"false attribute is added to the Data
Island to make sure that all the XML data is
loaded before any other HTML processing takes
place.
41
A small XML application(3)(XML, Java, and the
future of the Web)

3) Bind the Data Island to an HTML Table An HTML
table can be used to display the XML data. To
make your XML data visible on your HTML page, you
must "bind" your XML Data Island to an HTML
element. To bind your XML data to an HTML table,
add a data source attribute to the table, and add
data field attributes to elements inside
the table data width"100" border"1" Title
Artist Year align"left" td


42
A small XML application(4)(XML, Java, and the
future of the Web)

4) Bind the Data Island to or
elements or elements can be used to
display XML data. You don't have to use a table
to display your XML data. Data from a Data Island
can be displayed anywhere on an HTML page. All
you have to do is to add some or
elements to your page. Use the data source
attribute to bind the elements to the Data
Island, and the data field attribute to bind each
element to an XML element, like this
/Title datafld"TITLE"
Artist datasrc"xmldso" datafld"ARTIST"
/Year datafld"YEAR"
43
A small XML application(5)(XML, Java, and the
future of the Web)

5) Add a Navigation Script to your XML Navigation
has to be performed by a script. To add
navigation to the XML Data Island, create a
script that calls the movenext() and
moveprevious() methods of the Data
Island.
function movenext() xxmldso.recordset if
(x.absoluteposition x.movenext() function moveprevious()
xxmldso.recordset if (x.absoluteposition 1)
x.moveprevious()
44
A small XML application(6)(XML, Java, and the
future of the Web)

The result looks like this
Write a Comment
User Comments (0)
About PowerShow.com
