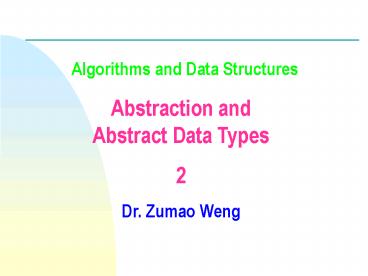

Algorithms and Data Structures

1
Algorithms and Data Structures

• Abstraction and Abstract Data Types
• 2
• Dr. Zumao Weng

2
Abstraction and Abstract Data Types ADT 2
3
Sequences

• A sequence is an arbitrary number of components
  (of the same type) in some significant order.
• abstraction of a number of practical data types
  such as strings, stacks, queues, files.
• 42 2 395 278 integer sequence
• 1.56 3.45 9.123 6.6 3.2 float sequence
• M r A . N . O t h e r char sequence
• which may be sorted but are not necessarily so
• order refers to the position of an object and not
  its value.
• OO languages object type permits mixed type
  sequences using Object type.

4
Sequences

• May create a sequence of object types

class Car String make String
model int registration_year
....collection of operations...
Ford Fiesta 1998
VW Polo 2000
Jeep Grand 1997
Ford Fiesta 1998
......
5
Sequence Abstract Data Type

• Defined as a Java class with public operations
  that manipulate values of the type.
• Instances of the class can be assigned to
  variables.
• Sequence my_sequence new Sequence()
• Implementation data structure of the ADT is
  private to the ADT class.

class Sequence public Object op1 ()
public Object op2 ()
6
Sequence Model

• A sequence is a collection of elements in some
  order
• order refers to the position of elements.
• Every sequence element except the first has a
  predecessor and every element except the last has
  a successor.
• A sequence grows as elements are added and
  contracts as elements are removed.
• add elements incrementally.
• there is no defined memory allocated for all
  sequence elements when sequence created.

7
Sequence Models
8
Sequence Operations

• Define a minimal collection of operations
  suitable for manipulating sequences.
• use a model that is simple
• easy to implement and test
• provide building blocks for other operations
• Operations are
• creating sequence values, called construction
• extract elements from sequence values, called
  de-construction or selection
• comparing sequence values, called relations.
• Construction, selection and relations common to
  all ADTs

9
Sequence Operations

• Construction
• An empty sequence by sequence constructor
• Sequence Sequence()
• A sequence element added at front
• Sequence make(Object elem)
• De-construction/Selection
• Extracting the first element of a sequence
• Object head ()
• Sequence with the first element removed
• Sequence tail()
• Relations
• Is the sequence empty
• boolean is_empty()

10
Sequence Operations
Sequence Constructor
Make
11
Sequence Operations
Sequence Constructor
Make
12
Sequence Operations
Head Element
13
Operational Model Summary

• Starting point is the creation of an empty
  sequence using sequence instance constructor
• Sequence elements are added to the front of an
  existing sequence, using make operation.
• Element at front of the sequence may be extracted
  using the head operation.
• Sequence without the first element may be
  extracted using the tail operation.
• Whether the sequence contains elements can be
  queried using the is_empty operation.

14
A Sequence Type

• Is a class instance with the operators as public
  methods.
• the operators are the only means of manipulating
  sequence values.
• The implementation details of the type are not
  disclosed to the user.
• so the implementation can be changed without
  affecting software that uses the sequence.
• the software components that use the sequence
  type are thus loosely coupled from the sequence
  class.

15
A Java Sequence Interface

• An interface defines a collection of operations
  that define some protocol.
• methods do not have body definitions
• interface name can be used as a type

interface Sequence // sequence constructor
provided by implementation Sequence
make(Object elem) Object head()
Sequence tail() boolean is_empty()
16
Interface Implementation
class my_sequence implements Sequence
..... public Sequence make(Object elem)
...the implementation... .....

• the interface protocol can be implemented by a
  class.
• the operations of the interface must be given
  realisations ie. program code.
• the signature of the method must be exactly the
  same as that of the interface definition.
• where signature is result type, argument types
  and order.
• the class can define additional methods.

17
An Interface as a Type

• An interface name can be used as a type for
  variables and method results.
• The sequence interface declares make and tail as
  returning values of type Sequence.
• An interface is a collection definitions, how
  can it provide operations?
• An interface is implemented by a class.
• Using the interface as a type enables the
  implementation class to be hidden and further
  reduces coupling.
• an implementation can replace the implementation
  class easily.
• An instance declared of an interface type can
  only use defined interface methods.

18
Interface Specification
interface Sequence Sequence make(Object
elem) Object head() Sequence tail()
boolean is_empty()

• How does a programmer implementing an interface
  know what is expected?
• Create a specification of the operations.
• specification defines the effect of the methods
  but not how the methods achieve the effect.
• a single specification serves many
  implementations of the interface.
• the specification serves as documentation for the
  interface protocol

19
Algebraic Specification

• Specifies behaviour by case analysis of input
  arguments.
• particular suitable for ADTs which have
  constructors, de-constructors and relations.
• each case specifies an input and defines an
  effect.
• e.g. a method public int add1(int a)
• add1(1) ? 2
• add1(2) ? 3 etc
• I need money
• if bank open then cash a cheque
• if bank closed then use autoteller
• if ATM refuses money then borrow money from Fred
• If Fred away then .....
• With ADTs there is not that many permutations!

20
Sequence Specification
interface Sequence Sequence make(Object
elem) Object head() Sequence tail()
boolean is_empty()

• consider a sequence S T h e S e q u e n c e
• S.tail() ? h e S e q u e n c e
• S.head() ? T
• S.is_empty() ? false
• S.make(X) ? X T h e S e q u e n c e
• impossible to specify for every possible value
• the value of elements is not important.

21
Sequence Specification
interface Sequence Sequence make(Object
elem) Object head() Sequence tail()
boolean is_empty()

• interested in the relationship between
  constructors and de-constructors.
• S h e S e q u e n c e e T
• (S.make(e)).tail() ? S ? h e S e q u e n c e
• (S.make(e)).head() ? e ? T
• Value of S and the value T are not actually
  important
• the relationship between make, head and tail

22
Complete Specification

• Construction
• new ... () provided by implementation
• make()
• De-construction/Selection
• Operation Value Result
• S.head() S L.make(e) ? e
• S.head() S new Sequence() ? Error
• S.tail() S L.make(e) ? L
• S.tail() S new Sequence() ? Error
• Relations
• S.is_empty() S new Sequence() ? true
• S.is_empty() S L.make(e) ? false

23
Head Specification

• De-construction/Selection
• Operation Value Result
• S.head() S L.make(e) ? e
• S.head() S new Sequence() ? Error
• consider a sequence S T h e S e q u e n c e
• S.head() ? T
• S is L.make(e) S.head() is e
• L is h e S e q u e n c e
• e is T
• consider a sequence S 87 45 45 333
• L is 45 45 333
• e is 87
• S.head() is 87 which is e

24
Tail Specification

• De-construction/Selection
• Operation Value Result
• S.tail() S L.make(e) ? L
• S.tail() S new Sequence() ? Error
• consider a sequence S T h e S e q u e n c
  e
• S.tail() ? h e S e q u e n c e
• S L.make(e)
• L is he S e q u e n c e
• e is T
• consider a sequence S 87 45 45 333
• L is 45 45 333
• e is 87
• S L.make(e) then S.tail() is L

25
is_empty Specification

• Relations
• S.is_empty() S new Sequence() ? true
• S.is_empty() S L.make(e) ? false
• consider a sequence S T h e S e q u e n c
  e
• S.is_empty() ? false
• S L.make(e)
• L is he S e q u e n c e
• e is T
• consider a sequence S 87 45 45 333
• L is 45 45 333
• e is 87
• S L.make(e) then S.is_empty() is false
• The only true case is when it is a newly
  constructed sequence

26
Why no definition of constructor and make?

• These definitions are not necessary because a
  definition would necessarily define an
  implementation.
• More importantly, as de-constructors/relations
  are the only operations on values of the type you
  do not need to say what they do.

27
Complete Specification

• Construction
• new ... () provided by implementation
• make()
• De-construction/Selection
• Operation Value Result
• S.head() S L.make(e) ? e
• S.head() S new Sequence() ? Error
• S.tail() S L.make(e) ? L
• S.tail() S new Sequence() ? Error
• Relations
• S.is_empty() S new Sequence() ? true
• S.is_empty() S L.make(e) ? false

28
Sequence Specification
interface Sequence Sequence make(Object
elem) Object head() throws
SequenceEmptyException Sequence tail()
throws SequenceEmptyException boolean
is_empty()
public class SequenceEmptyException extends
Throwable public SequenceEmptyException ( )
public SequenceEmptyException (String report )
super(report)

• Introduce exceptions to deal with errors that
  might occur in operations applied to empty
  sequences.

29
Sequence Definition Summary

• The sequence interface operations are the only
  operations that can manipulate sequence values.
• values are created using the class constructor
  and make
• sequences de-constructed using head/tail
• additional operations can be constructed using
  the operations.
• The sequence interface does not need to know the
  type of sequence elements.
• interface is generic (Object) to the element
  type.
• An implementation is required for sequence.
• Specification defined behaviour by defining
  effect.
• all data is passed as arguments, no side
  effects.

30
Java example append1 ()

• Using the interface definition above, develop an
  algebraic specification for an append1 operation
  which creates a new sequence by appending a new
  element as the last element in the sequence.
  Provide a Java method for the operation.
• append1
• append1(S, t) S is a sequence, t an object
• S new Sequence()
• -gt S.make(t)
• S L.make(e) L is a sequence value
• -gt (append1(L,t)).make(e)

31
Java example append1 ()

• Sequence append1(Sequence seq, Object elem)
• if (seq.is_empty())
• return seq.make(elem)
• else
• return (append1(seq.tail,
  elem)).make(seq.head())
