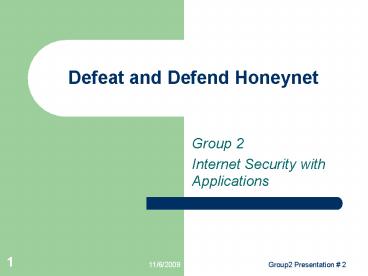

Defeat and Defend Honeynet

1
Defeat and Defend Honeynet

• Group 2
• Internet Security with Applications

2
Honeypot - Recap

• Honeypot
• A closely monitored network decoy whose value
  lies in being attacked, probed and compromised
• Capture attacks information
• Analyze the attacks
• Can be categorized by level of interaction
• High Interaction present complete vulnerable
  operating environment (all aspects of the OS),
  capture all information, most risky, research
  honeypots ? Honeynet

3
Honeynet

• A highly controlled network where every packet
  entering or leaving is monitored, captured and
  analyzed.
• 2 key functions
• Data capture
• Data capture at various levels Application,
  Network, OS level
• Data logging analysis
• Data analysis investigate malware and forensic
  purpose
• Components
• Honeywall Gateway capture network based data
  packet capture, IDS, firewall, OS fingerprints,
  and netflow.
• Honeypot capture host based data Syslogs and
  Sebek
• High interaction honeypot

4
Honeynet Architecture
5
To serve data capture goal - Sebek was born

• Traditional data capture methods
• Patch /bin/sh to log every keystroke of an
  intruder
• Redirect the output of syslogd to another host on
  the network
• BUT!
• Attacker can install his own binaries to bypass
  these logs
• New method on an Linux system
• A kernel-based rootkit called Sebek

6
Into. to Sebek

• A de-facto data capture tool of Honeynet
  architecture
• All versions of Sebek work by hijacking the
  read() system call
• Components
• Data capture tool
• patches system-calls (open/fork/read/write/socket)

• send out gathered data via network-stack (UDP
  protocol)
• Central logging server
• Client/Server architecture
• Sebek server (sebekd) Honeywall Gateway
• Sebek client Honeypot

7
How Sebek fit into this picture
Sebekd
Sebek
8
Does Sebek work? Not Really!
9
Sebek (Honeypot) traces/properties that can be
fingerprinted by attackers

• Sebek by default chooses a random number below
  1,000,000,000 as the module name
• All its symbol names start with a letter,
  followed by a number with up to three digits
• Conversion table to translate IP addresses into
  integers is left in memory
• Hidden Sebek module still has a complete module
  header structure in memory
• Possible to locate the variable storage block via
  the module header

10
Attacks can detect Sebekd (Honeywall)

• Sebekd often puts a limit on outgoing TCP
  connections per day to minimize the risk of a
  successful attack on third parties systems
• This limit can be easily discovered
• Sebekd also uses snort_inline, an inline packet
  modification engine, to rewrite potential
  dangerous code
• Send code that could be modified by snort_inline
  to the machine, see the code got changed ?
  possible Sebekd

11
Seven methods to defeat Sebek

• Can be discovered by even unprivileged user (c)
• Network statistics disclose Sebek (c)
• Brute-force scanning method (b)
• System-call address checking (a)
• Remove Sebek is feasible (a)
• Sniff at the right place (b)
• Bring down the central logging server (c)

• Why? Because Sebek is implemented in the
  following ways
• (a) Hijacking the read()
• system call
• (b) Hidden kernel module
• (c) Dumps activity to the
• network via UDP protocol to
• a central logging machine

12
Problem with hijacking Read()
???? Why at this address?
0x000011E
0x000011E
0x000011F
0x003F001
13
One Proposed Solution - Xen-based honeynet

• Xens Approach Xebek (Xen-based Sebek)
• Capture data by patches the system-calls, so
  Xebek does not run as a kernel module.
• Xebek does not use network stack to deliver data,
  it uses shared memory, less traces
• Central logging server not exposed to the
  network.
• However it is still detectable
• If attacker gain kernel access or use syscall
  lantency

14
We Propose Enhancements

• Extensive hijacking/patching
• Not only open/fork/read/write/socket syscalls,
  also any other syscall can be used to bypass
  logging such as mmap()
• Patch exec()
• Restrict syscall function modification privilege
• Alarm if read() has been restored
• Possible real-time re-patching/re-hijacking
• Do local analysis as much as possible
• More clean-up on memory traces

15
References

• A Whirlwind Introduction to Honeypots  Marcus J.
  Ranum, 2002
• Honeypots, Honeynets, and the Honeywall  David
  Dittrich, Mar 2004
• Towards an Invisible Honeypot Monitoring
  Tool  Nguyen Anh Quynh, Keio university, Japan
• A Virtual Honeypot Framework  Niels Provos, Aug
  2004
• NoSEBrEaK - Attacking Honeynets  Maximillian
  Dornseif, Thorsten Holz, Christian N. Klein, Jun
  2004
