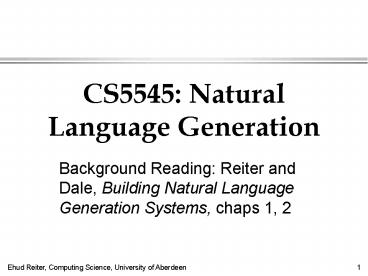

CS5545: Natural Language Generation

1
CS5545 Natural Language Generation

• Background Reading Reiter and Dale, Building
  Natural Language Generation Systems, chaps 1, 2

2
Words instead of Pictures

• Natural Language Generation (NLG) Generate
  English sentences to communicate data, instead of
  visualisations (or tables)
• A research focus of Aberdeen CS Dept

3
Example FoG

• Produces textual weather reports in English and
  French
• Input
• Graphical/numerical weather depiction
• User
• Environment Canada (Canadian Weather Service)

4
FoG Input
5
FoG Output
6
Why use words?

• Many potential reasons
• Media restrictions (eg, text messages)
• Users not knowledgeable enough to interpret a
  graph correctly
• Words also communicate background info, emphasis,
  interpretation,
• People (in some cases) make better decisions from
  words than graphs

7
Too hard for 1/3 of patients
8
Easier for many people?

• Im afraid to say that you have a 1 in 3 chance
  of dying from a heart attack before your 65th
  birthday if you carry on as you are. But if you
  stop smoking, take your medicine, and eat better,
  a fatal heart attack will be much less likely
  (only a 1 in 12 chance).

9
Text vs Graph

• Focus on key info (absolute risk, optimum risk)
• Integrate with explanation (optimum risk means if
  you stop smoking, eat better, take medicine)
• Add emphasis, perspective, spin (eg. Im
  afraid to say indicates this is a serious
  problem)

10
Experiment Decision Making

• Showed 40 medical professionals (from junior
  nurses to senior doctors) data from a baby in
  neonatal ICU
• Text summary of graphical depiction
• Asked to make a treatment decision
• Better decision when shown text
• But said they preferred the graphic

11
Graphic Depiction
12
Text Summary
13
What is NLG?

• NLG systems are computer systems which produces
  understandable and appropriate texts in English
  or other human languages
• Input is data (raw, analysed)
• Output is documents, reports, explanations, help
  messages, and other kinds of texts
• Requires
• Knowledge of language
• Knowledge of the domain

14
Language Technology
Meaning
Text
Text
Speech
Speech
15
Aberdeen NLG Systems

• STOP (smoking cessation letters)
• SumTime (weather forecasts)
• Ilex (museum description)
• SkillSum (feedback on assessment)
• StandUp (help children make puns)
• BabyTalk (summary of patient data)

16
(No Transcript)
17
How do NLG Systems Work?

• Usually three stages
• Not including data analysis (eg segmentation)!
• Document planning decide on content and
  structure of text
• Microplanning decide how to linguistically
  express text (which words, sentences, etc to use)
• Realisation actually produce text, conforming to
  rules of grammar

18
Scuba example input

• Input result of data interpretation
• Trends segmented data (as in pract 2)
• Patterns eg, rapid ascent, sawtooth, reverse
  dive profile, etc (as in pract 2)

19
Scuba example output

• Your first ascent was a bit rapid you ascended
  from 33m to the surface in 5 minutes, you should
  have taken more time to make this ascent. You
  also did not stop at 5m, we recommend that anyone
  diving beneath 12m should stop for 3 minutes at
  5m. Your second ascent was fine.

20
Document Planning

• Content selection Of the zillions of things I
  could say, which should I say?
• Depends on what is important
• Also depends on what is easy to say
• Structure How should I organise this content as
  a text?
• What order do I say things in?
• Rhetorical structure?

21
Scuba content

• Probably focus on patterns indicating dangerous
  activities
• Most important thing to mention
• How much should we say about these?
• Detail? Explanations?
• Should we say anything for safe dives?
• Maybe just acknowledge them?

22
Scuba structure

• Order by time (first event first)
• Or should we mention the most dangerous patterns
  first?
• Linking words (cue phrases)
• Also, but, because,

23
Microplanning

• Lexical choice Which words to use?
• Aggregation How should information be
  distributed across sentences and paras
• Reference How should the text refer to objects
  and entities?

24
SCUBA microplanning

• Lexical choice
• A bit rapid vs too fast vs unwise vs
• Ascended vs rose vs rose to surface vs
• Aggregation 1 sentence or 3 sent?
• Your first ascent was a bit rapid you ascended
  from 33m to the surface in 5 minutes, it would
  have been better if you had taken more time to
  make this ascent.

25
Scuba Microplanning

• Aggregation (continued)
• Phrase merging
• Your first ascent was fine. Your second ascent
  was fine vs
• Your first and second ascents were fine.
• Reference
• Your ascent vs
• Your first ascent vs
• Your ascent from 33m at 3 min

26
Realisation

• Grammars (linguistic) Form legal English
  sentences based on decisions made in previous
  stages
• Obey sublanguage, genre constraints
• Structure Form legal HTML, RTF, or whatever
  output format is desired

27
Scuba Realisation

• Simple linguistic processing
• Capitalise first word of sentence
• Subject-verb agreement
• Your first ascent was fine
• Your first and second ascents were fine
• Structure
• Inserting line breaks in text (pouring)
• Add HTML markups, eg, ltPgt

28
Multimodal NLG

• Speech output
• Text and visualisations
• Produce separately, OR
• Tight integration
• Eg, text refers to graphic, OR
• graphs has text annotations
• Prelim study suggest users prefer this for scuba
  reports (Sripada and Gao, 2007)

29
Scuba - graph
30
Scuba NLG text

• Risky dive with some minor problems. Because your
  bottom time of 12.0min exceeds no-stop limit by
  4.0min this dive is risky. But you performed the
  ascent well. Your buoyancy control in the bottom
  zone was poor as indicated by saw tooth
  patterns.

31
Combined (Preferred)
Risky dive with some minor problems. Because your
bottom time of 12.0min exceeds no-stop limit by
4.0min this dive is risky. But you performed the
ascent well. Your buoyanc control in the bottom
zone was poor as indicated by saw tooth
patterns marked A on the depth-time profile.
32
Building NLG Systems

• Knowledge
• Representations
• Algorithms
• Systems

33
Building NLG Systems Knowledge

• Need knowledge
• Which patterns most important?
• What order to use?
• Which words to use?
• When to merge phrases?
• How to form plurals
• Etc
• Where does this come from?

34
Knowledge Sources

• Imitate a corpus of human-written texts
• Most straightforward, will focus on
• Ask domain experts
• Useful, but experts often not very good at
  explaining what they are doing
• Experiments with users
• Very nice in principle, but a lot of work

35
Scuba Corpus

• See which patterns humans mention in the corpus,
  and have the system mention these
• See the order used by humans, and have the system
  imitate these
• etc

36
Building NLG Systems Algorithms and
Representations

• Various algorithms and representations have been
  designed for NLG tasks
• Will discuss in later lectures
• But often can simply code NLG systems
  straightforwardly in Java, without special
  algorithms
• Knowledge is more important

37
Building NLG Systems Systems

• Ideally should be able to plug knowledge into
  downloadable systems
• Unfortunately very little in the way of
  downloadable NLG systems
• Mostly specialised stuff primarily of interest to
  academics, eg http//openccg.sourceforge.net/
• I would like to improve situation

38
Simplenlg package

• Java class library
• Currently handles realisation, some parts of
  microplanning
• Not document planning
• Coverage should expand over time

39
Aberdeen NLG group

• 20 academic staff, researchers, PhD students
• Leader Prof Chris Mellish
• (one of) the best NLG groups in world
• Always looking fot good PhD students
