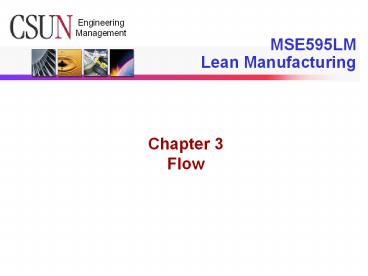

MSE595LMLean Manufacturing
Chapter 3Flow
2
Flow - Definition

• The production system Henry Ford introduced at
  his Highland Park, Michigan plant in 1913.
• The objective of flow production was to
  drastically reduce product throughput time and
  human effort through a series of innovations.
• Consistently interchangeable parts so that cycle
  times could be stable for every job along an
  extended line
• The line itself
• The reconfiguration of part fabrication tasks so
  that machines were lined up in process sequence
  with parts flowing quickly and smoothly from
  machine to machine
• Production control system insuring that the
  production rate in parts fabrication matched the
  consumption rate of parts in final assembly.

3
The World of Batch-and-Queue

• What happens when you go to your doctor?
• Make appointment days ahead
• Arrive on time and wait in waiting room
• Doctor behind schedule
• Referral to a specialist
• Laboratory tests
• Wait for results
• Treatment or medication given
• Trip to pharmacy or to specialist
• Hospitalization whole new disconnected
  processes and waiting
• What happens when you take a flight?
• What happens when you build a custom home?
• As the customer, you pay for all the waiting and
  rework
• The creation, ordering, and provision of any good
  or any service can be made to flow.

4
How to Obtain Flow?

• Think about ways to
• Line up all of the essential steps needed to get
  a job done
• Obtain a steady, continuous flow
• No wasted motions
• No interruptions
• No batches
• No queues
• Continuous Flow changes everything
• How we work together
• The kinds of tools we devise to help with our
  work
• The organizations we create to facilitate the
  flow
• The kinds of careers we pursue
• The nature of business firms and their linkage to
  each other
• The society

5
The Techniques of Flow

• Step 1 Focus on the actual object
• The specific design
• The Specific order
• The product itself
• Step 2 Ignore traditional boundaries of
• Jobs
• Careers
• Functions and
• Firms
• Form lean enterprise removing all obstacles to
  the continuous flow
• Step 3 Rethink specific work practices and tools

• Eliminate backflows, scrap, and stoppages so that
  the design, order, and production of the specific
  product can proceed continuously
• All three steps must be taken together

6
Example From Batch to Flow in BicyclesThe
Design Step

• Marketing department determined a need
• Product engineers design a product to serve the
  need
• Prototype department built a prototype to test
  the design
• Tooling department designed tools to make a
  high-volume version of the approved prototype
• Production engineering figured out how to use the
  tools to fabricate the frame and to assemble the
  component parts into a completed bike
• Purchasing department arranged to buy the
  necessary component parts for delivery to the
  assembly line once the design was finalized
• The design moved from department to department
  waiting in the queue
• Frequent reworked or secretly reengineered to
  deal with incompatibilities between the process
  steps

7
Example From Batch to Flow in BicyclesDesign
Using The Lean Approach

• Create truly dedicated product teams with all the
  skills required to conduct the following in one
  room in short period of time
• Value specification
• General design
• Detailed engineering
• Purchasing
• Tooling
• Production planning
• Quality Function Deployment (QFD)
  decision-making methodology utilizing
  standardized work to ensure process
  repeatability
• Throughput time accurately measured
• Design methodology continuously improved

8
Example From Batch to Flow in BicyclesOrder-Taki
ng

• Sales department obtain orders from retailers
• Scheduling department in Operations or
  Manufacturing work the production schedules for
  the various products
• Customers call the Sales department to status
  late orders
• Sales calls Scheduling
• When customers threaten to cancel orders, Sales
  and Scheduling expedite the orders
• Sales and Scheduling had been combined in the
  early 1990s
• Computerized systems make instantaneous order
  changes and sometimes electronically transmitted
  to the customers

9
Example From Batch to Flow in BicyclesOrder-Taki
ng Using the Lean Approach

• Sales and Production Scheduling are core members
  of the product team
• In a position to plan the sales campaign as the
  product design is being developed
• Sale with a clear eye to the capabilities of the
  production system so that both orders and the
  product can flow smoothly from sale to delivery
• No stoppages in the production system
• Products are built to order
• Only few hours elapse between the first operation
  on raw materials and shipment of the finished
  item
• Orders can be sought and accepted with clear and
  precise knowledge of the systems capabilities
• There is no expediting!

10
Takt Time

• Precisely synchronizes the rate of production to
  the rate of sales to customers
• Takt Time Calculation Example
• Customers are placing orders at the rate of
  48/day
• Bike factory works a single eight-hour shift
• Takt time adjusted as orders increase or decrease
  over time
• The production slots created by the Takt Time are
  clearly posted on whiteboard or electronic
  displays (andon boards)
• Lean technique transparency or visual control
  everyone can see where production stands at every
  moment

11
Takt Time
12
Key Points About Takt Time
13
Example From Batch to Flow in BicyclesProduction

• Historic practice was to differentiate production
  activities by type and to create departments for
  each type of activity.
• Frame and handle bars
• Tube cutting
• Tube bending
• Mitering
• Welding
• Washing
• Painting
• Final Assembly of complete bike
• Over time, higher speed machines with higher
  levels of automation were developed for cutting,
  bending, welding, and painting
• Assembly lines to assemble a mix of high-volume
  models
• Large batches made before changing over to run
  the next part
• Large inventory

14
Bicycle Plant Layout and Flow
15

• Continuous Flow Factory

16
Continuous Flow Production

• Remember!
• Make It Flow
• Feed the Flow
• Link the Flow

17
Continuous Flow Production
18
Steady Velocity
2 WEEKS!
When do we get our Parts?
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
Connected Lines
24
Layout change
Before
GearHobbing
ManualDeburring
ToothChamfer
HoleBoring
Gear Shaving
In
Out
25
Summary of Benefits

• Work flow levels are reduced and progress is
  visible at a glance
• The ability to cross train is enhanced
• Work team members take ownership of full process
  and can help each other
• Quick problem identification and feedback
• Reduced Cycle Time
• Improved quality through cycle of learning
• Information flow and decision making enhanced
• Value-added ratio improved
• Reduces transportation waste
• Reduces material handling
• Helps to identify root causes of quality problems
• Allows for equipment dedication
• Drives set-up times down

26
Rules for Kanban Systems

• 1) Pull from the downstream process (or
  customer) drives the system.
• 2) All product or inventory is under kanban
  control.
• 3) Only an empty kanban authorizes production.
• 4) Never pass a known defect downstream.
• 5) Use gradual kanban reductions to drive
  improvement.

27
Purpose of a Kanban System
1) Authorize production 2) Authorize
movement. 3) Limits amount of inventory in the
system. 4) A tool for driving continuous
improvement.
28
Kanban
Is a signal that

• The signal can be a
• Card
• Square
• Box
• Pigeon hole
• Light
• Etc.
• Electronic Signal
• Racks
• Shopping Carts
• MRK ( Manufacturing Ready Kit)

• Authorizes production

• Authorizes movement

• Limits inventory

• Drives continuous improvement

29
How Many Kanbans?
30
Example
31
Pull Production System

• Definition
• A customer driven system that produces and moves
  a product/service only when the customer needs it.

Customer Pulls
Kanban 1
Kanban 2
Kanban 3
Work Center A
Work Center B
Work Flow
32
Kanban Example
Condo-ban!!
Who is full?
Who needs work?
33
Kanban
Unit in build
Units ready for calibration
34
SMT Kanban
35
Kanban Light (More Work)
36
4-754 MRKManufacturing Ready Kit The empty kit
signals for replenishment
37
4-754 MRK
38
Homework Assignment

• Questions
• Explain what is meant by Continuous Flow
  Production
• What is Takt Time? What is Takt Rate? Why is it
  important to know them?
• Read Lean Thinking Chapter 4 - Pull
• Pages 67 - 89

39
Questions? Comments?
