FPGAbased Prototyping of the MultiLevel Computing Architecture

1

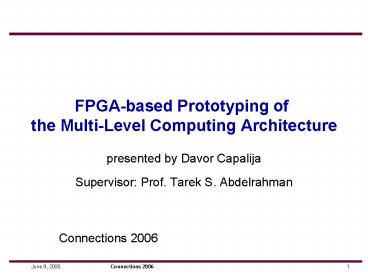

FPGA-based Prototyping of the Multi-Level
Computing Architecture

• presented by Davor Capalija
• Supervisor Prof. Tarek S. Abdelrahman

Connections 2006
2
A modern processor

• Superscalar, out-of-order and speculative
  execution

Control Unit
Instruction Queue
Memory
Register File
XU
XU
XU
Execution units
3
Multi-level Computing Architecture
Control Program
while() Allocate (out frame)
Preprocess() Analyze() Output()
Control Processor
Task Scheduler
Shared Memory
Universal Register File
PU
PU
PU
Task instruction
Preprocess()
Analyze()
Allocate()
Tasks
4
Previous work in the MLCA group

• Automatic task formation
• Kirk Stewart
• Compile-time optimizations to extract parallelism
• Utku Aydonat
• Task memory management
• Ahmed Abdelkhalek
• Power optimization using dynamic voltage scaling
• Ivan Matosevic

Work done using a high-level functional simulator
5
Motivation and goal

• Realistic cycle-accurate evaluation using
• an FPGA-based prototype
• Feasibility of hardware implementation
• Deliver scalable performance
• The control processor is expected to be a
  bottleneck
• Custom hardware design of the control processor
• Contribution microarchitecture of the control
  processor

6
Challenges

• Mapping the architecture to FPGA device resources
• High requirements for on-chip memory
  blocks, capacity ports
• System shared memory, URF
• PUs caches, private and instruction memories
• CP renaming tables, task queues
• Control processor microarchitecture design space
• Performance vs. area trade-offs
• Support for speculative execution of tasks

7
Status

• Initial FGPA-based prototype
• Nios II Development Board, Stratix Pro Edition
  (1S40)
• Based on initial implementation by David Han
• PUs - Altera Nios II/f processors
• Interconnect - Altera Avalon interconnect
• Memory - both on-chip off-chip
• Software-based control processor
• Emulated on one Nios II/f processor
• Determining and removing bottlenecks
• Next step microarchitecture of the Control
  Processor

8
Bonus
FPGA device
Shared memory
Universal Register File
CPs mem
Ins4 M
Priv4 M
Ins1 M
Priv1 M
Ins2 M
Priv2 M
Ins3 M
Priv3 M
I
D
I
D
I
D
I
D
I
D
PU3
PU4
PU1
CP
PU2
Comm4
Comm1
Comm2
Comm3
CP
TQ
RT
