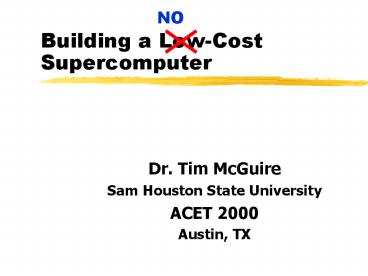

Building a Low-Cost Supercomputer
NO

• Dr. Tim McGuire
• Sam Houston State University
• ACET 2000
• Austin, TX

2
Acknowledgments

• Most treatments of cluster computing (including
  this one) are heavily based on the seminal work
  of Greg Pfister (IBM Research, Austin,) In Search
  of Clusters
• The concept of Beowulf clusters originated with
  Donald J. Becker and Thomas Sterling at the
  Center of Excellence in Space Data and
  Information Sciences, NASA Goddard Space Flight
  Center

3
Introduction

• There are three ways to do anything faster
• Work harder
• "Crunch Time" is familiar to all of us
• Work smarter
• Better to find a way to reduce the work needed
• Get help
• Certainly works, but we all know about committees
  ...

4
In a computer ...

• Working Harder
• Get a faster processor
• Working Smarter
• Use a better algorithm
• Getting Help
• Parallel processing

5
Working Harder -- Faster Processors

• The effect of faster processors is astonishing
• The effective speed of the x86 family of
  processors has increased nearly 50 per year
• RISC architectures have sustained a 60 annual
  cumulative growth rate
• These trends will likely continue for the
  foreseeable future

6
Working Smarter -- Better Algorithms

• The increases in speed made possible by better
  algorithms dwarf the accomplishments of faster
  hardware
• Binary search on 1 billion items takes 30
  comparisons, versus a maximum of one billion
  comparisons using linear search

7
Getting Help -- Parallel Processing

• Covert parallel processing
• pipelining, vector processing, etc.
• really equivalent to faster hardware
• Overt parallelism
• Done via software
• "Parallelism is the wave of the future -- and
  always will be"

8
Early Attempts at Parallelism

• Von Neumann thought it was too hard, and gave us
  the "Von Neumann bottleneck"
• 60's ILLIAC IV project was the first great
  attempt at parallel processing (as well as trying
  to advance circuit and software technology.)
• Japanese Fifth Generation Project launched
  another wave, including the Grand Challenge
  problems

9
Microprocessor Revolution

• Microprocessors have had a superior
  price/performance ratio
• "All you have to do is gang a whole bunch of them
  together"
• The problem is "All you also have to do is
  program them to work together"
• Programming costs much more than hardware

10
Highly Parallel Computing

• Finally, (early 90's) microprocessors became fast
  and powerful enough that a practical-sized
  aggregation of them seemed the only feasible way
  to exceed supercomputer speeds
• Even Cray Research (T3D) got into the act

11
"Lowly" Parallel Processing

• Mid-to-late 90's -- military downsizing (among
  other things) caused funding to dry up
• However
• Microprocessors kept getting faster a lot
  faster
• With overall performance doubling each year, in 4
  years what needed 256 processors can be done with
  16 instead.
• System availability became a mass market issue
• Since computers are so cheap, buy two (or more)
  for redundancy in case one fails and use them
  both, interconnected by a network

12
SMP -- One Form of "Cheap" Parallelism

• Symmetric multiprocessors have been around for
  some time and have certain advantages over
  clusters
• Typically, these have been shared memory systems
  -- few communication problems

13
The Big Distinction -- Programming

• How you program SMP systems is substantially
  different from programming clusters Their
  programming models are different
• If you explicitly exploit SMP in an application,
  it's essentially impossible to efficiently
  exploit clusters in the same program

14
Why Clusters?

• The Standard Litany
• Why Now ?
• Why Not Now?

15
The Standard Litany

• Performance
• Availability
• Price/Performance Ratio
• Incremental Growth
• Scaling
• Scavenging

16
Performance

• No matter what form or measure of performance one
  is seeking -- throughput, response time,
  turnaround time, etc., it is straightforward to
  claim that one can get even more of it by using a
  bunch of machines at the same time.
• Only occasionally does one hear the admission
  that a "tad bid" of new programming will be
  needed for anything to work correctly.

17
Availability

• Having a computer shrivel up into an expensive
  paperweight can be a lot less traumatic if it's
  not unique, but rather one of a herd.
• The work done by the dear departed sibling can be
  redistributed among the others (fail-soft
  computing)

18
Price/Performance Ratio

• Clusters and other forms of computer aggregation
  are typically collections of machines that
  individually have very good performance for their
  price.
• The promise is that the aggregate retains the
  price/performance of its individual members.

19
Incremental Growth

• To the degree that one really does attain greater
  performance and availability with a group of
  computers, one should be able to enhance both by
  merely adding more machines.
• Replacing machines should not be necessary.

20
Scaling

• "Scalable" is, unfortunately, a buzzword
• What it does deal with is how big a computer
  system can usably get.
• It is a crucial element in the differentiation
  between clusters and symmetric multiprocessors.

21
Scavenging

• "Look at all those unused CPU cycles spread
  across all the desktops in our network"
• Unused cycles are free.
• However, how do you get and manage them? -- this
  complicates cluster support very significantly

22
The Benefits are Real

• But, how does one take advantage of it?
• The hardware provides the potential.
• The fulfillment lies in the software, and
  unfortunately, software isn't riding the
  exponential growth curve.

23
Why Now?

• Three Trends
• Fat Boxes -- very high performance
  microprocessors
• Fat Pipes -- standard high-speed communication
• Thick Glue -- standard tools for distributed
  computing
• One Market Requirement
• High Availability

24
Fat Boxes

• Microprocessors have kept, and will keep getting
  faster.
• Supercomputers in the classic style are extinct
  for practical purposes
• Mass-market, inexpensive microprocessors have
  crawled up the tailpipe of the workstation market
  just like workstations crawled up the tailpipe of
  minicomputers and mainframes earlier.
• There are no more supercomputers, there is only
  supercomputing.

25
Fat Pipes

• Commodity off the shelf (COTS) networking parts
  have achieved communication performance that was
  only previously possible with expensive,
  proprietary techniques
• Standardized communication facilities such as
• ATM - Asynchronous Transmission Mode
• Switched Gigabit Ethernet
• FCS -- Fibre Channel Standard
• Performance of Gigabytes per second are possible.

26
Thick Glue

• Standard tools for distributed computing such as
  TCP/IP
• Intranets, the Internet, and the World Wide Web
• Tool sets for distributed system administration
• PVM (Parallel Virtual Machine) and MPI (Message
  Passing Interface)

27
Requirement for High Availability

• Nobody has ever wanted computers to break.
• However, never before has high availability
  become a significant issue in a mass market
  computer arena.
• Clusters are uniquely capable of answering the
  need of both sides of the spectrum and are much
  cheaper than hardware based fault-tolerant
  approaches.

28
Why Not Now?

• If they're so good, why haven't clusters become
  the most common mode of computation?
• Lack of "single system image" software
• Limited exploitation

29
Lack of Single System Image Software

• Replacing a single large computer with a cluster
  means that many systems will have to be managed
  rather than one.
• Their distributed management tools are tools, not
  turnkey systems
• 50 of the cost of a computer system is staffing,
  rather than hardware, software, or maintenance

30
Limited Exploitation

• Only relatively few types of subsystems now
  exploit the ability of clusters to provide both
  scalable performance and high availability.
• This is a direct result of substantial
  difficulties that arise in parallel programming.
• The problem is not hardware, it's software

31
An Exception

• For one kind of parallel system, the software
  issues have been addressed to a large degree
  The symmetric multiprocessor (SMP)
• It of necessity requires a single system image

32
Definitions, Distinctions, and Comparisons

• Definition
• Distinction from Parallel Systems
• Distinctions from Distributed Systems
• Comparisons and Contrasts

33
Definition

• A cluster is a type of parallel or distributed
  system that
• consists of a collection of interconnected
  stand-alone computers, and
• is used as a single, unified computing resource
• We define them as a subparadigm of distributed
  (or parallel) systems

34
Distinction from Parallel Systems

• A useful analogy
• This is A Dog
• (a single computer)

35
A Pack of Dogs

• And this is a pack of dogs (running in parallel)
• (a cluster)

36
A Savage Multiheaded Pooch

• or, pardon the abbreviation, "SMP"
• (This pooch is no relation to Kerberos (Cerberus
  in Latin) that guards both the gates of Hades and
  distributed systems -- He only has three heads.)

37
Dog Packs and SMPs are Similar

• Both are more potent than just plain dogs
• They can both bring down larger prey than a plain
  single dog.
• They eat more and eat faster than a single dog

38
Dog Packs and SMPs are Different

• Scaling
• Availability
• System Management
• Software Licensing

39
Scaling Differences

• The Savage Multiheaded Pooch can take many bites
  at once
• What happens when it tries to swallow?
• It needs a larger throat, stomach, intestines,
  etc.
• Similarly, to scale SMPs, you must beef up the
  entire machine
• When you add another dog to a dog pack, you add a
  whole dog. You don't have to do anything to the
  other dogs.
• Likewise, clusters

40
Availability

• If an SMP breaks a leg
• "that dog won't hunt" no matter how many
  heads it has.
• If a member of the pack is injured, the rest of
  the pack can still bring down prey.

41
System Management

• You only have to walk a SMP once.
• It takes a good deal more effort to train a pack
  of dogs to behave.
• With the SMP, all you have to do is get the heads
  to learn basic cooperation (and that should be
  built into the operating system.)

42
Licensing (Dogs or Software)

• If you get a license for an SMP, you'll probably
  only need one license
• For an cluster of dogs, you'll need one per dog

43
Distinctions from Distributed Systems

• The distinctions of clusters from distributed
  systems is not as clear (and a lot of people
  confuse the two.)
• We'll try. The salient points are
• Internal Anonymity
• Peer Relationship
• Clusters as part of a Distributed System

44
Internal Anonymity

• Nodes in a distributed system necessarily retain
  their own individual identities
• The elements of a cluster are usually viewed from
  outside the cluster as anonymous
• Internally, they may be differentiated, but
  externally the jobs are submitted to the cluster,
  not, for example, to cluster node 4

45
Peer Relationship

• Distributed systems
• use an underlying communication layer that is
  peer-to-peer
• at a higher level, they are often organized into
  a client-server paradigm
• Clusters
• underlying communication is peer-to peer
• organization is also peer-to-peer (with some
  minor exceptions)

46
Clusters as part of a Distributed System

• Clusters usually exist in the context of a
  distributed system
• In this case, they are viewed by the distributed
  system as a single node
• For example, the cluster could server as a
  compute engine
• It also could serve as, say, a DBMS server in the
  client-server paradigm (but that's not the
  organization we want to consider in this
  presentation)

47
Beowulf Clusters

• The Beowulf project was initiated in 1994 under
  the sponsorship of the NASA HPCC program to
  explore how computing could be made "cheaper
  better faster".
• They termed this PoPC -- a Pile of PCs

48
The "Pile of PCs" Approach

• Very similar to COW (cluster of workstations) and
  shares the roots of NOW (network of
  workstations,) but emphasizes
• COTS (commodity off the shelf) components
• dedicated processors (rather than scavenging
  cycles from idle workstations)
• a private system area network (enclosed SAN
  rather than exposed LAN)

49
What Beowulf Adds

• Beowulf adds to the PoPC model by emphasizing
• no custom components
• easy replication from multiple vendors
• scalable I/O
• a freely available software base
• using freely available distributed computing
  tools with minimal changes
• a collaborative design

50
Advantages of the Beowulf Approach

• No single vendor owns the rights to the product
  -- not vulnerable to single vendor decisions
• Approach permits technology tracking -- using the
  best, most recent components at the best price
• Allows "just in place" configuration -- permits
  flexible and user driven decisions

51
Software for Beowulf

• Exploits readily available, usually free software
  systems
• These systems are as sophisticated, robust, and
  efficient as commercial-grade software
• Derived from community-wide collaborations in
  operating systems, languages, compilers, and
  parallel computing libraries

52
Operating Systems, etc.

• Two of the operating systems used are
• Linux (Slackware, RedHat, and Debian
  distributions are all used)
• FreeBSD
• Both have
• commercial distributors and support
• full X Windowing support
• a variety of shells
• a variety of quality compilers
• message passing libraries, such as PVM and MPI

53
Beowulf Architecture

• Beowulf clusters have been assembled around every
  new generation of commodity CPUs since the first
  100 MHz 486DX4 in 1994
• The idea here is to use fast but cheap CPUs
• We also need to interconnect them with a private
  network that is fast but cheap
• Originally used channel-bonded 10Mbit/sec
  Ethernet with multiple Ethernet cards per CPU
  because the 100 MHz processors were faster than
  the network
• When 100Mbit/sec Ethernet cards and switches
  became available, channel bonding was discarded

54
Alternatives

• Mostly, Intel 80x86 CPUs have been used, but
  Beowulf-class clusters have been constructed from
  other chips such as the DEC Alpha
• Fast Ethernet is most commonly used, but some use
  1Gb/sec Ethernet or Myrinet (about 2.5Gb/sec)
  where performance is worth the much higher cost

55
Topology

• Small systems (-- a single switch
• (If price outweighs performance, a hub may be
  used instead of a switch)

Node
Switch
56
Connecting to the Outside World

• If the switch is smart (read expensive) it may be
  connected directly to the LAN
• Most often, however, one node of the cluster has
  a second (slower) network card connecting it to
  the LAN

57
Larger Systems

• Beyond 24 nodes, suitable switches just do not
  exist for a single-switch solution
• A two level tree with (non-leaf) nodes of 16-way
  Ethernet can handle over 200 processors
• If locality can be exploited (big problem) there
  is no major performance hit
• For system wide random communication, the root
  node switch can be a severe bottleneck

58
Example of a Larger System -- The Hive at NASA
GSFC

• http//newton.gsfc.nasa.gov/thehive

59
Beowulf at SHSU -- Bubbawulf

• Bubbawulf consists of 8 nodes
• Pentium 350 with 64MB RAM
• Main node has a 4GB disk
• Other 7 nodes are headless and diskless
• Interconnected through a Cisco 2900 switch (100Mb
  full-duplex switched Ethernet network)
• The 7 (beowulf2 - beowulf8) mount their file
  systems off the main node via NFS

60

• Bubbawulf was constructed early in 1999 at a
  total cost of about 15,000 and will eventually
  be upgraded to the maximum of 24 nodes
• Cost now would be about 1/2 of original
• For more on Bubbawulf, see http//beowulf.shsu.edu

61
Cheaper Clusters

• The WTAMU Beowulf Project, 1998
• The "Buffalo" CHIP (Cluster of Hierarchical
  Integrated Processors)
• http//wtfaculty.wtamu.edu/rmashburn
• Total cost

62
Hardware

• 16 port Fast Ethernet switch (1000)
• Node 0 (Scavenged -- my 1995 desktop)
• Intel Pentium 90 processor
• 16 MB RAM
• 1.0 GB Hard drive
• 3COM 3c905b 10Mbs Ethernet card (connection to
  outside world)
• Linksys LNE100TX 100Mbs Ethernet card
• 8x CD-ROM

63
Hardware

• Nodes 1-3 (500 each -- mail order)
• Intel Pentium 200 processors
• 32 MB RAM
• 3.2 GB hard drives
• Linksys LNE100TX 100Mbs Ethernet card
• 40x CD-ROM

64
Software

• Operating System
• RedHat Linux 6.0
• Message Passing Interface
• LAM MPI version 6.3-3b

65
Free Clusters

• The epitome of clusters is the "Stone
  Soup-ercomputer" at Oak Ridge National
  Laboratories
• A group of physicists with no budget built a
  Beowulf cluster from cast-off PCs and outdated
  network hardware

66
The Stone Soupercomputer
67
How to Build a "Free" Beowulf

• Gather a bunch of machines that are considered
  "too slow" to run Microsoft software
• Typically these might be older Pentiums in the 90
  - 233 MHz range -- they need not be identical
• 16 MB RAM is probably the minimal good amount, 32
  MB is better
• Hard drives are nice -- diskless stations are
  possible, but harder to set up -- 1GB is plenty
  big
• A CD-ROM simplifies hardware installation
• You'll need at least one monitor and keyboard

68
Gather Network Hardware

• Fast Ethernet switches are nice, but not usually
  available at low cost
• Ethernet hubs are inexpensive, possibly free if
  older 10Mbs technology (10baseT)
• 10base2 Ethernet is slow, but cheap because it
  doesn't require a hub or switch
• You will take a big performance hit with the
  slower technology

69
What Next?

• After you get the hardware set up, start
  installing the software
• Usually Linux is the OS of choice
• Set up each node as a stand-alone system
• Let them know about each other by assigning IP
  addresses (192.168.0.x is a good choice) in
  /etc/hosts
• Install communication software (MPI or PVM)

70
How Does One Program a Beowulf?

• The short answer is Message Passing, a technique
  originally developed for distributed computing
• The Beowulf architecture means that message
  passing is more efficient -- it doesn't have to
  compete with other traffic on the net
• Other techniques are being explored -- People are
  just now looking at Java

71
Message Passing Software

• PVM (parallel virtual machine) was first
• Developed at Oak Ridge labs
• Very widely used (free)
• Berkeley NOW (network of workstations) project

72
More Recent Message Passing Work

• MPI (Message-passing Interface)
• Standard for message passing libraries
• Defines routines but not implementation
• Very comprehensive
• Version 1 released in 1994 with 120 routines
  defined
• Version 2 now available

73
IEEE Task Force on Cluster Computing

• Aim to foster the use and development of
  clusters
• Obtained IEEE approval early 1999
• Main home page http//www.dgs.monash.edu.au/rajk
  umar/tfcc

74
Conclusions

• Cluster computing offers a very attractive cost
  effective method of achieving high performance
• Promising future

75
Quote Gill wrote in 1958(quoting papers back to
1953)

• There is therefore nothing new in the basic
  idea of parallel programming, but only its
  application to computers. The author cannot
  believe that there will be any insuperable
  difficulty in extending it to computers. It is
  not to be expected that the necessary programming
  techniques will be worked out overnight. Much
  experimenting remains to be done. After all, the
  techniques that are commonly used in programming
  today were only won at the cost of considerable
  toil several years ago. In fact the advent of
  parallel programming may do something to revive
  the pioneering spirit in programming which seems
  at the present to be degenerating into a rather
  dull and routine occupation.
• Gill, S. (1958), Parallel Programming, The
  Computer Journal (British) Vol. 1, pp. 2-10.
