Reallife experiences with grids: Its not as easy as it looks

1

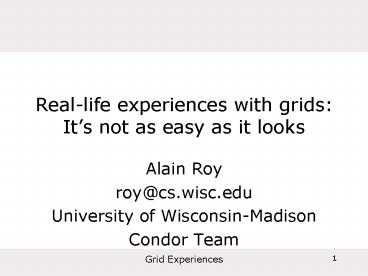

Real-life experiences with gridsIts not as
easy as it looks

• Alain Roy
• roy_at_cs.wisc.edu
• University of Wisconsin-Madison
• Condor Team

2
Who Am I?

• Member of Condor Team
• Experience with Condor
• Experience with grid deployment
• Developer of Virtual Data Toolkit
• Used by GriPhyN, EDG, LCG
• Packaging of Globus, Condor, etc.
• Collaborator with INFN
• Working with Paolo Mazzanti
• In Bologna for four weeks

3
Italy

• Italy is beautiful
• The food is wonderful
• The people are friendly

4
Background

• Condors environment is a little like a grid
• Not all computers (grid sites) are under Condors
  control
• Computers (grid sites) disappear at the owners
  whim
• Everything changes constantly
• Condor was built to deal with this dynamic
  environment
• Grid software needs to do the same

5
Background

• Late 1980s until today
• Condor developed and deployed on hundreds of
  sites
• Condor built to deal with failures
• Recently
• Condor-G your window to the grid
• Condor team has helped deploy grid technology for
  real usenot just experiments

6
Background Condor

• Condor is a batch job system
• Goal High throughput computing
• Different than high-performance
• Goal High reliability
• Goal Support distributed ownership

7
High-Throughput Computing

• Worry about FLOPS/year, not FLOPS/second
• Use all resources effectively
• Dedicated clusters
• Non-dedicated computers (desktop)

8
Effective Resource Use

• Requires high reliability
• Computers come and go, your jobs shouldnt.
• Checkpointing
• Be prepared for everything breaking
• Requires distributed ownership

9
Condor-G

• Condor-G submits Globus jobs
• Jobs are in persistent queue
• Unlike globus-job-run
• Jobs are retried on system failures
• Jobs are held on some failures
• Condor-G makes it easy to submit grid jobs

10
Background USCMS

• CMS
• Detector online in 2007
• Needs to simulate reconstruct millions of
  events
• USCMS testbed
• Joint PPDG/GriPhyN effort
• Integrate CMS tools with grid tools
• Globus
• Condor-G
• Contribute real work to CMS

11
Background USCMS

• 7 sites, 250 CPUs
• Spring 2002 Deploy test
• Fall 2002
• Last minute production
• 150,000 events in two weeks
• Successful, but lots of work
• Today
• Wider deployment use

12
Background DØ

• Experiment at Fermilab
• Already doing real production, real analysis
• Deploying on grid sites today
• Condor-G
• Globus
• SAM

13
DØ Condor-G

• They liked Condor-G
• Condor-G missing a feature
• Deciding which grid-site to use
• SAM (data handling software) knows where data is
  located
• SAMGrid
• Condor-G asks SAM for advice
• Condor-G decides where to run jobs

14
DØ deployment

• Spring Beginning of deployment
• Late summer production
• Early results
• It looks good
• We have more work to do
• Better error reporting
• Better matchmaking
• What will we learn later?

15
Problems Lessons

• During our experiences, weve
• Encountered many problems
• Developed solutions to these problems
• Learned many lessons about grids
• This talk
• Shares some interesting problems
• Gives some advice solutions

16
Taking a taxi
Problem

• How do you take a taxi in Paestum, Italy?
• We dont need to walk 4km there
• The ruins were lovely
• The ruins were outside
• It was about 35C
• Wife is pregnant

17
Use all your resources
Lesson

• Walk up to storekeeper
• Ask Dovay Ooon Taxi? (Dove un taxi?)
• Be patient Wait ten minutes
• Take taxi
• I assumed my resources (local knowledge, Italian)
  were insufficient, but they saved me time when I
  used them

18
Use all your resources
Lesson

• Condor
• Uses dedicated machines (I can walk)
• Uses non-dedicated machines (I can sometimes ask
  for help)
• Grids
• Connect your machine rooms
• Can you take advantage of other resources?
• Avoid mentality I must control all resources,
  and you will prosper

19
Grid distributed machine room?

• You can have good control
• You can pre-install applications
• You know how everything works
• BUT
• You lose flexibility
• How quickly can you upgrade sites?
• Did they install everything correctly?
• Can you use new grid sites easily?

20
Grid Use all resources

• Assume basic grid software is installed
• Assume nothing else is installed
• Bring your software with you
• Submit one job install software
• Submit N jobs use software
• You control software
• You ensure correct installation
• Easy to use any grid site

21
Long-running programs
Problem

• Long-running programs crash
• Condor has daemons on each machine
• User (job) agent
• Machine agent
• Matchmaker
• They crash
• Programming errors
• Network failures
• Disk failures

22
Watch programs
Lesson

• Condor master
• Small program, rarely changed
• Runs Condor daemons
• When daemon crashes
• Restart daemon, send email
• If it crashes again, restart after backoff
• Result
• Many errors are silently fixed
• Yet we dont just ignore crashes

23
Short-running programs
Problem

• Short-running programs crash/hang
• Example globus-url-copy
• USCMS testbed staging data
• Some fraction of copies hang or fail
• Programming error delicate network
• Hard to reproduce and fix

24
Watch programs
Lesson

• When copy exceeds timeout, kill and retry
• Possible to do in shell scripting languages, but
  not easy
• Use Fault Tolerant Shell to watch programs

25
Fault Tolerant Shell

• Shell language built for coping with errors
• try for 30 minutes
• wget http//www.example.com/file.tar.gz
• gunzip file.tar.gz
• tar xf file.tar
• end

26
FTSH exponential backoff

• Why exponential backoff?
• What if 100 ftsh scripts are executing?
• Avoid synchronization ? reduce load, increase
  chance of success
• Similar to Ethernet

27
Fault Tolerant Shell

• Easier to cope with failures
• try 5 times
• wget http//www.example.com/file.tar.gz
• catch
• rm f file.tar.gz
• failure
• end

Cleanup partially downloaded file, if it exists
28
Fault Tolerant Shell

• Flexible
• try for 30 minutes
• try for 5 minutes
• wget http//example.com/file.tar.gz
• end
• try for 1 minute or 3 times
• gunzip file.tar.gz
• tar xf file.tar
• catch
• rm rf file.tar
• end
• end

29
FTSH More information

• Work of Doug Thain
• thain_at_cs.wisc.edu
• Excellent paper
• The Ethernet Approach to Grid Computing, by Doug
  Thain
• Available from http//www.cs.wisc.edu/thain
• Even if you dont use FTSH, read this paper!

30
Whose error is it?
Problem

• The source of an error is not always obvious
• The source of an error influences how you react
  to the error
• Example Java universe in Condor

31
Java Universe

• Users submit Java jobs to Condor
• Whose error is it? Check result code
• 1 Program dereferenced NULL pointer
• 1 Jobs image is corrupt
• 1 VM doesnt have enough memory to run program
• 1 Java installation is misconfigured

Job shouldnt run again
Job shouldnt run again
Try another machine with more memory
Dont use this machine for Java
32
Dont trust configuration
Lesson

• Users tells Condor Java is installed
• This is just a hint!
• Condor verifies Java configuration
• Run simple job, verify output
• If Java works, Condor advertises that Java can be
  used
• If Java fails, error is reported, Java cant be
  used

33
Look for error scope
Lesson

• Add Java wrapper to all Java jobs
• Run program
• Examine return code/exception
• Write all details to file
• Examine output of wrapper, or exception from JVM
• We know if job is bad
• We know if JVM is insufficient for job
• We know if JVM is bad

34
Error Scope

• We could have an entire talk on error scope
• Excellent paper Error Scope on a Computational
  Grid Theory and Practice, by Doug Thain
• Useful paper even if you dont use Condor or Java

35
Many layers in a grid
Problem
36
We forgot inetd

• We submitted 300 jobs at once
• Inetd noticed many connections per second
• Inetd presumed there was a denial of service
  attack and refused connections for five minutes
• Lots of debugging!

37
There are more layers!
USCMS Testbed Architecture (A bit dated)
Master Site
Worker
Impala
Globus
MOP
Batch System (Condor, PBS)
DAGMan
Real Work
Condor-G
38
More layers than that!
USCMS Testbed Architecture (A bit dated)

• MCRunJob
• Impala
• MOP
• condor_schedd
• DAGMan
• Condor-G condor_schedd
• condor_gridmanager
• gahp_server

• globus-gatekeeper
• globus-job-manager
• globus-job-manager-script.pl
• local batch system submit
• local batch system execute
• MOP wrapper
• Impala wrapper
• actual job

This disregards inetd, network, file servers,
file transfers
39
Recovery at multiple levels
Lesson

• Fault-tolerance and recovery is built in at many
  levels
• Condor_master restart daemons
• Condor_schedd job queue
• DAGMan checkpoint DAG of jobs
• Gahp_server isolate Globus libraries
• And others

40
Allocate debugging time
Lesson

• Allocate lots of debugging time
• It is very hard to propagate errors
• How does a user find a remote error?
• Call system administrator
• Admin looks through log files for each layer (not
  accessible to user)
• We need better debugging methods

41
Everything will fail(Everything)
Problem

• In the USCMS testbed production
• Power outage for several hours
• Network outages few minutes-11 hr.
• Failed configuration change
• Site upgraded
• Jobs accidentally removed
• Software bugs everywhere

42
How do you cope?

• Condor-G
• Error job cannot run. This is not good enough
• Resubmit jobs that can be resubmitted, perhaps
  after a delay
• Put jobs on hold in queue
• User examines hold reason (proxy is expired)
• User fixes error
• User restarts job

43
Everything will fail(Even the little things)
Problem

• Condor Matchmaker
• Collects descriptions of machines jobs
• Soft state in matchmaker (push smarts to edge,
  like Internet)
• UDP packets to advertise machines
• Less overhead than many TCP connections
• Works great in a LAN
• But

44
Everything will fail UDP

• But you lose some UDP packets
• Send packets every five minutes
• Keep stale information for 15 minutes
• Be prepared to cope with stale information
• This has worked for years in Condor
• DØ matchmaking on grid
• UDP packets from Korea to Chicago were completely
  lost on weekdays
• Added TCP option

45
Be prepared
Lesson

• Assume everything will fail
• Have recovery at multiple levels
• Understand scope of errors
• Dont trust configuration
• Verify it
• Install configure software on the fly
• Assume bugs are everywhere
• Build software to cope with errors
