Title: Course on Data Mining 5815504

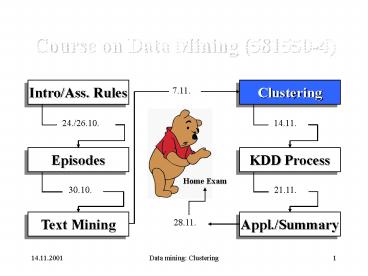

1
Course on Data Mining (581550-4)
Intro/Ass. Rules
Clustering
Episodes
KDD Process
Text Mining
Appl./Summary
2
Course on Data Mining (581550-4)
Today 14.11.2001
  • Today's subject
  • Classification, clustering
  • Next week's program
  • Lecture Data mining process
  • Exercise Classification, clustering
  • Seminar Classification, clustering

3
Classification and clustering
  • Classification and prediction
  • Clustering and similarity

4
Cluster analysis
  • What is cluster analysis?
  • Similarity and dissimilarity
  • Types of data in cluster analysis
  • Major clustering methods
  • Partitioning methods
  • Hierarchical methods
  • Outlier analysis
  • Summary

Overview
5
What is cluster analysis?
  • Cluster a collection of data objects
  • similar to one another within the same cluster
  • dissimilar to the objects in the other clusters
  • Aim of clustering to group a set of data objects
    into clusters

6
Typical uses of clustering
  • As a stand-alone tool to get insight into data
    distribution
  • As a preprocessing step for other algorithms

Used as?
7
Applications of clustering
  • Marketing discovering of distinct customer
    groups in a purchase database
  • Land use identifying of areas of similar land
    use in an earth observation database
  • Insurance identifying groups of motor insurance
    policy holders with a high average claim cost
  • City-planning identifying groups of houses
    according to their house type, value, and
    geographical location

8
What is good clustering?
  • A good clustering method will produce high
    quality clusters with
  • high intra-class similarity
  • low inter-class similarity
  • The quality of a clustering result depends on
  • the similarity measure used
  • implementation of the similarity measure
  • The quality of a clustering method is also
    measured by its ability to discover some or all
    of the hidden patterns

9
Requirements of clustering in data mining (1)
  • Scalability
  • Ability to deal with different types of
    attributes
  • Discovery of clusters with arbitrary shape
  • Minimal requirements for domain knowledge to
    determine input parameters

10
Requirements of clustering in data mining (2)
  • Ability to deal with noise and outliers
  • Insensitivity to order of input records
  • High dimensionality
  • Incorporation of user-specified constraints
  • Interpretability and usability

11
Similarity and dissimilarity between objects (1)
  • There is no single definition of similarity or
    dissimilarity between data objects
  • The definition of similarity or dissimilarity
    between objects depends on
  • the type of the data considered
  • what kind of similarity we are looking for

12
Similarity and dissimilarity between objects (2)
  • Similarity/dissimilarity between objects is often
    expressed in terms of a distance measure d(x,y)
  • Ideally, every distance measure should be a
    metric, i.e., it should satisfy the following
    conditions

13
Type of data in cluster analysis
  • Interval-scaled variables
  • Binary variables
  • Nominal, ordinal, and ratio variables
  • Variables of mixed types
  • Complex data types

14
Interval-scaled variables (1)
  • Continuous measurements of a roughly linear scale
  • For example, weight, height and age
  • The measurement unit can affect the cluster
    analysis
  • To avoid dependence on the measurement unit, we
    should standardize the data

15
Interval-scaled variables (2)
  • To standardize the measurements
  • calculate the mean absolute deviation
  • where and
  • calculate the standardized measurement (z-score)

16
Interval-scaled variables (3)
  • One group of popular distance measures for
    interval-scaled variables are Minkowski distances
  • where i (xi1, xi2, , xip) and j (xj1, xj2,
    , xjp) are two p-dimensional data objects, and q
    is a positive integer

17
Interval-scaled variables (4)
  • If q 1, the distance measure is Manhattan (or
    city block) distance
  • If q 2, the distance measure is Euclidean
    distance

18
Binary variables (1)
  • A binary variable has only two states 0 or 1
  • A contingency table for binary data

Object j
Object i
19
Binary variables (2)
  • Simple matching coefficient (invariant
    similarity, if the binary variable is symmetric)
  • Jaccard coefficient (noninvariant similarity, if
    the binary variable is asymmetric)

20
Binary variables (3)
  • Example dissimilarity between binary variables
  • a patient record table
  • eight attributes, of which
  • gender is a symmetric attribute, and
  • the remaining attributes are asymmetric binary

21
Binary variables (4)
  • Let the values Y and P be set to 1, and the value
    N be set to 0
  • Compute distances between patients based on the
    asymmetric variables by using Jaccard coefficient

22
Nominal variables
  • A generalization of the binary variable in that
    it can take more than 2 states, e.g., red,
    yellow, blue, green
  • Method 1 simple matching
  • m of matches, p total of variables
  • Method 2 use a large number of binary variables
  • create a new binary variable for each of the M
    nominal states

23
Ordinal variables
  • An ordinal variable can be discrete or continuous
  • Order of values is important, e.g., rank
  • Can be treated like interval-scaled
  • replacing xif by their rank
  • map the range of each variable onto 0, 1 by
    replacing i-th object in the f-th variable by
  • compute the dissimilarity using methods for
    interval-scaled variables

24
Ratio-scaled variables
  • A positive measurement on a nonlinear scale,
    approximately at exponential scale
  • for example, AeBt or Ae-Bt
  • Methods
  • treat them like interval-scaled variables not a
    good choice! (why?)
  • apply logarithmic transformation yif log(xif)
  • treat them as continuous ordinal data and treat
    their rank as interval-scaled

25
Variables of mixed types (1)
  • A database may contain all the six types of
    variables
  • One may use a weighted formula to combine their
    effects
  • where

26
Variables of mixed types (2)
  • Contribution of variable f to distance d(i,j)
  • if f is binary or nominal
  • if f is interval-based use the normalized
    distance
  • if f is ordinal or ratio-scaled
  • compute ranks rif and
  • and treat zif as interval-scaled

27
Complex data types
  • All objects considered in data mining are not
    relational gt complex types of data
  • examples of such data are spatial data,
    multimedia data, genetic data, time-series data,
    text data and data collected from World-Wide Web
  • Often totally different similarity or
    dissimilarity measures than above
  • can, for example, mean using of string and/or
    sequence matching, or methods of information
    retrieval

28
Major clustering methods
  • Partitioning methods
  • Hierarchical methods
  • Density-based methods
  • Grid-based methods
  • Model-based methods (conceptual clustering,
    neural networks)

29
Partitioning methods
  • A partitioning method construct a partition of a
    database D of n objects into a set of k clusters
    such that
  • each cluster contains at least one object
  • each object belongs to exactly one cluster
  • Given a k, find a partition of k clusters that
    optimizes the chosen partitioning criterion

30
Criteria for judging the quality of partitions
  • Global optimal exhaustively enumerate all
    partitions
  • Heuristic methods
  • k-means (MacQueen67) each cluster is
    represented by the center of the cluster
    (centroid)
  • k-medoids (Kaufman Rousseeuw87) each cluster
    is represented by one of the objects in the
    cluster (medoid)

31
K-means clustering method (1)
  • Input to the algorithm the number of clusters k,
    and a database of n objects
  • Algorithm consists of four steps
  • partition object into k nonempty subsets/clusters
  • compute a seed points as the centroid (the mean
    of the objects in the cluster) for each cluster
    in the current partition
  • assign each object to the cluster with the
    nearest centroid
  • go back to Step 2, stop when there are no more
    new assignments

32
K-means clustering method (2)
  • Alternative algorithm also consists of four
    steps
  • arbitrarily choose k objects as the initial
    cluster centers (centroids)
  • (re)assign each object to the cluster with the
    nearest centroid
  • update the centroids
  • go back to Step 2, stop when there are no more
    new assignments

33
K-means clustering method - Example
34
Strengths of K-means clustering method
  • Relatively scalable in processing large data sets
  • Relatively efficient O(tkn), where n is
    objects, k is clusters, and t is iterations.
    Normally, k, t ltlt n.
  • Often terminates at a local optimum the global
    optimum may be found using techniques such as
    genetic algorithms

35
Weaknesses of K-means clustering method
  • Applicable only when the mean of objects is
    defined
  • Need to specify k, the number of clusters, in
    advance
  • Unable to handle noisy data and outliers
  • Not suitable to discover clusters with non-convex
    shapes, or clusters of very different size

36
Variations of K-means clustering method (1)
  • A few variants of the k-means which differ in
  • selection of the initial k centroids
  • dissimilarity calculations
  • strategies for calculating cluster centroids

37
Variations of K-means clustering method (2)
  • Handling categorical data k-modes (Huang98)
  • replacing means of clusters with modes
  • using new dissimilarity measures to deal with
    categorical objects
  • using a frequency-based method to update modes of
    clusters
  • A mixture of categorical and numerical data
    k-prototype method

38
K-medoids clustering method
  • Input to the algorithm the number of clusters k,
    and a database of n objects
  • Algorithm consists of four steps
  • arbitrarily choose k objects as the initial
    medoids (representative objects)
  • assign each remaining object to the cluster with
    the nearest medoid
  • select a nonmedoid and replace one of the medoids
    with it if this improves the clustering
  • go back to Step 2, stop when there are no more
    new assignments

39
Hierarchical methods
  • A hierarchical method construct a hierarchy of
    clustering, not just a single partition of
    objects
  • The number of clusters k is not required as an
    input
  • Use a distance matrix as clustering criteria
  • A termination condition can be used (e.g., a
    number of clusters)

40
A tree of clusterings
  • The hierarchy of clustering is ofter given as a
    clustering tree, also called a dendrogram
  • leaves of the tree represent the individual
    objects
  • internal nodes of the tree represent the clusters

41
Two types of hierarchical methods (1)
  • Two main types of hierarchical clustering
    techniques
  • agglomerative (bottom-up)
  • place each object in its own cluster (a
    singleton)
  • merge in each step the two most similar clusters
    until there is only one cluster left or the
    termination condition is satisfied
  • divisive (top-down)
  • start with one big cluster containing all the
    objects
  • divide the most distinctive cluster into smaller
    clusters and proceed until there are n clusters
    or the termination condition is satisfied

42
Two types of hierarchical methods (2)
43
Inter-cluster distances
  • Three widely used ways of defining the
    inter-cluster distance, i.e., the distance
    between two separate clusters, are
  • single linkage method (nearest neighbor)
  • complete linkage method (furthest neighbor)
  • average linkage method (unweighted pair-group
    average)

44
Strengths of hierarchical methods
  • Conceptually simple
  • Theoretical properties are well understood
  • When clusters are merged/split, the decision is
    permanent gt the number of different
    alternatives that need to be examined is reduced

45
Weaknesses of hierarchical methods
  • Merging/splitting of clusters is permanent gt
    erroneous decisions are impossible to correct
    later
  • Divisive methods can be computational hard
  • Methods are not (necessarily) scalable for large
    data sets

46
Outlier analysis (1)
  • Outliers
  • are objects that are considerably dissimilar from
    the remainder of the data
  • can be caused by a measurement or execution
    error, or
  • are the result of inherent data variability
  • Many data mining algorithms try
  • to minimize the influence of outliers
  • to eliminate the outliers

47
Outlier analysis (2)
  • Minimizing the effect of outliers and/or
    eliminating the outliers may cause information
    loss
  • Outliers themselves may be of interest gt
    outlier mining
  • Applications of outlier mining
  • Fraud detection
  • Customized marketing
  • Medical treatments

48
Summary (1)
  • Cluster analysis groups objects based on their
    similarity
  • Cluster analysis has wide applications
  • Measure of similarity can be computed for various
    type of data
  • Selection of similarity measure is dependent on
    the data used and the type of similarity we are
    searching for

49
Summary (2)
  • Clustering algorithms can be categorized into
  • partitioning methods,
  • hierarchical methods,
  • density-based methods,
  • grid-based methods, and
  • model-based methods
  • There are still lots of research issues on
    cluster analysis

50
Seminar Presentations/Groups 7-8
Classification of spatial data
K. Koperski, J. Han, N. Stefanovic An Efficient
Two-Step Method of Classification of Spatial
Data", SDH98
51
Seminar Presentations/Groups 7-8
WEBSOM
K. Lagus, T. Honkela, S. Kaski, T. Kohonen
Self-organizing Maps of Document Collections A
New Approach to Interactive Exploration,
KDD96 T. Honkela, S. Kaski, K. Lagus, T.
Kohonen WEBSOM Self-Organizing Maps of
Document Collections, WSOM97
52
Course on Data Mining
Thanks to Jiawei Han from Simon Fraser
University for his slides which greatly helped
in preparing this lecture!
53
References - clustering
  • R. Agrawal, J. Gehrke, D. Gunopulos, and P.
    Raghavan. Automatic subspace clustering of high
    dimensional data for data mining applications.
    SIGMOD'98
  • M. R. Anderberg. Cluster Analysis for
    Applications. Academic Press, 1973.
  • M. Ankerst, M. Breunig, H.-P. Kriegel, and J.
    Sander. Optics Ordering points to identify the
    clustering structure, SIGMOD99.
  • P. Arabie, L. J. Hubert, and G. De Soete.
    Clustering and Classification. World Scietific,
    1996
  • M. Ester, H.-P. Kriegel, J. Sander, and X. Xu. A
    density-based algorithm for discovering clusters
    in large spatial databases. KDD'96.
  • M. Ester, H.-P. Kriegel, and X. Xu. Knowledge
    discovery in large spatial databases Focusing
    techniques for efficient class identification.
    SSD'95.
  • D. Fisher. Knowledge acquisition via incremental
    conceptual clustering. Machine Learning,
    2139-172, 1987.
  • D. Gibson, J. Kleinberg, and P. Raghavan.
    Clustering categorical data An approach based on
    dynamic systems. In Proc. VLDB98.

54
References - clustering
  • S. Guha, R. Rastogi, and K. Shim. Cure An
    efficient clustering algorithm for large
    databases. SIGMOD'98.
  • A. K. Jain and R. C. Dubes. Algorithms for
    Clustering Data. Printice Hall, 1988.
  • L. Kaufman and P. J. Rousseeuw. Finding Groups in
    Data an Introduction to Cluster Analysis. John
    Wiley Sons, 1990.
  • E. Knorr and R. Ng. Algorithms for mining
    distance-based outliers in large datasets.
    VLDB98.
  • G. J. McLachlan and K.E. Bkasford. Mixture
    Models Inference and Applications to Clustering.
    John Wiley and Sons, 1988.
  • P. Michaud. Clustering techniques. Future
    Generation Computer systems, 13, 1997.
  • R. Ng and J. Han. Efficient and effective
    clustering method for spatial data mining.
    VLDB'94.
  • E. Schikuta. Grid clustering An efficient
    hierarchical clustering method for very large
    data sets. Proc. 1996 Int. Conf. on Pattern
    Recognition, 101-105.
  • G. Sheikholeslami, S. Chatterjee, and A. Zhang.
    WaveCluster A multi-resolution clustering
    approach for very large spatial databases.
    VLDB98.
  • W. Wang, Yang, R. Muntz, STING A Statistical
    Information grid Approach to Spatial Data Mining,
    VLDB97.
  • T. Zhang, R. Ramakrishnan, and M. Livny. BIRCH
    an efficient data clustering method for very
    large databases. SIGMOD'96.
Write a Comment
User Comments (0)
About PowerShow.com
