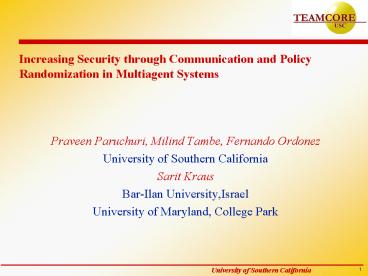

Increasing Security through Communication and Policy Randomization in Multiagent Systems

1
Increasing Security through Communication and
Policy Randomization in Multiagent Systems

• Praveen Paruchuri, Milind Tambe, Fernando Ordonez
• University of Southern California
• Sarit Kraus
• Bar-Ilan University,Israel
• University of Maryland, College Park

2
Motivation The Prediction Game

• An UAV (Unmanned Aerial Vehicle)
• Flies between the 4 regions
• Can you predict the UAV-fly pattern ??
• Pattern 1
• 1, 2, 3, 4, 1, 2, 3, 4, 1, 2, 3, 4,
• Pattern 2
• 1, 4, 3, 1, 1, 4, 2, 4, 2, 3, 4, 3, (as
  generated by 4-sided dice)
• Can you predict if 100 numbers in pattern 2 are
  given ??
• Randomization decreases Predictability
• Increases Security

3
Problem Definition

• Problem Increase security by decreasing
  predictability for agent-team acting in
  adversarial environments.
• Even if Policy Given, it is Secure
• Environment is stochastic and observable
  (MDP-based)
• Communication is a limited
• Efficient Algorithms for Reward/Randomization/Comm
  unication Tradeoff

4
Assumptions

• Assumptions for agent-team
• Adversary is unobservable
• Adversarys actions/capabilities or payoffs are
  unknown
• Communication is encrypted (safe)
• Assumptions for Adversary
• Knows the agents plan/policy
• Exploits action predictability
• Can see the agents state

5
Solution Technique

• Technique developed
• Intentional policy randomization
• CMDP based framework
• Sequential Decision Making
• Limited Communication Resources
• CMDP ? Constrained Markov Decision Process
• Increase Security gt Solve Multi-criteria problem
  for agents
• Maximize action unpredictability (Policy
  randomization)
• Maintain reward above threshold (Quality
  constraints)
• Communication usage below threshold (Resource
  constraints)

6
Domains

• Scheduled activities at airports like security
  check, refueling etc
• Can be observed by adversaries
• Randomization of schedules helpful
• UAV-team patrolling humanitarian mission
• Adversary disrupts mission Can disrupt food,
  harm refugees, shoot down UAVs etc
• Randomize UAV patrol policy

7
Our Contributions

• Randomized policies for Multi-agent CMDP (MCMDP)
• Solve Miscoordination
• Randomized polices in team settings
• Policy not implementable!
• (Reward constraint gets violated)

Communication Resource lt Threshold
Expected Team Reward gt Threshold
Maximize Policy Randomization
8
Miscoordination Effect of Randomization

• Meeting tomorrow
• 9am 40, 10am 60
• Communicate to coordinate
• Limited Communication

Should have been 0 (Violates Threshold Rewards)
9
Communication Issue

• Generate Randomized Implementable policies
• Limited communication
• Problem of communication
• M coordination points
• N units of communication
• Generate best communication policy
• Communication policy can also be randomized
• Transform MCMDP to implementable MCMDP
• Solution algorithm for transformed MCMDP

10
MCMDP Formally Defined

• An MCMDP (for a 2 agent case) is a tuple
• ltS,A,P,R, C1,C2, T1,T2, N,Qgt where,
• S,A,R Joint states, actions, rewards
• P Transition function
• C1 - Cost vector for resource k
• T1 - Threshold on expected resource k
  consumption.
• N - Joint communication cost vector
• Q - Threshold on communication costs
• Basic terms used
• x(s,a) Expected times action a is taken in
  state s
• Policy (as function of x)

11
Entropy Measure of randomness

• Randomness or information content quantified
  using Entropy ( Shannon 1948 )
• Entropy for CMDP -
• Additive Entropy Add entropies of each state
• Weighted Entropy Weigh each state by it
  contribution to total flow
• where alpha_j is the initial flow of the system

12
Issue 1 Randomized Policy Generation

• Non-linear Program Max entropy, Reward above
  threshold, Communication below threshold
• Obtains required randomization
• Appends communication for every action
• Issue 2 Generate the Communication Policy

13
Issue 2 Transformed MCMDP
a1b1
a1C
a1b2
a1b1
a1o
S1
a1b2
S1
a2b1
a2C
a2b2
a2o
a2b1
a2b2
For each state, for each joint action,
Introduce C (communication) and NC for different
individual action, add corresponding new states
Transition between original and new states
Transitions between new states and original
target states
14
Non-linear Constraints

• Need to introduce non-linear constraints
• For each original state
• For each new state introduced by no communication
  action
• Conditional probability of corresponding actions
  equal
• Ex P(b1/ ) P(b1/ )
• P(b2/ ) P(b2/ )
• , - Observable, Reached by Comm
  action
• , - Unobservable, No Comm
  action

15
Non-Linear constraints Handling Miscoordination

• Agent B has no hint of state if NC actions.
• Necessity to make its actions independent of
  source state.
• Probability of action b1 from state
  should equal probability of same action (i.e b1)
  from .
• Meeting scenario
• Irrespective of agent As plan
• If agent Bs plan is 20 9am 80 10am
• B is independent of A
• Miscoordination avoided ? Actions independent
  of state.

16
Experimental Results
Z-axis
Y axis
X-axis
17
Experimental Conclusions

• Reward Threshold decreases gt Entropy increases
• Communication increases gt Agents coordinate
  better
• Coordination invisible to adversary
• Agents coordinate better to fool the adversary
• Increased communication ? Higher entropy !!!

18
Summary

• Randomized Policies in Multiagent MDP settings
• Developed NLP to maximize weighted entropy with
  reward and communication constraints.
• Provided transformation algorithm to explicitly
  reason about communication actions.
• Showed that communication increases security.

19

• Thank You
• Any Questions ???
