Regional Cal' Trigger Milestone: Production Complete U' Wisconsin

1

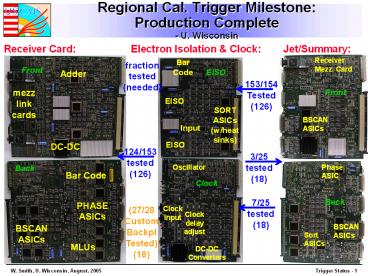

Regional Cal. Trigger MilestoneProduction
Complete- U. Wisconsin

• Receiver Card Electron Isolation
  Clock Jet/Summary

fraction tested (needed)
EISO
Front
124/153 tested (126)
3/25 tested (18)
Clock
Back
(27/28 Custom Backpl Tested) (18)
2
RCT Full Crate Operating at CERN- U. Wisconsin

• Used for HCAL, ECAL, SLB, Global Calorimeter
  Trigger integration tests
• Located in Electronics Integration Center in Bat.
  904 - more tests planned (later slides)

x 18
Rear Receiver Cards
Front Electron, Jet, Clock Cards
3
CSC Trigger Muon Port Card Sector Processor

• Muon Port Card (Rice)
• 6 built w/FPGA mezzanines, fully tested in beam,
  in radiation, in crate w/ 7 Trigger Motherboards
  connected to Sector Processor
• Final production done (tested 47)
• Total needed 60 (75 incl. spares)

• Sector Processor (Florida)
• PPP built tested in structured beam full
  system test (next slide)
• In production (1st 2 made)
• Total needed 12

VME Interface (glue logic)
XilinxVirtex-2 800 User I/O
Optomodules
GTLP Receivers
TLK2501 serializers
Mezzanine card
15 X 1.6 Gb/s optical links from MPC
4
CSC Muon Sorter- Rice
Muon Sorter Board

• Rice MS sorts SP muons and transmits to Vienna
  Global Muon Trigger
• Integration Test successful in Jan. 05 in Vienna

5
CSC Trigger Full Chain Test- Florida, Rice,
UCLA, March05
This is 1/60 of full CSC Trigger w/Track-Finder
crate 100 loaded into the Muon Sorter
MPC??CCB
Track-Finder Crate SP? CCB? ?MS
5 TMB
4 TMB
Fully Loaded Peripheral Crate
?tester cards provide full 12 SP input to MS
Results in reinforced grounding for better signal
quality on production TF backplane cards
6
Trigger Commissioning Plans

• Operate fully functional trigger electronics at
  CERN
• Employed in myriad tests preparation activities
• Tests in Electronics Integration Center
• Labs row of racks for all electronicssubsystems

• Test interfaces integration as much as
  possible before move to USC55
• Cosmic Challenge in SX5
• Test multiple triggercomponents with
  multipledetector components duringthe magnet
  test.
• Verify trigger functions interfaces w/detectors
  onsurface
• Installation in Underground CountingRoom (USC55)
• Expect start by Nov 30 05 -- ready for crates
• Racks Infrastructure installed, cooling
  operational

USC55
UndergroundCounting Room
7
Trigger Install/CommissionElectronics
Integration Center Prevessin 904

• Assemble one each of critical racks in central
  trigger core in underground counting room

Electronics Labs
trigger electronics integration racks
Test/integrate triggerelectronics in EIC
beforeuse in Cosmic Challengeor installation in
USC55
Started April 18
8
HCAL-SLB-RCT Integration in EIC- Maryland,
Lisbon, Wisconsin

• Sent synchronous jet data from HCAL HTR Cards
  thru 6 SLB over 10m copper 4Gb/s Vitesse Links to
  6 Regional Calorimeter Trigger Receiver Mezzanine
  cards, thru Receiver Cards, Backplane and Jet
  Summary Card to Jet Capture Card recording output
  of 256 crossings. See output jets on all
  channels in expected crossings.

9
CSC trigger in cosmic challenge - Florida Rice

• Set-up in SX5 as operated during 2004 beam tests
• Connected 6 chambers in ME2 ME3
• ? 20 slice on YE2

SP
CCB
CSC Track-Finder will provide a cosmic muon
trigger based on a coincidence of LCTs in two or
more disks
10
USC55 Trigger Schedule Overview

• Four phases of activity in USC55
• Installation, Detector Integration, Central
  Integration, Commission

11
Trigger Install Schedule - I

• Install/Commission Trig. Crates Dec 05 - Apr
  06
• Tested Trigger Crates installed, re-tested,
  interconnected, inter-synchronized
• Regional and Global Detector trigger systems
  integrated with each other and Global Trigger
• Integrate w/Detector Elect. May 06 - Oct 06
• Cal Trig connected to E/HCAL USC55 electronics
• Muon Triggers connected to optical fibers
  carrying trigger data from detector
• Global Trigger connected to TTC distribution
  system
• Operation with Local DAQ

12
Trigger Install Schedule - II

• Integrate w/Central Trig. DAQ Nov 06 - Apr 07
• Subset of triggers available to detectors in
  UXC55
• Dedicated testing with individual detectors
• Detailed synchronization testing of all systems
• Testing with Central DAQ
• System Commissioning May 07 - Jun 07
• Full capability of trigger system available
• Tests with all detectors and trigger operating
  simultaneously together and partitioned
• Trigger and DAQ can operate in 8 separate
  partitions
• Ready for single beam commissioning, Jul 07
• Beam-gas synchronized triggers
• Halo muon events (see following slides)

13
Preparing for Operationbefore beam after
install/commission

• Run as much of CMS as possible integrated with
  TriDAS for as long as possible to shake out
  problems.
• Run for long periods of time with artificially
  generated data of as high a volume a possible
  loaded as close to the front ends as we can
  manage with as high a trigger rate as we can
  handle.
• This type of continuous "stress-testing" should
  help us to make the system robust.
• Also run for long periods of time with cosmic
  triggers
• Download simulated data in both the readout and
  trigger streams
• See if we can pass these all the way to yield
  triggers and physics signals on tape.

14
Trigger Commissioning Phaseswith first collisions

• 1. Synchronization Trigger testing/evaluation
• Determine that data is being properly set up
  (e.g. synchronized), triggered and transported to
  farm nodes.
• 2. Technical validation of subdetector data
• Determine from detector data written to farm
  nodes that detectors are indeed being read out
  properly and if the data is indeed correct
  technically
• 3. Evaluation/calibration/validation of
  subdetector data
• Study the subdetector data calibration and
  performance to validate its content for physics
  analysis
• 4. Evaluation of data by physics groups.
• Make basic physics plots of detector data to
  validate performance
• 5. Feedback from Physics Groups.
• Transport of min-bias data to the remote Tier-1
  centers for input into the simulation and
  regeneration of our simulation samples
• Calculation of trigger efficiencies and feedback
  to the trigger group on physics problems with the
  day 1 trigger set.

15
Commissioning TriDAS Modes

• Normal Mode
• Trigger rate at 50 kHz (evolves from 12.5 ? 50 ?
  75 ? 100 kHz)
• Safe Mode
• Trigger rate lt 10 kHz
• Level-1 Latency 3.2 ?s (128 bunch crossings - bx)
• Un-buffered Trigger Rule
• Each L1A separated by at least 8.75 ?s
• Assures that all detectors are read out before
  next L1A - no storage of additional events after
  each L1A.
• Limit set by tracker presh., deadtime of 9 _at_
  L1A rate of 10 kHz.
• Single Step Mode
• Trigger rate low
• Level-1 Latency 3.2 ?s (128 bunch crossings - bx)
• Handshake Trigger Rule
• After each L1A, Global Trigger System raises busy
  and waits for DAQ, to lower the busy after the
  event has been successfully read out.
• Large deadtime, only usable for debugging and
  initial commissioning.

16
Initial Trigger Menu

• Level-1 Trigger Totally Open
• Calorimeter low ET or any muon (no PT cut)
• Other candidate triggers for later running are
  active for diagnostic and study purposes
• Continue Halo Muon Cosmic triggers
• Test Triggers
• Dedicated runs and possible operation during
  abort gaps to verify detector functionality and
  synchronization.

17
Summary - Trigger

• Trigger Hardware
• Finished with, in or about to start production
• Trigger Integration
• Much testing already done
• Program of Electronics Integration Center Tests
• Trigger Program for Cosmic Challenge
• Trigger Commissioning
• Realistic plan in place starting with USC55
  occupancy in December
• Operation with downloaded simulated data in USC55
• Orderly connection and checkout with subsystems,
  central systems
• Operations testing w/o beam (downloaded
  cosmic) planned until startup
• Use of single beams for halo muon triggers
  beam-gas events
• Plan developed for first data run operations
• 5 Phases
• synchronization testing, technical validation
  of data transport, data content validation, data
  physics evaluation, physics feedback
• Totally open trigger menu test triggers
