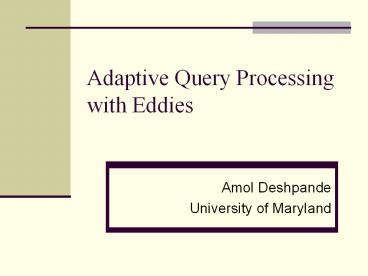

Adaptive Query Processing with Eddies

1
Adaptive Query Processing with Eddies

• Amol Deshpande
• University of Maryland

2
Roadmap

• Adaptive Query Processing Motivation
• Eddies AH00
• STAIRs DH04 and SteMs RDH03
• Experimental Study
• Implementation in PostgreSQL Des03
• Continuous queries MSHR02 (very briefly)
• Open problems

3
Query Processing in Database Systems
Declarative Query
Database System
Results
4
Query Processing Example
select from students, enrolled, courses where
students.name enrolled.name and
enrolled.course courses.course
Database System
Students
Enrolled
Courses
5
Query Processing Example
select from students, enrolled, courses where
students.name enrolled.name and
enrolled.course courses.course
Courses
Students
Enrolled
6
Example Query Execution Plans
SEC
SEC
CE
SE
S
C
Students
Courses
C
S
E
E
Courses
Students
Enrolled
Enrolled
A Query Execution Plan
An alternate Execution Plan
7
Cost-based Query Optimization
Estimate cost of each plan and choose the best
SEC
Cost g(SE, C, R)
Input sizes

SE
C
Cost f(S, E, R)
Courses

S
E
Students
Enrolled
Runtime Parameters
Cost (Plan)
A Query Execution Plan
8
Cost-based Query Optimization
Results
Query Optimizer
Query Executor
Compiled Query Plan
Declarative Query
Disk(s)
9
Cost-based Query Optimization
Results
Query Optimizer
Query Executor
Compiled Query Plan
Declarative Query
Wide area data sources e.g. remote tables,
web data sources
Disk(s)
10
Cost-based Query Optimization
Results
Query Optimizer
Query Executor
Compiled Query Plan
Declarative Query
Streaming data e.g. Stock tickers
Network logs Sensor networks
11
Estimation Errors
Cost g(SE, C, R)
SEC
SE
C
Courses
S
E
Students
Enrolled
A Query Execution Plan
12
Estimation Errors
Cost g(SE, C, R)
SEC
SE
Unknown runtime parameters
C
Courses
S
E
Students
Enrolled
A Query Execution Plan
13
How to solve this problem ?

• More sophisticated estimation techniques
• Sophisticated summary structures
• e.g. MHists PI97, Wavelets VWI98
• Feedback loop in the optimization process
• e.g. SLMK01, BC02
• Adaptive query processing
• Cant always build and maintain synopses
• Runtime environments can be very unpredictable
• Soadapt query plans mid-way during execution

14
Eddies Extreme Adaptivity
static plans
per tuple
inter- operator
late binding
intra- operator
Dynamic QEP, Parametric, Competitive
Traditional DBMS
Query Scrambling, MidQuery Re-opt
XJoin, DPHJ Convergent QP
Eddies

• Telegraph TelegraphCQ (at UC Berkeley)
• Eddies AH00
• SteMs RDH03
• Continuous queries MSHR02, CF02, C03, K03

• Implementation in PostgreSQL Des04
• Fault-tolerance and load balancing SHB04
• STAIRs DH03
• Other work
• Distributed eddies, Content-based Routing BB05

15
Roadmap

• Adaptive Query Processing Motivation
• Eddies AH00
• STAIRs DH04 and SteMs RDH03
• Experimental Study
• Implementation in PostgreSQL Des03
• Continuous queries MSHR02 (very briefly)
• Open problems

16
Eddies AH00
select from S where pred1(S) and pred2(S)
Plans considered by the optimizer
pred2(S)
pred1(S)
S
Output
pred1(S)
pred2(S)
S
Output
Decision made apriori based on statistics Sort
by (1-s)/c, where s selectivity, c cost
17
Eddies AH00
select from S where pred1(S) and pred2(S)
Executing the query using an Eddy

• An eddy operator
• Intercepts tuples from source(s) and output
  tuples from operators
• Query executed by routing tuples between the
  operators
• Uses feedback from the operators to route

Change routing gt Change query
execution plan used
18
Per-tuple State
select from S where pred1(S) and pred2(S)
Executing the query using an Eddy
pred2(S)
Eddy
Output
S

• Two Bitmaps
• Ready bits - which operators can a tuple be
  routed to next
• Done bits - which operators has a tuple already
  been through

pred1(S)
Example Ready(t1) 1, 1 - can be routed to
either Done(t1) 0, 0 - not done either
Example Ready(t2) 1, 0 - can be routed to
pred1 Done(t2) 0, 1 - done pred2
For selection queries, ready is a bit-complement
of done
19
Eddies Routing Policy

• Choosing which operator to route a given tuple to
• The brain of the eddy

Send here 99 of the time Send to the other
operator 1 of the time
Lottery Scheduling Avnur 00 Simplified
Description 1. Maintain for each operator
tuples sent tuples returned
cost per tuple 2. Choose (roughly) based on the
above 3. Explore by randomly sending tuples in
the wrong orders
sent 100 received 2
pred2(S)
Eddy
Output
S
pred1(S)
sent 10 received 20
20
A Join Query
select from students, enrolled, courses where
students.name enrolled.name and
enrolled.course courses.course
Courses
Students
Enrolled
21
Eddies AH00
Query execution using an eddy
A traditional query plan
A key difference Tuples cant be arbitrarily
routed to any operator E.g. S tuples cant be
routed to E Join C Use ready bits to identify
this
22
Query Execution using Eddies
Probe to find matches
Insert with key hash(joe)
Eddy
S
E
Output
C
No matches Eddy processes the next tuple
23
Query Execution using Eddies
Probe
Insert
Eddy
S
E
Output
C
24
Query Execution using Eddies
Probe
Eddy
S
E
Output
C
Probe
25
Per-tuple State
Eddy
S
E
Output
C
26
Per-tuple State
Eddy
S
E
Output
C
27
Per-tuple State
Eddy
S
E
Output
C
28
Eddies Postmortem
Output
Output
E C
E S
S E
Courses
C E
Students
Students
Enrolled
Courses
Enrolled
Eddy executes different query execution plans for
different parts of data
29
Joins and Lottery Scheduling

• Lottery scheduling doesnt work well with joins

30
Example Delayed Data Sources
SETUP
gtgt
Execution plan 1
Execution plan 2
SEC
SEC
CE
SE
S
C
C
E
S
E
Cost (Plan 1) gt Cost (Plan 2)
31
Example Delayed Data Sources
SETUP E and C arrive early S is
delayed
gtgt
S
E
C
time
32
SETUP E and C arrive early S is
delayed
gtgt
S0
sent and received suggest S Join E is better
option
S
E
S
S0
S S0
E
C
time
C
S0E
SE
(S S0)E
Eddy learns the correct sizes
Too Late !!
33
SETUP E and C arrive early S is
delayed
gtgt
S
E
C
C
SE
S
E
Execution Plan Used
Query is executed using the worse plan.
Too Late !!
34
Joins and Lottery Scheduling

• Lottery scheduling doesnt work well with joins
• Not clear how any routing policy can work without
  reasonable knowledge of future
• Whatever the current state in the join operators,
  an adversary can send tuples to make it look very
  bad
• Two possible solutions
• Allow manipulation of state (STAIRs) DH04
• Dont embed state in the operators (SteMs)
  RDH03

35
Roadmap

• Adaptive Query Processing Motivation
• Eddies AH00
• STAIRs DH04 and SteMs RDH03
• Experimental Study
• Implementation in PostgreSQL Des03
• Continuous queries MSHR02 (very briefly)
• Open problems

36
STAIRs DH04

• Expose join state to the eddy
• Provide state management primitives
• That guarantee correctness of execution
• That can be used to manipulate embedded state in
  the operators
• Also allow support for cyclic queries etc

37
New Operator STAIR
S E
HashTable S.Name
HashTable E.Name

Eddy
S
Output
E
C

HashTable E.Course
HashTable C.Course
E C
38
New Operator STAIR
Storage, Transformation and Access for
Intermediate Results
39
Query execution using STAIRS

• Similar to using Join Operators

Probe into E.Name STAIR
s1
s1
s1
s1
40
STAIR Operations

• Build (insert)
• Insert the given tuple into the STAIR
• Probe (lookup)
• Find matching tuples for the given tuple
• State Management Operations
• Demotion
• Promotion

41
State Management Primitive Demotion

• Replace a tuple in a STAIR with a projection of
  that tuple

S.Name STAIR
HashTable

E.Name STAIR
s1
Demoting e2c1 to e2
HashTable

e1
e2c1
e2
Eddy
S
E
Output
C
HashTable

e2
s1e1
HashTable

c1
E.Course STAIR
Can be thought of as undoing work
C.Course STAIR
42
State Management Primitive Promotion

• Replace a tuple in a STAIR with the result of
  joining it with other tuples

S.Name STAIR

• Two arguments
• A tuple
• A join to be used to promote this
  tuple

HashTable

E.Name STAIR
s1
HashTable

e1
e1c1
e2c1
Eddy
S
E
Output
C
HashTable

e2
s1e1
HashTable

c1
e1
E.Course STAIR
Can be thought of as precomputation of work
C.Course STAIR
43
STAIRs Correctness

• Theorem For any sequence of applications of the
  state management operations, STAIRs will produce
  the correct query output.
• STAIRs will produce every result tuple
• There will be no spurious duplicates

44
Lifting Burden of History Delayed Data Sources
45
SETUP E and C arrive early S is
delayed
gtgt
S0
S
E
S0
E
C
time
C
S0E
Eddy learns the correct selectivities
46
SETUP E and C arrive early S is
delayed
gtgt
S0
E.Name STAIR

HashTable
S
E
E
Eddy
S
C
E
Output
C
time
E

HashTable
C
Eddy decides to migrate E
Eddy learns the correct selectivities
By promoting E using E C
C.Course STAIR
47
SETUP E and C arrive early S is
delayed
gtgt
S.Name STAIR

HashTable
S
S0
E.Name STAIR

HashTable
S
S S0
S S0
E
Eddy
S
C
(S S0) E C
E
Output
C
time
E

HashTable
C
C.Course STAIR
48
S.Name STAIR

HashTable
S
E.Name STAIR

HashTable
UNION
Eddy
S
E
Output
C
E

HashTable
C
Most of the data is processed using the correct
plan
C.Course STAIR
49
Further Motivating Adaptive State Management

• Eager pre-computation for faster response times
• Query scrambling UFA98
• Partial results RH02
• Selective caching of intermediate results
• Continuous queries over streams
• Cyclic queries
• Adapting the join spanning tree used

50
Making State Migration Decisions

• Another policy question
• Optimal migration decisions
• Requires knowledge of future selectivities and
  the sizes of relations

51
Roadmap

• Adaptive Query Processing Motivation
• Eddies AH00
• STAIRs DH04 and SteMs RDH03
• Experimental Study
• Implementation in PostgreSQL Des03
• Continuous queries MSHR02 (very briefly)
• Open problems

52
Alternative SteMs RDH03

• Dont embed the state in the operators at all
• Note Not the original motivation for SteMs
• Focus was on increasing opportunities for
  adaptivity by breaking up the join operators
• We will focus on a very simplistic version of the
  operator

53
Query Execution using SteMs
54
Query Execution using SteMs
S SteM
Probe

Insert
E SteM

Eddy
S
E
C
C SteM

Probe
55
Query Execution using SteMs

• State inside the operators is independent of
  previous routing decisions
• Because no intermediate tuples are ever stored
• Doesnt have the same problem as the join or
  STAIR operators
• Optimal routing policy easy to write down
• Similarities to queries with only selections
• But not storing intermediate results increases
  the computation cost significantly

56
SteMs Drawbacks

• Recomputation of intermediate result tuples
• Constrained plan choices
• Available plans depend highly on the arrival
  order

57
SETUP E and C arrive early S is
delayed
gtgt
S0
S SteM

S
S0
E SteM
E

E
C
Eddy
S
E
C
C SteM
time

C
Under the mechanism, there is no way to execute
the other plan for this setup
58
SteMs Drawbacks

• Recomputation of intermediate result tuples
• Constrained plan choices
• Available plans depend highly on the arrival
  order
• Though more subtle, the second drawback might be
  the more important one

59
Recap

• An eddy operator
• Can affect the query execution plan(s) used by
  routing different tuples differently
• Eddy w/ Selections
• Well understood
• Even if selections are correlated
• Babu, Munagala et al SIGMOD 2004, ICDT 2005

60
Recap

• Eddies for multi-way joins
• Opportunities for adaptivity depend on the join
  operators used
• Higher adaptivity tends to push logic into the
  eddy gt Routing policies very important

Sort-merge Hybrid-Hash
Index-nested loop joins
Nested-loop Joins
Pipelined/ Symmetric Hash Join
SteMs/ STAIRs
Blocking opeators Little adaptivity
Similarities to selections
Suffers from state accumulation problems
Policy issues not well-understood
See AH00
61
Roadmap

• Adaptive Query Processing Motivation
• Eddies AH00
• STAIRs DH04 and SteMs RDH03
• Experimental Study
• Implementation in PostgreSQL Des03
• Continuous queries MSHR02 (very briefly)
• Open problems

62
Implementation Details

• In PostgreSQL Database System code base
• In the context of TelegraphCQ project
• Highly efficient implementation SIGREC04
• Eddy, SteMs, STAIRs export get_next() functions
• Routing decisions are made per batch
• Can control batch size
• Routing decisions made for all possible ready
  bitmaps
• Decisions are encoded in arrays that are indexed
  with ready bits
• Efficiently find the operator to route to

63
Results - Overheads (1)
All plans have identical costs, so adaptivity
plays no role
64
Results - Overheads (2)
65
Policies used for experiments

• Routing policy
• Observe
• Selectivities of predicates on base tables
• Domain sizes of join attributes
• Compute join selectivities and use them to route
  tuples
• Migration policy
• Tie state migration decisions to routing
  decisions
• Follow the routing policy decisions to make sure
  that most tuples are routed correctly
• Caveats
• May end doing migrations late in the query
  execution
• May thrash

66
State Migration Illustrative Example
select from customer c, orders o, lineitem l
where c.custkey o.custkey and o.orderkey
l.orderkey and c.nationkey 1 and c.acctbal
gt 9000 and l.shipdate gt date 1996-01-01
Setup lineitem arrives sorted on shipdate gt
selectivity(l.shipdate gt ) very low
initially gt orders routed to join with
lineitem (bad) No explicit delays introduced
67
Illustrative Example (1)
68
Illustrative Example (2)
69
Experiments Synthetic Workload

• Modeled after the Wisconsin Benchmark
• 20 Tables for varying sizes
• Randomly generated queries
• Environment
• Rates proportional to table sizes no delays or
• Random initial delays introduced or
• Random data rates

70
Traditional vs STAIRs
71
SteMs vs STAIRs
72
Joins vs STAIRs
73
Roadmap

• Adaptive Query Processing Motivation
• Eddies AH00
• STAIRs DH04 and SteMs RDH03
• Experimental Study
• Implementation in PostgreSQL Des03
• Continuous queries MSHR02 (very briefly)
• Open problems

74
Continous Query Processing

• Eddies ideal for executing continuous queries
  over data streams
• Dynamic runtime conditions make a static plan
  unsuitable
• Queries typically executed over sliding windows
• Find average over last one week
• Note Continuous vs Multi-query processing
• Not identical
• Data streams literature does not make this
  difference explicit
• Application environments tend to have a large
  number of simultaneous queries

75
Continous Query Processing

• CACQ Madden et al 2002
• Focus on sharing work as much as adaptivity
• Uses SteMs augmented with a deletion operator
• To handle sliding windows
• Also uses predicate indexes
• For handling a large number of queries on the
  same set of streams but with different predicates
• E.g. millions of stock alerts over a few streams

76
Roadmap

• Adaptive Query Processing Motivation
• Eddies AH00
• STAIRs DH04 and SteMs RDH03
• Experimental Study
• Implementation in PostgreSQL Des03
• Continuous queries MSHR02 (very briefly)
• Open problems

77
Some open problems (1)

• Eddies for continuous query processing
• Much work since CACQ, but not a solved problem
• E.g. computational inefficiency of SteMs
• Many other proposed CQ architectures face the
  same problem
• MJoins (NiagaraCQ)
• Stanford STREAM processor (earlier version)
• Later added intermediate result caches
• Note These two dont use eddies explicitly
• Routing policies for CQ still an open question
• Different from routing policies for non-CQ queries

78
Some open problems (2)

• Routing policies
• Whether eddies will succeed depends on the
  routing policies
• Little work so far...
• SteMs, STAIRs
• Theoretical analysis of optimization space, and
  practical viability analysis needed
• Especially in the context of continuous query
  processing

79
Some open problems (3)

• Eddies for multi-query processing (non-CQ)
• SteMs may be sufficient for CQ processing, but
  not for normal multi-query processing
• Parallel, distributed environments, P2P, Grid..
• Disk
• Flexibility demanded by adaptive techniques at
  odds against the careful scheduling typically
  done by DBMSs
• XJoins
• Very little work on understanding this

80
Some open problems (4)

• Optimization with expanded plan space
• Eddies can explore a plan space much larger than
  traditional plan space
• They allow relations to be broken into pieces,
  with each piece executed separately
• Can we explore this plan space in a non-adaptive
  setting ?
• Recent work on
• Conditional Planning Deshpande et al, ICDE 2005
• Content-based Routing Babu et al, VLDB 2005

81
Summary

• Increasing need for adaptivity
• Eddy A highly adaptive query processor
• Executes queries by routing tuples through
  operators
• SteMs, STAIRs
• New operators proposed to handle problems with
  traditional join operators
• Very promising especially for continuous and
  wide-area query processing
• Exciting research lies ahead

82
The End

• Questions ?

83
Fatal Flaw Burden of Routing History
Routing decisions get embedded in the state
Eddy
S
E
Output
C
Future adaptibility is severly constrained
84
Example Delayed Data Sources
SETUP
gtgt
Execution plan 1
Execution plan 2
SEC
SEC
CE
SE
S
C
C
E
S
E
Cost (Plan 1) gt Cost (Plan 2)
85
Example Delayed Data Sources
SETUP E and C arrive early S is
delayed
gtgt
S
E
C
time
A plan may have to be chosen without any
statistical information about the data
Earliest time sufficient information may be
available to choose optimal plan
86
Tricky State Configurations 1

• Want to undo the decision to route E1 to S E

E1
S0
E2C
Result S0EC already produced
C
S0E1
E2
87
Tricky State Configurations 2
S E
HashTable E.Name

HashTable S.Name
S
E1
E2C1
E2C2I

HashTable E.Course
HashTable C.Course
Eddy
S
C1
SE1
E
C2I
E2
C
I
E C

HashTable C.Intstructor
HashTable I.Instructor
I
C2
SE1C1
SE2C1
C I
