Local Internets

1
Local Internets

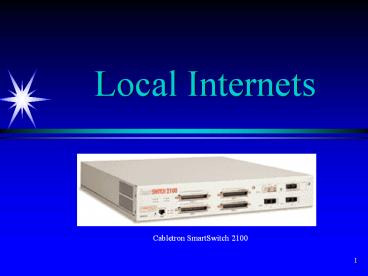

Cabletron SmartSwitch 2100
2
Local Internets

• Internet
• System of subnets such that any station on any
  subnet can communicate with any station on any
  other subnet by placing the receivers address in
  a message
• Subnets are individual networks in an internet

3
Local Internets
LAN
LAN
LAN
LAN

• Local Internets
• Links multiple LANs at a single site
• Entirely on customer premises
• Planned and managed by the owner
• Company has no limits
• Company has all the headaches
• High-speed transmission (roughly LAN speeds)

4
Why a Local Internet?

• Overcome distance limitations
• 100Base-T networks span only 500 meters
• Overcome congestion and latency
• Individual shared media networks running around
  100 Mbps become saturated at 200-300 stations.
• Connect dissimilar LANs
• Link Ethernet and Token-Ring Network LANs

5
Local Internetting to Increase Distance Spans
Internetting Device
100Base-T LAN in Headquarters Building (500 m
maximum distance)
HQ LAN
Transmission Link (no max distance)
Internetting Device
100Base-T LAN in Factory Building (500 m maximum
distance)
Factory LAN
6
A Congested Shared Media LAN
Before Single LAN
Department 1 150 Stations
Department 2 150 Stations
A
B
C
D
Stations
Stations
All stations in Department 2 hear the message
B transmits to A
Each station hears the traffic of 300
stations Heavily congested.
7
Internetting keep most traffic within LANs
After Resegmentation
Department 1 150 Stations
Department 2 150 Stations
Internetting Device
A
B
C
D
Stations
Stations
Internetting Device Blocks the Transmission of
this message to Department 2
B transmits to A
Traffic of 150 stations Not Congested
Traffic of 150 stations Not Congested
8
Internetting Devices Bridges

• Simple, automatic, inexpensive, fast
• Usually only two ports
• A fast, cost-effective choice for small internets
• See CISCO whitepaper for more details

9
Multiple Bridges
LAN 2
X
LAN 3
LAN 1
LAN 4
No Loops Allowed Problematic for large bridged
internets
LAN 5
10
Multiple Bridges
Route Between LANs 1, 5
LAN 2
LAN 3
X
LAN 1
No loops means only one path between LANs No
alternative routing if failures, congestion No
way to optimize routing for security, etc.
LAN 5
11
802.1 Spanning Tree Standard
Route Between LANs 1, 5
LAN 2
LAN 3
Backup Link
LAN 1
Allows backup links Disabled during normal
operation If a failure occurs, automatically
initiated
LAN 5
12
Bridging LANs with Different Physical and MAC
Layers
Bridge
802.5 Token-Ring Network
802.3 10Base-T Ethernet LAN
Hub
10Base-T Connection
802.5 Connection
13
Bridging LANs with Different Physical and MAC
Layers
802.2 LLC Standard
LLC Layer (Same)
802.2 LLC Standard
802.1 Bridging Standard
802.1 Bridging Standard
Bridging Layer (Same)
802.5 MAC Layer (Token-Passing)
802.3 MAC Layer (CSMA/CD)
MAC Layer (Different)
802.5 Connection to Access Unit
Physical Layer (Different)
10Base-T Connection to Hub
14
Problems of Bridges

• Do Not Stop Broadcast Messages
• Servers broadcast their existence about twice a
  minute
• In contrast to normal messages, which are
  designed to go to single stations, broadcast
  messages go to all stations.
• Goes to all stations on the network bridges pass
  these messages on
• Problematic in large bridged intranets

15
Problems of Bridges

• Do Not Stop Any Client from Logging into Any
  Server
• Poor security. Only password protection on
  servers
• Bad if servers hold grades in a university
• Bad for departmental servers holding key
  personnel or financial data in a firm

16
Switches Solve Bridge Problems

• Begin as Multiport Bridges
• Add broadcast reduction, security

17
Simple Switched Internet
Connection 1
LAN A
Connection 1
LAN C
No Waiting!
LAN B
Connection 2
Switches can carry messages between several pairs
of LANs simultaneously.
Connection 2
LAN D
18
Switched Internet with Multiple Switches
Switch A
Switch B
Switch C
Switch D
LAN 1
LAN 2
Switches are arranged in a hierarchy Only one
route between any two LANs No routing around
failure, congestion No optimization of routes
Route 1-B-A-C-2
19
Switch Hierarchy

• Switches can be arranged hierarchically
• Levels of Switches
• Desktop switches (only a few MAC addresses can be
  supported)
• Workgroup switches (MAC addresses for members of
  a department)
• Enterprise switches (large number of MAC
  addresses)

20
Virtual LANs Reduce Broadcasting

• Stations are Divided into Groups
• Called Virtual LANs (VLANs)
• Server, other broadcasts limited to VLANs
• Not to all stations on all ports

LAN A
LAN B
LAN C
LAN D
Server only broadcasts to its VLAN stations on
LAN A, LAN C
21
VLANs Add Security

• Only stations on the same VLAN as a server can
  reach it to log in

On VLAN 36
On VLAN 7
X
LAN A
LAN B
LAN C
LAN D
Client can only reach server if they are on the
same VLAN
22
Routers

• Most sophisticated internetting devices
• Provide services for linking thousands of subnets
• Used in the worldwide Internet, also within firms
• Efficient for long-distance transmission
• Provide wide range of management services to give
  relatively automatic operation
• By far the most expensive internetting devices

23
Route

• End-to-End Connection

1
LAN A
LAN B
3
2
4
LAN D
LAN A - 1 - 3 - 5 - LAN D
5
24
Alternative Routes

• Multiple Ways to Get from LAN A to LAN D

1
LAN A
LAN B
3
2
4
A-1-3-5-D A-1-3-4-D A-2-5-D Etc.
LAN D
5
25
Advantages of Alternative Routing

• Routing Around Failures
• Failed switches, trunk lines connecting switches
• Routing Around Congestion
• More common than outright failures
• Route Optimization
• Least cost route
• Most reliable route
• Most secure route, etc.

26
Mixing Switches and Routers
Site A
LAN
LAN
Site B
Switch
LAN
Router
Switch
Router
LAN
Site C
Router
27
Distributed Backbone Network
LAN 1
LAN 2
FDDI Backbone Ring
Router
Router
Router
LAN 3
28
Backbone Network

• Network that Links Subnets
• Subnets take the place of stations
• Distributed Backbone
• Backbone runs past all stations
• If a single router (or other internetting device)
  fails, only that station is disconnected
• FDDI is popular because of its possible 200 km
  circumference, 100 Mbps speeds, but Gigabit
  Ethernet gaining.

29
Local Internet Using Collapsed Backbone
LAN A
LAN B
LAN C
Routers at LANs
Routers at LANs
Central Switch or Router
30
Collapsed Backbone

• Single point of maintenance
• Easy to maintain the network
• Single point of failure
• If the central device fails, serious problems
• Types of central devices
• Switches
• Routers

31
Backbone Network Architectures

• Identifies the way backbone interconnects LANs
• Defines how it manages packets moving through BB
• Fundamental architectures
• Bridged Backbones
• Routed Backbones
• Collapsed Backbones
• Rack-based
• Chassis-based
• Virtual LANs
• Single-switch VLAN
• Multiswitch VLAN

32
Backbone Architecture Layers

• Access Layer (not part of BB)
• Closest to the users
• Backbone Design Layers
• Distribution Layer
• Connects the LANs together (often in one building
• Core Layer (for large campus/enterprise networks)
• Connects different BNs together (building to
  building)

33
Bridged Backbone
bus topology
Entire network is just one subnet
34
Bridged Backbones

• Move packets between networks based on their data
  link layer addresses
• Cheaper (since bridges are cheaper than routers)
  and easier to install (configure)
• Just one subnet to worry
• Change in one part may effect the whole network
• Performs well for small networks
• For large networks broadcast messages (e.g.,
  address request, printer shutting down) can lower
  performance
• Formerly common in the distribution layer
• Declining due to performance problems

35
Routed Backbone
Example of a routed BB at the Distribution layer
Usually a bus topology
Each LAN is a separate subnet
36
Routed Backbones

• Move packets using network layer addresses
• Commonly used at the core layer
• Connecting LANs in different buildings in the
  campus
• Can be used at the distribution layer as well
• LANs can use different data link layer protocols
• Main advantage LAN segmentation
• Each message stays in one LAN unless addressed
  outside the LAN
• Easier to manage
• Main disadvantages
• Tend to impose time delays compared to bridging
• Require more management than bridges switches

37
Collapsed Backbone
Most common type BB mainly used in distribution
layer
A connection to the switch is a separate
point-to-point circuit
Star topology
38
Collapsed Backbones

• Replaces the many routers or bridges of the
  previous designs
• Backbone has more cables, but fewer devices
• No backbone cable used switch is the backbone.
• Advantages
• Improved performance (200-600 higher)
• Simultaneous access switched operations
• A simpler more easily managed network less
  devices
• Two minor disadvantages
• Use more and longer cables
• Reliability
• If the central switch fails, the network goes
  down.

39
Rack-Based Collapsed Backbones

• Places all network equipment (hubs and switch) in
  one room (rack room)
• Easy maintenance and upgrade
• Requires more cables (but cables are cheap)
• Main Distribution Facility (MDF) or Central
  Distribution Facility
• Another name for the rack room
• Place where many cables come together
• Patch cables used to connect devices on the rack
• Easier to move computers among LANs
• Useful when a busy hub requires offloading

40
Chassis-Based Collapsed Backbones

• Use a chassis switch instead of a rack
• A collection of modules
• Number of hubs with different speeds
• L2 switches
• Example of a chassis switch with 710 Mbps
  capacity
• 5 10Base-T hubs, 2 10Base-T switches (8 ports
  each)
• 1 100Base-T switch (4 ports), 100Base-T router
• ? ( 5 x 10) (2 x 10 x 8) (4 x 100) 100
  710 Mbps
• Flexible
• Enables users to plug modules directly into the
  switch
• Simple to add new modules

41
Virtual LANs (VLANs)

• A type of LAN-BN architecture
• Made possible by high-speed intelligent switches
• Computers assigned to LAN segments by software
• Often faster and provide more flexible network
  management
• Much easier to assign computers to different
  segments
• More complex and so far usually used for larger
  networks
• Basic VLAN designs
• Single switch VLANs
• Multi-switch VLANs

42
Single Switch VLAN Collapsed Backbone
acting as a large physical switch
Computers assigned to different LANs by software
Switch
43
Types of Single Switch VLANs

• Port-based VLANs (Layer 1 VLANs)
• Use physical layer port numbers on the front of
  the VLAN switch to assign computers to VLAN
  segments
• Use a special software to tell the switch about
  the computer - port number mapping
• MAC-based VLANs (Layer 2 VLANs)
• Use MAC addresses to form VLANs
• Use a special software to tell the switch about
  the computer - MAC address mapping
• Simpler to manage
• Even if a computer is moved and connected to
  another port, its MAC address determines which
  LAN it is on

44
Types of Single Switch VLANs

• IP-based VLANs (Layer 3 VLANs, protocol based
  VLANs)
• Use IP addresses of the computers to form VLANs
• Similar to MAC based approach (use of IP instead
  of MAC address)
• Application-based VLANs (Layer 4 VLANs,
  policy-based VLANs)
• Use a combination of
• the type of application (Indicated by the port
  number in TCP packet) and
• The IP address to form VLANs
• Complex process to make assignments
• Allow precise allocation of network capacity

45
Multi-switch VLAN-Collapsed Backbone
Switch
Switch
Switch
Switch
46
Multi-switch VLAN Operations

• Inter-switch protocols
• Must be able to identify the VLAN to which the
  packet belongs
• Use IEEE 802.1q
• When a packet needs to go from one switch to
  another
• 16-byte VLAN tag inserted into the 802.3 packet
  by the sending switch
• When the IEEE 802.1q packet reaches its
  destination switch
• Its header (VLAN tag) stripped off and Ethernet
  packet inside is sent to its destination computer

47
VLAN Operating Characteristics

• Advantages of VLANs
• Faster performance
• Precise management of traffic flow
• Ability to allocate resources to different type
  of applications
• Traffic prioritization (via 802.1q VLAN tag)
• Include in the tag a priority code based on
  802.1p
• Can have QoS capability at MAC level
• Similar to RSVP and QoS capabilities at network
  and transport layers
• Drawbacks
• Cost
• Management complexity
