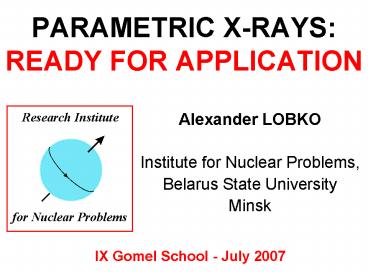

PARAMETRIC XRAYS: READY FOR APPLICATION

1
PARAMETRIC X-RAYSREADY FOR APPLICATION

• Alexander LOBKO
• Institute for Nuclear Problems,
• Belarus State University
• Minsk

IX Gomel School - July 2007
2
Light sources
nano-science
http//www.lightsources.org/cms/?pid1000166
3
Spectral brilliance of T- x-ray sources
There is a large gap between properties of common
and accelerator-based x-ray sources
X-rays The First Hundred Years // Wiley 1996
4
Typical size of a contemporary synchrotron
5
Budget of the SOLEIL synchrotron (France)

• Construction
• Investment.235 M
• Operation..64 M
• Salaries.150 M
• Total.449 M
• Yearly...53 M

www.synchrotron-soleil.fr
6
Synchrotron sources in the world

• About 40 sources in 20 countries

http//www-als.lbl.gov/als/synchrotron_sources.htm
l
7
Comparison of some x-ray generation processes at
accelerators
V.G. Baryshevsky, I.D. Feranchuk // NIM 228
(1985) 490
8
Parametric x-rays (PXR)

Condition for the Cherenkov radiation emission
V. Baryshevsky, I. Feranchuk, A. Ulyanenkov
Parametric Xray Radiation in Crystals Theory,
Experiment and Applications // Springer, 2006.
176 p.
9
PXR experiments in the World

• Armenia Erevan ErPI LINAC
• Belarus INP in collaborations with Tomsk IHEP
  Protvino Mainz, own experiments with
  non- relativistic electrons
• Canada Saskatchevan Accelerator Lab LINAC
• Germany Darmstadt S_DALINAC, Mainz MAMI
  Microtron, Rossendorf ELBE LINAC
• Japan Tokyo U. Synchrotron, Tohoku U. LINAC,
  Hiroshima U. LINAC, Kamigori Spring-8
  Synchrotron, Kyoto U. LINAC, Hokkaido U.
  LINAC, Nihon U. LINAC
• Russia Tomsk SIRIUS Synchrotron, Dubna JINR
  Nuclotron, Belgorod U. in collaborations
• Ukraine Kharkov KPTI LINACs
• USA RPI LINAC, BNL Accelerator Facility LINAC,
• Naval Postgraduate School LINAC

10
Main PXR features

• it is quasi-monochromatic x-ray radiation
• x-rays energy can be changed continuously by the
  crystal target rotation
• it is directed and polarized x-ray radiation
• x-rays energy does not depend on energy of
  incident charged particles
• radiation angle can be as large as
• 180 arc degrees

11
Applications of synchrotron radiation
12
Soft X-Ray Imaging

• Methods Soft x-ray imaging, photoelectron
  emission microscopy (PEEM), scanning transmission
  x-ray microscopy (STXM), full-field microscopy,
  x-ray diffraction imaging (XDI), x-ray
  tomography, computer-aided tomography (CAT).
• Problems
• Cell biology
• Nano-magnetism
• Environmental science
• Soft matter, polymers
• The tunability of radiation is absolutely
  essential for the creation of contrast mechanisms.

13
Soft X-Ray Spectroscopy

• Methods Soft x-ray absorption spectroscopy
  (XAS), near-edge x-ray absorption fine structure
  (NEXAFS) spectroscopy, soft x-ray emission
  spectroscopy (SXES), resonant inelastic x-ray
  scattering (RIXS), x-ray magnetic circular
  dichroism (XMCD), x-ray photo-emission
  spectroscopy (XPS), Auger spectroscopy.
• Problems
• Complex materials
• Magnetic materials
• Environmental science
• Catalysis
• The photon energy tunability and its brilliance
  and polarisation for some applications are
  essential.

14
Soft X-Ray Scattering

• Methods Soft x-ray emission spectroscopy
  (SXES), inelastic x-ray scattering (IXS),
  resonant x-ray inelastic scattering (RIXS),
  speckle patterns, small-angle x-ray scattering
  (SAXS).
• Problems
• Strongly correlated materials
• Magnetic materials
• Environmental science
• Catalysis
• The tunability of radiation and its brilliance
  for some applications are essential.

15
Practical examples of PXR applications
Nihon University, Japan
enhanced contrast images
EXAFS
Rensselaer Polytechnic Institute, NY, USA
16
PXR source based on the tabletop synchrotron
Photon Production Laboratory Japan
17
First observation of parametric rays in the
microwave range
exiting (slow-wave) grating step 0,67 ??
diffraction (feedback) grating step 3 ??
NIM A 483 (2002) 2123 NIM A 507 (2003) 137140
18
Possible T-rays applications
http//www.lightsources.org/cms/?pid1000680
19
