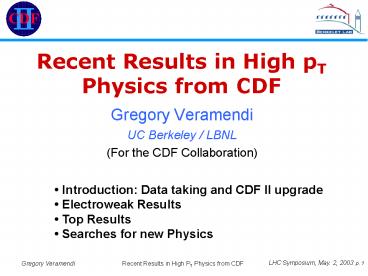

Recent Results in High pT Physics from CDF

1
Recent Results in High pT Physics from CDF

• Gregory Veramendi
• UC Berkeley / LBNL
• (For the CDF Collaboration)

Introduction Data taking and CDF II upgrade
Electroweak Results Top Results Searches for
new Physics
2
CDF data taking

• Running stably since Feb. 02
• Silicon sensitive to beam conditions
• gt150 pb-1 to tape
• 5-8 pb-1/week
• 82 efficiency
• 53-91 pb-1 used in current winter analyses

Approved for analysis
Commissioning
July 2001
3
CDF Run II Upgrade

• Improved Si coverage
• ? lt 2
• 8 layers
• Central Drift Chamber
• 96 layers
• Time of Flight
• Expanded ? coverage
• Forward Calorimeter
• Trigger
• COT tracks at L1
• Silicon tracks at L2

4
Electroweak Program

• Baseline Measurements
• W/Z cross sections
• Ratio of W/Z cross section
• Lepton Universality
• Forward-Backward Asymmetry
• Improve EWK parameters
• W Charge Asymmetry
• Constrains on PDFs
• Diboson Production
• Look for Anomalous couplings
• W Mass Measurement
• Dominated by Systematics

W?e?
Z???
5
?B(W--gtl?l)
W--gt??

• Clean Signature
• Isolated lepton
• Missing ET
• High ? S/B
• 72 pb-1

6
?B(Z--gtll)

• Require two isolated leptons
• Negligible backgrounds
• 72 pb-1
• Essential for Detector Calibrations
• Energy scale and resolution
• ID efficiency

7
W and Z cross sections
8
R and GW
9
W??? and Lepton Universality

• Clean W??? decays
• Baseline for analyses using ?s

10
AFB using Dielectrons

• Forward-Backward Asymmetry
• Exploits forward coverage of electrons
• ?lt3
• Direct probe of ?,Z couplings
• Sensitive to interference from new physics
• High mass reach is unique to Tevatron
• Results consistent with SM

11
W?e? Charge Asymmetry

• Al constrains PDFs
• Charge ID and polar coverage essential
• Uses new Calorimeter seeded Silicon tracking
• Consistent tracking ?lt2
• Improvement on Run I
• Blind Analysis
• Results Summer

12
Diboson CouplingsW?

• Signature
• One high pT lepton
• One photon (?R(?-l)gt0.7)
• ET
• Results consistent with SM
• SM ?B(W?--gtl??) 18.7 1.3 pb

/
13
Diboson CouplingsZ?

• Signature
• Two high pT leptons
• One photon (?R(?-l)gt0.7)
• Results consistent with SM
• SM ?B(Z?--gtll?) 5.4 0.4 pb

14
DibosonWW

• Search for W W production
• Dilepton ET search
• Consistent with SM
• Wait for more statistics
• Precursor to SM Higgs Search

/
15
Top Program

• Establish Baseline Measurements from Run I
• Top cross section
• Precision test of QCD
• Probe for non-SM Production
• Top Mass
• Preliminary Result
• Getting machinery warmed up!
• Many precision tests of top to come with more data

16
Production and Decay of Top

• Top decays as a free quark
• ?top 4x10-25s
• BR(t-gtWb) 100
• 3 classes of signals
• Dilepton
• 2 high-pT leptons, 2 b jets, ET
• BR 1/9 (e,? 5)
• Lepton Jets
• 1 high-pT lepton, 4 jets (2 bs), ET
• BR 4/9 (e,? 30)
• All-hadronic
• 6 jets (2 bs)

/
/
17
Dilepton Cross Section

• Signature
• Two high pT Isolated leptons
• Veto Z, cosmic, conversion
• ??(ET,l/j)gt20o, or ETgt50 GeV
• ET gt 25
• Two jets with ETgt10 GeV
• Total transverse energy gt 200 GeV
• Expect S/B 9, S2.5
• Find 5 candidate events in 72 pb-1
• Expect 0.3 0.12 background events

/
/
/
?tt13.2 5.0stat 1.5syspb
NLO?tt(?s1.96 TeV)6.700.71-0.88 pb
(hep-ph/0303085(ML Mangano et al))
18
Lepton jet Cross Section

• Signature
• One high pT Isolated lepton
• Veto Z, cosmic, conversion
• ET gt 20 GeV
• 3 or more jets with ETgt15 GeV
• 1 jet with secondary vertex tag
• B tag improves S/B 1/6 ?3/1
• Find 15 candidate events in 57.5 pb-1
• Expect 3.8 0.5 background events

/
control
signal
?tt5.3 1.9stat 0.8syspb
19
Top production cross sections
20
Top Mass

• Select l 4 jet events
• Same as cross section, but no b tags
• 33 candidate events
• Method
• 24 combinations in an event
• 2-C fit applied, lowest ?2 is chosen to get mass
  for each event
• A continuous likelihood method is used with
  parameterized mass templates
• Mtop is the minimum of log-likelihood
  distribution
• Systematic uncertainty to improve with
  understanding of detector

21
Top mass with b tag

• B tag
• Lower backgrounds
• Improves mass resolution
• Same selection
• Relaxed 4th jet requirement
• 11 candidates
• Work in Progress
• Results by Summer

22
Lepton Jets Candidate Events
tt l jet candidate Nov 02 2002 run 153693
event 799494 ? (CMUP) 4 jets
23
New Physics??

• Where to look?
• Two Approaches at CDF
• Model driven searches
• Drell-Yan spectrum search
• Leptoquarks
• Doubly charged Higgs
• SUSY
• Signature driven searches
• Dijet spectrum
• CHArged Massive Particles
• Photon final states

24
Search in Drell-Yan Spectrum

• High Mass Dileptons
• electrons muons used
• Sensitive to Z and Randall-Sundrum Graviton
• No excess observed

? ?-
ee-
25
Search in Drell-Yan Spectrum
Already Improving on Run I!!
26
1st Generation Scalar LeptoQuarks

• LQLQ ? ee-qq
• 2 high ET electrons, 2 jets
• 0 events observed
• Background 3.43 events
• M(LQ)gt230GeV/c2 (R1gt220)

• LQLQ ???qq
• 2 high ET jets, large ET
• 42 events observed
• Background 4311 events
• 60ltM(LQ)lt107GeV excl.

/
27
H Search

• Arises in extensions of SM (L-R symmetric)
• Same sign leptons
• Low backgrounds
• Study with less integrated luminosity
• Dielectron channel
• Signal above Z pole
• Low mass used as control
• 0 events observed
• Background 0.60.5
• Binned Search 0 events

28
DiJet Search

• Consistent with SM
• Set limits on New Physics
• Axigluons or flavor universal colorons
• 200 lt m lt 1130 GeV/c2
• Excited quarks
• 200 lt m lt 760 GeV/c2
• Color octet techni-rs
• 260 lt m lt 640 GeV/c2
• E6 diquarks
• 280 lt m lt 420 GeV/c2
• W
• 300 lt m lt 410 GeV/c2

29
Highest Dijet mass event
Run 152507 event 1222318 Dijet Mass 1364 GeV
(corr) cos q 0.30 z vertex -25 cm
J1 ET 666 GeV (corr) 583 GeV (raw) J1 h 0.31
(detector) 0.43 (correct z)
J2 ET 633 GeV (corr) 546 GeV (raw) J2 h -0.30
(detector) -0.19 (correct z)
CDF Run 2 Preliminary
Run I max 1040 GeV
30
CHArged Massive ParticleS

• Stable charged particle that escapes detector
• Massive ? Slow moving
• Use TOF detector
• 7 events observed
• Background 2.93.2 events
• Candidate stop
• NLSP in GMSB
• Isolated M(stop) gt 108 GeV
• non-isolated M(stop) gt 95 GeV
• LEP M(stop)gt95 GeV

31
DiPhoton Search

• 2 central photons ETgt13 GeV
• Cosmic and beam halo rejection

• Good agreement with SM
• 0 Diphoton Lepton Events observed

M??
/
ET
32
Run Iia Prospects

• Towards the next few years

Event yields per experiment (2 fb-1)
DØ / CDF Run 2a Prediction
Sample Wln Zll WV (Wln, VW,g,Z) ZV (Zll,
VW,g,Z) tt (mass sample, ?1 b-tag)
Run I 77k 10k 90 30 20
Run IIa 2300k 202k 1800 500 800
?MW40 MeV ?Mt 3 GeV
33
Summary

• Run 2a is well underway!
• Re-established baseline electroweak measurements
• Top program has been launched!
• Many exotics measurements improve on Run I
  results!
• We look forward to larger datasets and testing
  the Standard Model to even greater precision

34
Backup Slides
35
AFB backup
36
WW cross section backup
37
Dilepton backup
38
Dilepton backup
39
Secondary Vertex Tagging

• Signature of a b decay is a displaced vertex
• Long lifetime of b/c hadrons (c? 450 ?m)
• B hadrons travel Lxy3mm before decay with large
  charged track multiplicity.
• Algorithm
• Look for displaced vertices all combination of
  at least 2 tracks
• Jet is tagged as b-jet if Lxy/?xy gt3 (typical
  ?xy150?m)

?(event tag) 45 ? 1 ? 5
40
Ljets backup
41
Top Mass backup
42
Diphoton Backup

• Backgrounds in lgg
• Wgg
• Zgg
• Zg
• egjet
• P(e fake g)2
• Limit Set
• Mcgt113 GeV

43
DY search backup
44
Dijet mass backup

• Axigluons or Colorons
• 200 lt m lt 1130 GeV/c2
• Run I200ltmlt 980GeV/c2
• Excited quarks
• 200 lt m lt 760 GeV/c2
• Run I200ltmlt 570580 ltmlt 760
• Color octet techni-rs
• 260 lt m lt 640 GeV/c2
• Run I260ltmlt 480 GeV/c2
• E6 diquarks
• 280 lt m lt 420 GeV/c2
• Run I290ltmlt 420 GeV/c2
• W
• 300 lt m lt 410 GeV/c2
• Run I300ltmlt 420 GeV/c2

45
Leptoquark search backup
eenn search

• eeqq search
• Dominant Back.
• Drell-Yan, top

46
CHAMP backup
Signal
Signal
Control
W--gten
47
H Search
Dominated by DY
OPAL Limit mgt98.5-100.5 depending on coupling
48
Higgs Sensitivity

• Status as of 2000
• Studies with Run II ongoing
• Run II simulation
• Run II Efficiencies
• New report expected in June 03
