Title: Construct the Hot Wire Foam Cutter. Needed Parts. Junctio


1

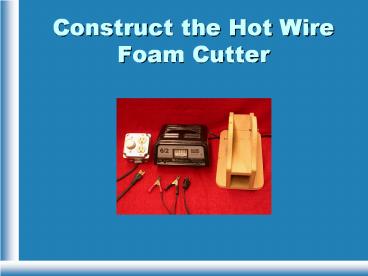

Construct the Hot Wire Foam Cutter
2
Needed Parts
  • Junction box
  • UL-approved 16/3 cord with grounded plug
  • Outlet
  • Dimmer switch
  • 6/12V battery charger with 6A output
  • Wire
  • Hardware
  • 5/8 particle board

3
Guidelines
  • Only people experienced in shop safety practices
    should attempt this procedure.
  • Take precautions to ensure the completed project
    is safe for use.

4
Procedure
  • Mount outlet and dimmer switch to top of junction
    box.
  • Install strain relief clamp onto junction box and
    route cord leads into box.

5
Procedure
  • 3. Connect leads as followssplice cord white to
    lead from dimmer, cord black to terminal on side
    of outlet labeled black, cord green to gnd
    terminal on outlet.
  • Connect remaining dimmer lead to terminal on
    side of outlet labeled white
  • Connect gnd lead between dimmer gnd and outlet
    gnd.
  • 4. Assemble box.

6
Procedure
  • Use 5/8 particle board for wire mount. Base is
    7 x 12. Crosspiece is 3-1/4 X 12. Sides are
    cut from rectangles 7 x 12. Cut tops of sides
    as shown (curve starts 4-1/4 from bottom edge).
  • Route sides for crosspiece, top of route 3-1/4
    from top of side. Route base for sides. All
    routes ¼ deep. Glue crosspiece and sides into
    routed slots.

Route forcrosspiece
Route for sides
7
Procedure
  • 6. Drill holes to allow 2 clearance between wire
    and crosspiece. Single bolt held in place with
    nuts, has hole through shaft to insert wire
    through, wire then wrapped around shaft. Opposite
    bolt has hole length of shaft, wire fed through
    shaft, out head, wrapped around screw mounted
    below bolt.

2
8
Procedure
  • 7. Attach clamps from battery charger to
    screw/terminals on wire cutter as shown. Use 6V,
    6A settings on charger, rotate dimmer to read 4A
    on meter.

Plug charger into control box.
