Title: Horse Scaffolding


1

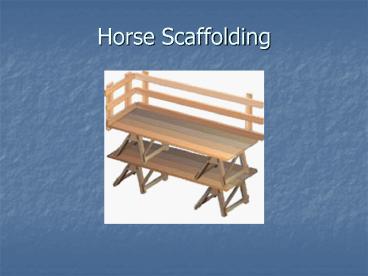

Horse Scaffolding
2
Horse Scaffolding
  • Horse Scaffolding is a scaffold for light or
    medium duty work.
  • It is scaffolding made up of "saw horses," which
    support a work platform.
  • Horse Scaffolding is mainly used during Ship
    Construction and maintenance.
  • Since new methods of ship construction have come
    about, it has greatly reduced the use of these
    scaffolds.

3
OSHA Regulations
  • 1915.71(g)(1) The minimum dimensions of lumber
    used in the construction of horses shall be in
    accordance with Table E-3 in 1915.118.
  • 1915.71(g)(2) Horses constructed of materials
    other than lumber shall provide the strength,
    rigidity and security required of horses
    constructed of lumber.

4
OSHA Cont.
  • 1915.71(g)(3) The lateral spread of the legs
    shall be equal to not less than one-third of the
    height of the horse.
  • 1915.71(g)(4) All horses shall be kept in good
    repair, and shall be properly secured when used
    in staging or in locations where they may be
    insecure.

5
OSHA Cont.
  • 1915.71(g)(5) Platform planking shall be in
    accordance with the requirements of paragraph (i)
    of this section.
  • 1915.71(g)(6) Backrails and toeboards shall be in
    accordance with paragraph (j) of this section.

6
OSHA Dimensions
  • Table E-3 - Specifications for the Construction
    of Horses Height in feet Structural members
    1016Legs ................. 2 x 4 3 x 4 4 x 6
    Bearers or
    headers.... 2 x 6 2 x 8 4 x 6
    Crossbraces .......... 2 x 4 or 1 x 8 2 x 4
    2 x 6
    Longitudinal braces... 2 x 4 2 x 6 2 x
    6

7
Procedures and Policies
  • Scaffolds can not be more than 10 feet or two
    tiers in height, whichever of the two is less.
  • When horses are made up in tiers each horse must
    be placed directly over the other horse in the
    tier below.
  • The legs of each horse must be nailed down or
    otherwise secured to prevent displacement and
    each tier must be crossbraced.

8
Procedure Cont.
  • Maximum intended load - Light duty 25
    pounds/foot2
  • Maximum intended load - Medium duty 50
    pounds/foot2
  • Bearers - Light duty2 X 4 inches
  • Bearers - Medium duty3 X 4 inches
  • Legs 2 X 4 inches

9
Procedures Cont.
  • Longitudinal Braces Between the legs1 X 6 inches
  • Gusset braces at the top of the legs1 X 8 inches
  • Half diagonal braces2 X 4 inches
  • Horses must not be spaced more than 8 feet apart
    for the light-duty loads, and not more than 5
    feet apart for medium-duty loads.

10
(No Transcript)
11
Injuries
  • Injuries due to horse scaffolding are mainly fall
    injuries.
  • Since Horse scaffolding cant be higher then 10
    feet, serious injuries or fatality is slim to
    none.
  • Could not find any serious injuries due to horse
    scaffolding or any data.

12
Injuries
  • Injuries due to horse scaffolding are mainly fall
    injuries.
  • Since Horse scaffolding cant be higher then 10
    feet, serious injuries or fatality is slim to
    none.
  • Could not find any serious injuries due to horse
    scaffolding or any data.

13
(No Transcript)
14
Horse Scaffolding
  • Horse scaffolding is not commonly used except for
    construction and repairs of boats.
  • Can not be higher then 10 ft.
  • Can not be more then 2 tiers high.
  • Serious or fatal injuries are not commonly
    associated with horse scaffolding.
