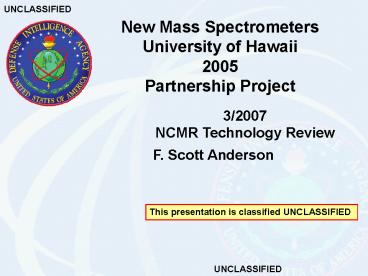

New Mass Spectrometers University of Hawaii 2005 Partnership Project

1
New Mass SpectrometersUniversity of
Hawaii2005Partnership Project
UNCLASSIFIED
3/2007 NCMR Technology Review
F. Scott Anderson
This presentation is classified UNCLASSIFIED
UNCLASSIFIED
2
Project Information

• New Mass Spectrometers for NBC Environmental
  Characterization
• University of Hawaii/HIGP
• Lead F. Scott Anderson (50)
• UH Personnel
• Eric Pilger Physicist (50)
• Keith Nowicki Physicist (100)
• Sarah Sherman Geochemist (100)
• Jeffrey Bosel Physicist (100)
• Gary McMurtry - Spectroscopist (10)
• Karen Stockstill (Postdoc 50, but leveraged from
  NASA NAI)
• Sophie Fung (Fiscal Officer 50)
• Malie Smith - Clerical (50)
• Partners
• Southwest Research Institute MB-TOF Dave Young
  (10), Greg Miller (50)
• Atom Sciences LA-RI-MS Tom Whitaker (20)
• Sandia Shock Design Testing Tony Mittias
  (15)
• Jet Propulsion Laboratory ESI-RFMS Advising
  Steven Smith (20)

3
Program Details

• Date of award 3/2005
• Date of receipt of funds 11/2005
• Date work actually started 11/2005
• Percent of funds spent to date 90
• SwRI (50)
• Atom Sciences (100)
• Sandia (100)
• JPL (50)
• Percent of year 1 work completed to date 100
• SI not undertaken per MASINT ESI - RFMS rescoped

4
Plan Status
5
Objectives

• EI/ESI RFMS
• RFMS New mass filtering method
• EI Atmospheric chemistry
• ESI Applied under simpler in-situ relevant
  conditions, I.e. vacuum
• Leverages NASA MIDP
• LA-RI-MS
• RI-MS to in-situ ultra-sensitive isotope
  detection
• New MBTOF MS
• Leverages NASA PIDDP, NAI, ONR IED

• Outline
• RFMS
• Previous results
• Current progress
• Future direction
• LARIMS
• Previous results
• Current Progress
• Future direction
• Program direction

6
Part 1 EI-RFMS
UNCLASSIFIED
UNCLASSIFIED
7
(No Transcript)
8
RFMS Principle
Detector - FC - Imager
Mass Disperser - 4 pole - 8 pole
Ionizer - Filament - EGA
9
RFMS Previous Work

• Modeled principle
• Demonstrated technique
• Simultaneous measurement of masses
• No upper mass limit
• Inherently rugged
• Ballistic emplacement potential
• Moderate resolution
• ESI less relevant
• Focus on increasing resolution in full size design

Resolution 5
10
RFMS Previous Work
11
Previous Status

• Improve 4 areas
• Ion source focus
• Better e- curtain
• Focus elements
• EGA ?
• Better einzel lens ?
• Smaller apertures ?
• Better mass dispersion ?
• Larger RF amplitude
• Enables larger dispersion
• Steering to measure beam beyond detector size
• More RF poles (8 vs 4)

• MCP / Imaging Detection ?
• Dramatic SNR increase
• Faster DAQ
• Higher resolution
• Better vacuum ?
• Last time Construction phase
• Now results
• 2,3,4 complete
• 1 underway

12
1. Ion Source
Gas in

• Improvements
• FE modeling physical testing of electric fields
  has improved understanding
• Improved einzel lens design
• Smaller apertures
• Tested EGA
• Produces more focused e- beam
• To do
• Redesign to increase transmission efficiency
• Focus e- from EGA or filament

Ions out
13
1. Ion Source

• EGA Ion signal 1000x lt filament OK with ion
  imagers
• Run away behavior above 5e-5 torr
• Power consumption 1000x lt filament

Electron Gun Array
14
2. Better Mass Dispersion

• New RF electronics
• Higher amplitude RF
• 8 poles, not 4
• FE model prediction
• More dispersion
• More uniform rings

15
3. Imaging Detectors

• Purchased MCP/Phosphor ion imager
• Interfaced frame grabber with existing software
• 10 frames/s (720x480x15 mm) per second
• Single ion sensitivity (50-100 mm blob)
• Pressures lt 10-6 torr
• First pass at reduction techniques for spectral
  cube

2.7 cm
16
4. Vacuum System

• New vacuum chamber is an enabling test bed
• Vacuum getter
• Solid state
• Shock tolerant
• Renewable
• Testing in UH submersible test bed
• Also considering
• Creare mini-turbo's
• Pre-pumping scenarios

17
Results 1 Pixel RFMS

• FC43 air
• Mass peaks from 50-600
• Single pixel faraday cup
• 3 Minute acquisition
• Low resolution
• Noisy
• Low sensitivity
• Physically robust
• Proof of principle

18
Result FC43 Imaging RFMS
19
RFMS 2006 M10-300, R5, SNR10

• First results
• Highly linear
• Single radial
• Better SNR available
• 1 pixel detector
• Scanned over 3 minutes
• R 3-5
• Can't separate O,N2
• SNR 10
• M 10-300

20
RFMS 2007 M0.1-600, R10, SNR1000

• Imaging detector
• R8-10
• SNR 1000
• M 0.1-600
• Air
• FC43
• Pump oil

21
Sandia Shock Testing
Filament
Ceramic

• Passed 5000-g shock test
• RFMS Ceramics
• Filament
• Failed
• Vacuum chamber
• CF Cu gaskets
• Fix with welded flanges

5000-g shock table
Vac Chamber CF KF
22
RFMS vs SOA
1
9
23
Future Work

• Redesign ion source
• Better focus
• Higher throughput
• Pursue CMOS ion imager
• Each pixel DNR 106
• Independently adjustable
• Small, shock tolerant
• Seeking funds
• Larger RF amplitude mod to electronics
• Greater dispersion
• Steering Off axis dispersion

Courtesy Bonner Denton, Univ. AZ
24
Part 2 LA-RI-MS
UNCLASSIFIED
UNCLASSIFIED
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
High Precision Isotopic Ratios

• Useful for tracking objects, dating them
• P 5000 on 1 ppm
• Disaggregate sample
• Generate separates
• Density
• Magnetically
• Hand-pick
• Dissolve
• Condense into disks
• Measurement with large sector MS or SIMS
• Cannot be miniaturized
• Wet chemistry
• Sensitive option LA-RI-MS
• 2 Modes

29
LA-RI-MS vs SOA
30
How LD-MS Mode Works
Laser Desorption Mass Spec

• Laser desorption
• Technically laser ablation (gt1GW/cm2)
• 99.9 Neutrals
• 0.1 Prompt Ions
• Measure ions
• Neutrals not detected
• Detect with MS
• Bad significant fractionation

UV Laser gt 1GW/cm2
Mass Spec
Sample
Prompt Ion Trap
31
How LD-RI-MS Mode Works
Laser Desorption Resonance Ionization Mass Spec

• Laser desorption
• 99.9 Neutrals
• 0.1 Prompt Ions
• Remove prompt ions
• RI remaining neutrals
• Only selected element (Sr or Rb) ionized
• Detect with isotopes with MS

Tuned only for Sr or Rb
Resonance Ions
Sample
32
Resonance Ionization

• All elements possess unique energy levels
• Unique energy (l) to raise e- to each level
• Use set of tuned lasers to stimulate excitation
  steps for a given element
• More lasers provide more selectivity
• Applied to gas phase

Example of Sr RI Bushaw Cannon, 1997
33
LA-RI-MS Previous Work

• System Overview

34
LA-RI-MS Previous Work
1 mm
35
LA-RI-MS Previous Work

• Celestite LARIMS (note scale 0.12V)

36
Findings

• 460, 554 at 2-5 mJ
• 2 photon ionization from power in 554
• 1064 not required, may reduce lasers from 3 -gt 2
• 1st light precision
• 87Sr/86Sr 0.7347 /- 0.08
• Sought /- 0.0002
• Fixes
• Ablation
• Smaller ablation spot size ?
• Lower power ?
• Jitter

• Mass Spectrometer
• Better TOF Tuning ?
• New MCP's on TOF ?
• 4 GS/sec 10 bit DAQ board ?
• Removing prompt ions (LAMS) from RI ?
• Resonance ionization
• Implementing laser attenuation ?
• Power fluctuations from ablation jitter

37
1. Ablation

• Aligned optics to 50 mm
• Attenuated beam to control ion production

38
1. Ablation - 3 targets
Basalt Glass 100 ppm
Celestite 2e5 ppm
Basalt 1000 ppm
Ablation rate much lower in basalts
39
2. Mass Spec Improvements

• Better TOF Tuning
• 4 GS/sec 10 bit DAQ board
• New MCP's on TOF
• Removing prompt ions (LAMS) from RI
• Required higher voltage than expected
• LA ions had more energy than anticipated

40
3. RI Attenuation
41
Better Quality of Measurements
42
Better Average Results
43
Basalt Glass (100 ppm Sr)
44
Quality of RI vs Ablation
UNCLASSIFIED
100
UNCLASSIFIED
45
Ablation Power Variation
UNCLASSIFIED
UNCLASSIFIED
46
Spectra Quality vs Quantity
StdDev of Mean
Fewer Spectra
47
Experiments for 3 Samples
20X better than previous result
48
Assessing Performance
49
Measured vs Goals
50
Desired Precision
Achievable!
51
Remaining Issues
UV Laser gt 1GW/cm2

• Degradation of RI signal at high LA power
• High LA power desirable to reduce overall of
  shots, but
• Not all LA ions removed
• Off axis ablation generates high charge region
  that adversely deflects RI ions
• RI ion creation 1 cm from sample
• Intersects minimal part of ablation gas ejecta
• LA jitter causing adverse RI power variation

Off axis
Sample
RI Lasers
Non-ideal separation intercepts less of gas
52
12. MS Transmission Efficiency

• Off-axis LA reduces efficiency
• New optics being installed to target axis
• Increase ion generation hence precision
• Rental RTOF cannot handle ion energy distribution
• MB-TOF energy focusing mirrors
• Designed for LA energy distribution
• Delayed until September, but, get miniaturization
  and initial NASA flight qualification free!
• Position of RI beams
• New optics currently being installed

53
3. LA Jitter

• Custom 206 nm laser
• lt 1 ns pulse
• High peak power
• 25 W in, TW out
• Built in attenuator
• Size 16 x 18 cm!
• No poison gas
• 1 ns jitter

206nm Ablation Laser Schematic
54
3. LA Jitter
YbYAG Breadboard Fundamental Output _at_ 1030 nm _at_
0.3 mJ
55
3. LA Jitter
High Doped 6 mm 10 YbYAG Crystal
Passive Q-switch Output Coupler
25 Watt 940 nm Pump
25 Watt 940 nm Fiber Pump Source for 206 nm Laser
56
Future Work

• Due to reduced funds, we will delay
• A low risk but shoebox sized tunable RI laser
  system (YAG OPO)
• Higher risk flashlight sized tunable RI laser
  system (solid state)
• Smaller redesign for MB-TOF called ZZ-TOF
• ESI with MB-TOF
• However, may leverage other funds in Sept 07

57
Side-by-side summary
Tasks as defined by contract
58
Progress

• Publications (7 conference presentations)
• Stockstill, K., Anderson, F.S. , E Pilger, G
  McMurtry, L French, A Rugged Miniature
  Mass-Spectrometer for Aqueous Geochemistry on
  Mars, American Geophysical Union, Fall Meeting,
  2005.
• M M Osterloo, F S Anderson, T Whitaker, G Miller,
  D Young, J Mahoney, M Norman, A LASER RIMS
  Instrument to Date Igneous Rocks using Rb-Sr and
  Measure Elemental Chemistry, American Geophysical
  Union, Fall Meeting, 2005.
• F. S. Anderson, T. Whitaker, G. Miller, D. Young,
  J. Mahoney, and M. Norman, L. French, A LASER
  RIMS INSTRUMENT TO DATE IGNEOUS ROCKS USING RB-SR
  AND MEASURE ELEMENTAL CHEMISTRY, abstract no.
  1843, LPSC XXXVI, 2005.
• L. C. French, F. S. Anderson, G. McMurtry, E.
  Pilger, J. Stopar, A RUGGED MINIATURE
  MASS-SPECTROMETER FOR MEASURING AQUEOUS
  GEOCHEMISTRY ON MARS, abstract no. 2138, LPSC
  XXXVI, 2005.
• Anderson, F.S., New Mass Spectrometer Designs for
  Astrobiology Applications, Invited Talk at NASA
  Astrobiology Institute Executive Council meeting,
  2005.
• Anderson, F.S., Ruggedized Nanospray RF Mass
  Spectrometer for Environmental Characterization
  and Biomolecule Detection, Bioastronomy
  Conference, 2004.
• Anderson, F.S., et al., A LASER RIMS Instrument
  to Date Igneous Rocks, Measure Geochemistry,
  Characterize Alteration in-situ on Mars, American
  Geophysical Union, Fall Meeting, 2002.
• Patents (0, two planned)
• 2 Manuscripts in preparation

59
Experiments

• RFMS last 6 months
• 30 tests of ion transmission and detection
• 20 imaging tests
• 20 imaging DAQ's for spectral characterization
• LARIMS last 6 months
• 20 LAMS tests
• 50 LA-RI MS tests
• Of these, the following DAQ tests completed
• 8 Celestite tests
• 3 Basalt tests
• 7 Basalt glass tests

60
Summary Assessment

• RFMS
• Basic physics well understood (year 1)
• Initial testing of optimized components underway
  (year 2)
• Ion imager
• 8 pole disperser
• Vacuum subsystems
• DNR/SNR 100x better
• R 2x better
• Mass range improved
• Components to 5000-g
• LARIMS
• Many experiments
• Optimized power
• 20x better precision
• 200K, 1K, 100 ppm samples

• Issues
• Reduced funding slows year 2 development of key
  components for breadboard delivery
• CMOS ion imager
• Sandia shock testing
• Miniature pumps
• Miniature RI lasers
• ESI ZZ-TOF
• Cannot meet original plan
• Not all bad More time to optimize!
• Other Progress
• Contracting complete
• Hiring complete
