Title: Particle Physics Data Grid Request Management working group


1

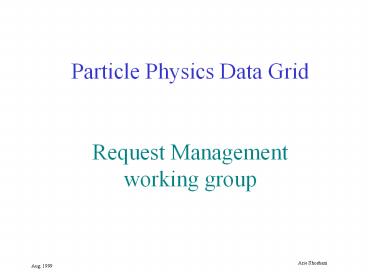

Particle Physics Data GridRequest
Managementworking group
2
Site Manager
parallel disk system
Site Manager
Network
Site Manager
parallel disk system
parallel disk system
Schematic of the distributed data system
3
Request Interpreter
Request Manager
Cache Manager
4
Scenarios
  • Simple
  • All files for a local application are cached to
    a local disk-cache
  • General
  • Files for an application can be cached to any
    disk-cache on any site

5
(No Transcript)
6
Functionality of modules (1)
  • Request Interpreter
  • accepts estimate requests based on property
    predicates
  • accepts execute requests for
  • property predicates
  • set of events
  • set of files
  • sends request inquiry to Logical Index Service
  • consults Matchmaker Resource Planner for
    estimation
  • passes entire logical file request to Request
    Manager

7
Functionality of modules (2)
  • Request Manager
  • accepts logical file request and notifies
    Application module ready to process files
  • consults Matchmaker Resource Planner to
    generate request plan
  • accepts get next events (files) requests from
    Client module
  • coordinates multi-application requests to share
    files
  • issues cache file(s) request to Cache Manager
  • notifies Client module when a (bundle of) files
    is available in some cache (can be on remote
    sites)
  • notifies Cache Manager when a Client is finished
    with files

8
Functionality of modules (3)
  • Cache Manager
  • accepts cache a file requests from the local
    Request Manager
  • accepts reserve space requests from remote
    reservation calls
  • allocates space on local cache as well as tape
    resourcesaccording to a local resource
    management policy
  • issues lock a file service requests to remote
    sites
  • issues reserve space service requests to remote
    sites
  • issues move a file service request
  • issues release a file service request to remote
    sites
  • notifies Matchmaker of any local cache changes

9
Functionality of modules (4)
  • Local Resource Manager
  • accepts requests for multi-file caching
  • Determines the best way to allocate local tape
    and disk cache resources
  • notifies cache manager to reserve space
  • notifies tape resource manager to reserve tape
    drives
  • ...

10
Local Site Manager
Remote Services
logical request (property predicates / event set)
Properties, Events, Files Index
Request Interpreter
files to be retrieved fileevents
Request Manager
File Replica Catalog
Request to move files file from,to
Request to reserve space cache_location
bytes
To Local Cache
GLOBUS Services Layer
To Network
Fig 1 Architecture for the simple scenario
11
(No Transcript)
12
Sequence of API calls
  • 1. Application issues an estimate
  • 2. Consult Logical index Service
    (properties-events-files) for estimate
  • 3. Consult Matchmaker Resource Planner for
    estimate
  • 4. Issue execute request command
  • 5. Consult Logical index Service for precise
    request evaluation
  • 6. Sent filesevents request to Request Planner
  • 7. Client issues a request for next events to
    process (files are implied)
  • 8. Request Planner Consults Matchmaker Resource
    Planner
  • 9. Request Planner issues get file(s), source,
    destination request
  • 10. Cache Manager issues reserve space request
    if destination is remote site
  • 11. Cache Manager issues move file(s) request
  • 12. Cache Manager notifies Matchmaker of any
    changes to local cache
  • 13. Client issues commands to read events out of
    files

13
People assigned to define API interfaces(first
name responsible to contact others)
  • 1 2 4 5 -- Alex, Dave, Vicky (Igor)
  • 3 8 -- Vicky (Igor) to coordinate with Mirons
    working group
  • 6 -- Alex, Arie
  • 7 -- Dave, Vicky (Igor), Andy
  • 9 -- Luis, Andy (for bundle at a time request,
    not just a single file)
  • 10 11 -- Luis, Andy
  • 12 -- Andy, Luis
  • 13 -- Andy, Dave

14
Local Site Manager
Remote Services
logical request (property predicates / event set)
Properties, Events, Files Index
Request Interpreter
Objectivity
files to be retrieved fileevents
AMS
Request Manager
File Replica Catalog
Event (File) in Cache?
Request to move files file from,to
Request to reserve space cache_location
bytes
OOFS
Reserve / make space
Move file HPSS-DISK
To Local Cache
GLOBUS Services Layer
Where OOFS functionality corresponds to
architecture components
To Network
Fig 3 OOFS integration
