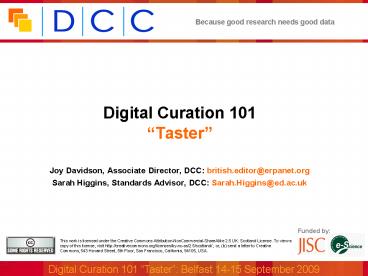

Digital Curation 101

1

• Digital Curation 101
• Taster
• Joy Davidson, Associate Director, DCC
  british.editor_at_erpanet.org
• Sarah Higgins, Standards Advisor, DCC
  Sarah.Higgins_at_ed.ac.uk

Funded by
This work is licensed under the Creative Commons
Attribution-NonCommercial-ShareAlike 2.5 UK
Scotland License. To view a copy of this license,
visit http//creativecommons.org/licenses/by-nc-sa
/2.5/scotland/ or, (b) send a letter to
Creative Commons, 543 Howard Street, 5th Floor,
San Francisco, California, 94105, USA.
2

• DC 101 aims and objectives
• Data management and curation are becoming
  increasingly integral for successful research or
  digitisation bids. Using the context of beginning
  a new research bid, this short course aims to
  introduce participants to the DCC Curation
  Lifecycle Model as a means of contextualising the
  range and nature of roles and activities required
  to maintain access to data over time. While the
  DCC Curation Lifecycle Model is sequential, it is
  flexible and allows users to start at any point
  in the model, or start to address issues which
  have had lower priority, depending on their
  current needs.
• Ultimately, tools and approaches will evolve over
  time, but if participants understand the bigger
  picture they will be in a better position to make
  critical decisions that best reflect their
  individual needs. The course will introduce
  participants to some of the tools and approaches
  and provide them with pointers to further
  information and support.
• The course is aimed at researchers, content
  creators and those who support them. We hope that
  participants leave the course equipped to explain
  why data curation is important and what roles
  they have to play in the process.

3

• What is curation?
• Data have importance as the evidential base for
  scholarly conclusions, and for the validation of
  those conclusions, a basic tenet of which is
  reproducibility.
• Curation is the active management and appraisal
  of data over the lifecycle of scholarly and
  scientific interest it is the key to
  reproducibility and reuse. This adds value
  through the provision of context and linkage
  placing emphasis on 'publishing' data in ways
  that ease reuse, with implications for metadata
  and interoperability.
• Data curation is part of good research and
  content management practice.

4

• Why Curate?
• Curation brings immediate and longer-term
  benefits
• Access to reliable, working data both for the
  creator and users
• Compliance with funding body and research council
  mandates on data sharing, management and access
• Independent validation of research findings
• Reliable lab and field electronic notebooks
  through trustworthy capture
• Large amounts of data can be developed and
  analysed across different locations by
  maintaining consistency in working practices and
  interpretations
• Relationship management between different
  versions of dynamic or evolving datasets is
  easier
• Facilitated linkage with related research and
  between primary, secondary and tertiary data
• Knowledge and data originating from short-term
  research projects does not become obsolete or
  inaccessible when funding expires
• Innovative data set combining is possible e.g.
  combined historic biodiversity data and GIS data
  can be used to investigate trends in ecosystem
  development.

5

• Lifecycle approach to curation
• digital materials are fragile and susceptible to
  change from technological advances from creation
  onwards
• activities (or lack of) at each lifecycle stage
  influence ability to manage and preserve
  materials in subsequent stages
• reliable re-use of digital materials is only
  possible if materials are curated in such a way
  that their authenticity and integrity are
  retained
• requires significant input and buy-in from the
  range of stakeholders creators, curators, IT
  staff, management
• helps maximise initial investment made in
  creating or gathering data
• supports verification of provenance
• facilitates continuity of service
• From Pennock, Maureen,
• Digital Curation A Life-Cycle Approach
• to Managing and Preserving Usable Digital
  Information, (2007)

6

• The DCC Curation Lifecycle Model
• Provides a graphical high level overview of the
  stages
• required for successful curation and preservation
  of data.
• It can be used to plan activities within an
• organisation or consortium to ensure all
• necessary stages are undertaken,
• each in the correct sequence.
• Full Lifecycle Actions
• Sequential Actions
• Occasional Actions
• http//www.dcc.ac.uk/lifecycle-model/

7

• Researchers and content creators tend to focus
  on
• conceptualise
• create or receive
• ingest
• store
• access, use and reuse
• data
• description
• community watch and participation

8

• Researchers and content creators tend to focus
  less on
• appraise and select
• dispose
• preservation action
• transform
• representation information
• preservation planning
• curate and preserve
• migrate
• reappraise

9

• Conceptualise
• Conceive and plan the creation of data,
  including capture method and storage options.
• Researchers
• define a research question
• begin to design the experiment
• seek funding
• conceive and plan the creation of data
• consider capture methods and
• storage options
• identify research collaborators
• identify potential subjects
• Roles researcher, funding bodies, publishers, IT
  department, ethics panel
• Plan with digital curation in mind!
• Decisions made at the Conceptualise stage impact
  on every other stage of the lifecycle.

10

• Specific issues to consider for the Conceptualise
  stage
• Research design and workflows what do you want
  to do?
• What storage needs to you anticipate using? Does
  your institution have the capacity for this?
  Will you keep raw or derived data or both?
• Will you make use of any existing data? Will you
  need to obtain rights to use it?
• Do you want your data to interoperate with other
  datasets? If so, how will you ensure that this is
  possible?
• What are the funders requirements regarding
  curation and preservation? Will they pay for
  curation activity?
• Will the research involve any legal restrictions
  on the use and access to the data?
• Are there any data protection issues that will
  require data cleaning before the data can be
  accessed and used?
• Do you require ethical approval from your
  institution or funder? Will this have any impact
  on the datas potential use and reuse?
• Do you need to calibrate data capture devices?
  Will this need to occur at multiple sites?
• Will the data be released under Creative Commons
  or Science Commons licenses?
• Are there likely to be any embargoes on data
  publication?

11

• Create or Receive
• Create data including administrative,
  descriptive, structural and technical metadata.
  Preservation metadata may also be added at the
  time of creation. OR Receive data, in
  accordance with documented collecting policies,
  from data creators, other archives, repositories
  or data centres, and if required assign
  appropriate metadata.
• Roles researchers, information specialists,
  technical support
• Ensure data are curation ready!
• Be careful - data may be irreplaceable
• Capture context for long-term reuse and
  comprehensibility.
• Clearly identify IPR at an early stage. This can
  become murky later in the process.

12

• Specific issues to consider for the Create or
  Receive stage
• What do you want people to be able to do with the
  data you are generating?
• What do you not want people to be able to do with
  the data?
• Are there any variations between data capture
  tools located at different sites? How will you
  ensure that these are recorded/addressed?
  Consistency of testing and data acquisition are
  crucial.
• Will you be adhering to any content, syntax, and
  structure standards? Are these easily available
  for use by everyone on the project team?
• Who will have rights over any collaboratively
  generated data (eg., databases)
• Who will you record contextual metadata and how?
• What level of data quality do you need to
  achieve? How will you ensure this level is
  achieved across all partners?
• Will you make use of any ontologies to facilitate
  data integration?
• Will you make use of any data collection
  policies?
• How will you handles file naming and version
  control?
• Do you have access to training and support for
  any/all of the above?

13

• Ingest and Store
• Transfer data to an archive, repository, data
  centre or other custodian. Adhere to documented
  guidance, policies or legal requirements. Store
  the data in a secure manner adhering to relevant
  standards.
• Data is transferred to a curation environment
  such as an institutional repository or a
  subject-based repository.
• Roles information specialists, repository
  managers, researchers
• Prepare data for long-term storage, access and
  continuity! Storage may be a dedicated data
  repository or a folder on a shared drive, but
  must be considered, secure and adhere to relevant
  standards.

14

• Specific issues to consider for the Ingest and
  Store stages
• Does the data have sufficient metadata? If more
  is required, who will be responsible for
  providing it?
• Will the data require additional cleaning before
  it can be ingested into the repository?
• Will frequent access to the data be required? If
  so, this could affect the storage choices.
• What level of responsibility does the repository
  indicate it will take on with regards to
  stewardship?
• Does the repository accept your data formats? If
  not, will there be any normalisation processes
  that may occur with the deposit of non-preferred
  formats?
• Does the repository outsource any of its
  activity? Could this have an impact on your data?

• Does the repository have sufficient resources and
  policies in place?
• Once ingest is complete, is there a formal
  acknowledgement that the transfer of custody has
  occurred?

15

• Access, Use and Reuse
• Ensure that data is accessible to both
  designated users and reusers, on a day-to-day
  basis. This may be in the form of publicly
  available published information. Robust access
  controls and authentication procedures may be
  applicable.
• Roles repository managers, researchers
• Ensure access and continuity!

16

• Specific issues to consider for the Access, Use
  and Reuse stage
• Are the intended users of the data able to access
  it and make use of it? i.e., are they able to use
  the data in the way that you originally intended
  them to use it? What about non-intended users?
• Are there any restrictions on access and reuse
  Ensure that these are communicated to the
  repository staff.
• Researchers should work with repository managers
  to develop suitable access policies and terms for
  use of the data
• If you are planning on making your data freely
  accessible for reuse, have you supplied enough
  context to enable its reliable reuse?
• Are they adequate finding aid to help locate and
  retrieve your data within the repository?
• Is the data practically interoperable with other
  datasets? Does it need to be?

17

• Appraise and Select
• Evaluate data and select for long-term curation
  and preservation. Adhere to documented guidance,
  policies or legal requirements.
• Researchers and content creators, along with
  information specialists use quality checks to
  identify and evaluate data for long-term
  curation
• must be legal, appropriate, and valuable
• may include data objects, metadata, and
  contextual information.
• Roles researchers, information specialists,
  funding bodies
• Develop robust policies! The keep everything
  approach quickly becomes unviable. As the volume
  of curated data increases, efficient search and
  retrieval becomes more difficult.

18

• Specific issues to consider for the Appraise and
  Select stage
• Does the data meet the data quality metrics
  identified by both the researchers and the
  archive? Who will be responsible for the final
  decision? Can errors in the data remain
  undetected at this stage, and cause problems at
  later stages?
• Has enough contextual information been collected
  to make an informed decision about which data to
  keep?
• What is the minimum you need to keep for your
  data findings and publications to be supported
  over time?
• Are there any data that you, by law, are not
  allowed to keep? How will it be destroyed and
  what evidence will you be able to provide to
  support this if necessary?
• Do you have any schedule for re-appraisal over
  time?
• Do you have access to expertise in your project
  staff or at your institution to assist with
  selection and appraisal?
• Your initial bid is a good place to start as
  youll have clearly indicated what outputs you
  planned to produce.
• Does your selection and appraisal fit in with
  your funding body requirements? What do they
  expect you to keep and where does it need to be
  kept?

19

• Preservation action
• Undertake actions to ensure long-term
  preservation and retention of the authoritative
  nature of data. Preservation actions should
  ensure that data remains authentic, reliable and
  usable while maintaining its integrity. Actions
  include data cleaning, validation, assigning
  preservation metadata, assigning representation
  information and ensuring acceptable data
  structures or file formats.
• Roles information specialists, preservation
  practitioners, repository managers
• Community Watch activities can be very helpful at
  this stage to identify imminent risks to data.

20

• Specific issues to consider for the Preservation
  Action stage
• Does the repository participate in community
  watch and ongoing preservation planning activity?

• Does the repository manager know what the
  significant properties of your data are? If not,
  some preservation actions can alter the
  significant properties.
• Are any preservation actions undertaken
  transparent and documented?
• Does the repository have legal rights to
  undertake preservation actions at all?
• Does the researcher require notification of any
  preservation actions that may affect the intended
  use of the data? If so, have mechanisms been set
  in place to facilitate this?
• If certain actions are recommended, are they
  suitable for your data? If not, are repository
  staff aware of any restrictions?

21

• Transform
• Create new data from the original, for example
  by migration into a different format or by
  creating a subset, by selection or query, to
  create newly derived results, perhaps for
  publication.
• New data may be generated from the original
• by format migration
• through integration with other data
• by new analyses and techniques applied within or
  across disciplines
• Roles researchers
• New uses for curated data! Derivative data, new
  visualisations or enhancements feed back into the
  Conceptualise and Create stages of the lifecycle
  which then starts anew.

22

• Specific issues to consider for the Transform
  stage
• Metadata aggregation to join up with other
  datasets, this integration of data drives new
  curation requirements.
• Image normalisation and automated analysis
  creates a variety of new contextual and
  provenance information
• If transformations or derivatives are produced
  (e.g. noise reduction) it must be accompanied by
  appropriate metadata
• Use community standards for recording provenance
  to safeguard against fast changing techniques.
• Does the community have sufficient support in
  transformation actions?
• Is more value gained from producing new data or
  from transforming old data in new ways?

23

• More information on all these stages is in the
  workshop packs!
• info_at_dcc.ac.uk

24

• Tools and resources to help with the DCC Curation
  Lifecycle stages
• Conceptualise
• DCC Policy Pages http//www.dcc.ac.uk/resource/cu
  ration-policies
• Check our handy table as a starting point to make
  sure you are aware of any curation related
  requirements for your particular funding body. If
  your funding body is not in our table, please get
  in touch with us so that we can add their policy
  details.
• DCC Helpdesk http//www.dcc.ac.uk/helpdesk
• If you need further assistance at this stage,
  please dont hesitate to drop us a line via our
  helpdesk and well make every effort to support
  your curation activity.

25

• Tools and resources to help with the DCC Curation
  Lifecycle stages
• Create or Receive
• DCC DIFFUSE
• You might wish to consult the DCC DIFFUSE
  database for standards frameworks related to your
  area of research. We strongly encourage the
  contribution of standards frameworks for specific
  domains from our user community to help ensure
  that this is a community-driven resource.
  http//www.dcc.ac.uk/diffuse/
• DCC Technology and Standards Watch papers
  http//www.dcc.ac.uk/resource
• AHDS advice on creating digital resources
  http//www.ahds.ac.uk/creating/index.htm/

26

• Tools and resources to help with the DCC Curation
  Lifecycle stages
• Ingest and Store
• AHDS recommended stable formats for different
  types of data http//www.ahds.ac.uk/depositing/de
  posit-formats.htm
• Access, Use, Re-use
• DCC Resource Centre http//www.dcc.ac.uk/resource

• DCC Helpdesk http//www.dcc.ac.uk/helpdesk
• DCC Legal Blog http//dccblawg.blogspot.com/
• DCC Briefing Papers (particularly Data
  Protection) http//www.dcc.ac.uk/resource/briefin
  g-papers/

27

• Tools and resources to help with the DCC Curation
  Lifecycle stages
• Appraise and Select
• Data Audit Framework tool http//www.data-audit.e
  u/
• DCC Briefing Paper and Curation Manual chapter on
  Appraisal and Selection http//www.dcc.ac.uk/res
  ource/briefing-papers/ http//www.dcc.ac.uk/resou
  rce/curation-manual/chapters/
• US Geological Survey selection and appraisal
  toolkit

28

• Tools and resources to help with the DCC Curation
  Lifecycle stages
• Preservation Action
• Dr. Manfred Thallers Fileshooter tool
• Good for assessing file format robustness using
  your own success metrics.
• http//github.com/mcarden/shotgun/blob/39761fdd190
  faa47e9be09901782cda6d9f4f687/shotGun.h
• PLANETS Testbed and Methodology
  http//www.planets-project.eu/
• DCC Curation Manual http//www.dcc.ac.uk/resource
  /curation-manual/chapters /
• Transform
• DCC Briefing Papers (particularly
  Interoperability) http//www.dcc.ac.uk/resource/b
  riefing-papers/

29

• CHECKLISTS Conceptualise
• ? Get into the habit of equating data
  curation with good research.
• ? Know what your funding body expects you to do
  with your data and for how long. Assess your
  ability to be able to meet these expectations
  (i.e., do you need additional funding or staff?)
• ? Determine intellectual property rights from
  the outset and ensure they are documented.
• ? Identify any anticipated publication
  requirements (embargoes, restrictions on
• publishing over multiple sites)
• ? Identify and document specific roles and
  responsibilities as early as possible.

30
CHECKLISTS Create and/or Receive
31

• CHECKLISTS Ingest and Store

32
CHECKLISTS Access and Reuse ? Know what you
want users to be able to do with your data and
for how long. ? Pin down and communicate the
significant properties of your data. ? Ensure
that any restrictions on access and use are
communicated and respected. ? Ensure that you
provide enough context to ensure that your data
can be located and used either by the
originally designated user community or new users
over time. ? Ensure you clearly articulate any
citation requirements and usage statistics that
you require at the point of ingest so that
repository managers know how your data should be
cited if it is reused.
33

• CHECKLISTS Appraise and Select (1)

34

• CHECKLISTS Appraise and Select (2)

35

• CHECKLISTS Preservation Action
• ? Know what you want people to be able to do with
  your data this will impact many aspects
  (formats selected for long term storage,
  compression, etc)
• Pin down the significant properties of your
  data and communicate them make sure that the
  people carrying out preservation actions know
  what they are. This might be through metadata or
  other means.
• Dont be afraid to be critical when reviewing
  best practice and recommended approaches. They
  might work for the specific scenario for which
  they were created but not for you. Do you know
  the criteria used to rate things like preferred
  formats?
• ? Document preservation actions so that people
  know what has been done to the data over time.
• ? Once youve gone through the exercise of
  producing a sound data management plan, youll
  be able to reuse many aspects of it so each
  project data management plan will not need the
  same level of effort to complete.
