Assembly Code

1

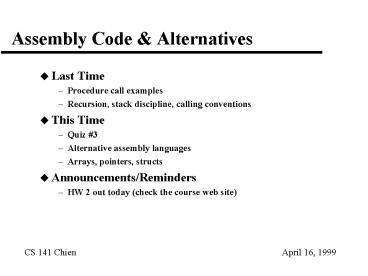

Assembly Code Alternatives

• Last Time
• Procedure call examples
• Recursion, stack discipline, calling conventions
• This Time
• Quiz 3
• Alternative assembly languages
• Arrays, pointers, structs
• Announcements/Reminders
• HW 2 out today (check the course web site)

2
Full MIPS Calling Conventions

• 0 Constant 0
• AT 1 Reserved for Asm and OS
• v0-v1 2-3 Return Values
• a0-a3 4-7 Arguments
• t0-t9 8-16,24,25 Caller saved Registers
• s0-s7 16-23 Callee saved Registers
• k0-k1 26-27 Reserved for Asm and OS
• gp 28 Global Pointer
• sp 29 Stack Pointer
• fp 30 Frame Pointer (base of stack frame)
• 31 Return address from jal

3
Perspective on the MIPS Instruction Set

• definitely a RISC Reduced Instruction Set
  Computer
• Instructions are simple and regular
• There are only a modest number of operation codes
• There are VERY few addressing modes
  (displacement, some PC-relative)
• Instructions are all the same size
• A few fixed formats for the instructions
• One of the original academic RISC projects that
  went commercial... (the other is the SPARC -- Sun
  architecture)

4
Assembly Overview for MIPS architecture

• Approximately....
• 40 Add class opcodes
• 20 control transfer (Jump and Branch)
• 25 memory instructions
• 25 Floating point instructions
• 5 miscellaneous
• gt still nearly 150 instructions
• 3 formats, all 32 bits
• only 2 addressing modes
• 32 general purpose registers

5
MIPS Overview (cont.)

• gt Most of these features aid the implementation
  (fast, simple)
• Simple instruction sets are good for exposition
  of the minimal functionality required.
• gt Not all instruction sets are this way...
• Why?
• Simple parametric choices
• Evolution and learning how to do things better.
• Previously, lots of assembly code was written by
  programmers, so focus on providing higher level
  interfaces

6
MIPS ISA Tradeoffs
6 bits
5 bits
5 bits
5 bits
5 bits
6 bits
OP
rs
rd
sa
funct
rt
OP
rs
rt
immediate
OP
target

• What if?
• 64 registers
• 20-bit immediates
• 4 operand instruction (e.g. Y AX B)

7
Significant Design Points

• 80x86 -- most popular processor (32 and 64 bit)
• PowerPC -- commercial RISC architecture
• VaX -- commercial CISC architecture
• Design alternative
• provide more powerful operations
• goal is to reduce number of instructions executed
• danger is a slower cycle time and/or a higher CPI
• Sometimes referred to as RISC vs. CISC
• virtually all new instruction sets since 1982
  have been RISC
• VAX minimize code size, make assembly language
  easy instructions from 1 to 54 bytes long!
• Well look at 80x86, PowerPC, VAX

8
80x86

• 1976-8 Intel 8080/8085
• 1978 The Intel 8086 is announced (16 bit
  architecture)
• 1980 The 8087 floating point coprocessor is
  added
• 1982 The 80286 increases address space to 24
  bits, instructions
• 1985 The 80386 extends to 32 bits, new
  addressing modes
• 1989-1995 The 80486, Pentium, Pentium Pro add a
  few instructions (mostly designed for higher
  performance)
• 1997 MMX is added
• 1999 Katmai (Streaming SIMD extension -SSE)

9
80x86 (cont.)

• How instructions were chosen, very strict
  limitations
• Memory constraints
• Registers data (8) and address (segment 6)
• 8,16,32-bit instructions (compatibility)
• 2-address instruction set
• add r1,r2
• range of instruction formats, and instruction
  lengths
• Instructions from 1 to 17 bytes long
• one operand must act as both a source and
  destination
• one operand can come from memory
• complex addressing modes e.g., base or scaled
  index with 8 or 32 bit displacement

10
80x86 (cont. 2)

• prefixes as an extension of formats
• built-in procedure call and return instructions
• Ex 9 ways to clear a register
• Saving grace
• the most frequently used instructions are not too
  difficult to build
• compilers avoid the portions of the architecture
  that are slow
• But, not really complex, due to chip size limits.
• See your textbook for a more detailed description

11
PowerPC

• Indexed addressing
• example lw t1,a0s3 t1Memorya0s3

• What do we have to do in MIPS?
• Update addressing
• update a register as part of load (for marching
  through arrays)
• examplelwu t0,4(s3) t0Memorys34s3s3
  4
• What do we have to do in MIPS?
• Others
• a special counter register bc Loop
• decrement counter, if not 0 goto loop

12
Key Points

• MIPS is a general-purpose register, load-store,
  fixed-instruction-length architecture.
• MIPS is optimized for fast pipelined performance,
  not for low instruction count
• Four principles of IS architecture
• simplicity favors regularity
• smaller is faster
• good design demands compromise
• make the common case fast

13
A Modern Alternative the IBM/Motorola PowerPC
Architecture

• Designed 1989 / 1993
• Leverages RISC ideas
• 32 general purpose registers, segment registers
  for larger address space
• simple instruction set, few compound operations
  added for critical inner loop operations
• autoincrement/decrement modes
• multiply/accumulate
• branch architecture condition codes, multiple
  sets, separate test and use of information,
  distinct namespace
• Designed for multiple issue, a modern RISC?
• All of these machines are getting quite complex.

14
A high-end design point DEC VAX

• VAX (Virtual Address Extension)
• 11/730-780, 1978-1987
• 8xxx series, 1988 - present, 16 data registers, a
  few special
• Orthogonal Architectures -gt opcodes and all
  addressing modes
• Many operations 250, many addressing modes (8),
  all possible combinations, hardware must deal
  with these
• Many formats, alignment of fields dependent on
  the addressing modes
• Complex operations like polynomial evaluate,
  block move
• Special call/return instructions
• Execution time from 5 - 5,000 cycles, extremely
  complex implementations
• Wulf subsetting argument, compilers

15
What is RISC vs. CISC?

• Debate about instruction set complexity
• Mostly over, since compilers deal best with
  simple instruction sets, and eases
  implementation, everyone subscribes.
• Many shades of grey in RISC iness
• Most implementations are extremely complex (5M to
  50M transistors)
• Simple implementation is not a strong argument
• Ability to achieve high clock speed, high
  performance is the major motivation now.

16
Summary

• Alternatives in instruction set architecture
• Driven by programming and implementation issues
• Can see the programming issues
• Will explore implementation issues in second
  third of the class
