Software Architecture and Data Model

1

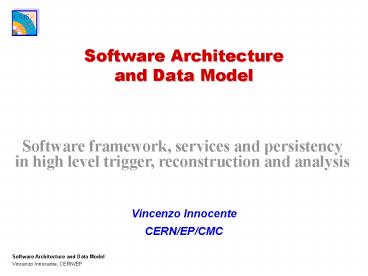

Software Architecture and Data Model
Software framework, services and persistency in
high level trigger, reconstruction and analysis

• Vincenzo Innocente
• CERN/EP/CMC

2
CMS (offline) Software
Quasi-online Reconstruction
Environmental data
Slow Control
Online Monitoring
store
Request part of event
Store rec-Obj
Request part of event
Event Filter Objectivity Formatter
Request part of event
store
Persistent Object Store Manager Object Database
Management System
Store rec-Obj and calibrations
store
Request part of event
Data Quality Calibrations Group Analysis
Simulation G3 and or G4
User Analysis on demand
3
Requirements (from the CTP)

• Multiple Environments
• Various software modules must be able to run in a
  variety of environments from level 3 triggering,
  to individual analysis
• Migration between environments
• Physics modules should move easily from one
  environment to another (from individual analysis
  to level 3 triggering)
• Migration to new technologies
• Should not affect physics software module

4
Requirements (from the CTP)

• Dispersed code development
• The software will be developed by
  organizationally and geographically dispersed
  groups of part-time non-professional programmers
• Flexibility
• Not all software requirements will be fully known
  in advance
• Not only performance
• Also modularity, flexibility, maintainability,
  quality assurance and documentation.

5
CMS Data Model RD

• 95-96 RD41 --- OO Detector Reconstruction
• Detector model, Local hit cache, Pattern
  recognition
• 95-97 RD45 --- OO Event Model (persistent)
• Event structure, Raw data, Reconstructed objects
• 95-97 RD45 --- Calibration Database
• Time dependent data, Versioning, Experience with
  Objectivity
• 12/96 CTP decision to use OO and ODBMS
• 97- present GIOD
• Many clients access over LAN and WAN
• 97-98 Test-Beam (H2, X5)
• OO Daq, Online filtering, ODB population
• 99-00 ORCA production
• MetaData, concurrent jobs, multi-threading, RT
  dynamic loading
• 2001 Milestone on ODBMS vendor choice

6
Use Cases(current functionality in ORCA)

• Simulated Hits Formatting
• Digitization of Piled-up Events
• Test-Beam DAQ Analysis
• L1 Trigger Simulation
• Track Reconstruction
• Calorimeter Reconstruction
• Global Reconstruction
• Physics Analysis

7
Reconstruction Scenario

• Reproduce Detector Status at the moment of the
  interaction
• front-end electronics signals (digis)
• calibrations
• alignments
• Perform local reconstruction as a continuation of
  the front-end data reduction until objects
  detachable from the detectors are obtained
• Use these objects to perform global
  reconstruction and physics analysis of the Event
• Store Retrieve results of computing intensive
  processes

8
Reconstruction Sources
9
Components

• Reconstruction Algorithms
• Event Objects
• Physics Analysis modules
• Other services (detector objects, environmental
  data, parameters, etc)
• Legacy not-OO data (GEANT3)
• The instances of these components require to be
  properly orchestrated to produce the results as
  specified by the user

10
CARFCMS Analysis Reconstruction Framework
Application Framework
Physics modules
Reconstruction Algorithms
Event Filter
Data Monitoring
Physics Analysis
Calibration Objects
Event Objects
MetaData Objects
Utility Toolkit
11
Architecture structure

• An application framework CARF (CMS Analysis
  Reconstruction Framework),
• customisable for each of the computing
  environments
• Physics software modules
• with clearly defined interfaces that can be
  plugged into the framework
• Persistency Service
• integrated into the framework to provide a
  transparent interface
• to physics modules
• A service and utility Toolkit
• that can be used by any of the physics modules
• The framework (and the utility Toolkit)
  effectively shields physics modules from the
  underlying technology without penalizing
  performances

12
Persistency Services

• Persistent Object Management is fully integrated
  in
• CARF using an ODBMS
• CARF manages
• multi-threaded transactions
• creation of databases and containers
• meta data and event collections
• physical clustering of event objects
• persistent event structure and its relations with
  transient objects
• Use of Database is transparent to detector
  developers
• users access persistent objects through C
  pointers

13
Software Architecture and Data ModelData Model

• Vincenzo Innocente
• CERN/EP/CMC

14
HEP Data

• Environmental data
• Detector and Accelerator status
• Calibrations, Alignments
• Event-Collection Meta-Data
• (luminosity, selection criteria, )
• Event Data, User Data

Navigation is essential for an effective physics
analysis Complexity requires coherent access
mechanisms
15
Do I need a DBMS? (a self-assessment)

• Do I encode meta-data (run number, version id) in
  file names?
• How many files and logbooks I should consult to
  determine the luminosity corresponding to a
  histogram?
• How easily I can determine if two events have
  been reconstructed with the same version of a
  program and using the same calibrations?
• How many lines of code I should write and which
  fraction of data I should read to select all
  events with two ?s with p?gt 11.5 GeV and
  ?lt2.7?
• The same at generator level?
• If the answers scare you, you need a DBMS!

16
Can CMS do without a DBMS?

• An experiment lasting 20 years can not rely just
  on ASCII files and file systems for its
  production bookkeeping, condition database,
  etc.
• Even today at LEP, the management of all real and
  simulated data-sets (from raw-data to n-tuples)
  is a major enterprise
• Multiple models used (DST, N-tuple, HEPDB,
  FATMAN, ASCII)
• A DBMS is the modern answer to such a problem
  and, given the choice of OO technology for the
  CMS software, an ODBMS (or a DBMS with an OO
  interface) is the natural solution for a coherent
  and scalable approach.

17
A BLOB Model
Event
Event
DataBase Objects
RecEvent
RawEvent
Blob a sequence of bytes. Decoding it is a
user responsibility.
Why should Blobs not be stored in the DBMS?
18
Raw Event
RawData are identified by the corresponding
ReadOut. RawData belonging to different detector
s are clustered into different containers. The
granularity will be adjusted to optimize I/O
performances. An index at RawEvent level is
used to avoid the access to all containers in
search for a given RawData. A range index at
RawData level could be used for fast
random access in complex detectors.
RawEvent
ReadOut
ReadOut
...
RawData
RawData
Index implemented as an ordered vector of pairs
19
CMS Reconstructed Objects
Reconstructed Objects produced by a given
algorithm are managed by a Reconstructor.
RecEvent
A Reconstructed Object (Track) is split into
several independent persistent objects to allow
their clustering according to their access
patterns (physics analysis, reconstruction,
detailed detector studies, etc.). The top level
object acts as a proxy. Intermediate
reconstructed objects (RHits) are cached by value
into the final objects .
S-Track Reconstructor
esd
Track SecInfo
rec
S Track
..
Track Constituents
aod
Vector of RHits
S Track
20
Physical clustering
21
User Data

• Histograms and N-tuples are user event-data
  and, for any serious use, require a level of
  management and book-keeping similar to the
  experiment-wide event data.
• The same tools can be used with the advantage of
  keeping the interface and the user environment
  consistent.
• What counts is the efficiency and reliability of
  the analysis
• The most sophisticated histogramming package is
  useless if you are unable to determine the
  luminosity corresponding to a given histogram!

22
Objectivity

• CMS adopted the object paradigm in the CTP
• At the same time, in close collaboration with
  RD45, an evaluation of various object storage
  solutions was undertaken and Objectivity/DB was
  chosen as baseline product for further
  evaluation, tests and prototypes in particular
  for CMS data related milestones.
• Objectivity/DB provides
• scalable architecture in the PB range
• full multi-platform support
• data distribution and MSS interface through a
  customizable slim data server (AMS)
• very efficient C binding close to ODMG standard
  with minimal proprietary parsing

23
Objectivity Features CMS (really) uses

• Persistent objects are real C (and Java)
  objects
• coherent access to any kind of object
• I/O cache (memory) management
• no explicit read and write
• no need to delete previous event
• Smart-pointers (automatic id to pointer
  conversion)
• Efficient containers by value (VArray)
• Full direct navigation in the complete federation
• from MetaData to Event-Data
• from Event-Data back to Meta-Data
• Flexible object physical-clustering
• Object Naming
• as top level entry point (at collection level)
• as rapid prototyping tool

24
More ODBMS (Objy) Advantages

• Novel access methods
• A collection of electrons with no reference to
  events
• Direct reference from event-objects to condition
  database
• Direct reference to event-data from user-data
• Flexible run-time clustering of
  heterogeneous-type objects
• cluster together all tracks or all objects
  belonging to the same event
• Real DB management of reconstructed objects
• add or modify in place and on demand parts of an
  event

25
CMS Experience

• Designing and implementing persistent classes not
  harder than doing it for native C classes.
• Easy and transparent distinction between logical
  associations and physical clustering.
• Fully transparent I/O in a distributed
  environment, with performances essentially
  limited by disk and network speed (random
  access).
• File size overhead (5 for realistic CMS object
  sizes) not larger than for other products such
  as ZEBRA, BOS etc.
• Objectivity/DB (compared to other products we are
  used to) is robust, stable and well documented.
  It provides also many additional useful
  features.
• All our tests show that Objectivity/DB can
  satisfy CMS requirements in terms of performance,
  scalability and flexibility

26
CMS Experience

• There are additional configuration elements to
  care about ddl files, schema-definition
  databases, database catalogs
• organized software development rapid prototyping
  is still possible, its integration in a product
  should be done with care
• Now fully integrated in CMS cvs and SCRAM
  environments
• System requires tuning to avoid performance
  degradations
• monitoring of running applications is essential,
  off-the-shelf solutions often exist (BaBar,
  Compass)
• CMS HLT production is now at the leading edge of
  monitoring and tuning
• Objectivity/DB is a bare product. It does not
  impose a framework
• integration into a framework (CARF) is our
  responsibility
• Objectivity is slow to apply OUR changes to their
  product
• Is this a real problem? Do we really want a
  product whose kernel is changed at each user
  request?

27
CMS Experience (missing features 99)

• Scalability 64K files are not enough (Scheduled
  for Dec 2000)
• containers are the natural Objectivity units,
  still things for which the OS (and files) is
  preferred
• bulk data transfer (to mass-storage, among
  sites)
• access control, space allocation to users, etc.
• Efficient and secure data-server (AMS ok in
  5.2!!!)
• with MSS and WAN support
• Support for private user classes and user data
  (w.r.t. experiment-wide ones)
• many custom solution based on multi-federation
• Active schema
• User Application Layer
• like a rapid prototyping environment

28
Objy-HEP Building a Partnership

• Objectivity recognize that HEP requirements
  anticipate future requirements of other clients
• the next versions will include solutions to
  almost all our improvement requests
• The New AMS has been essentially developed at
  SLAC
• CERN has built version 5.2.1 for Linux RH6.1
• CERN will help in building a full port to Solaris
  CC 5
• CERN will prototype a new lockserver monitor
• It is essential to continue to develop this
  partnership and
• increase the trust of both partners in each
  other.

29
Alternatives ODBMS

• Versant is a viable commercial alternative to
  Objectivity
• do we have time to build an effective partnership
  (eg. MSS interface)?
• Espresso (by IT/DB)
• we need to be able to produce a fully fledged
  ODBMS in a couple of years once the
  proof-of-concept prototype is ready
• CMS will test Espresso in the context of CARF
  this summer
• Migrate CARF from Objectivity to another ODBMS
• We expect that it would take about one year
• Such a transition will not affect the basic
  principles of CMS software architecture and Data
  Model
• Will involve only the core CARF development team.
• Will not disrupt production and physics analysis

30
Alternatives ORDBMS

• ORDBMS (Relational DB with OO interface) are
  appearing on the market
• First products look targeted to those who have
  already a relational system and wish to make a
  transition to OO
• More realistic Object Oriented products could
  appear in the near future
• Evaluation of their usage in HEP will start soon.
• No experiment is using (or planning to use) them
• IT/DB is in contact with Oracle and is planning
  to evaluate their OO product.
• Still early to assess impact of ORDBMS on CMS
  Data Model and on migration effort

31
Fallback Solution (less functionality) Hybrid
Models

• (R)DBMS for MetaData, Calibration, etc
• Object-Stream files for event data
• Ad-hoc networked dataserver and MSS interface
• Less flexible
• Rigid split between DBMS and event data
• One way navigation from DBMS to event data
• More complex
• Two different I/O systems
• More effort to learn and maintain
• This approach will be used by several experiment
  at BNL and FermiLab
• (RDBMS not directly accessible from user
  applications)
• CMS and IT/DB are following closely these
  experiences.
• We believe that this solution could seriously
  compromise our ability to perform our physics
  program competitively

32
ODBMS Summary

• A DBMS is required to manage the large data set
  of CMS
• (including user data)
• An ODBMS provides a coherent and scalable
  solution for managing data in an OO software
  environment
• Once an ODBMS will be deployed to manage the
  experiment data, it will be very natural to use
  it to manage any kind of data related to detector
  studies and physics analysis
• Objectivity/DB is a robust and stable kernel
  ideal to be used as the base to build a custom
  storage framework
• Objectivity starts to respond to our peculiar
  requirements
